  OBDSOS PRODUCTS Car Key Programmer
Product ID SP326-C
Product Name OBDSTAR X300 DP Plus X300 PAD2
Product Price USD1350
Actual Weight (Kg) 5.1
Volumetric Weight (Kg) 7.5
Package Size (cm) 52*18*40
Related Download
Order Quantity:
In Stock
Frequently Buy Together +   Related Products

Name: OBDSTAR X300 DP Plus X300 PAD2


OBDSTAR X300 DP Plus X300 PAD2 is a new Android-based vehicle trouble diagnostic device developed for Internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile
intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile Internet, this device integrates more application and service, such as Maintenance Database, Remote Assistant, One Key Upgrade etc.

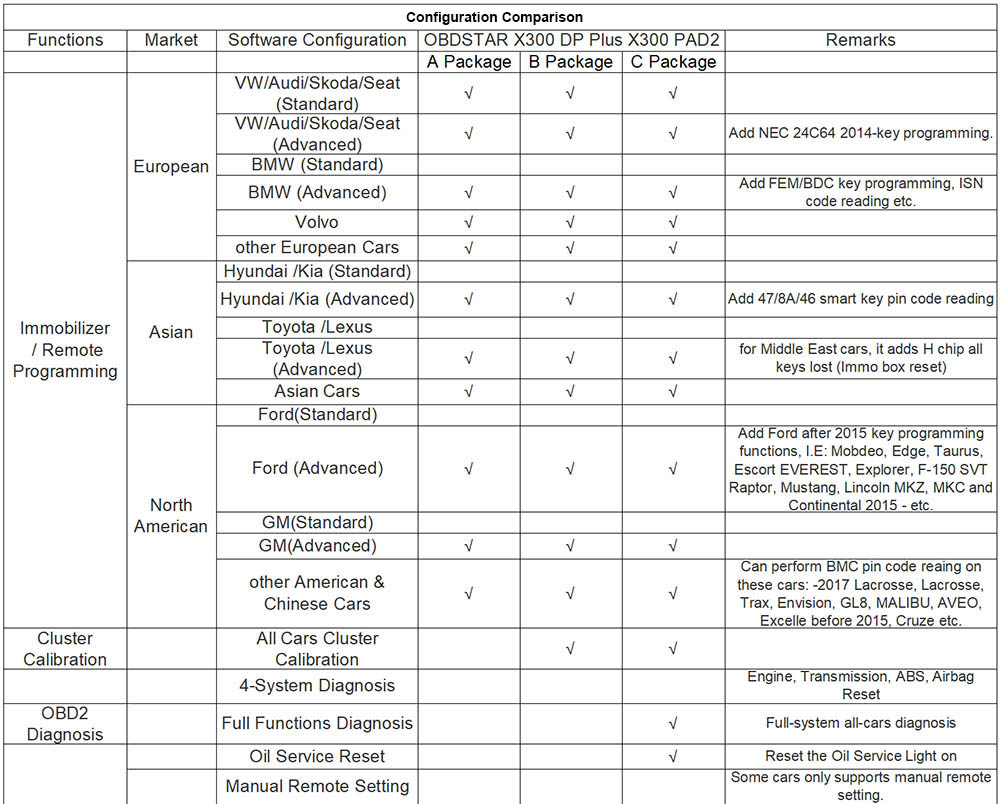

3 Kinds Configurations:

A Package Basic Version (SP326-C):
Immobilizer + Special Function(EEPROM + Key Renewing) + Adapters(P001 Programmer + C001Circuit Board + C002 Circuit Board + W001 Data Cable + W002 Data Cable + W003 Data Cable + Toyota Smart Key Emulator) + others(Ignition Coil + Remote Tester)

B Package (SP326-B):
Immobilizer + Special Function(EEPROM + Key Renewing) + Mileage Correction + Adapters(P001 Programmer + C001 Circuit Board + C002  Circuit Board + W001 Data Cable + W002 Data Cable + W003 Data Cable + Toyota Smart Key Emulator) + others(Ignition Coil + Remote Tester)

C Package Full Version(SP326):

Immobilizer + Mileage Correction + Diagnosis + Special Function(Oil Rest + ABS + Battery Matching + ECU Programming + EPB + Throttle Programming + Airbag Rest + TPMS + Steering Angle Rest + OBD-II + DPF + Injector Code + Suspension Matching + Gear Learning + CVT Learning + EEPROM + Key Renewing + ECU Cloning) + Adapters(P001 Programmer + C001 Circuit Board + C002  Circuit Board + W001 Data Cable + W002 Data Cable + W003 Data Cable + Toyota Smart Key Emulator) + others(Ignition Coil + Remote Tester)


Reading DTCs
Clear DTCs
Read Data Stream etc.
Immobilizer System (Including Toyota Smart Key)
Cluster Calibrate
EEPROM Adapter
Battery Matching
CVT Learning
Gear Learning
TPMS(low tire) Reset
ECU Programming
Steering Angle Reset etc.


1. IMMO:
1). EEPROM
2). Renew Key
3). Key Programming
4). Remote Programming

2. Cluster Calibrate

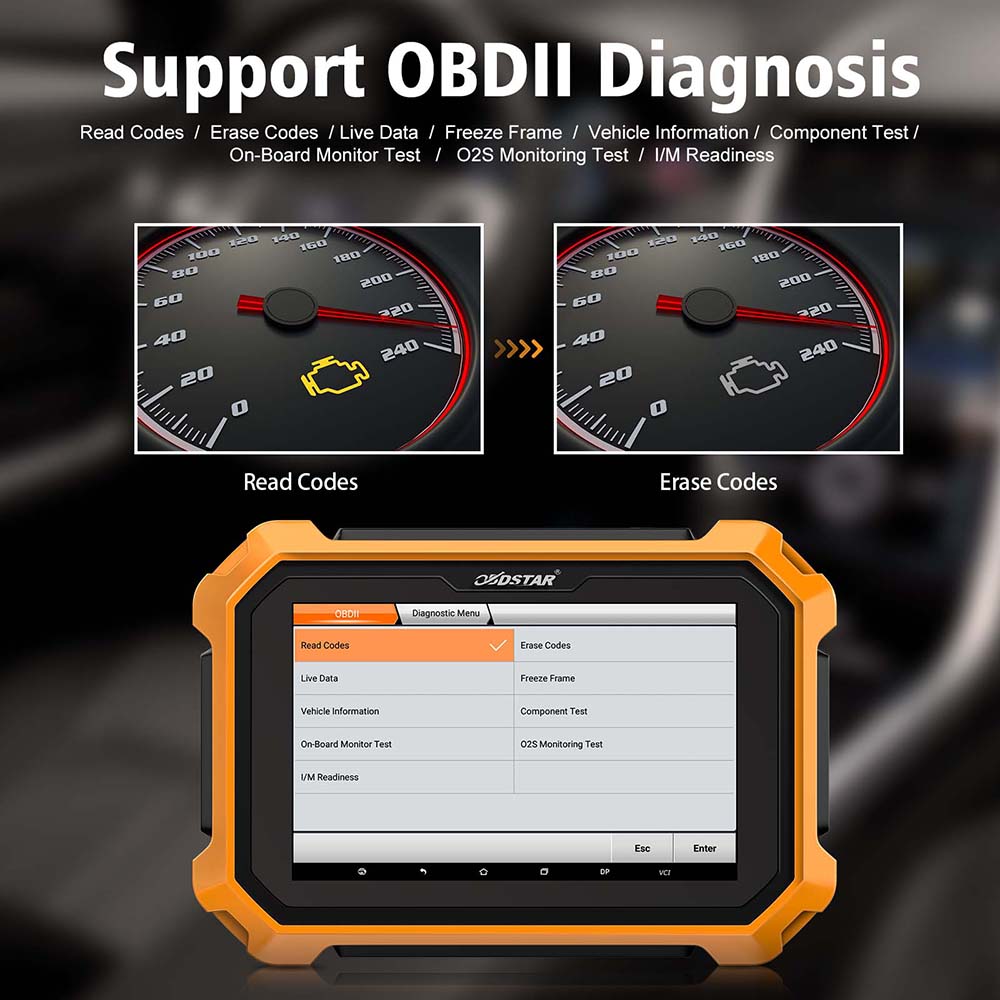

3. Diagnosis: realize all vehicle systems diagnosis

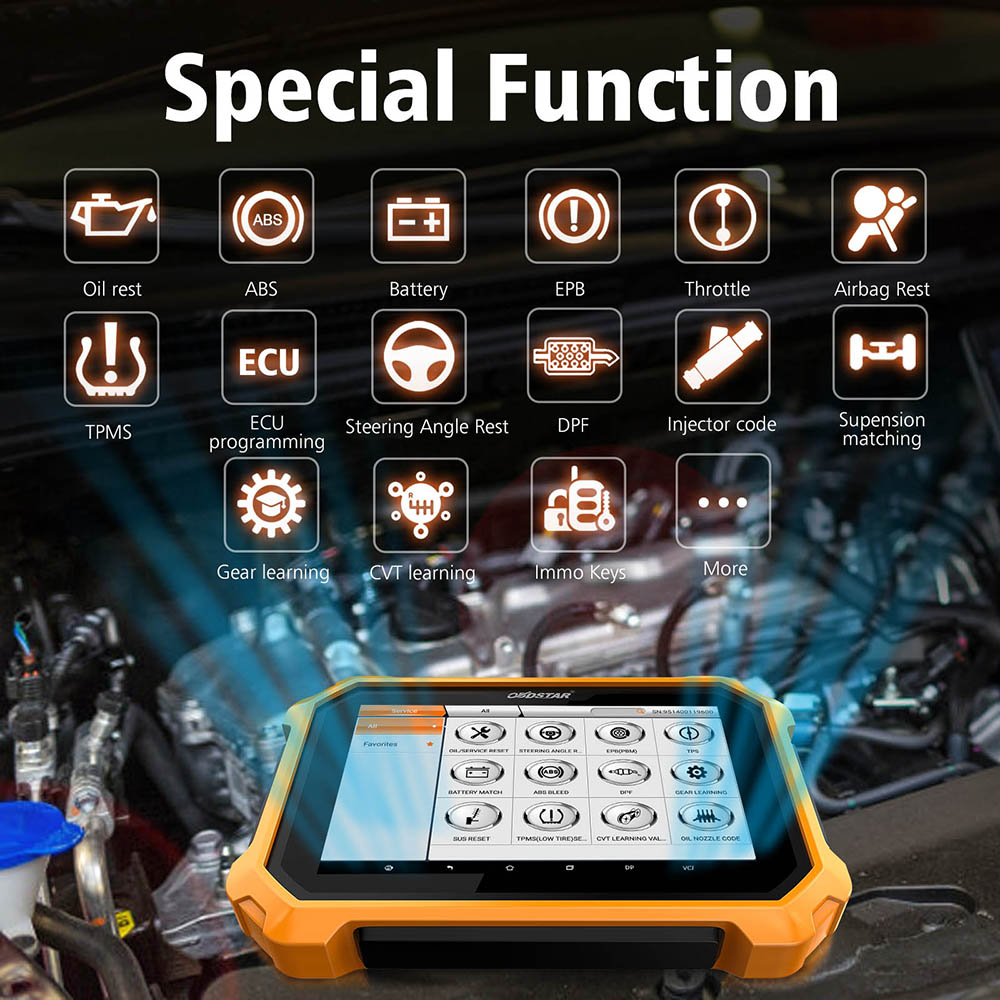

4. Special Functions:

TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/
Oil/Service Reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/Value Reset

5. Clone ECU

Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.

When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you will not need to go to the dealer shop to do the online programming or dismantle ECU to weld, read & write.

ECU Clone Benefits:
No need to go to 4S shop, convenient, fast and save money.
Simplify the operating steps, even the amateur can also operate.
No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.

6. Switch Activation Function

Nowadays, many car models secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.

However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CAN BUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CAN BUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

7. Adds the "Help" Function including Testable Car Models, Update Notice, Special Features, Help Instruction, Wiring Diagram etc.

Testable Car Models: The user can read the testable car models and year.

Update Notice: The user can read all of the update content.

Special Features: The user can read all of the special features and the functions that only X300 DP Plus supports.

Help Instruction: Built-in the guide and instruction for each car model or function.

Wiring Diagram: Built-in ECU wiring diagram, more intuitive and convenient.

8. Maintenance Database: equipped with powerful database.
9. Video Center: large amount of videos help users to operate device easily.
10. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
11. System Setting: set VCI formation, language, unit, data logging, user information etc.
12. Remote Assistance: achieve remote assistance by this function.
13. Report Center: record maintenance data logging and create reports during operation.

Hardware Features:

1. The built-in VCI box offers more stable communication.
2. The 8 inch touch screen offers better vision experience.
3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7 inch Pad, which need to be 100% charged before use.
4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve
6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
8. P001 Programmer is included in X300 PAD Plus(P001 Programmer = EEPROM/PIC 2-in-1 Adapter + RFID Adapter (VW Audi 4th / 5th IMMO Programming and other cars e.g.: Porsche, BMW, Fiat etc.) + Renew Key PCF79XX Adapter).
9. Adds the clip for reading SOP 8-Pin EEPROM.
10. Adds the cables for reading ECU via OBD (Used to clone ECU and Switch Activation).

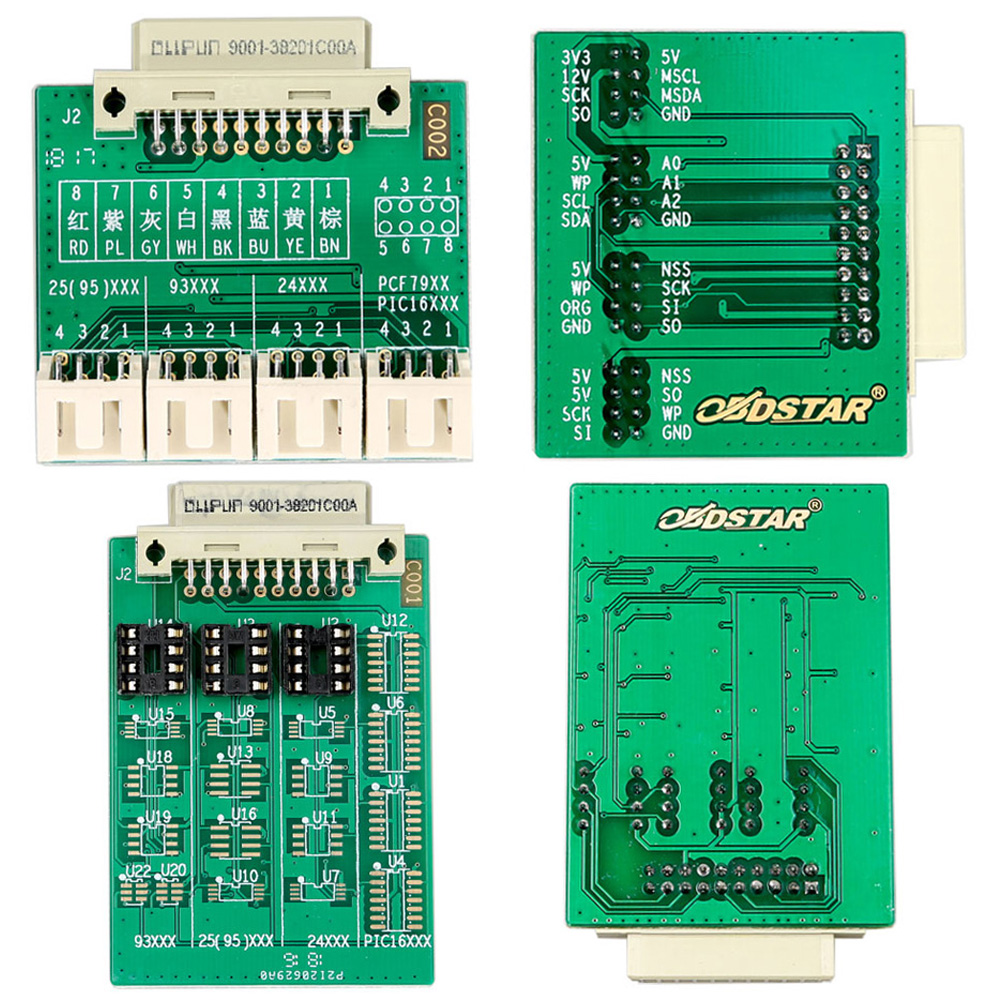

11. C001/C002 Circuit Board to read and write chip data with welding

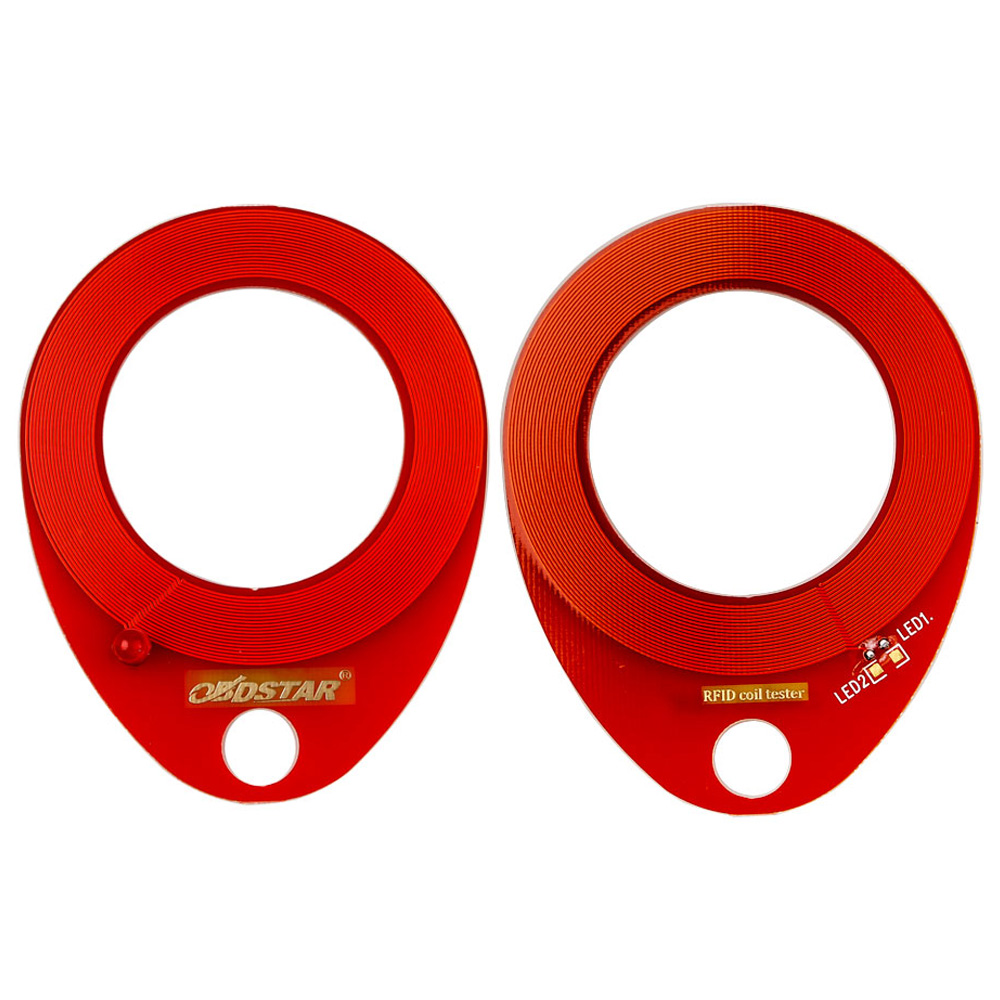

11. IMMO Induction Coil to detect the key induction coil failure of the vehicle.

Technical Parameter:

Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
Extension Memory Card: 32G Micro SD (TF) card supported
Memory Capacity: 1GB
Storage Capacity: 32GB
LCD: 8.0 inch
LCD Resolution: 1280*800
Touch Screen: capacitive touch screen
Camera: 5 mega pixel rear view camera
Battery: 3700mA rechargeable polymer lithium battery
Wi-Fi: supported
Working Temperature: -10 to 55 degree centigrade
Storage Temperature: -20 to  70 degree centigrade
Main Unit Weight: about 1Kg
Dimension: 254*174**35mm

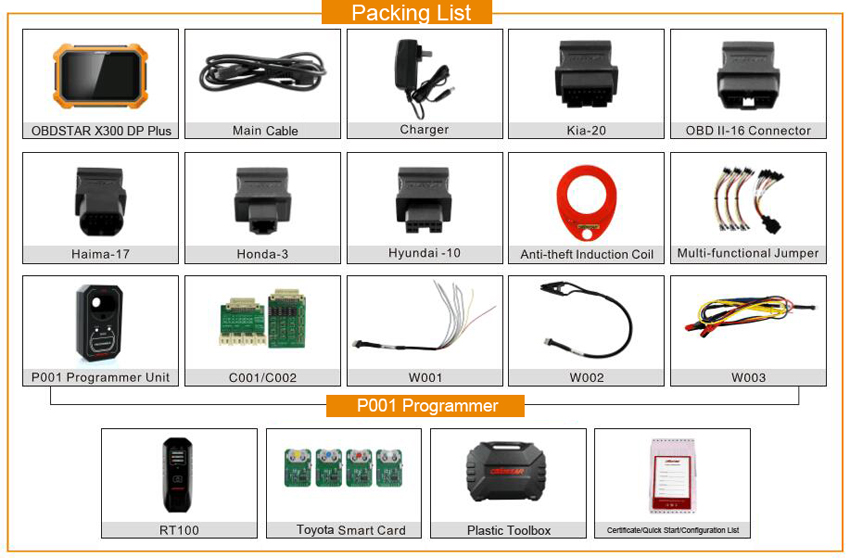

Packing List:

OBDSTAR X300 DP Plus X300 Pad2
Main Cable
OBD2-16 Connector
Honda-3 Connector
Haima-17 Connector
Hyundai/Kia-10 Connector
Kia-20 Connector
IMMO Induction Coil
Multi-functional Jumper
P001 Programmer
C001 Circuit Board
C002 Circuit Board
W001 Data Cable
W002 Data Cable
W003 Data Cable

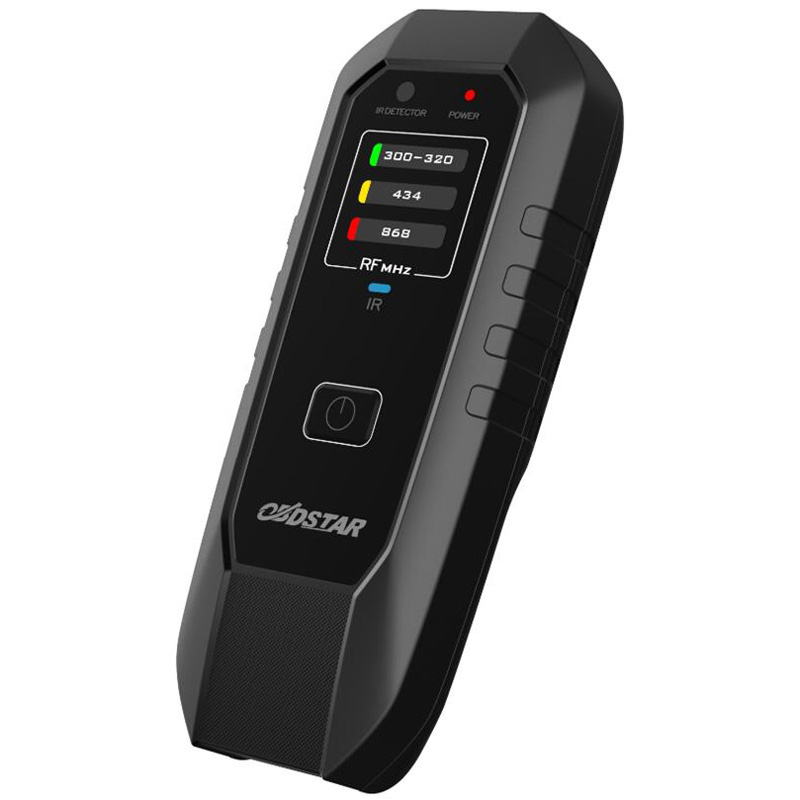

RT100 Remote Tester
Toyota Simulation Smart Keys(4 pcs)
User Manual
Quick Start Guide
Configuration List
12V2A DC Charger
Plastic Toolbox
Carrying Case
