  OBDSOS PRODUCTS Car Universal Diagnostic Tool Launch X431 Scanner

Product ID SP184

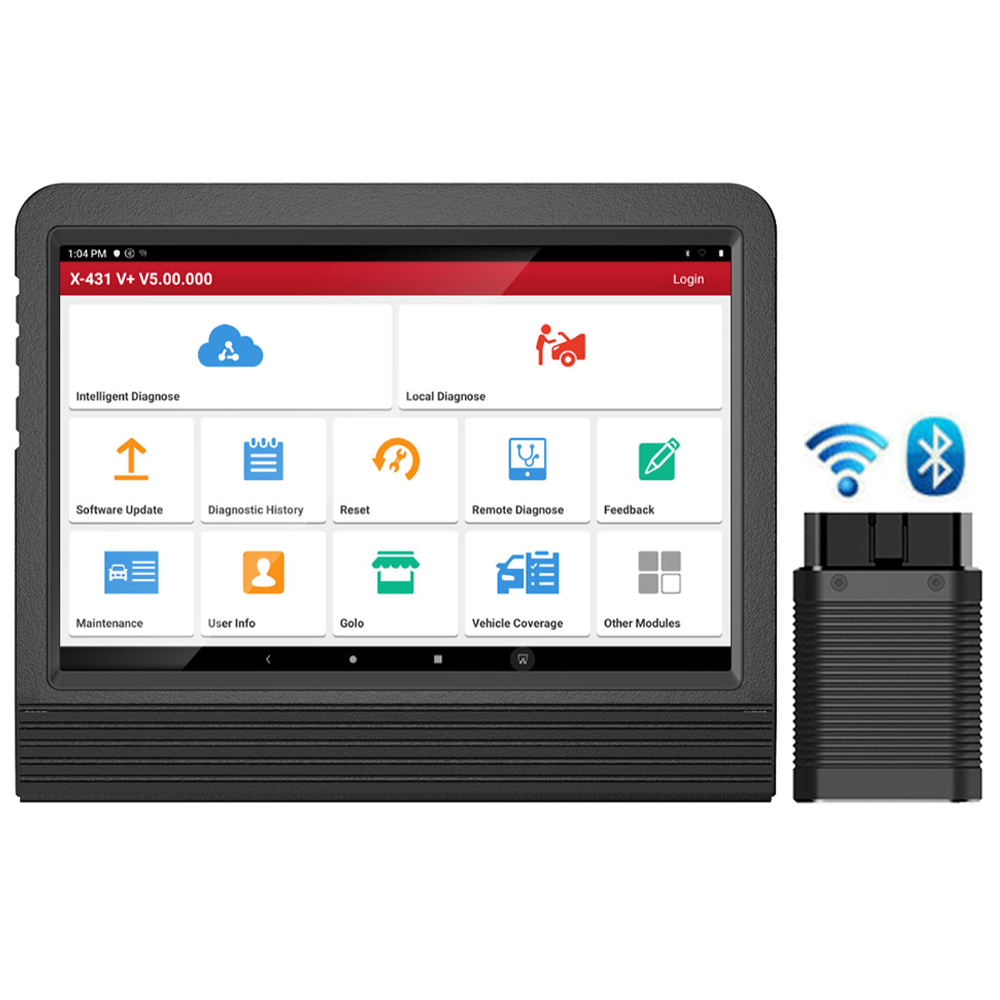

Product Name Launch X431 V+ WiFi / Bluetooth Full System Scanner with 1 Year Free Update Online
Product Price USD1150
Actual Weight (Kg) 7.8
Volumetric Weight (Kg) 9.5
Package Size (cm) 61*18*42
Related Download
Order Quantity:
In Stock



Frequently Buy Together +   Related Products
Description
Name: Launch X431 V+ WiFi / Bluetooth Full System Scanner with 1 Year Free Update Online

Description:

Launch X431 V+ is a high cost-effective automotive diagnostic device developed based on Android 9.0 System. It adopts Android 9.0 System, 8-core 1.8GHz processor, which runs faster and more stable. It is equipped with DBScar V connector as standard, which can be directly inserted into the slot of scanner tablet, easy to carry and not easy to be lost. Launch X-431 V+ can cover more than 98% of the car models in the market, realize the fault diagnosis of the whole system, and has many advantages such as strong diagnosis function and accurate test data.

Software Update: 1 year free update online

Supported Languages:

English, German, French, Spanish, Portuguese, Russian, Italian, Arabic, Turkish, Dutch, Greek, Hungarian, Polish, Danish, Persian, Romania, Serbia, Finnish, Swedish, Czech, Japanese, Korean, Chinese Simplified, Chinese Traditional

Highlights:

1. Extensive vehicle coverage, powerful diagnostic functions, and precise test result.

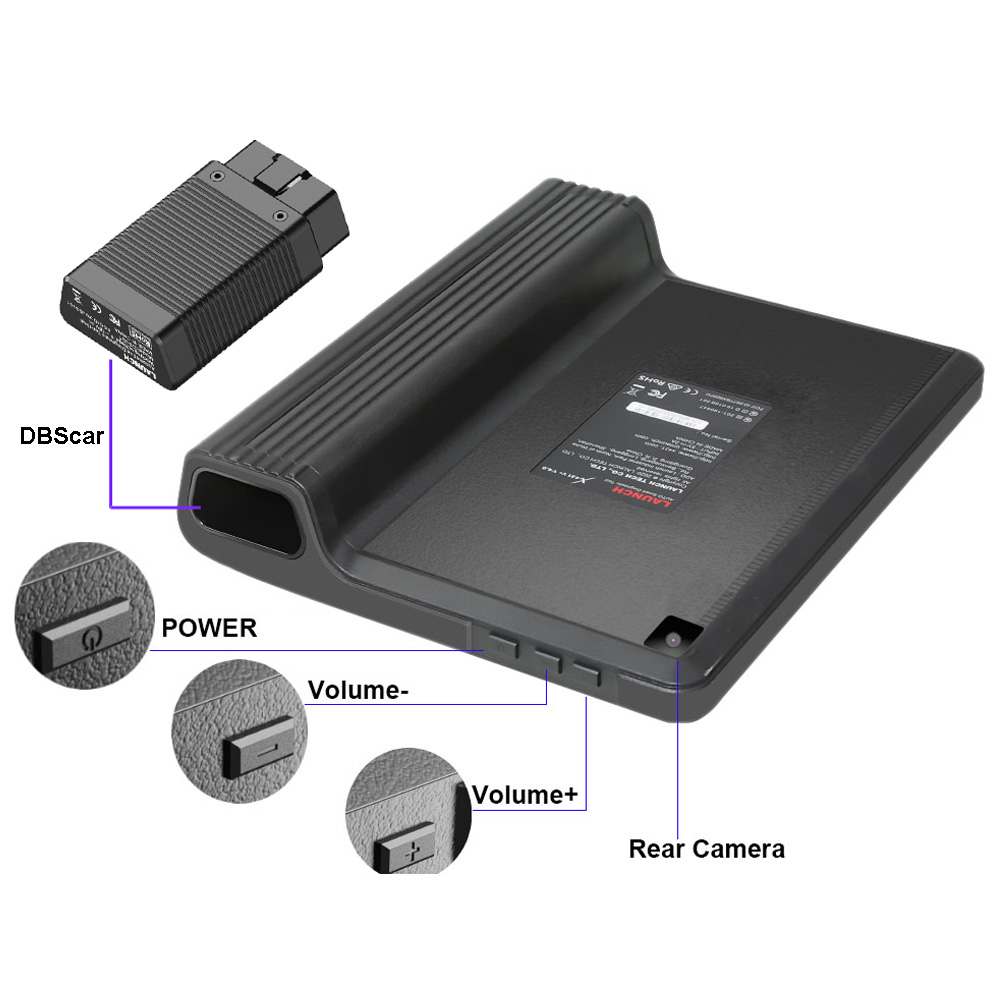

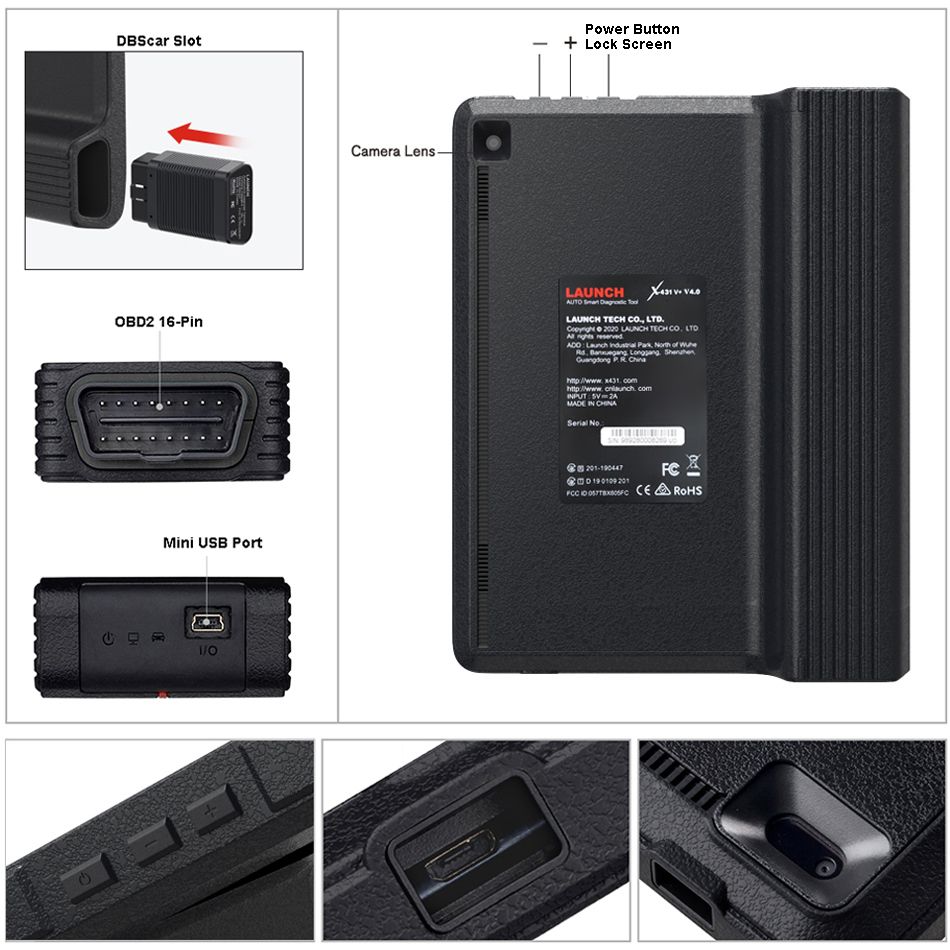

2. Equipped with DBScar 5 connector as standard, which can be directly inserted into the slot of scanner tablet, easy to use and not easy to be lost.
3. Adopts Android 9.0 System, 8-core 1.8GHz processor, which runs faster and more stable.
4. One-click update via Wi-Fi
5. Supports remote diagnosis.
6. Supports frequently 20 used special function.
7. No software download IP limitation: oversea download and update available
8. Supports expansion module (need to buy separately): Endoscope, Immobilizer Programmer and Wi-Fi Printer.

Notice:

For 2017 and later FCA Vehicles with Secure Gateway Module (SGW): Register with AutoAuth to enable your LAUNCH V+ scan tool to communicate with the FCA SGW Authentication System and bypass the SGM, so as to perform diagnostics and bi-directional without using a bypass cable.

Function List:

Full-System Diagnosis

Launch X431 V+ enables you to scan full control units for a number of cars such as Engine, ABS, SAS, Transmission, Powertrain, Fuel System, Emission System, Body System and so on. Therefore, there is no need to buy other tools for diagnosing systems, saving you much time and money from the long term. Automatically identify VIN upon connection to the vehicle for intelligent diagnosis.Read all OTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions.



Active Test & ECU Coding

Active Test
LAUNCH X431 V+ supports active test (Bi-directional Control) to request information or command a module to perform specific tests and functions. For instance, in the case of OBD-II generic information Mode 1, you can initiate a request for information from the powertrain control module, and the PCM responds by sending the information back to the scan tool for display. This LAUNCH X431 V+ also have the ability to actuate relays, injectors, coils, or perform system tests, etc.

ECU Coding
Because every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH X431 V+ is equipped with advanced ECU coding function for addressing the following issues:

1. After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.

2. By changing the code with the ECU coding, it’s easy to improve vehicle performance or stimulate high-end functions for the car.

3. ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

Service Functions

1. Oil Reset
Clear the oil light, reset the oil life systems every time the oil and oil filter are changed.

2. Steering Angle Calibration
Perform steering angle adjustment, clear steering sensor fault memory and turn off steering wheel warning light.

3. Electronic Parking Brake Reset
Reset the brake pad after repairs in electronic parking brake system are done. Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.

4. Battery Register & Battery Maintenance
Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.

5. ABS Bleeding
Perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS). When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

6. Electronic Throttle Position Reset & Learn
Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

7. Diesel Particulate Filter (DPF) Regeneration
Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance

8. Tire Pressure Monitor System Reset
Reset tire pressure and turn off the tire pressure MIL.

9. Gear Learning
Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced. Help the user to finish tooth learning after changing crankshaft in a car engine, so the new part can be used.

10. Anti-theft Matching (Immobilizer)
Clear the lost car key's information and program the new key into the ECU database to protect user's car from being stolen. (Help ECU to recognize the new keys when you need to add new keys.)

11. Fuel Injector Coding
Program in the new fuel injector numbers after replacement to replace the ones previously programmed into the ECU.

12. AFS Reset
It detects the light of the environment, then decides whether to automatically turn on the headlights or not. It can also adjust the headlights in time by monitoring the driving speed and body posture of the vehicle.

13. EGR Adaption
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

14. Gearbox Matching
Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.

15. Sunroof Service
Set the sunroof lock switch to be on / off according to weather, temperature, and memory.

16. SUS Reset
When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.
More Functions
Windows Calibration, Seats Calibration, Tire Reset, Language Change, A/F Reset, Coolant Bleed, Transport Mode, NOx Sensor Reset, Dblue Reset, Stop/Start Reset.

You can find 15 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic software menu.

2021 New Version Added Function

Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.
Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Anti-theft IMMO Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Power Balance: Compatible with Chrysler / GM / Ford etc.
Programmable Module Installation: Compatible with Ford / Mazda etc.
Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.
Actuator Test: Injector Test, Turn Off ACC Lane Keeping Assist System (LKAS), Turn On/Off Front and Rear Side ACM Solenoid, Turning the Fuel Pump On and Off, Cycling A/C, Clutch On and Off, Left Clutch Electromagnetic Coil Test,Acceleration Device Test, Oil Pressure Control Test,Dynamic Camera Aiming,Vehicle Level Position Calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes Tests, Parking Brake Motors, Wheel Speed Sensor Supply, Parking Brake Tests

(Vary by car, hundreds of actuation test functions). More functions and vehicle coverage is developing and waiting you to discover!

Auto VIN Tech
It supports quick diagnosis via one-button VIN scanning.

Bluetooth and Wi-Fi Enabled
You are able to do remote control as this tool can be used through Bluetooth or Wi-Fi. And via Bluetooth, it is simple for DBScar diagnostic connector to communicate with X431 V+.

Anti-theft Matching
This function can protect your car from being stolen by clearing the lost car key information and programming new key into the ECU database. Also known as keys programming.

Practical Remote Diagnosis
Not only users can launch the remote diagnosis with other diagnostic tools of LAUNCH family, which are equipped with this module as well, also they can ask for the remote control through phones, tablets, and computers etc. It has realized the reality that a mechanic can diagnose an abnormal vehicle which is even thousands of miles away.

Social Network
This vehicle code reader helps quickly retrieve vehicle history maintenance record so you can get a series of useful diagnostic references and recourse when you meet any problems in the process of repairing. In addition, you are able to connect with other users, sharing experiences of your automobile maintenance.

Supported Cars:

American
Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Hummer, Jeep, Lincoln, (Brazil) BX-Fiat, BX-GM

European:
Abarth, Alfa Romeo, Audi, Bentley, Benz, BMW, Bugatti, Citroen, Dacia, EU-Ford, Ferrari, Fiat, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW, (Ukraine) ZAZ, (Russia) GAZ, IZH, PAZ, SEAZ, VAZ

Asian
(Japan) Acura, Daihatsu, Honda, Infiniti, Isuzu, JP Isuzu, Lexus, Mazda, Mitsubishi, Nissan, Nissan GTR, Scion, Subaru, Subaru, Suzuki, TL Isuzu, Toyota, (Korea) Daewoo, Hyundai, KIA, Samsung, Ssangyong, (China) BAIC, Beijing, Changan, Changan-Ford, Changcheng, Changhe, CH Suzuki, DF Peugeot, DF Honda, DF Nissan, DF XK, Flyer, BYD, Fukang, Futian, Foton, Geely, Gonow, GZ Honda, Hafei, Haoqing, HC BMW, HN Mazda, Huachen, Isuzu, JMC, JAC TY, Jianghuai, Jiao, Jinlong, Joylong, Lifan, Liuwei-TY, Luxgen, NJ Fiat, Qirui-TY, Chery, Qoros, SAIC MG, Spark-TY, TJ Toyota, Trumpchi GAC, Weili, Xiaokang Dongfeng, Xili, Faw Tianjin, Xinkai, YQ Mazda, Zhongshun, Zhongtai, Zotye, Zhongxing, (Inida) Mahindra, Maruti, Tata, (Malaysia) Perodua, Proton, (Iran) MVM

Australian
AU-Ford, Holden

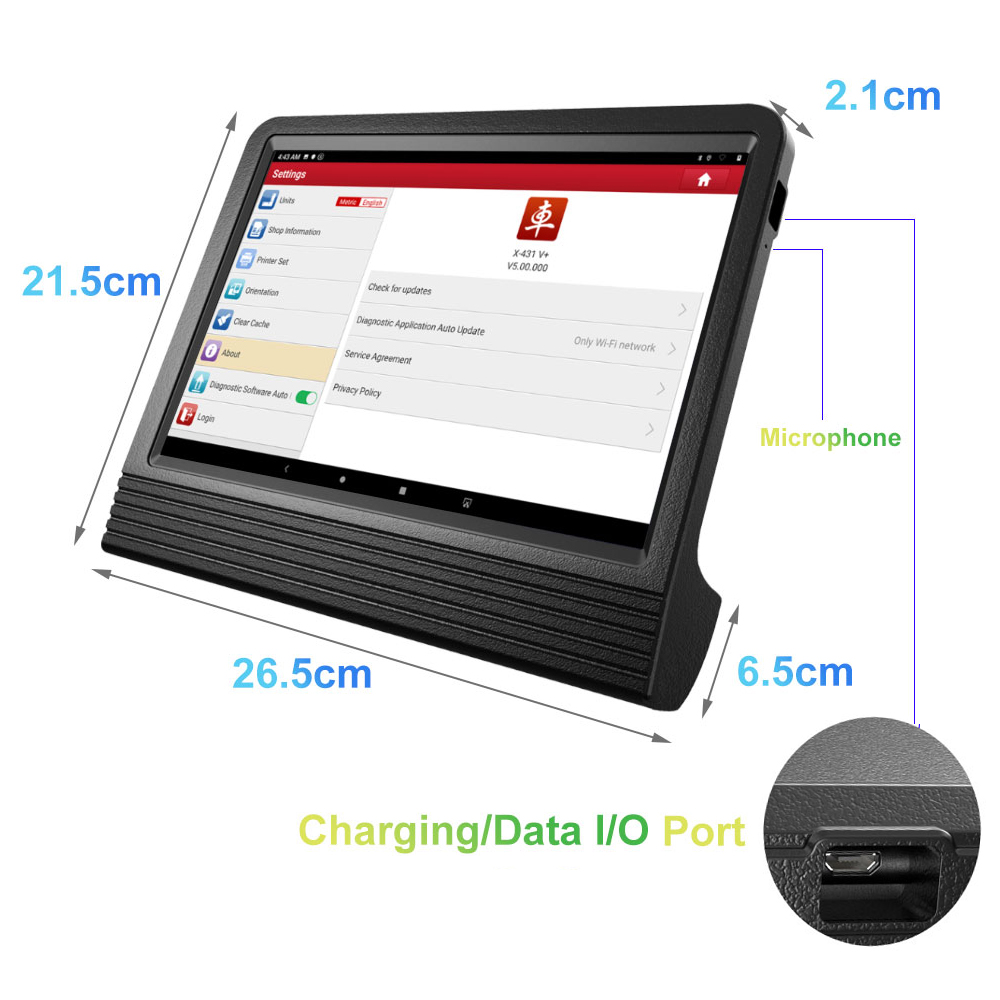

Specifications:

CPU: 8-core 1.8GHz Qualcomm Snapdragon 450
Screen: 10.1 inch 1920*1200 IPS Touch Screen
Operation System: Android 9.0
Memory: 3GB
Storage: 32GB
Battery: 7000mAh rechargeable polymer lithium batter
Camera: 5.0 mega pixels front and 8.0 mega pixels rear
Operating Temperature: 0 to 45 degree centigrade
Storage Temperature: -10 to 45 degree centigrade

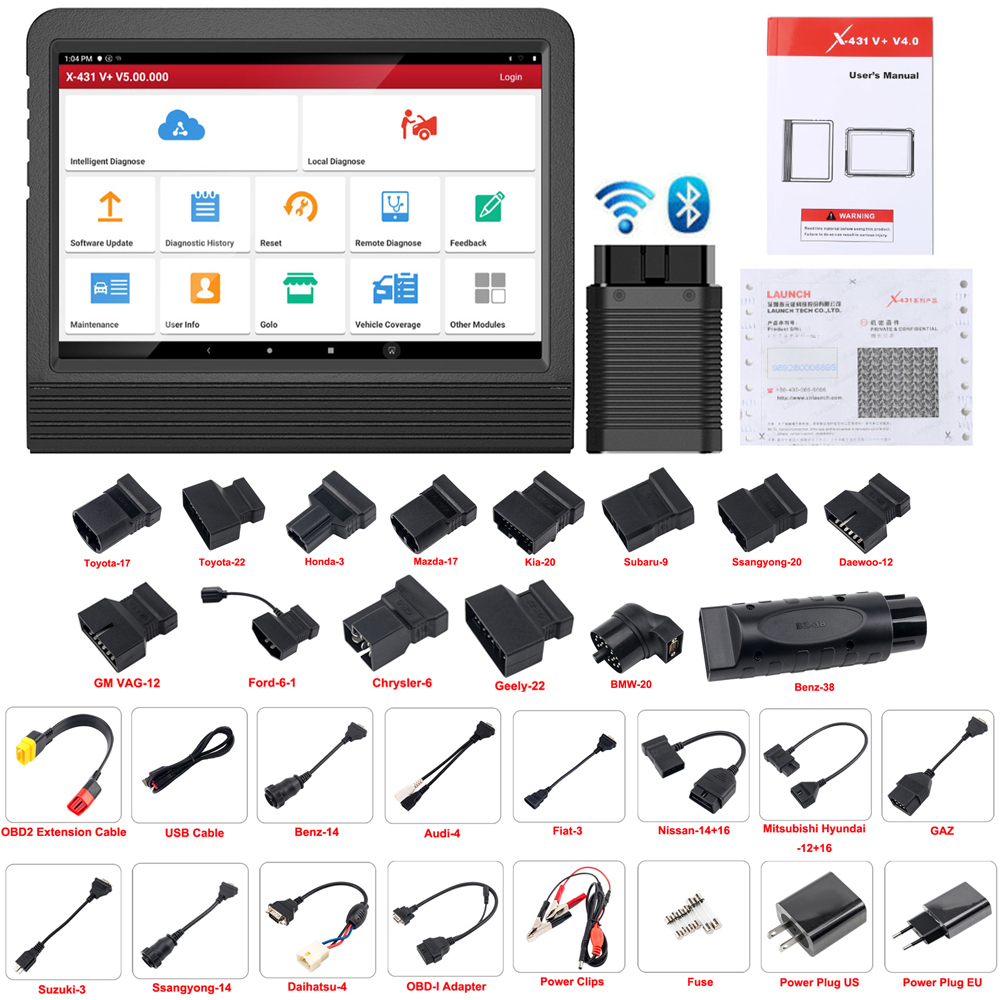

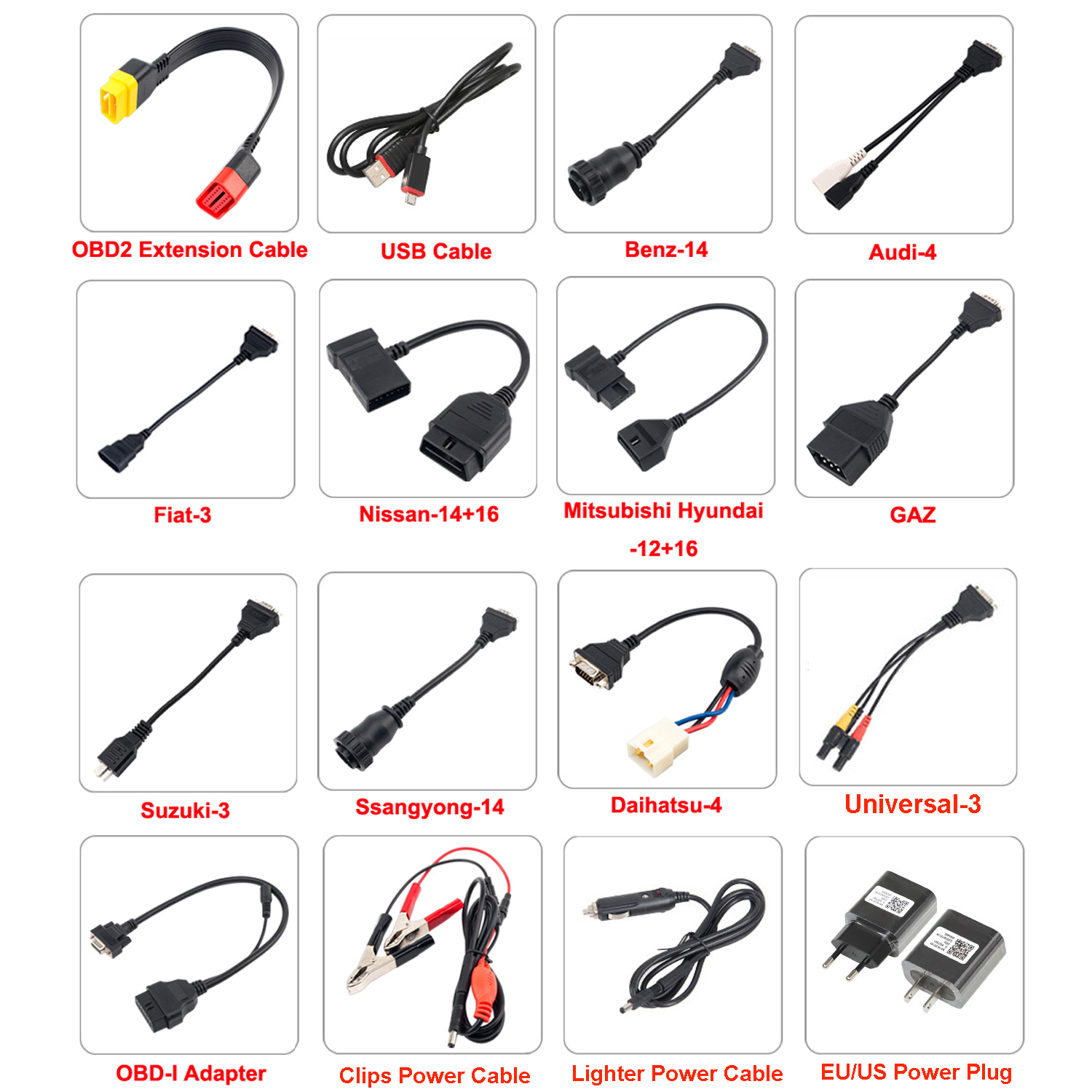

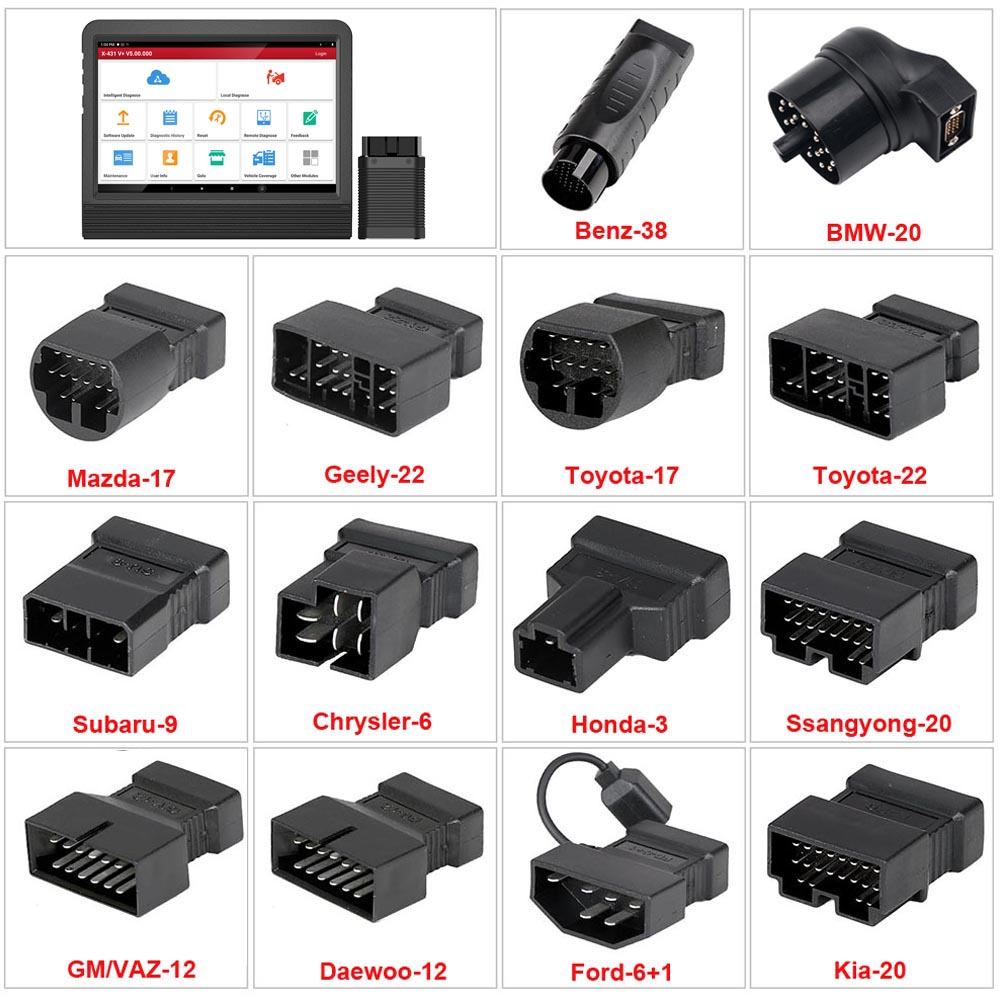

Packing List:

Launch X431 V+ Scanner
DBScar Bluetooth Connector
AUDI-4 Adapter
BENZ-14 Adapter
BENZ-38 Adapter
BMW-20 Adapter
CHRYSLER-6 Adapter
DAEWOO-12 Adapter
DAIHATSU-4 Adapter
FIAT-3 Adapter
FORD-6+1 Adapter
GAZ Adapter
GEELY-22 Adapter
HONDA-3 Adapter
KIA-20 Adapter
MAZDA-17 Adapter
MITSUBISHI / HYUNDAI-12+16 Adapter
NISSAN-14+16 Adapter
SSANGYONG-14 Adapter
SSANGYONG-20 Adapter
SUBARU-9 Adapter
SUZUKI-3 Adapter
TOYOTA-17 Adapter
TOYOTA-22 Adapter
UNIVERSAL-3 Adapter
OBD 1 Adapter
OBD-II Extension Cable
Clipper Power Cable
Cigarette Lighter Power Cable
USB to Micro USB Cable
US Power Adapter 5V/2A
EU Power Adapter 5V/2A
Clipper Power Cable Fuse 5*20mm (4 pcs)
Lighter Power Cable Fuse 6*30mm (2 pcs)
User Manual
Quick Start Guide
Password Envelope
Plastic Toolbox
Packing Box
