  OBDSOS PRODUCTS Car ECU / Chip Programmer Programmer

Product ID
Product Name KT200 II ECU Programmer
Product Price USD650
Actual Weight (Kg) 3
Volumetric Weight (Kg) 6
Package Size (cm) 47*16*37
Related Download
  KT200 II Updated Protocols.pdf
Version
Order Quantity:
In Stock



Related Products
Description

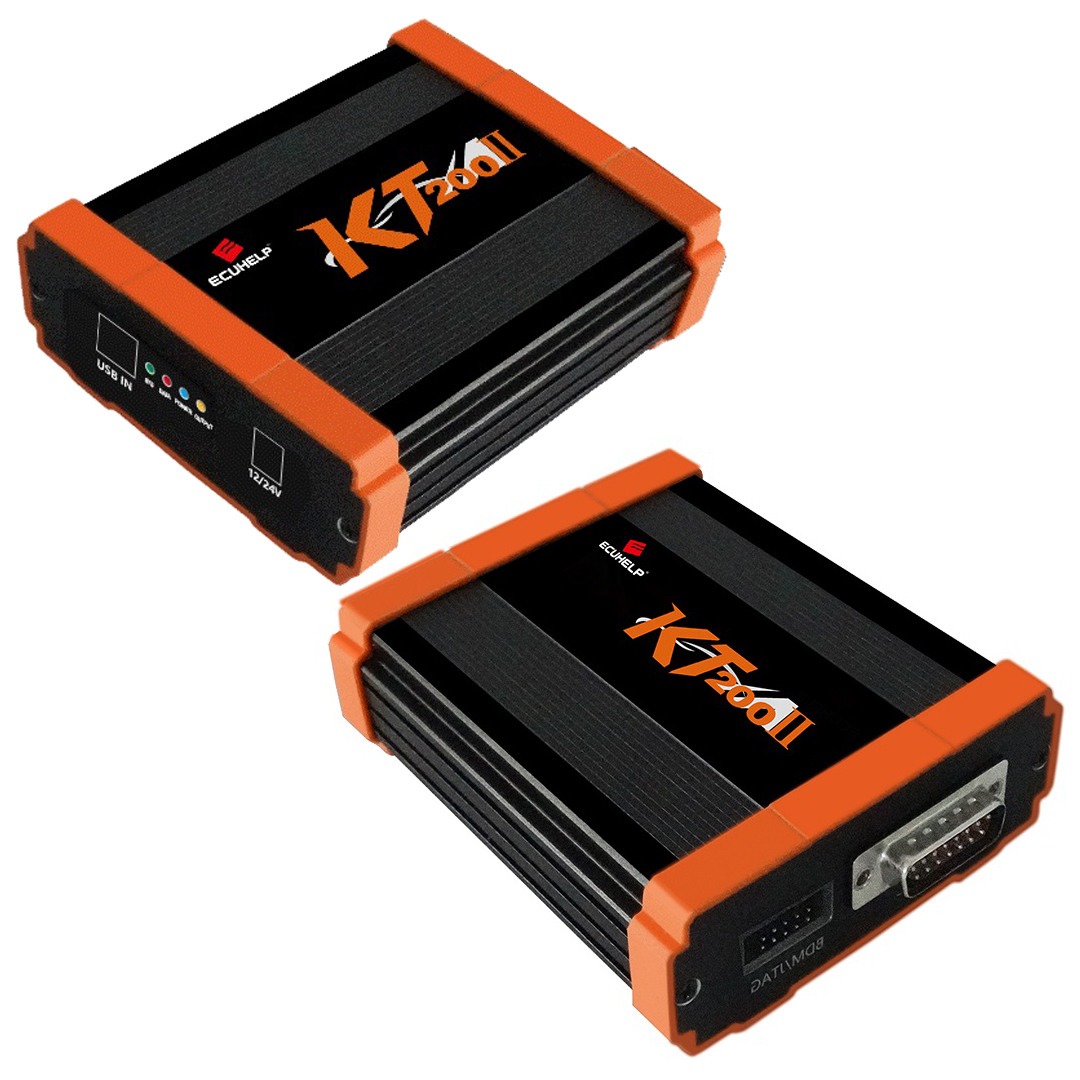

Name: KT200 II ECU Programmer

Description:

New KT200 II ECU Programmer Full Version supports ECU Maintenance, Chip Tuning, DTC Code Removal, OBD/BOOT/BDM/JTAG and Multiple Protocols.

KT200 2 ECU Prog Master Version can read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.

Master Version is a personal version of the device, which can be used freely after purchase. You can obtain our company service software ECUHELP for free. All functions on the software are free to use. The software provides ECU model query, wiring diagram search, virtual data download, DEMO download, and free software library. And Data modifier number change expert software.

2 Versions:

Basic Version: Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear

Full Version: Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear, Tractor OBD, Boat OBD, Motorbike OBD

Supported Languages: English, French, Spanish, Portuguese, Italian, Turkish, Dutch, Polish, Czech, Romanian

Software Update: free update online

Computer Requirements:

OS: Windows 7/8/8.1/10/11
CPU: 2.5 GHz Intel i5 / i7
RAM: 8GB and above

Features:

1. Support Checksum Calculator.
2. No annual subscription fee.
3. Additional TCU package available for Automatic Transmissions for free.
4. Get free VR files in ECUHelp V3.0.3 Software.
5. Fully read and write TCU (Micro+EEPROM), TCU Clone and TCU Coding.

Functions:

1. Support OBD/BOOT/BDM/JTAG.

2. KT200 II ECU Programmer Master Version Full Version supports multiple protocols.

3. Covering a full range of German, Japanese, American and Chinese models.

4. EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, hot start or cold Start Vmax, and so on.

5. The list of vehicles is constantly updated, which keeps you at the forefront of the industry.

6. Support Volkswagen Audi clone(local operation without sending data to manufacturers).

7. ECU Maintenance, Chip Tuning, DTC Code Removal, professional reading and writing equipment covering 99% of the models in the market.

8. Read and write ECU data, and the data can be used for ECU services.

What is ECU Service?

1. Chip Tuning.
Chip Tuning is to improve engine performance by modifying the data read out by the equipment. The data is divided into: Stage 1 data, Stage 2 data, Stage 3 data.

2. ECU Maintenance.
ECU Maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items: DTC code Removal

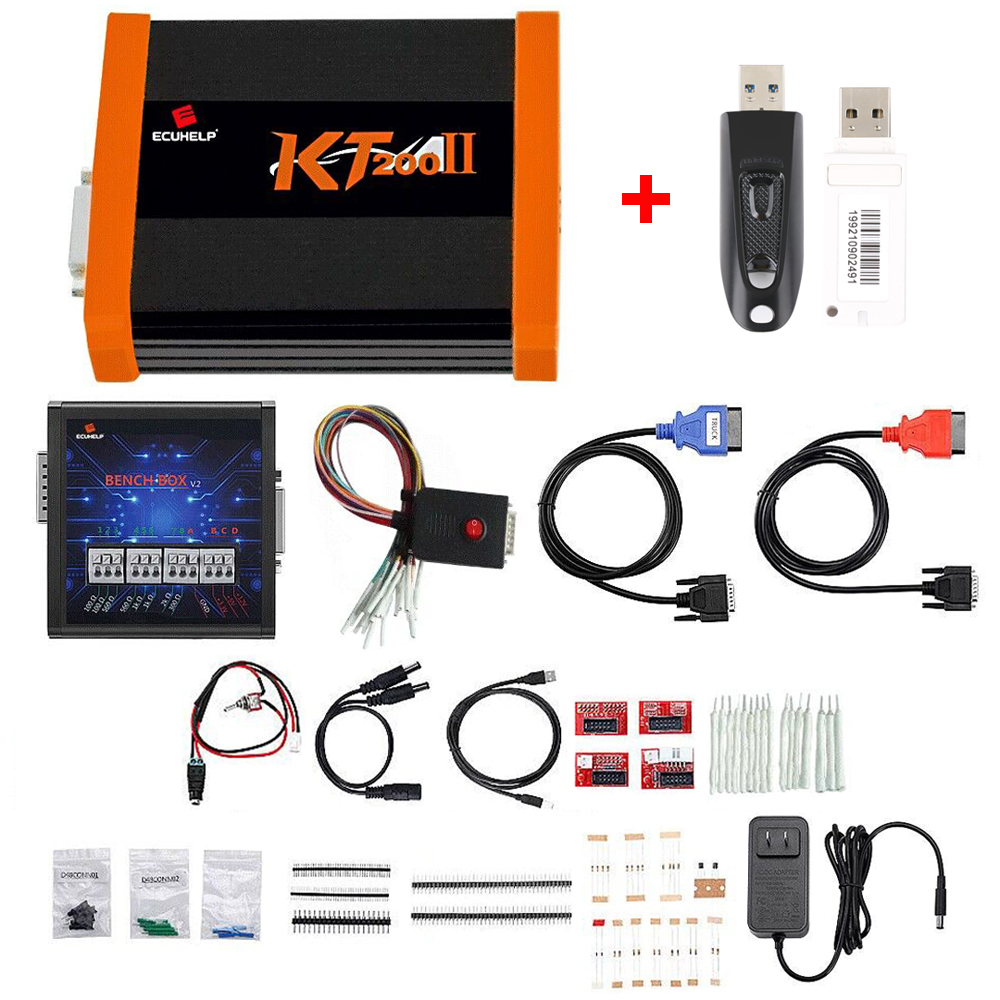

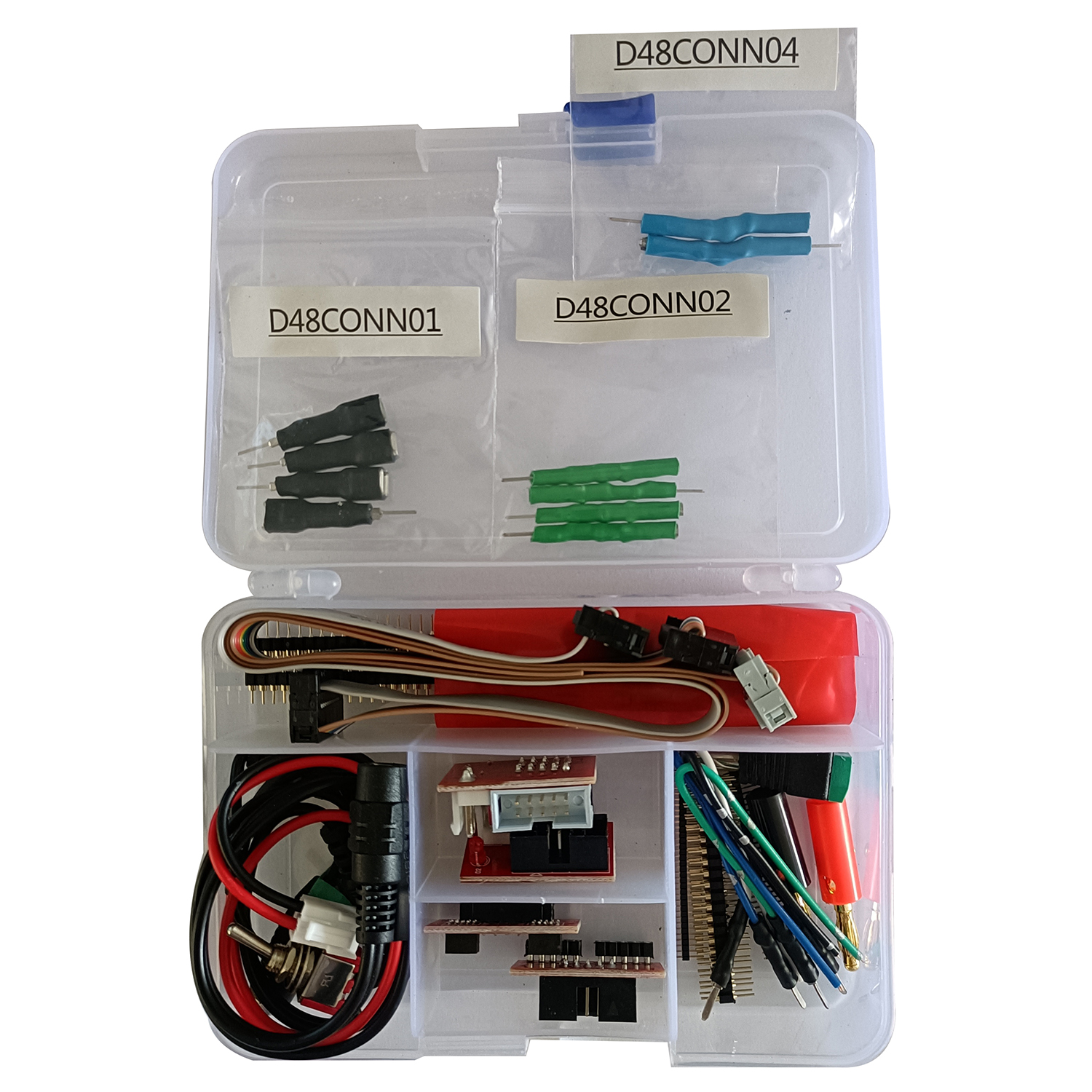

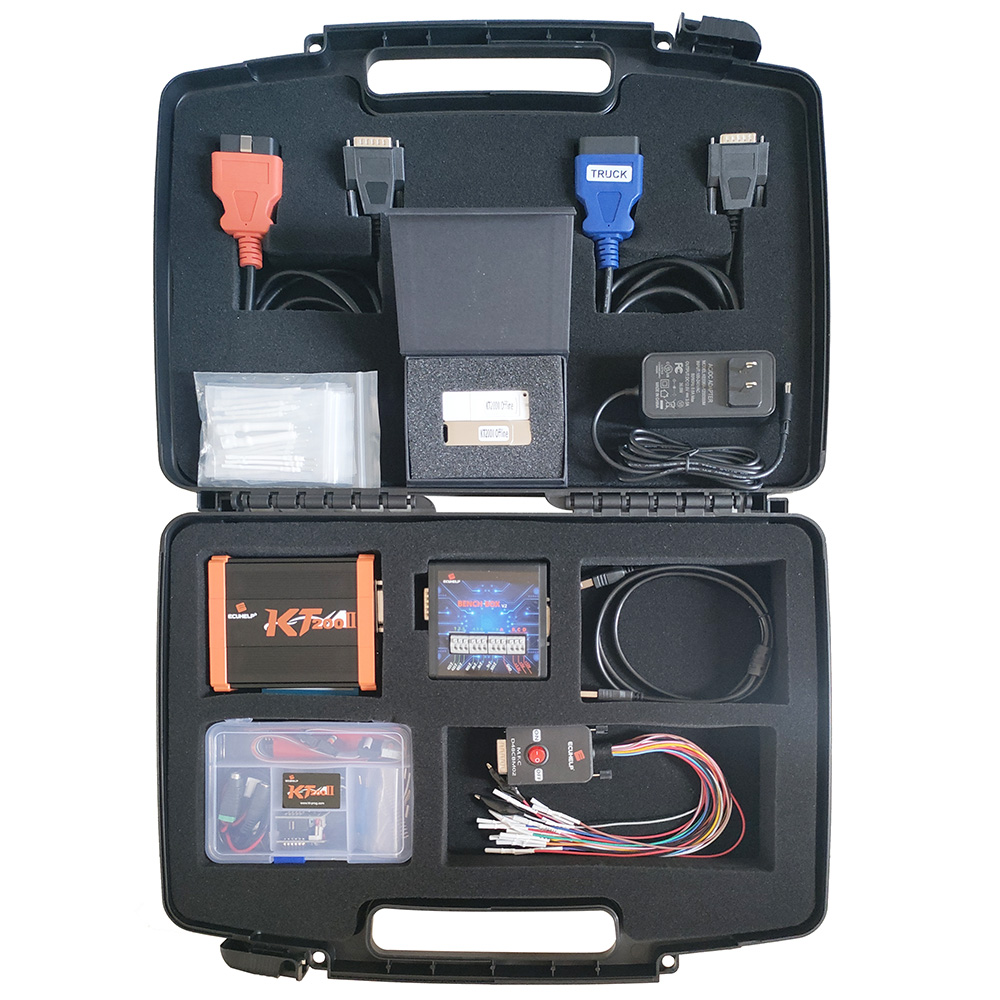

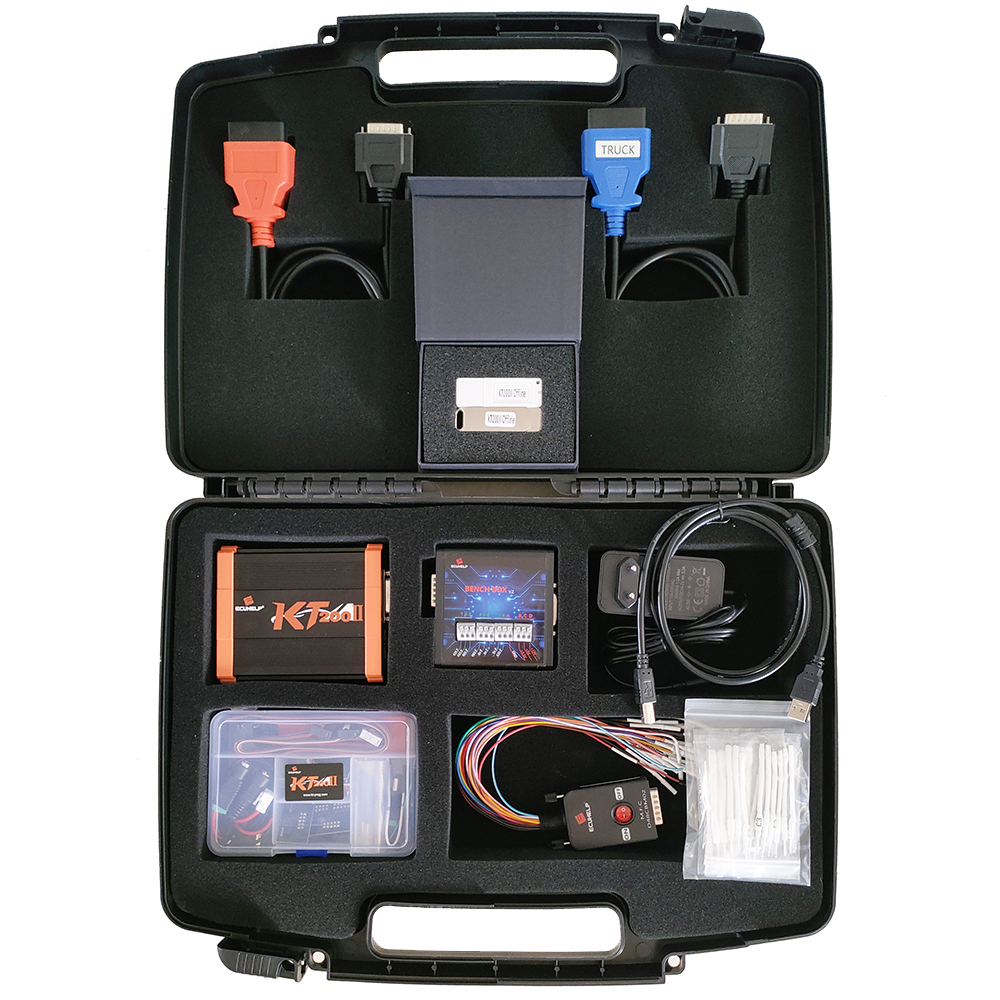

Packing List:

KT200 II ECU Programmer

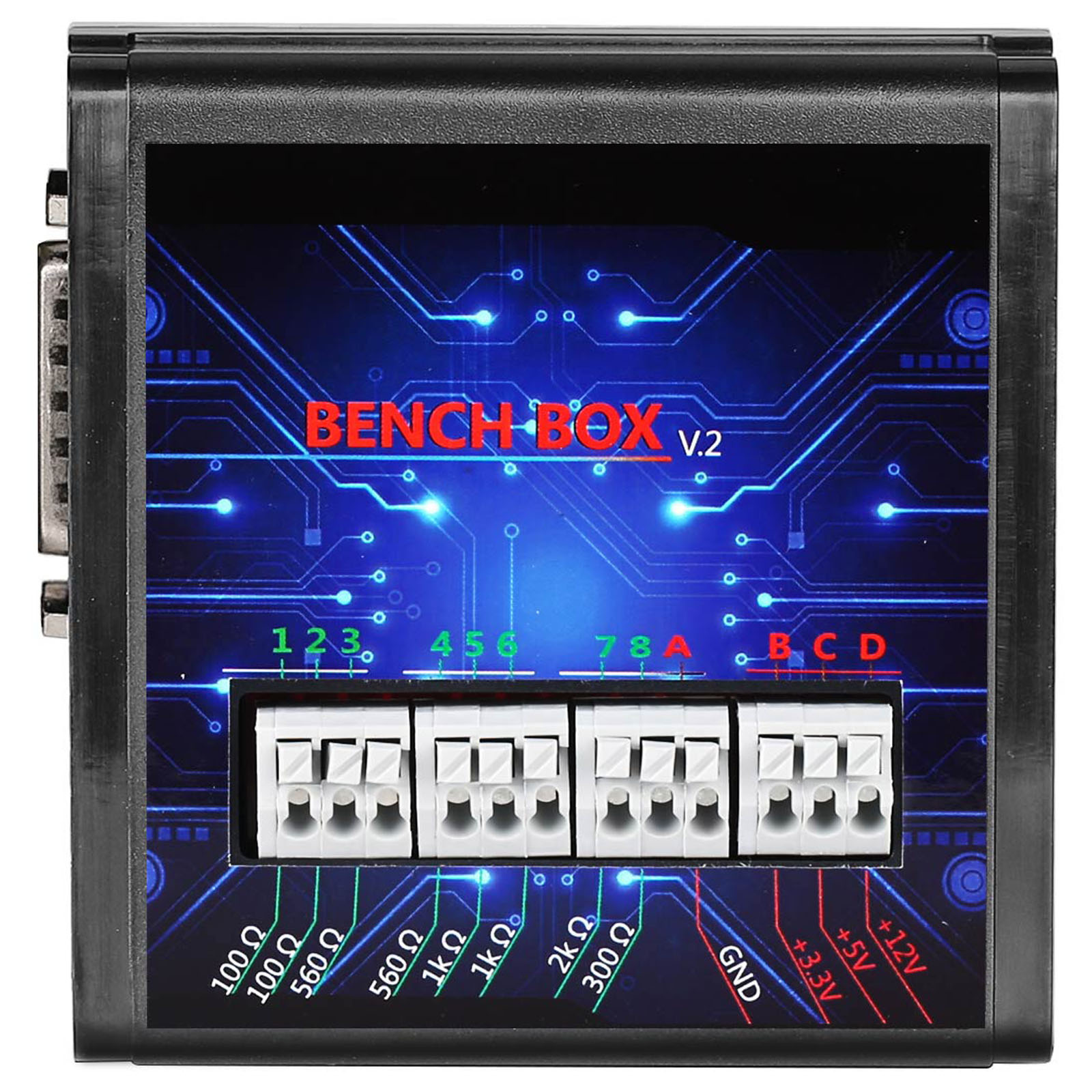

BENCH Box
OBD2 Cable (2 pcs)
Pinout Cable
USB Cable
BOM Adapters (4 pcs)
Transfer Cables (3 pcs)
Power Cables (4 pcs)
Power Supply Adapter
Adapter Plugs (4 pcs)
Power Adapters (5 pcs)
Resistors (1 kit)

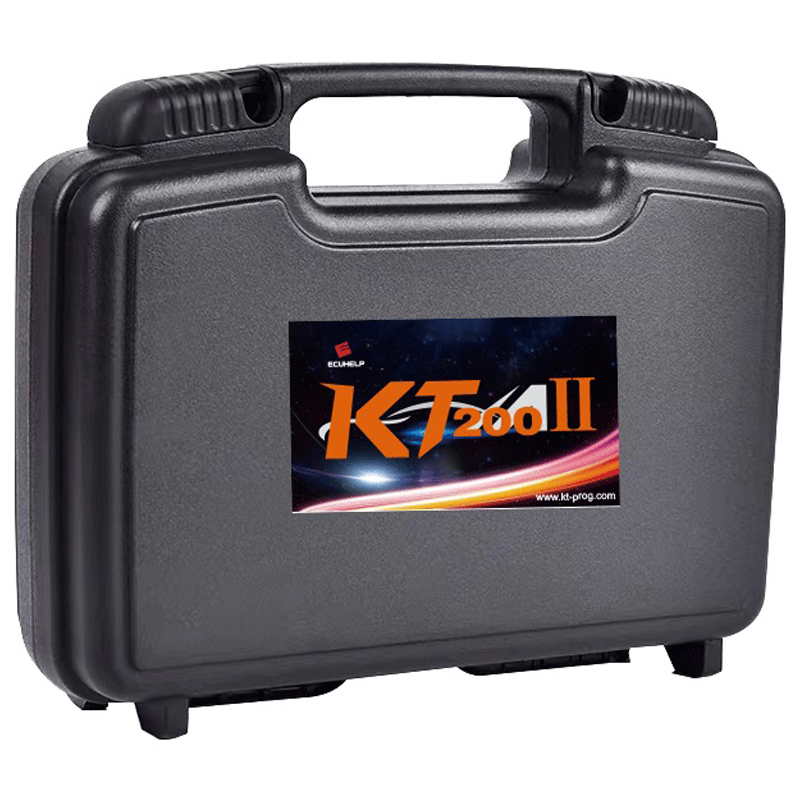

Plastic Toolbox
Packing Box

Supported List:

Professional software for reading and programming ECU of:

CAR
TRUCK
MOTORBIKE
TRACTOR
BOAT

Additional TCU package available for Automatic Transmissions:

Full Read And Write Via Pin Out in Bench Mode:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9/MED9

Full Read and Write via Pinout in Bench Mode:

BOSCH MD1
BOSCH MG1
-FREESCALESPC5777
-AURIXTC29x
-STSPC58

Full Read and Write via Pinout in Bench Mode:
BOSCH EDC17
BOSCH MED17/ME17
SIEMEN SPCR2.1
(Unlocking also possible via pinout)

Full System via Pin Out (Micro/Flash+EEPROM) of ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
TEMIC

BDM EJTAG Modes for:
BDM MPC55x
BDM MPC56x
BDM MC32/ZC32
BDM HC12/S12x
JTAG NEXUS MPC/SPC56xx
JTAG NEXUS MPC55xx

JTAG RENESAS
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0070
76F0085

BOOT Modes:
-BOOT MODEC16729Fxxx
-BOOT MODE ST K-LINE/RX-TX/CAN
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F276
ST10F280
ST10F296
 -BOOT Mode Tricore for micro
TC1724
TC1728
TC1738
TC1738
TC1762
TC1766
TC1767
TC1782
TC1791
TC1792
TC1793
TC1793
TC1796
TC1797
-BOOT Mode Renesas
SH7052
SH7054
SH7055
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
-BOOT Mode Mitsubishi
MH7202
MH7203
MH8102F
MH8105F
MH8106F
MH8202
MH8206F
MH8301F
MH8301F
MH8304F
MH8405F
-BOOT BAM System MOTOROLA
SPC5674
SPC5777
-BOOT MODE Fujitsu
-BOOT MODE Hitachi

Additional Package for Automatic Transmission:
Full Read And Write TCU(MICRO+EEPROM)
TCU CLONING
TCU CODING FUNCTIONS

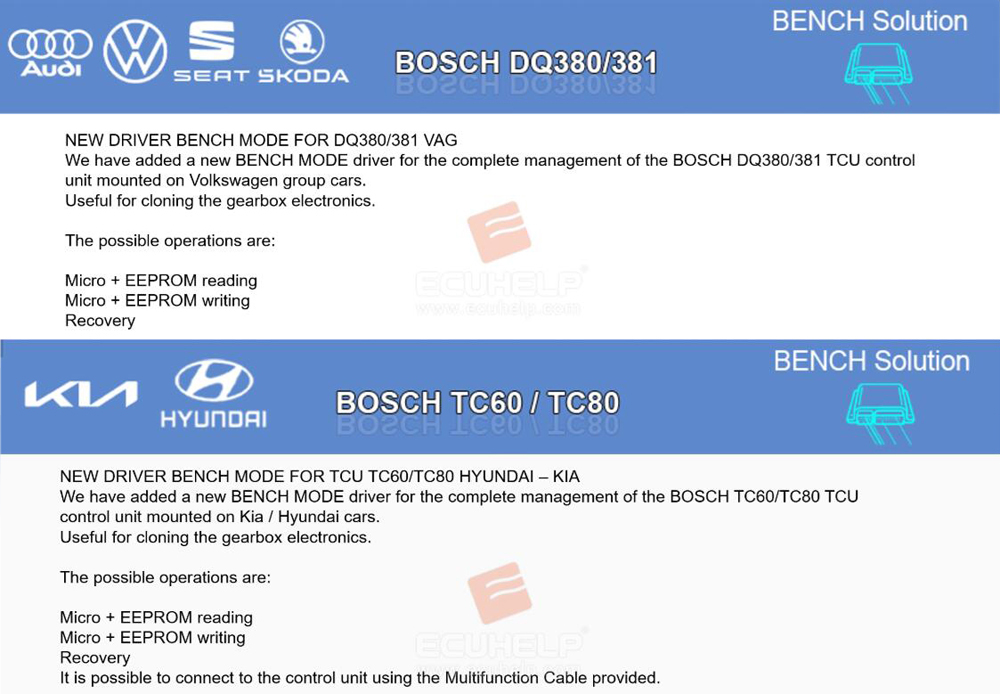

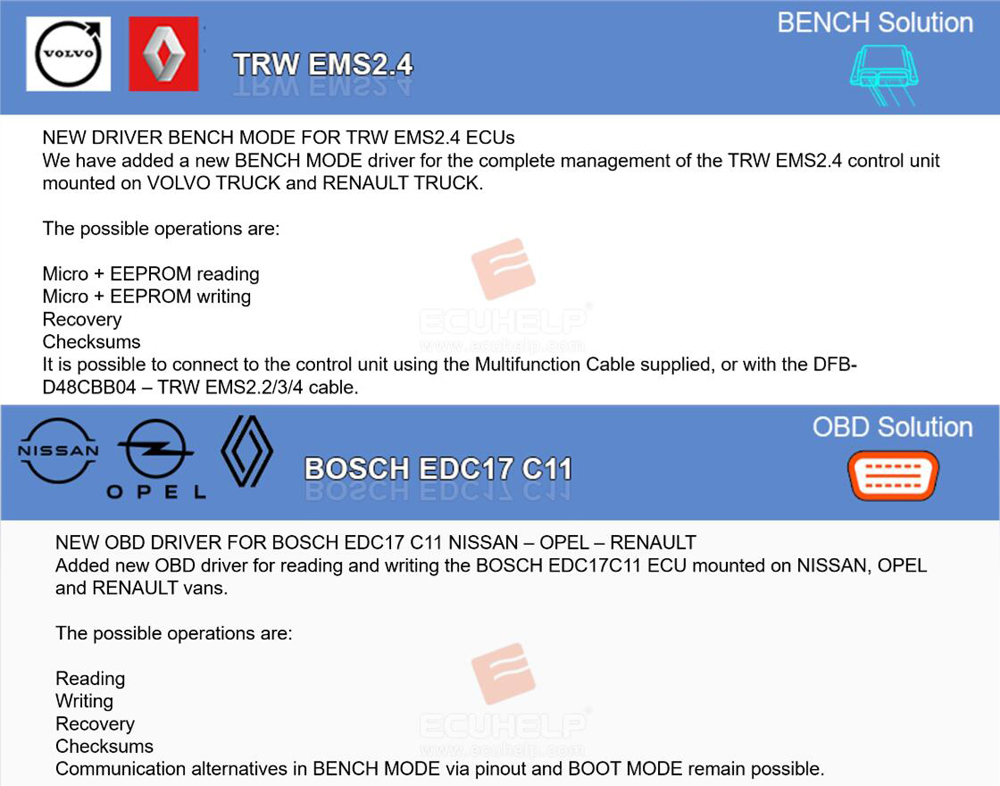

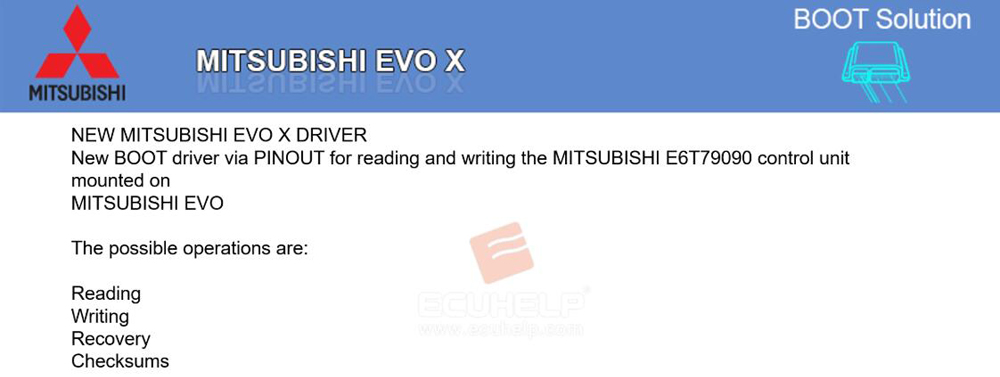

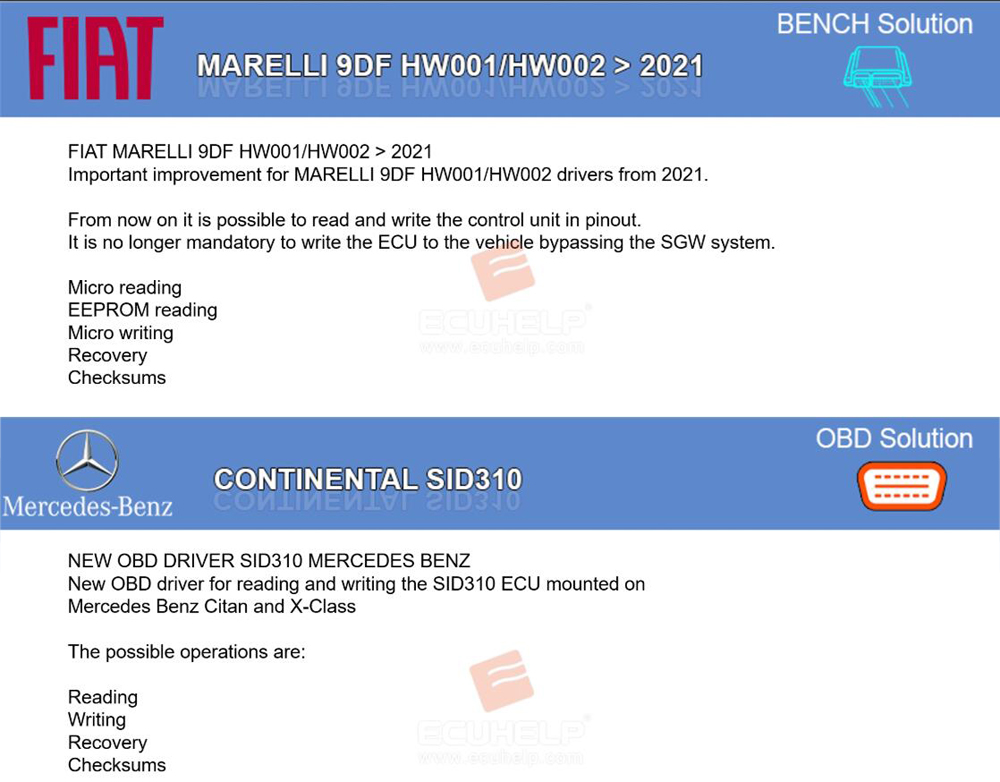

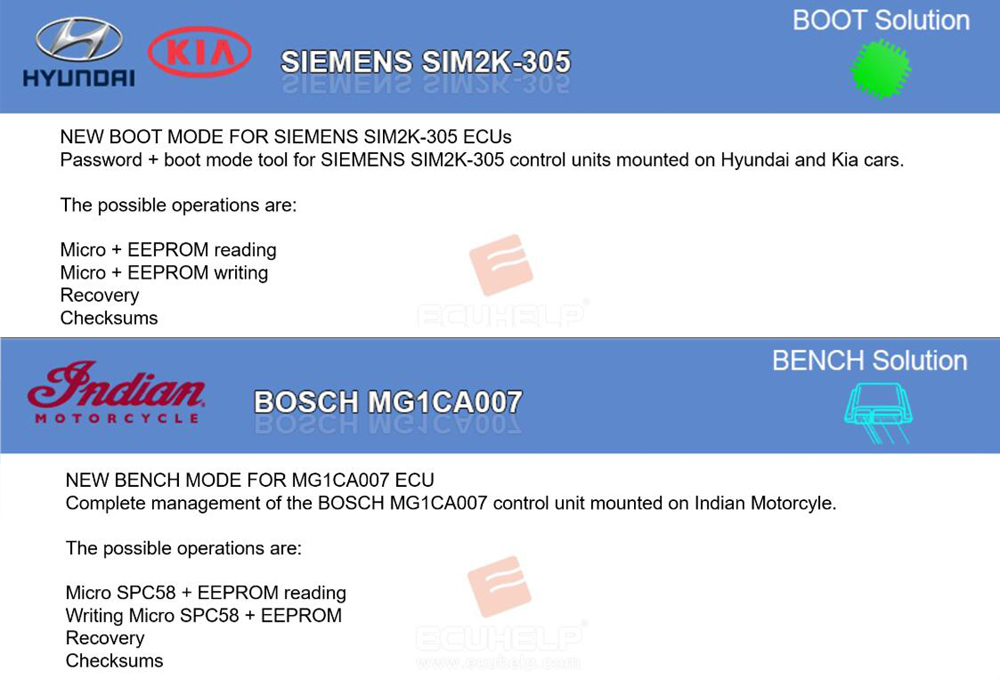

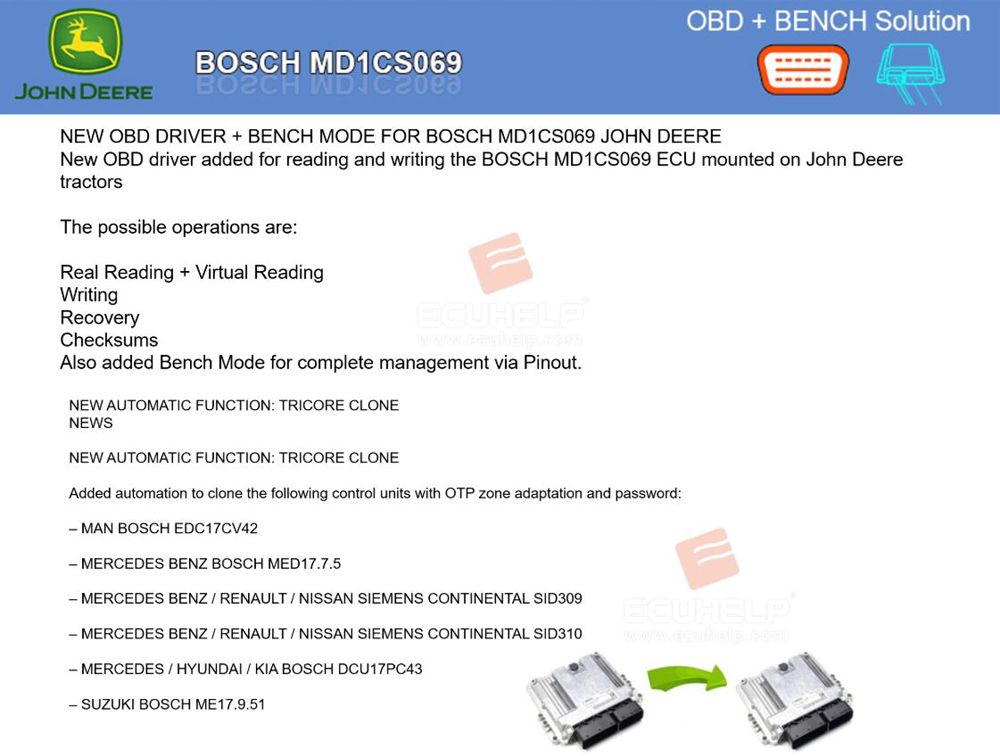

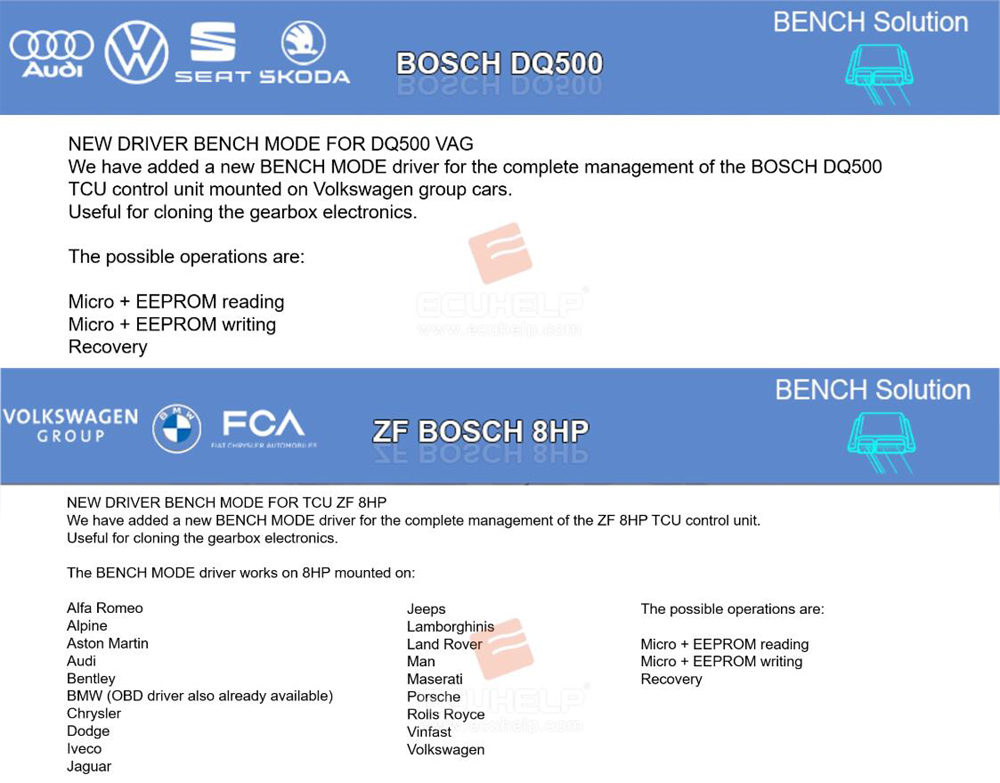

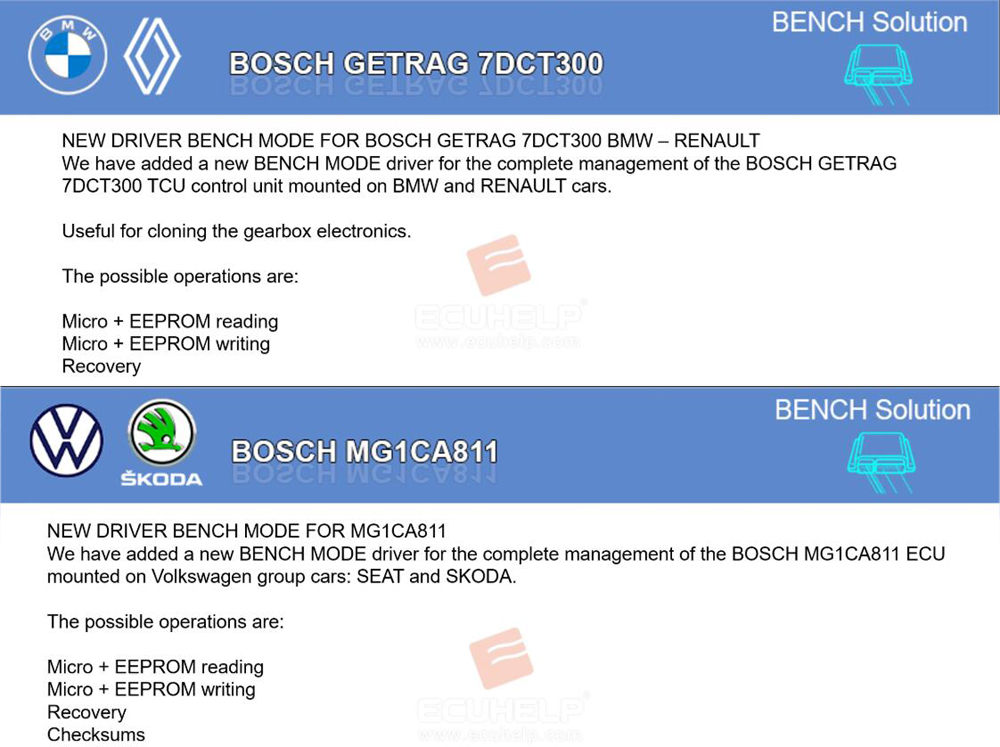

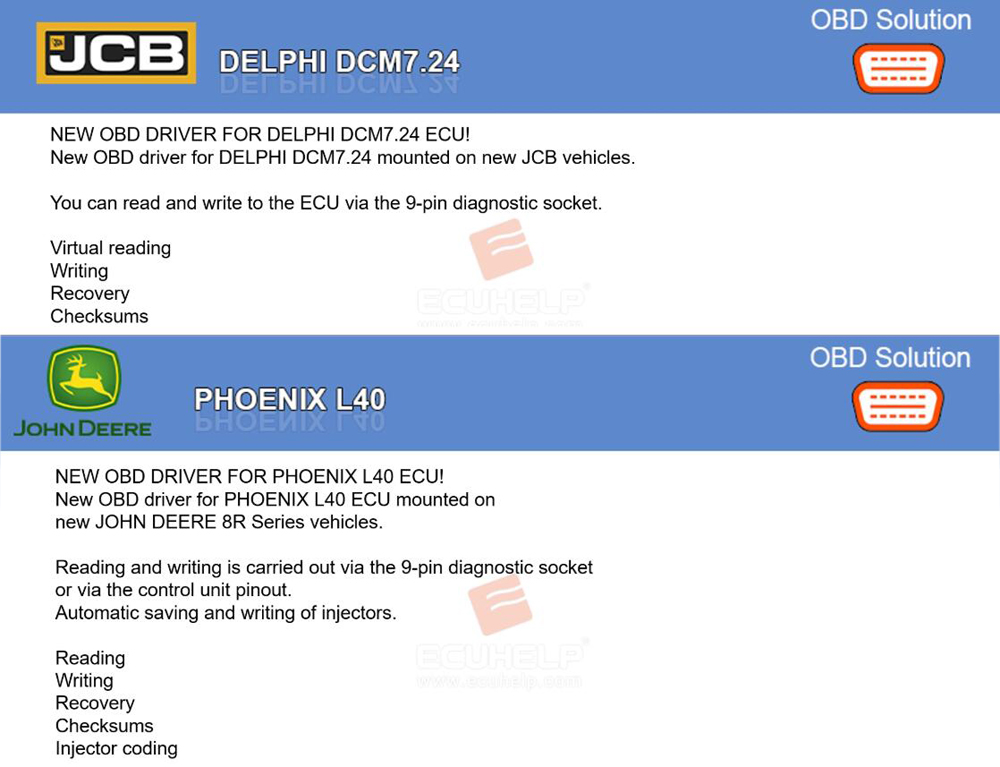

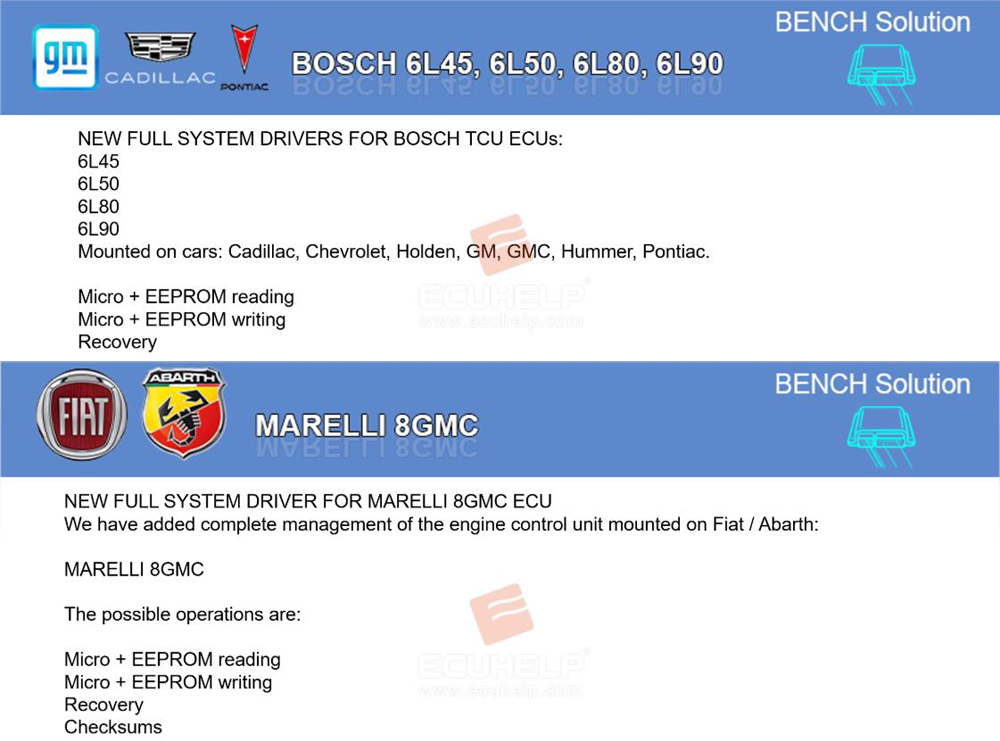

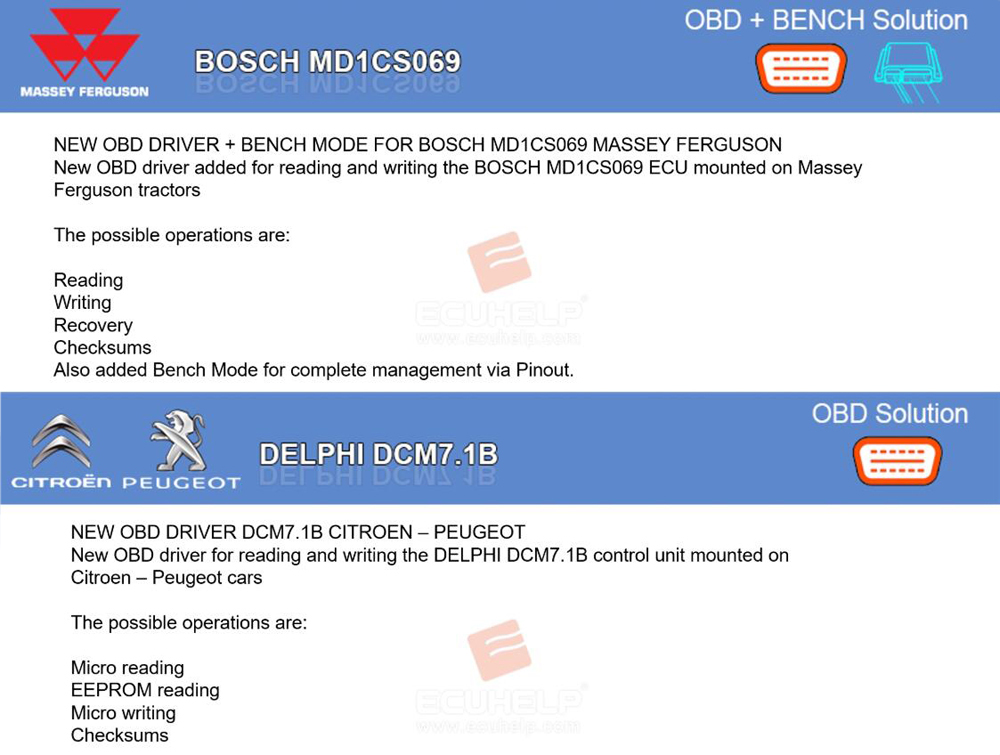

New KT200 II ECU Programmer Newly Added Support List:
