Description:

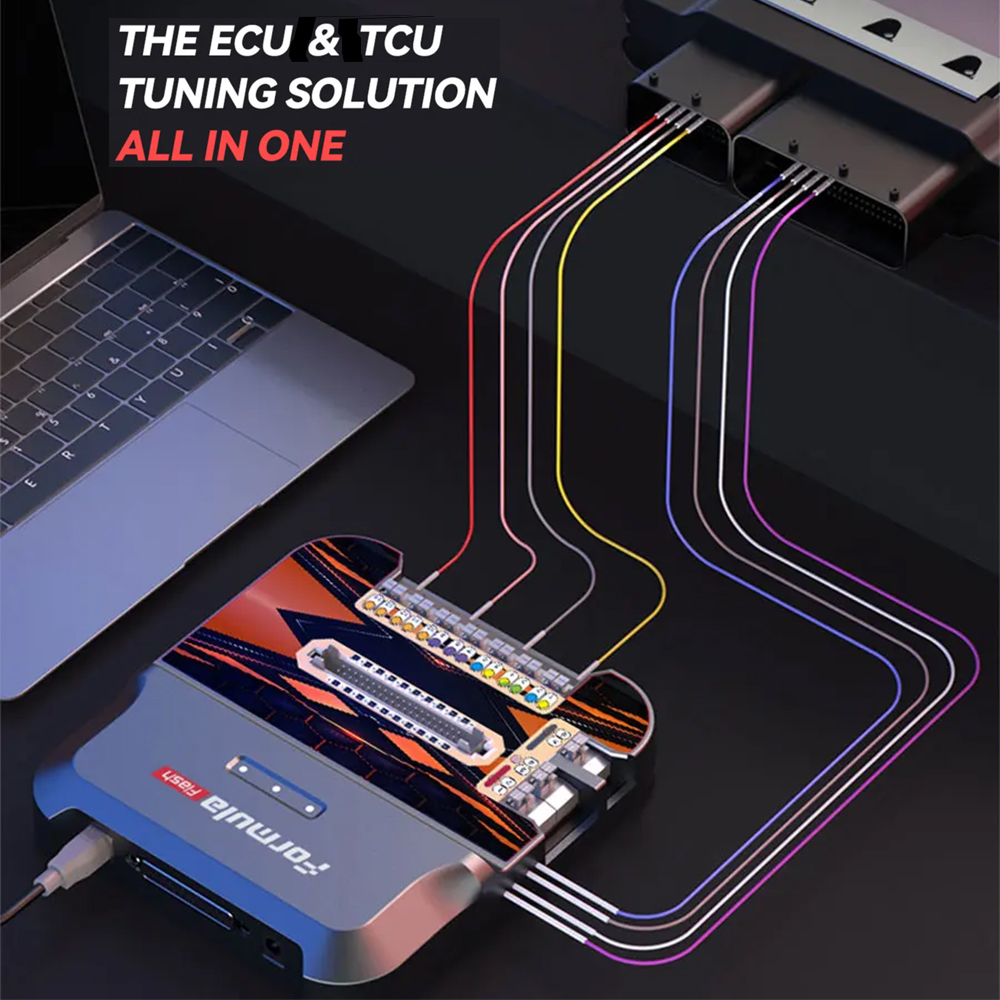

Formula Flash ECU Programmer is an all-in-one ECU and TCU tuning solution. FormulaFlash ECU TCU Chip Tuning Tool offers free subscription for 12 months. After the software subscription expires, the software will stop updating, but existing functions will be available for using.



Software Update: 1 year free update online (USD185/year for further update)

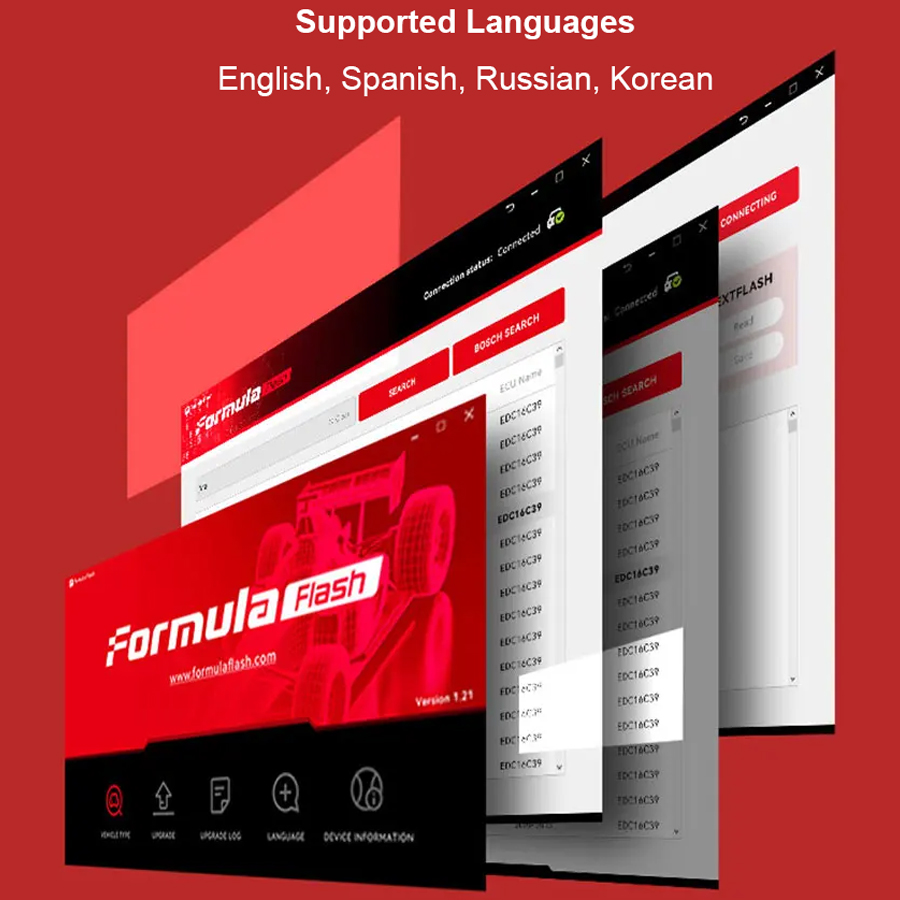

Supported Languages: English, Spanish, Russian, Korea, Chinese

Highlights:

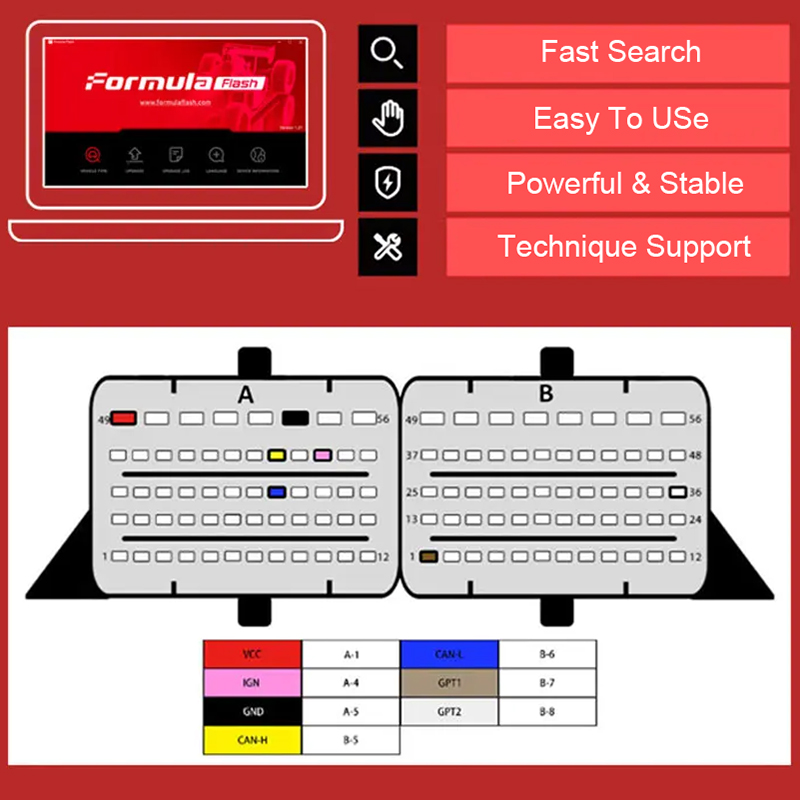

1. Fast search, easy to use, stable and powerful, light and easy to carry, full coverage connection diagram, technical support.

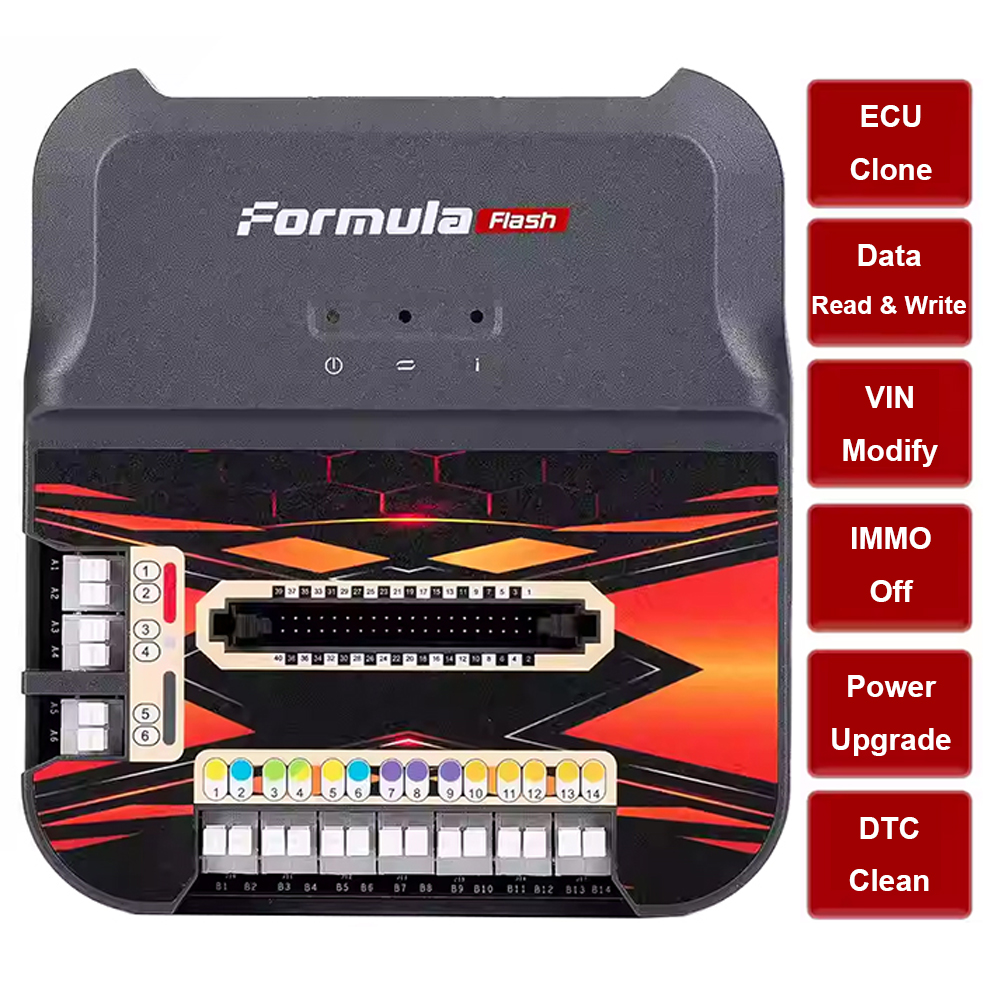

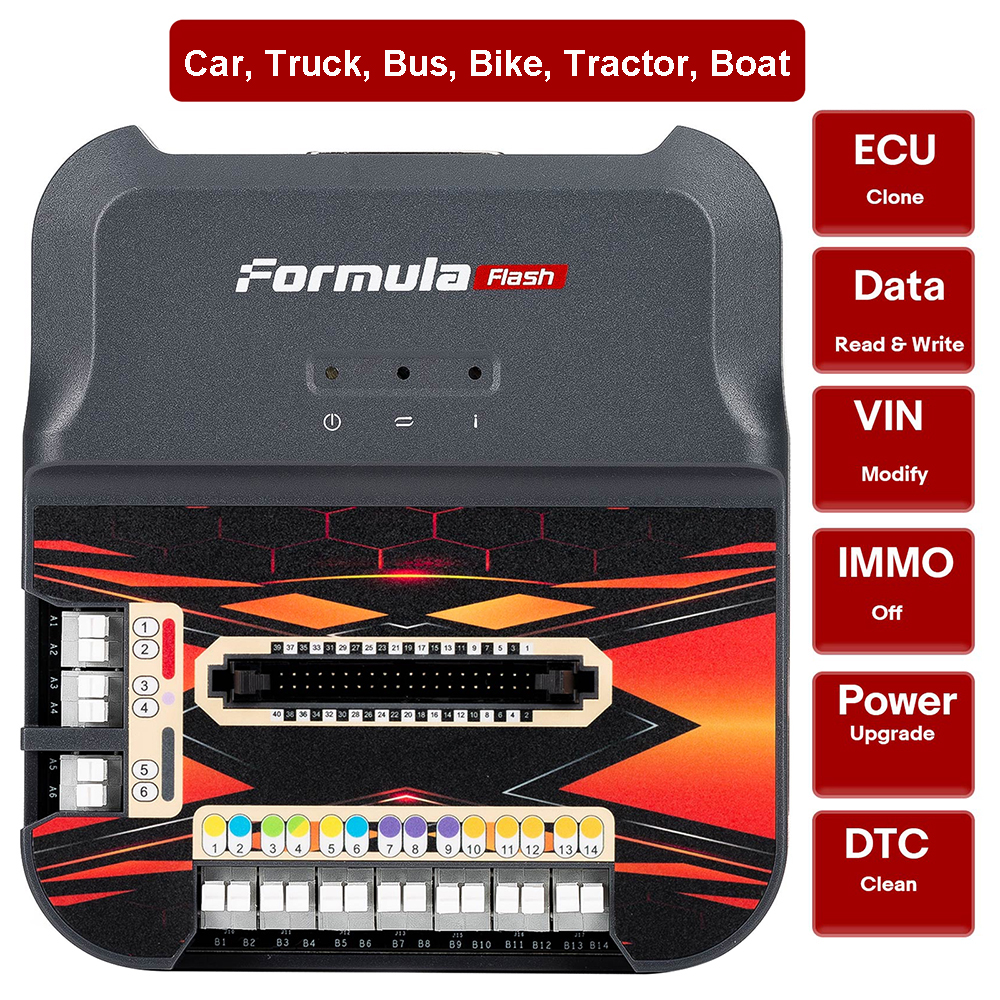

2. Multi-functional use: ECU Clone, Fast Data Reading and Writing, VIN Modification, IMMO Off, Power Upgrade, DTC Clean.

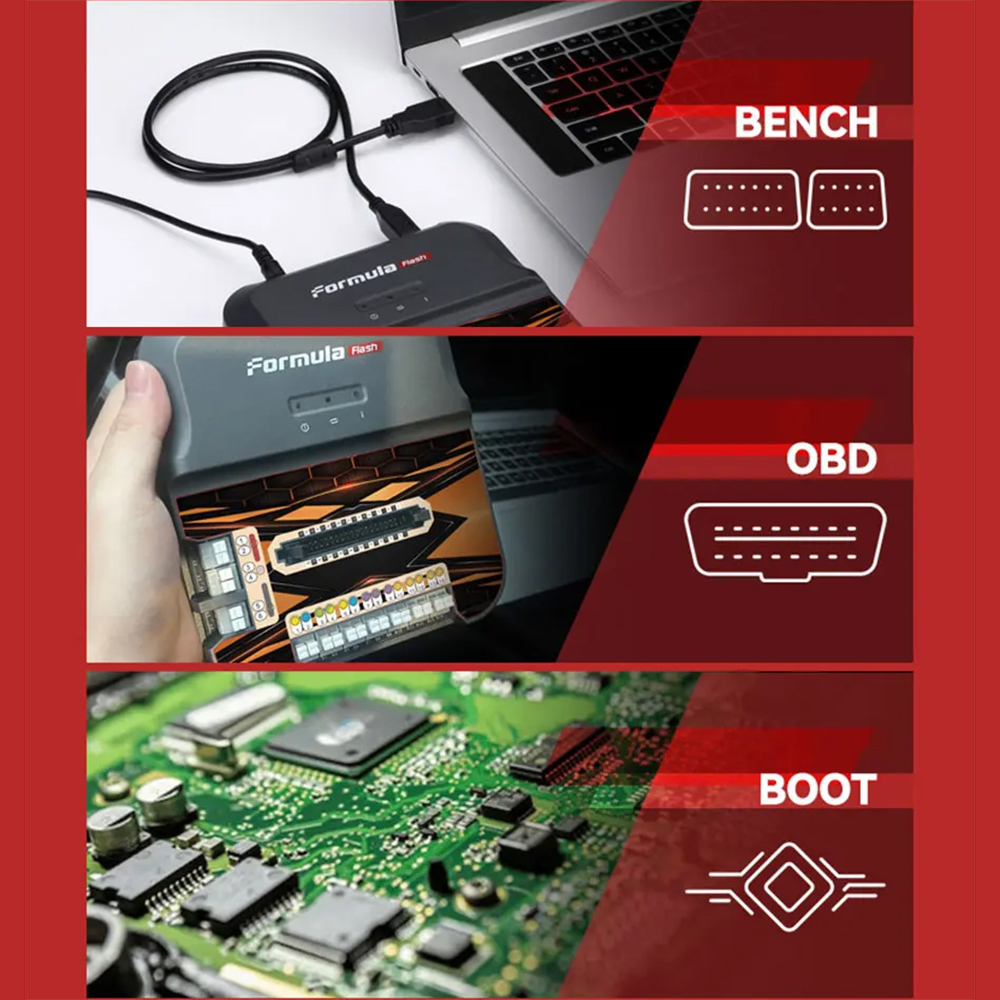

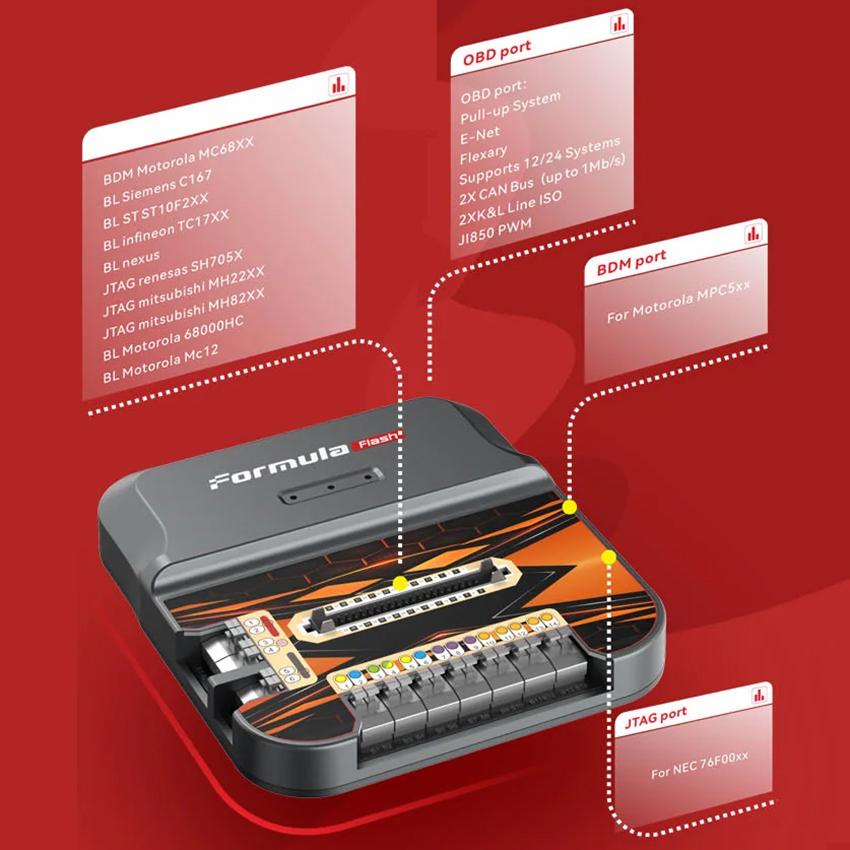

3. Connection Methods: BENCH, BOOT,OBD

4. Supply multiple vehicle types: Car, Truck, Bus, Bike, Tractor, Boat

5. No Email or password registration required, one-click activation via computer network.

6. Free subscription for 12 months. After 12 months, if you don't want to pay yearly new update, you can continue to use the old software.

7. Supports MD1CS018, MD1CS016, DQ381, DQ380, MG1CA094, MD1CS015, MD1CE108, MD1CC878, MD1CE100C, etc.

8. Supports BMW MSV80, MSV90, MSD80, MSD85, MG1CS003, MG1CS021 read, write, modify by one click.

9. One-Click Reading of ECU & TCU CS Codes for VAG: Specially designed to simplify MQB All Keys Lost key programming, allows locksmiths to quickly and reliably read CS Codes directly from the ECU and TCU.

10. Supports checksum correction.

11. Adds Toyota GEN2 adapter-free read/write and verification(No disassembly, no adapter required.).

12. GM Power Upgrade: E88/E90/E93 support now available. OBD/Bench read + write + checksum.

13. Supports GM Delco E37/ E39/ E39A/ E67/ E78/ E87/ E98/ E92/ E80/ E83 one-click IMMO Off + VIN Modification.

14. Modify VIN for BMW series, Delco series, VW & Audi MED17/EDC17 series, MT20/MT22 series, Hyundai & Kia ME17/MED17/MEG17 series.

15. Supported Stage 1 power upgrades for: ME17/ME7 series: ME17.9.11, ME17.9.12, ME7.5.10, ME7.5.20, etc., MED17/MEG17 series: MED17.9.8, MEG17.9.8, MEDG17.9.8, etc. Simos8X series, Delco series, MSV90, and more.

16. Toyota Denso 3^rd. generation BENCH + OBD mode read/write + Checks.

17. Toyota GEN2 GEN2 GEN3 IMMO OFF module now available.

Comprehensive Functionality:

FormulaFlash Programmer offers a wide range of functionalities designed to meet the needs of professional tuners.

1. ECU Cloning:
Create exact copies of ECUs, allowing for easy replacement and upgrade of vehicle control units.

2. Fast Data Reading and Writing:
Quickly read and write data to and from ECUs and TCUs, enhancing the efficiency of your tuning operations.

3. VIN Modification:
Modify the Vehicle Identification Number (VIN) in ECUs, which is essential for tuning and customization.

4. IMMO Off:
Disable the immobilizer function, allowing the vehicle to start without the original key.

5. Power Upgrades:
Increase the power output of vehicles by modifying ECU parameters, leading to enhanced performance.

6. DTC Cleaning:
Clear Diagnostic Trouble Codes(DTC) from the ECU, which is crucial for maintaining optimal vehicle performance. This functionality addresses common concerns about the risks of ECU remapping.


Software Installation Instructions:



1. Download FormulaFlash software

2. After downloading, you will get a Formula_1.0.1.2 folder.

3. Open this folder, and find FormulaFlash.exe file.

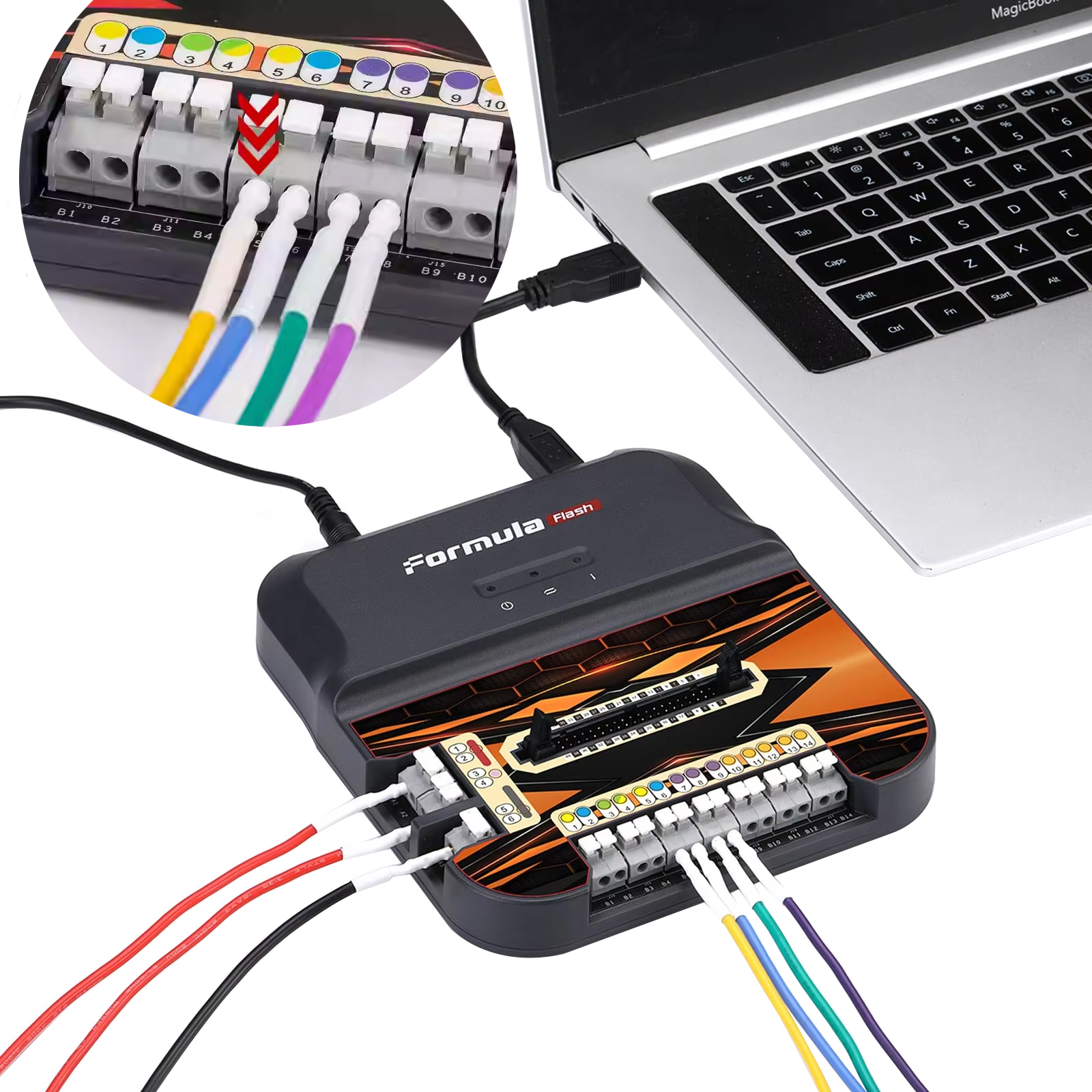

4. Connect FormulaFlash ECU Chip Tuning Tool to computer.

5. Unzip FormulaFlash.exe software package. It will open the software program automatically, and prompt you to activate, just click “Yes”, and the device will be activated soon.

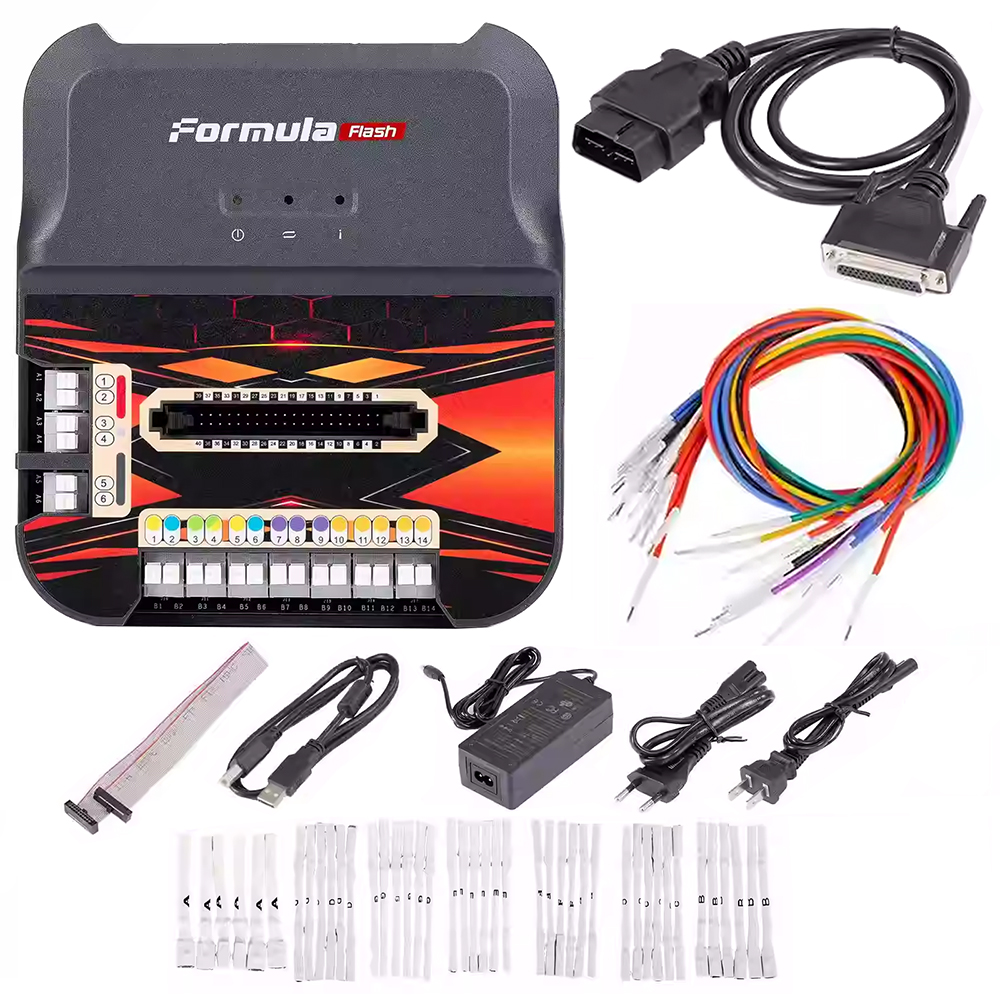

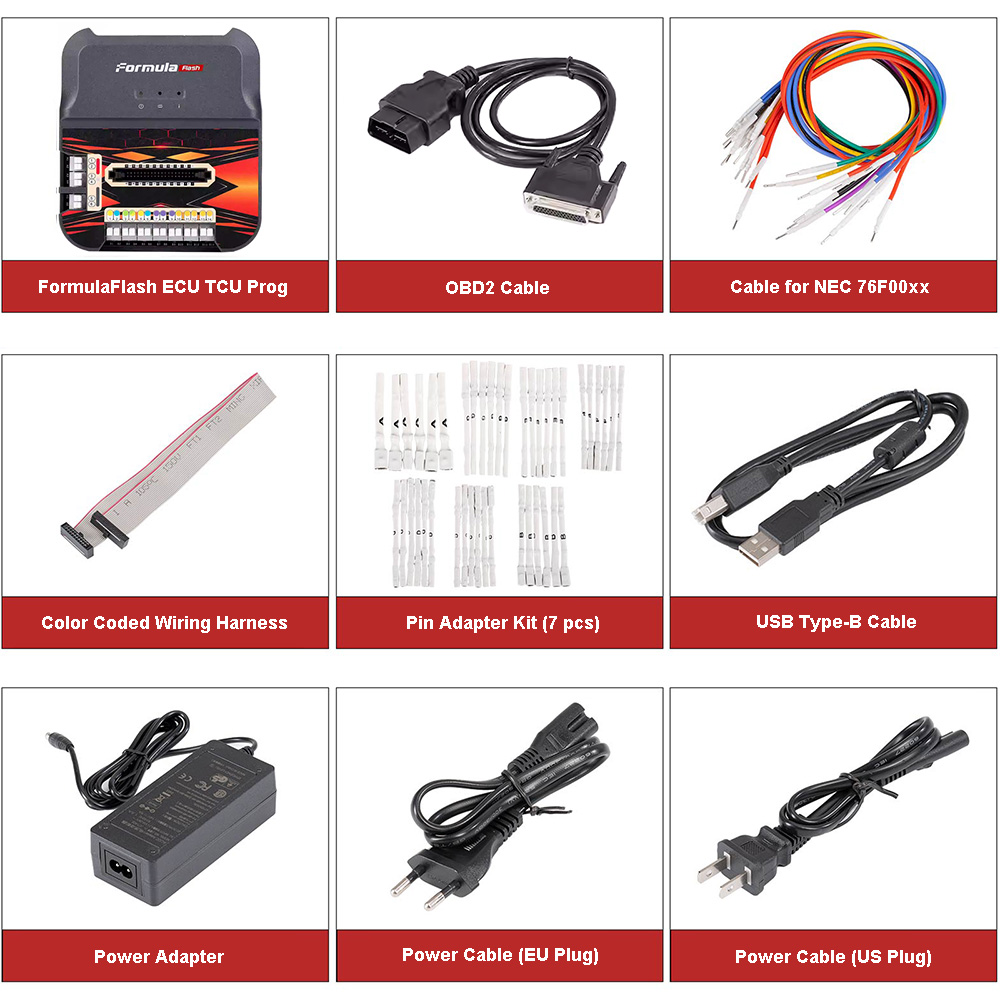

Packing List:



FormulaFlash ECU TCU Programmer

OBD2 Cable

Cable for NEC 76F00xx

Color Coded Wiring Harness

USB Cable

Pin Adapter Kit (7 pcs)

Power Adapter

Power Cable (EU Plug)

Power Cable (US Plug)

Plastic Toolbox



FAQs:



Q1: What are its advantages?

A1: FormulaFlash's checksum function is very powerful and has many exclusive algorithms and advantages. Please check the checksum list for details.



Q2: Is there a difference between master and slave in Formuflash?

A2: FormulaFlash does not distinguish between master and salve. It reads all the files of the original ECU, which is equivalent to the master version.



Q3: How to activate FormulaFlash?

A3: When you use it for the first time, the software will prompt "Do you want to activate it?" After selecting "Yes", the product is ready for use.



Q4: Can FormulaFlash be used offline without Internet connection?

A4: It cannot be used offline, because the data and verification of a large number of functions of the device require real-time communication with the server.



Q5: What are the features of FormulaFlash?

A5: FormulaFlash is an independently developed ECU reading and writing product. Comprehensive capabilities, rich software models, and high cost performance.



Q6: What functions does FormulaFlash currently have and what models does it support?

A6: Please refer to the function list for specific functions and models.



Q7: Is FormulaFlash software stable and reliable?

A7: The software we currently release ensures stable customers, and they are released after extensive testing and verification.



Q8: How much does a FormulaFlash subscription cost? What services are included?

A8: New users are free of charge for one year of subscription, and the subscription fee after one year is USD350. The update function will stop after the subscription fee expires. But you can continue to use existing software.



Q9: How to install Formuflash?

A9: 1. Open the downloaded driver package and follow the prompts to complete the driver installation.

2. Open the downloaded software package and run the FormulaFlash.exe program in the software package.



Q10: Does FormulaFlash support OBD function?

A10: It has OBD interface and OBD cable. There is no OBD software in its first version,

but they will be updated in subsequent upgrades.



Q11: FormulaFlash only has the function of Bench now?

A11: As a new product, we have currently released the Bench function, and its coverage has reached 90% of car models. We will upgrade a small number of boot functions soon.



Q12: Will FormulaFlash be upgraded?

A12: Of course, it will be upgraded. FormulaFlash's hardware and software are independently developed, and the products will continue to be upgraded.



New Update V1.0.1.2 (2025.01.16):



1. MD1CP002(SPC5777), MD1CP032(TC298TP), MD1CS001(TC298TP), MG1CS003(SPC5777), MG1CS024(TC298TP), MG1CS201(TC298TP). Model EPROM checksum, one-click modification of VIN/ISN

2. BMW leading function ACTIVATION FREE

3. VW & Audi MEDI7/EDCI7 EPROM checksum. EPROM Immo off/IMMO cloning/new status mode, one-click modifica- tion of VIN, one-click operation for power level/lmmo ID data synchronization

4. VW leading function    ACTIVATION FREE

5. E37/E39/E39A/E67/E78/E87/E98/E92/E80/E83

6. Checksum algorithm upgrade, more stable and reliable

7. Added Magneti Marelli IAW 4HV 95320 eprom read and write

8. Added Magneti Marelli IAW 7GV 95320 eprom read and write

9. Added Bosch MEG17.9.21 TC1724N eprom / flash read and write&checksum

10. Added mainland/Siemens SIMK41 29F200BT,SIMK4129F200BT eprom and flash read and write + checksum

11. Added ME7.5.10 EPROM / flash read and write
