Description:

BMW ICOM NEXT with WiFi is newest generation professional BMW Diagnostic and Programming Tool which can replace the old BMW ICOM A2.

Software is able to link to Internet. And you can install local printer for printing diagnosis report.

Supported Languages:

Attention:

1. Buyer can choose only one kind language. The default language is English. Please tell us before pay if you need other language.

2. Wiring Diagram and Service Plan supports only English.

Improved Functionality and Performance:

1. Gbit workshop LAN, backwards compatible
2. Preparation for Gbit LAN on vehicle OBD(cars do not yet support this and interface not yet defined, ICOM Next hardware adaptation will be necessary for future Gbit car interface, will cause adaptation costs)
3. Faster start-up time and high throughput
4. Through high-performance, low-power ARM SoC
5. Improved handling
6. More flexible OBD cable
7. Lighted button for logs etc

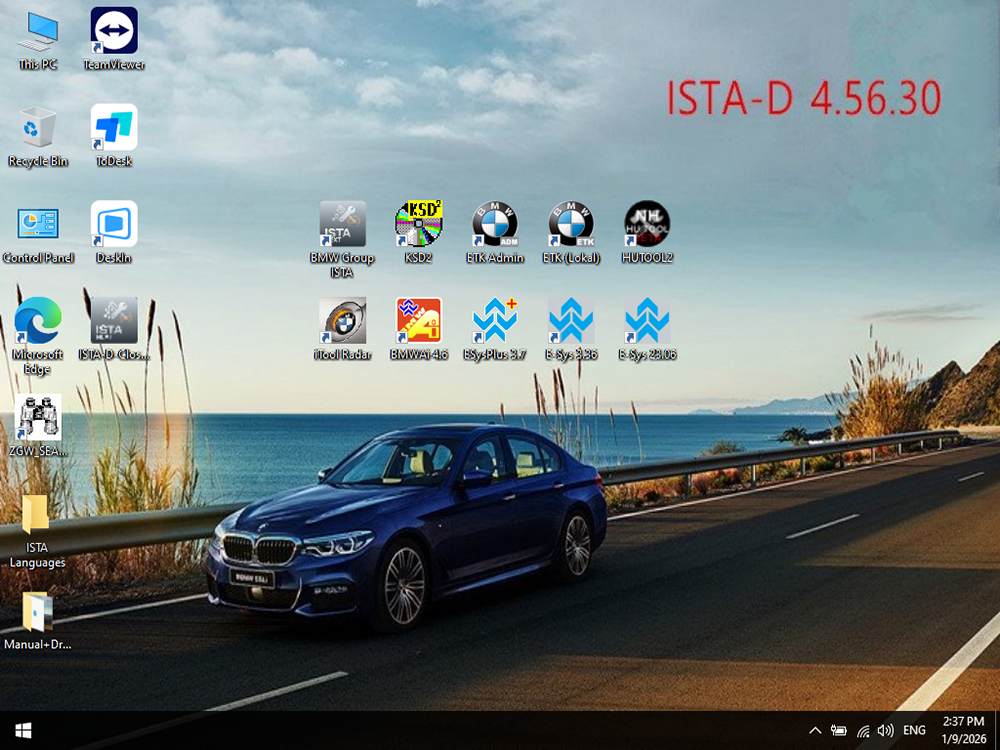

BMW Software Compatible with ICOM Next A:

ISPI NEXT—BMW ISPI NEXT is latest generation after service tool for BMW, these brief instructions describe the basic functions of the AIR(Aftersales Information Research) application in Service. For the Diagnostic, it use IPSI (Rheingold) and ISPI Next for Coding Programming functions.

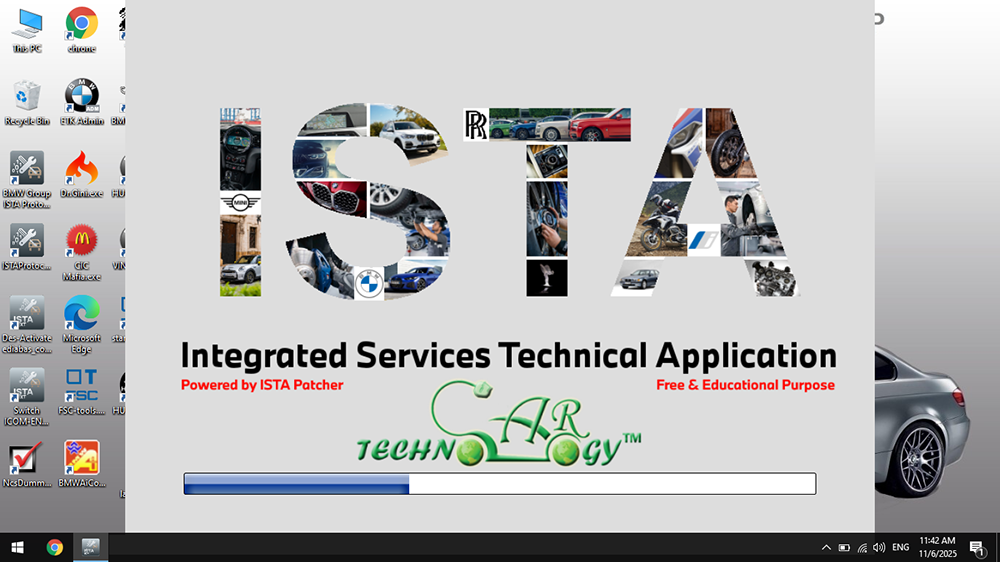

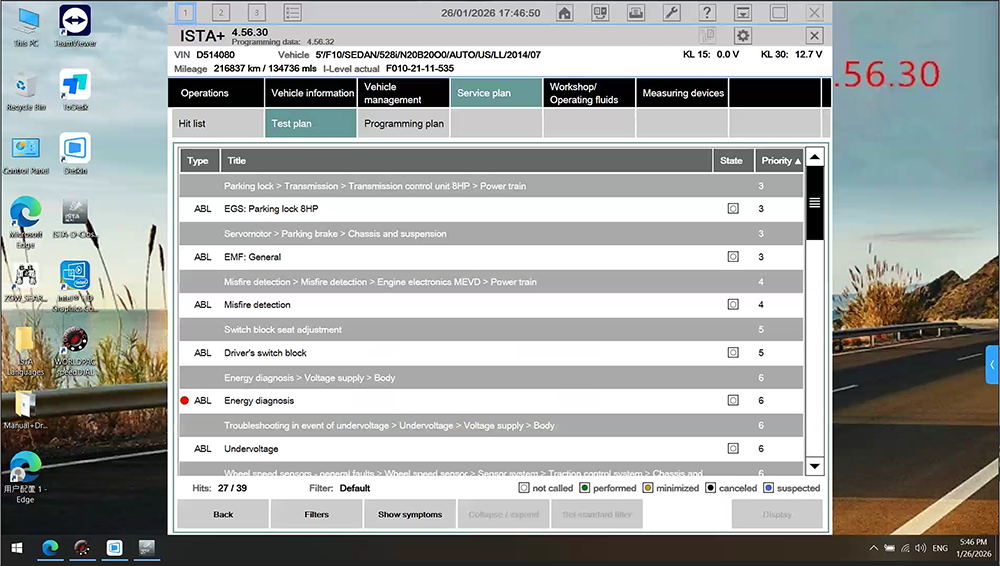

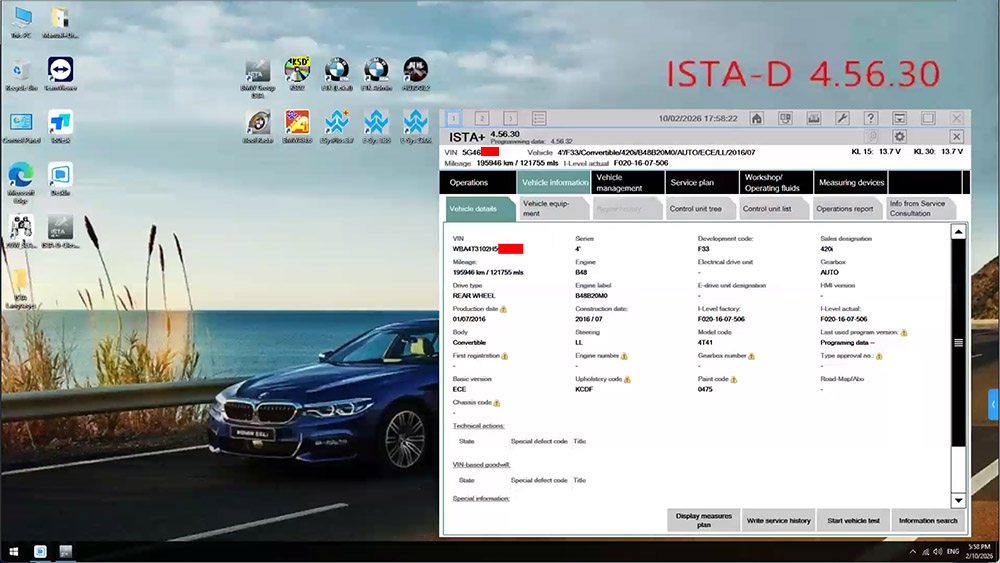

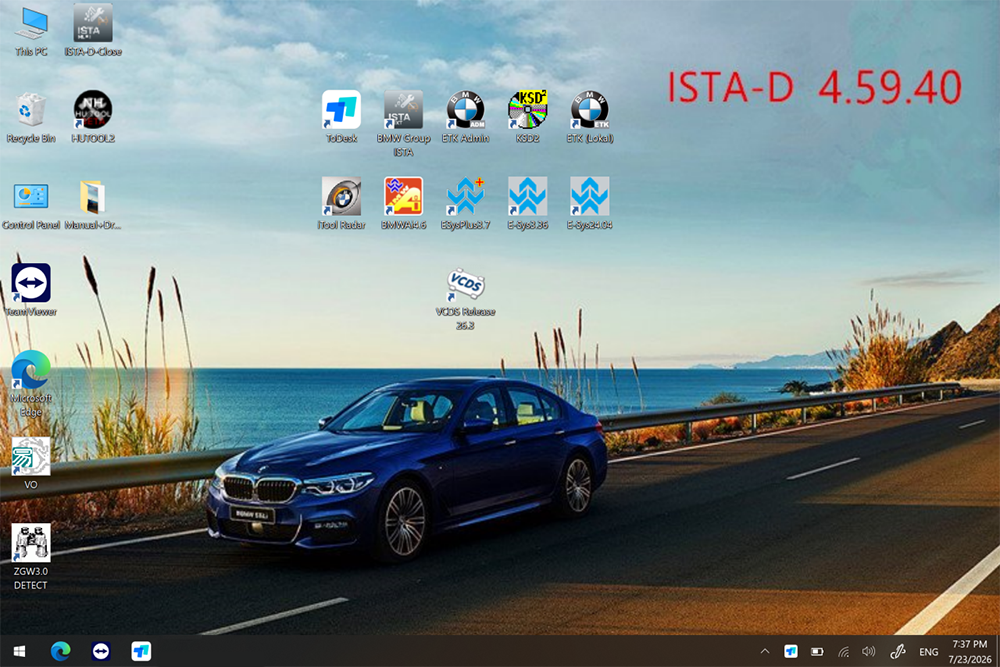

ISTA/D— Integrated Service Technical Application Diagnostic. ISTA/D is used to diagnose BMW all series and models from all systems.

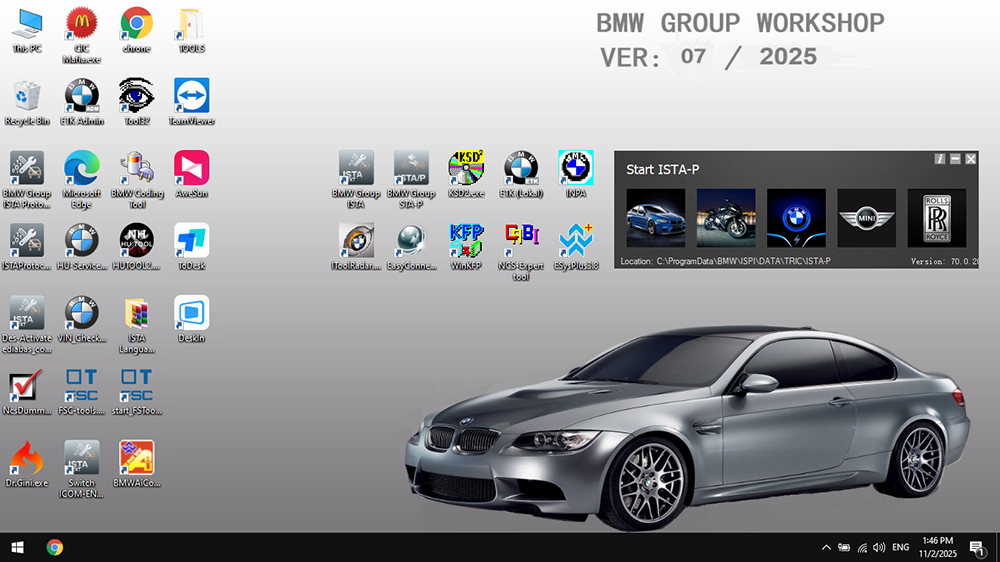

ISTA/P— Integrated Service Technical Application/Programming. ISTA/P is used to process all coded, programmed and enable-dependent control modules in BMW Group vehicles.

Rheingold—Diagnostic and repair guide, including Diagrams and disassembly Figure

KSD—BMW KSD (Kaufmännische Service Daten, i.e. Commercial Service Data) is a collection of invaluable data for determining labor hours, inspection sheets and general service methods. There’s also information about wheels and rims for the various models.

EasyConnect— Used to Configure the Environment Parameter of Engineer Software for E series, can activate or release ICOM Port

iToolRadar— Used to recognize ICOM, activate or release ICOM Port

ETK— Accessories Catalog

EDIABAS Tool32— Engineer Software for E series, able to run directly

INPA— Engineer Software for E series, for diagnosis

NCS Expert Tool—- Engineer Software for E series, for coding

WinKFP—Engineer Software for E series, for programming

E-sys — Engineer Software for F series (available for programming and coding)

BMW Standard tool

Coding Database

Coding Tool

Supported Models:

ISTA/D: Cars, MINI, Motorcycles, Rolls Royce, BMW i Series, BMW Motors
ISTA/P: BMW, BMW Motorcycle, BMW I, BMW MINI, Rolls-Royce, BMW UX

Supported Laptops:

Dell: D630, E6420, E6430
Lenovo: T61, T410, E49, X201T, X61T
Panasonic: CF30

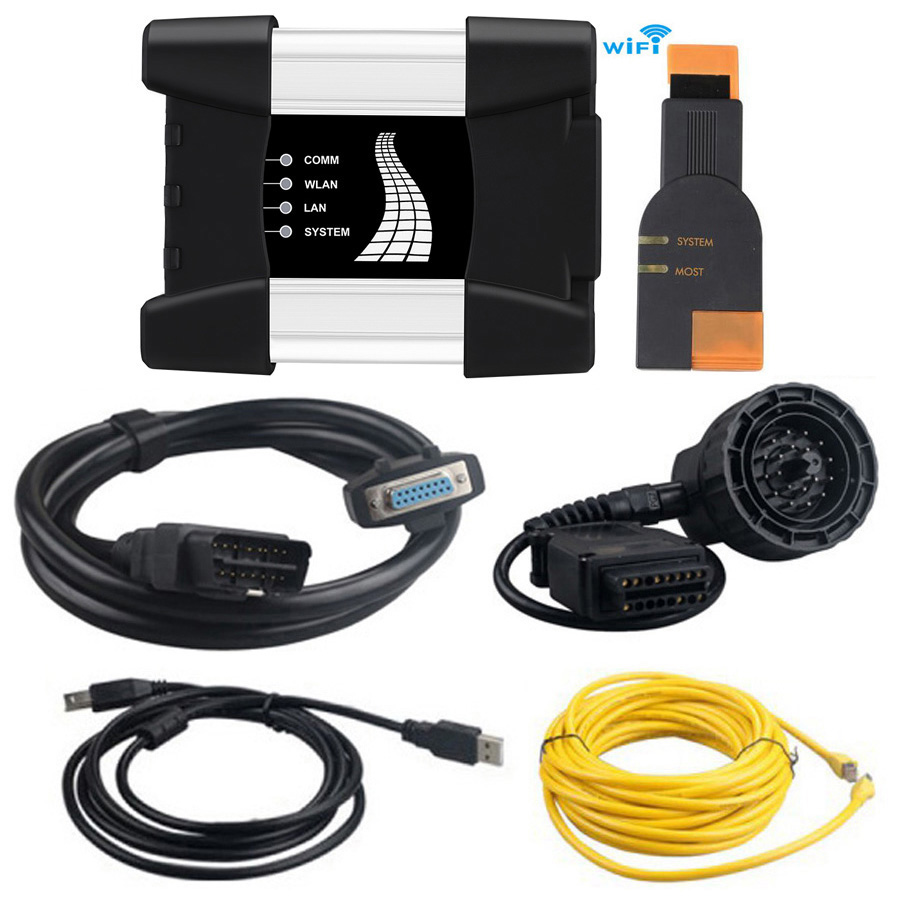

Packing List:

ICOM NEXT multiplexer with WiFi
ICOM B = MOST interface with fiber connection plug
ICOM C = round diagnostic connector for older BMW (before year 2001)
OBD2 cable
USB cable for the connection of ICOM A and ICOM B
LAN cable
Software HDD(optional)
Laptop (optional)
Packing box
