Description:



GODIAG GT105 II ECU IMMO Prog AD OBD2 Break Out Box ECU Connector.



GODIAG ECU IMMO Prog AD GT105 II is used for short-circuiting OBD2 in the car for IMMO activation matching, ECU diagnosis and programming connection, and drawing power from the vehicle's battery for outdoor on-site vehicle maintenance.

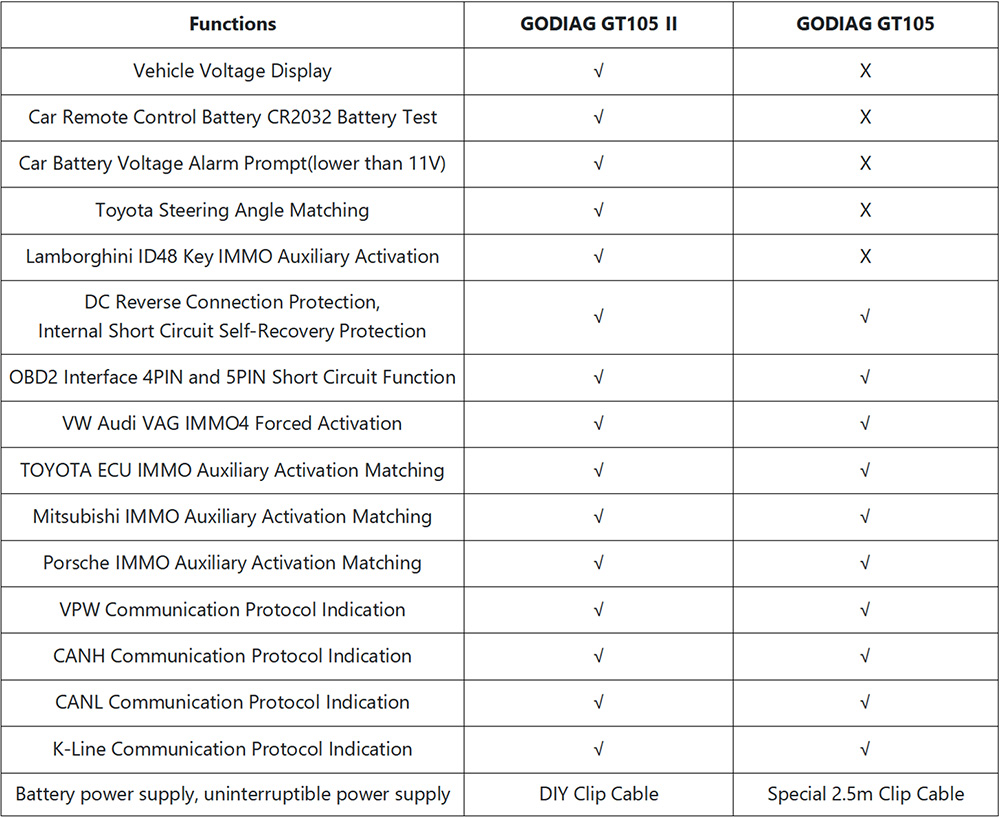

Compared with GODIAG GT105, it it has added 5 new functions: Vehicle Voltage Display, Car Remote Control Battery Cr2032 Battery Test, Car Battery Voltage Alarm Prompt(lower than 11V), Toyota Steering Angle Matching, Lamborghini ID48 Key IMMO Auxiliary Activation.

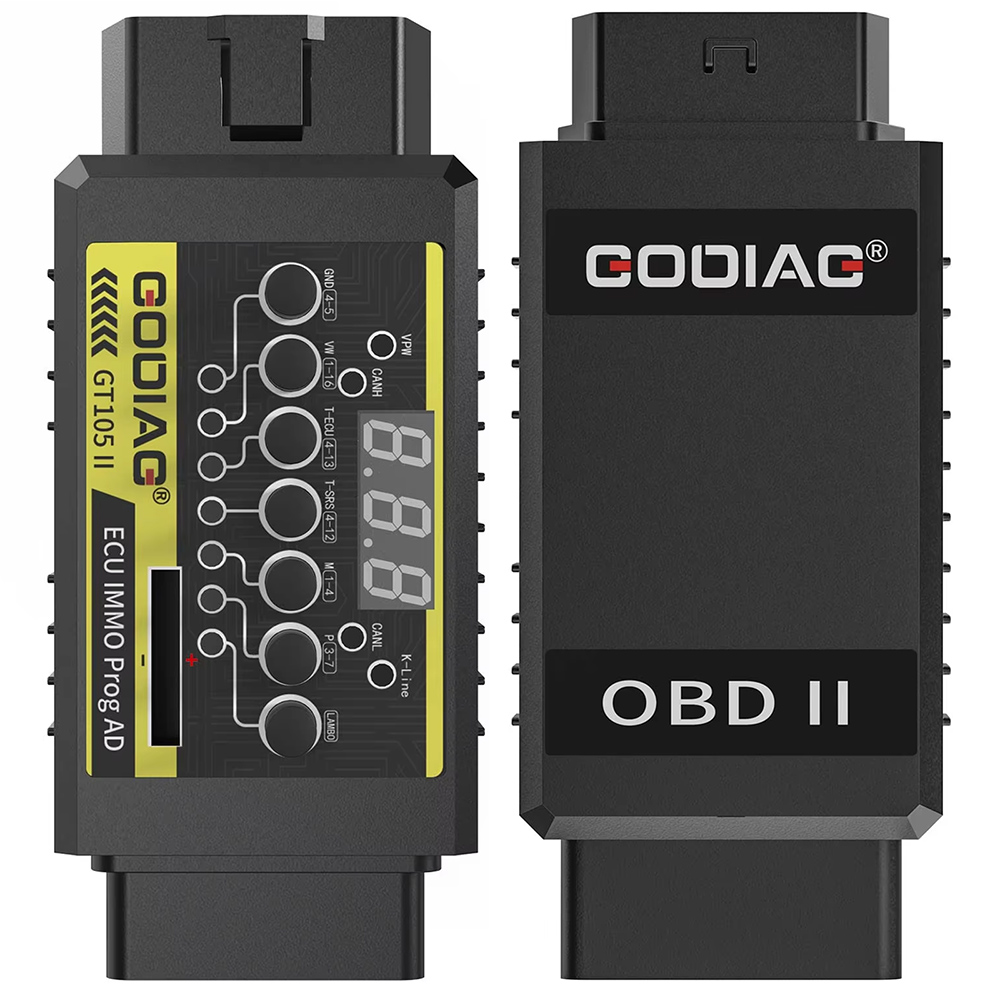

GT105 II has PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-Line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash. Users can judge the communication status, and also can judge whether the diagnostic programming device can communicate.



GODIAG GT105 II is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.



GT105 II provides OBD2 independent PIN4 body GND, PIN5 signal GND, which is convenient for some modules to be used for special programming. In addition, with the OBD2 full protocol ECU programming cable, users can also connect the ECU in the studio to adjust the ECU programming power.



With GODIAG GT105-II, you can enjoy following functions during the battery replacement:



1. The clock does not change.

2. The speaker is not locked.

3. IMMO is not locked.

4. Glass door is not set.

5. The throttle is not set.

6. The warning light is off.

7. No fault code.



Features:

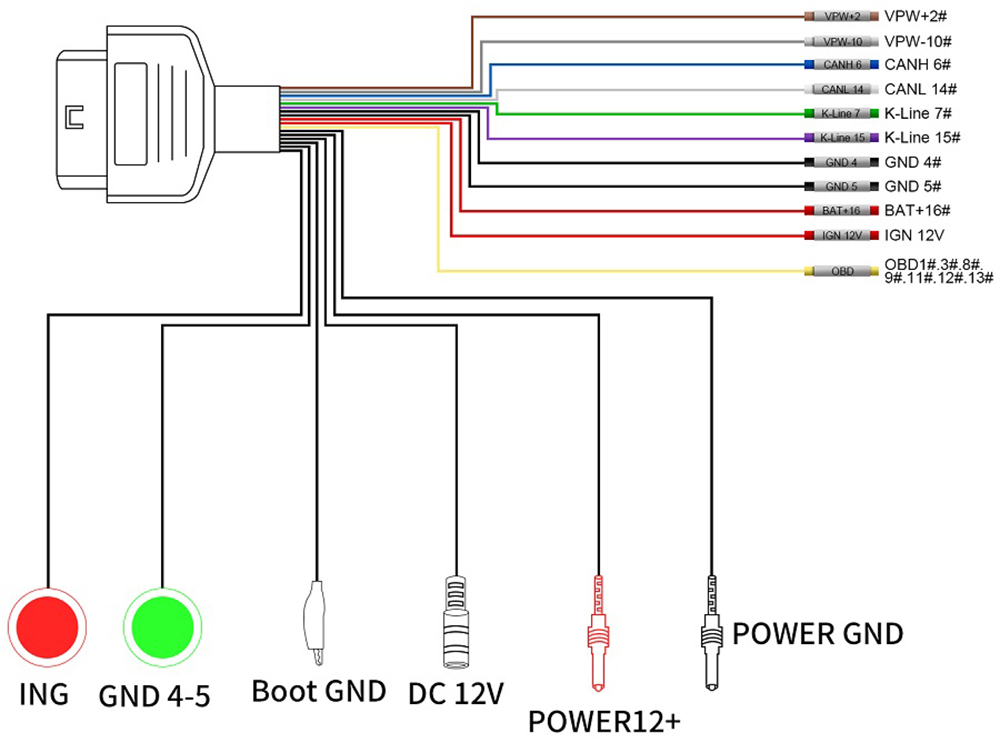

1. A full-protocol ECU connection cable for ECU programming power adjustment.

2. OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.

3. Pin-4 and Pin-5 can be switched between short-circuit and non-short-circuit.

4. Standard OBD2 independent Pin-4, Pin-5.

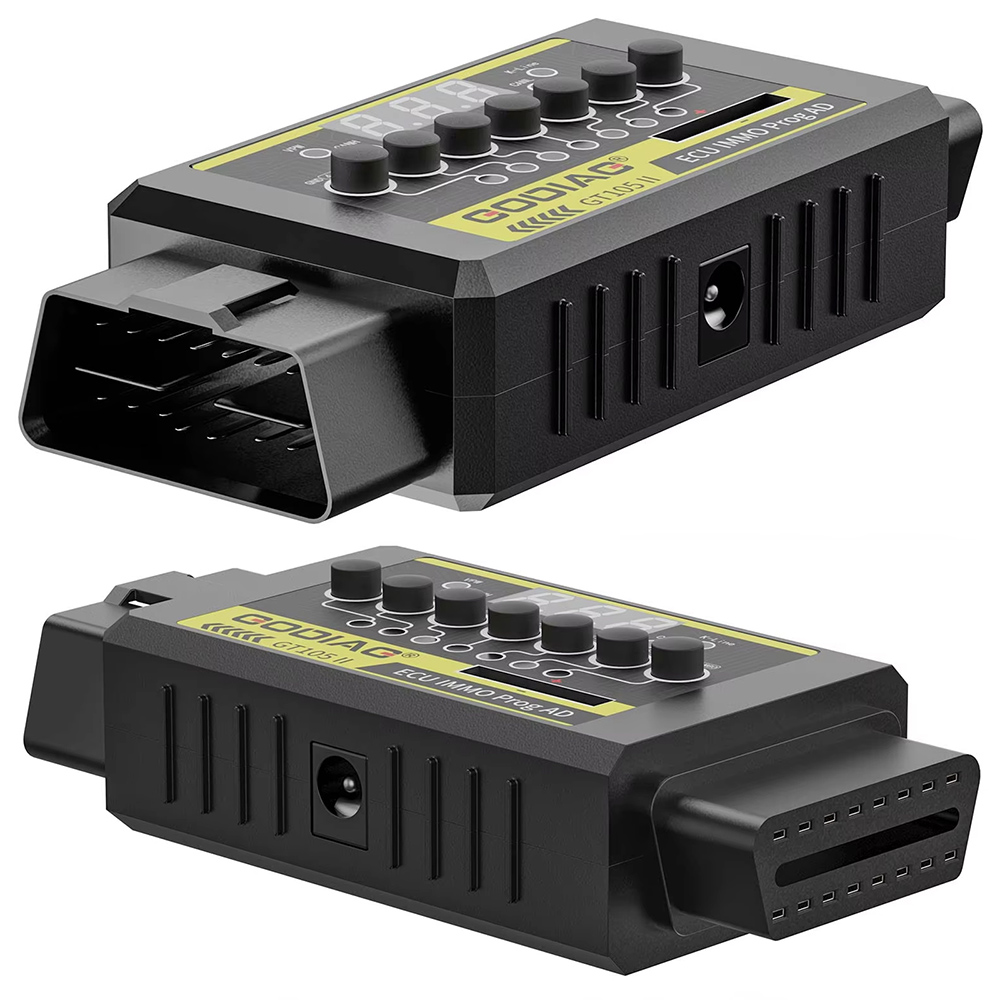

5. Pure copper female seat supports repeated insertion and removal, and has a long service life.

6. Battery clips treated with environmentally friendly salt spray, with a thickness of 0.5mm.

7. The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5 / DC5.5*2.1 interface.

8. The DC connector has a resettable 7A fuse.

9. DC power interface, dedicated laboratory power connector.

10. OBD2 universal jumper of good quality.



Functions:



1. 5 Newly Added Functions

1). Vehicle Voltage Display

2). Car Remote Control Battery CR2032 Battery Test

3). Car Battery Voltage Alarm Prompt(lower than 11V)

4). Toyota Steering Angle Matching

5). Lamborghini ID48 Key IMMO Auxiliary Activation



2. IMMO AD Power Adapter Function

After 2016, for Ford All Smart Keys Lost, GT105 II cooperates with VVDI equipment (OBDSTAR, AUTEL,) and other anti-theft matching equipment to program the keys.



3. All Car Keys Lost Matching

Wake up the meter or wake up the anti-theft ECU. (Support VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi All Key Lost matching or all lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)



4. VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)



5. On-Site Maintenance

GODIAG GT105-II power adapter cable obtains 12V power from the car battery. (For programming equipment such as XHorse VVDI Key Tool Plus Pad, VVDI Prog, CGDI Prog, Autel MaxiIM IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW Benz IMMO ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles.)



6. Provide 12V Power Supply for Key Cutter(12V).

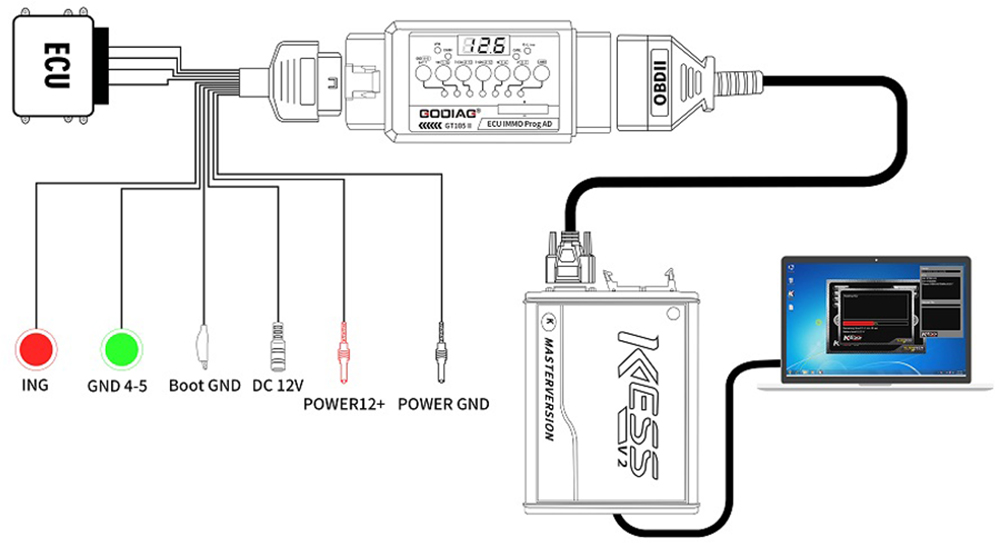

Standard OBD2 full protocol ECU programming line. (With MPPS, FGTech, KESS v2, etc., for ECU data reading and writing, ECU cloning, ECU tuning, etc.) (Note: OBD2 full protocol ECU programming line is purchased separately)



7. OBD Battery Replacement Tool

Realize the uninterruptible power supply during the battery replacement, so it can prevent data loss, key failure or re-matching caused by power interruption during the battery replacement.



Packing List:

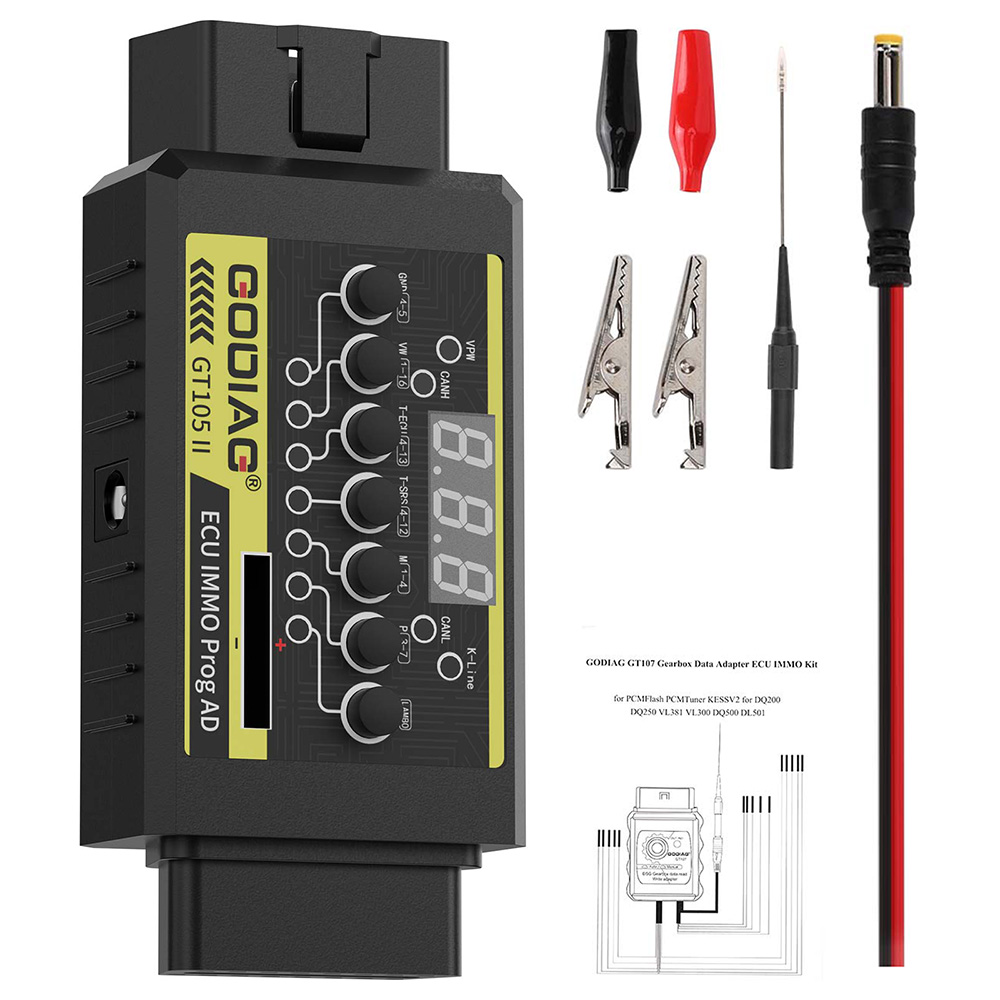

GODIAG GT105 II ECU IMMO Prog AD

Power Cable with Battery Clips

User Manual

Packing Box
