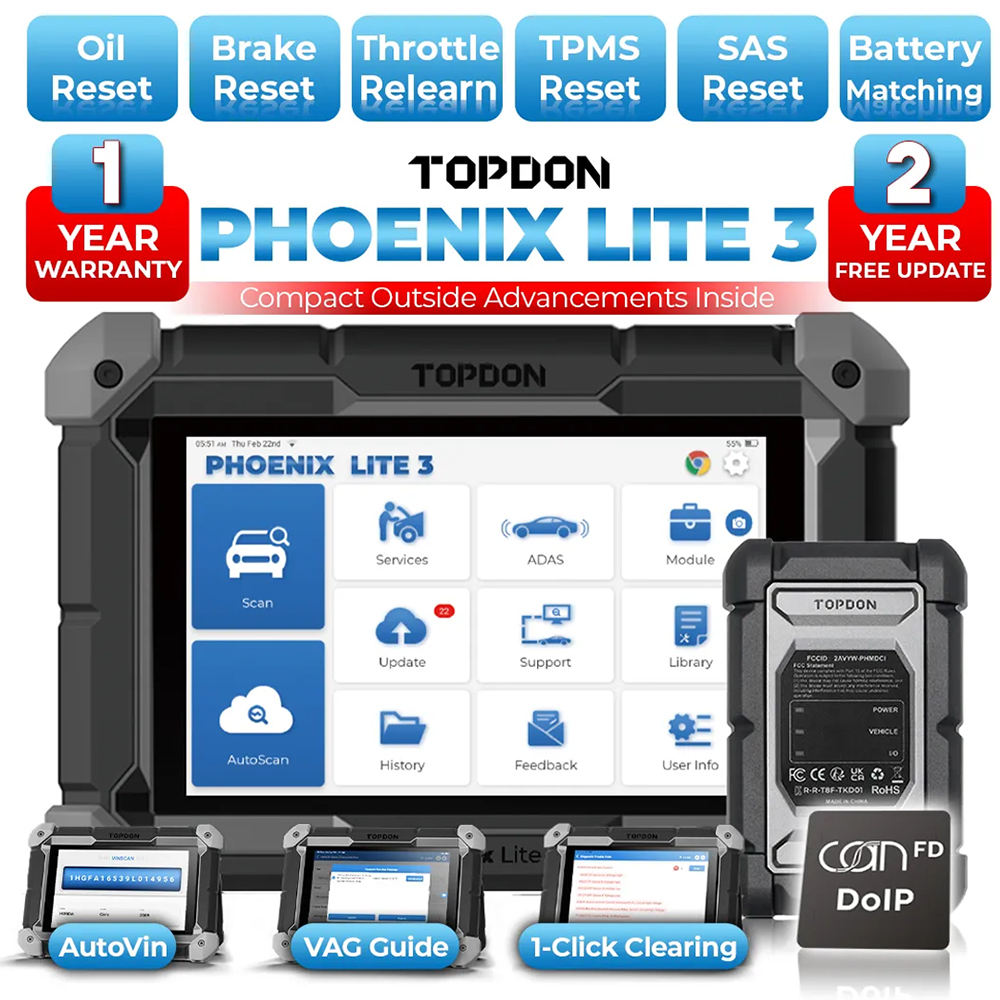

Description:



TOPDON Phoenix Lite 3 is a compact diagnostic scanner designed for automotive professionals, enthusiasts, and small repair shops. Tailored to meet the diverse needs of the automotive industry, Phoenix Lite 3 offers unparalleled functionality and affordability. With features like CAN-FD Protocol, Online Coding, Topology Mapping functions, it stands out as the top choice for a wide range of users.

Software Update: 2 years free update online


Supported Languages:



English, French, German, Spanish, Portuguese, Italian, Russian, Turkish, Dutch, Arabic, Polish, Greek, Hungarian, Finnish, Slovak, Romanian, Croatian, Slovenian, Czech, Danish, Norwegian,Thai, Japanese, Korean, Traditional Chinese



Features:



1. Advanced ECU Coding & Online ECU Coding:

Access vehicle ECU module to re-flash vehicles control modules, renew ECUs Coordination, reprogram adaptation for certain components after repaired or replacement



2. Bi-directional Control:

TOPDON Phoenix Lite3 scanner will imitate a mini sensor to transmit command to ECUs to perform specific tests and functions, identify actuator through its response.



3. OE-Level All System Diagnostics:

Scan all vehicles electronic systems and making repairs according fault codes



4. 35+ Reset Functions:

Meeting your vehicles daily requirement for safe driving



5. VAG Guided Functions:

Step-by-step instructions for car repair For Volkswagen,Audi



6. Battery Test:

Works with BTMobile Pros to perform complete Battery Test, In/Out-Vehicle Test, Charging and Start Test, etc.



7. FCA AutoAuth:

Connect FCA vehicles in/after 2018 like Chrysler, JEEP, Dodge, Fiat, etc, across FCA gateway permissions.



8. CAN FD Protocol:

Phoenix MDCI provide brand-new CAN FD Protocol to cover 99% vehicles to 2021-2022



9. Auto Scan:

With Auto scanning, the scanning speed of the whole module has been increased by three times, leap into the second scanning stage, and the average speed has been greatly improved



Note: All above functions are car-specific, please send vehicle make, year, model, VIN and specific functions to check compatibility if necessary.



Functions:

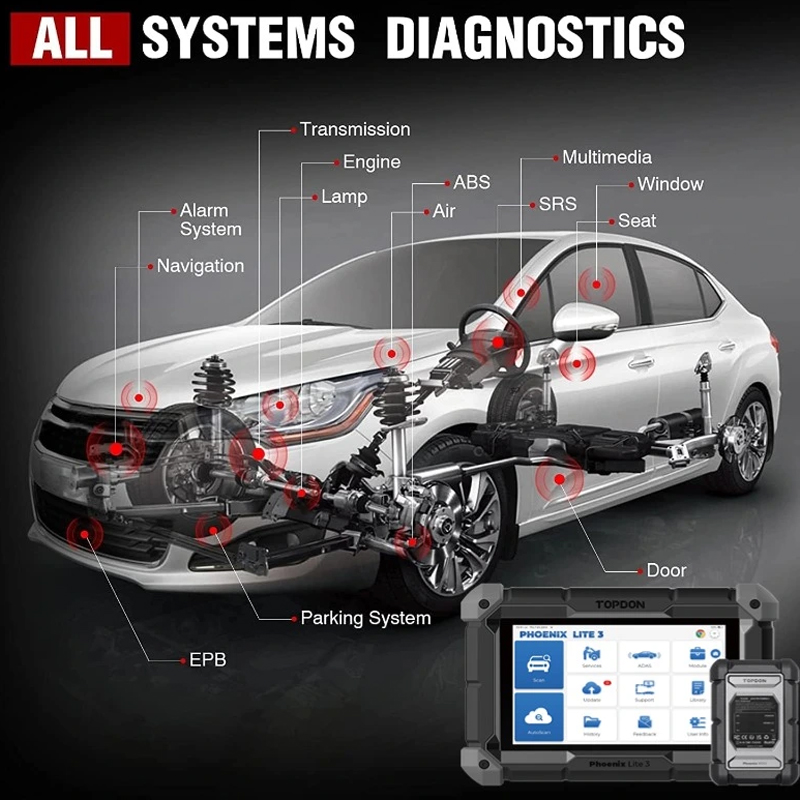

1. OE-Level Full System Diagnostics

TOPDON Phoenix Lite3 automotive diagnostic scan tool perform deeper dealer-tool level diagnostics previously only available to dealership. Phoenix Lite3 OBD2 scan tool scan all available vehicle modules like ABS, SRS, Engine, Transmission, Body, IMMO, Chassis, Suspension, HVAC, Lighting System, Radio Systems to accurately locate faults and assess vehicle condition: Read/Clear codes, show DTC, turn off Check Engine Light(MIL), ABS/Airbag/Transmission Warning Lights, Reset Monitors, etc.



1). View Live Data Stream In Text or Graph:

Retrieves and displays live data and parameters from vehicle’s ECU, like Misfire data, engine rpm, CAM/CMP delay, mass flow sensor data, transmission oil temperature, long/short fuel trim, fuel pressure, cylinder balance rates



2). Freeze Frame Data:

Freeze error codes at the moment occurs, and you can analyze the error code cause.

ECU Information– provides the retrieved ECU information in detail.



3). Active Test:

Test vehicle component and perform specific analysis such as EVAP test, fuel injector balance, injector test, ABS motor pump cycling, cooling fan test, car window, doors, sunroof, wipers tests;



4). Complete Capabilities:

Faults Codes, Live Data, Freeze Frame, Retrieve Active Tests, Resets, Relearns, Matching, Adaptations, Calibrations, Initialization, etc.



2. ECU Coding & Online Coding & ECU Offline Adaptation

As a upgrade version of TOPDON Phoenix Lite 2, TOPDON Phoenix Lite 3 has most powerful ECU coding to maximize safety, uptime, and profitability.



ECU Online Coding

ECU Offline Adaptation

Modifying OE Parameter Setting

Match / Learn/ Code New Replaced ECU

Change Pre-programmed Software Options

Improve Vehicle Performance

Reflash Hidden Functions

Stimulate High-end Functions



3. 35+ Maintenance Services

1). Oil Reset:

Reset the service interval and turn off oil light after oil replace.

2). EPB Reset:

Reset the brake pads after replacing the brake system.



3). SAS Adjustment:

Performing Steering Angle Sensor Calibration



4). BMS Reset:

Register new battery to ECU after replacement.



5). Throttle Relearn:

Allows you to initially set the thro-ttle to adjust the amount of intake air.



6). ABS Bleeding:

Performs the ABS Brake Bleed function to circulate the ABS pump to expel air from the ABS.



7). Injector Coding:

Coding injectors after replacement.



8). Transmission Match:

Resets the adaptive shift points in automatic transmission control unit.



9). IMMO:

Disable lost vehicle keys and program a new replacement key fob for anti-theft grade vehicles.



10). Windows Initialization:

Initialize car window when vehicle window fails or after replacing window glass.



11). Airbag Repair:

Reset airbag data and clear/ airbag collision/ crash data.



AFS Headlamp Reset, Gear Learning, A/F Reset, ABS Bleeding, Coolant Bleed, Language Change, NOx Sensor Reset, Seats Calibration, Stop/Start, Brake Fluid, Airbag Reset, Transport Mode, Type Reset, Windows Calibration, AC System Relearn/Initialization, Intelligent Cruise Control System, Engine Power Balance Monitoring, Motor Angle Calibration, High Voltage Battery Diagnostics, ODO Calibration,  etc.;



Covering the majority of makes and models worldwide up to the latest year and still expanding.



4. Bi-Directional Control:

Phoenix Lite3 allows you to send control commands directly to verify system components status effortlessly in seconds.



Door Locking Test

Injector buzz Test

Mirrors Auto Fold/Unfold

Windscreen Wipers Turn On/Off

Modulate Throttle;

Open/Close Windows & Doors



Work on relays, injectors, coils, solenoids valves, actuators, headlamps, etc.

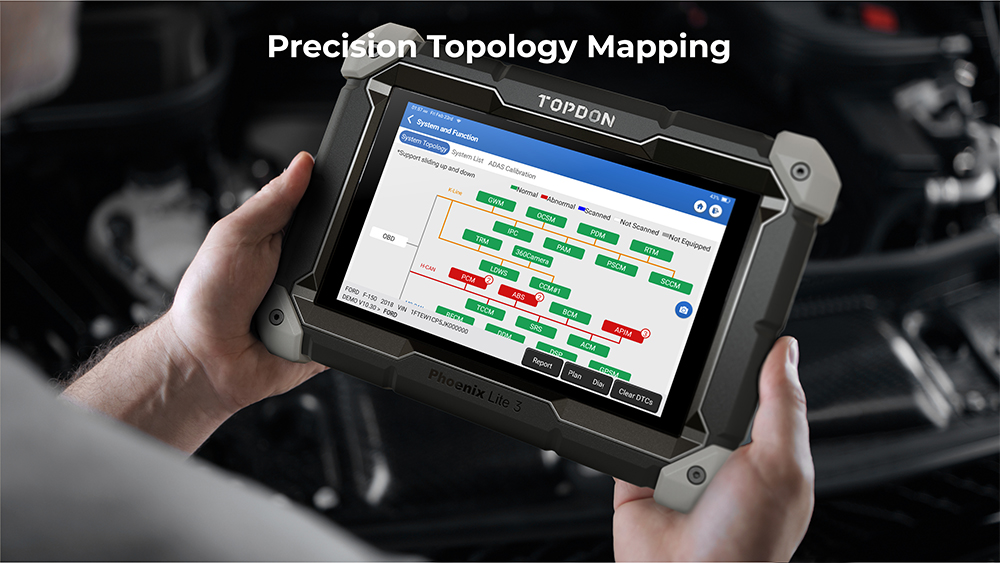

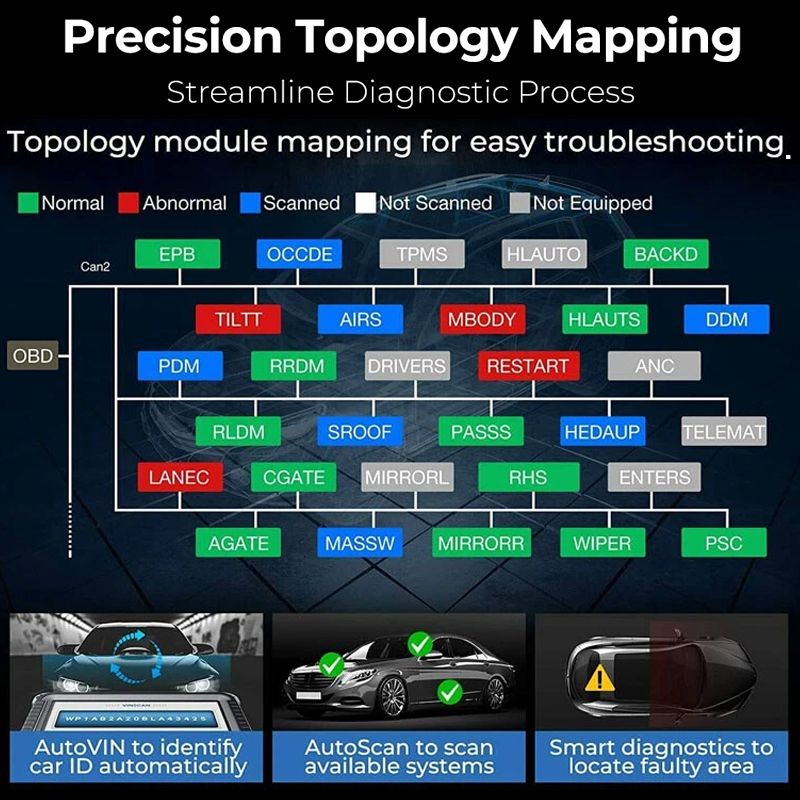

5. Precision Topology Mapping:

Intuitive color-coded topology display of all structures between vehicle modules for easy troubleshooting. Enhance communication efficiency and troubleshoot with accuracy, providing a comprehensive depiction of vehicle systems and statuses.



6. Supports CAN-FD Protocol:

Compatible with modern vehicles (2020-now GM & Chrysler Models).

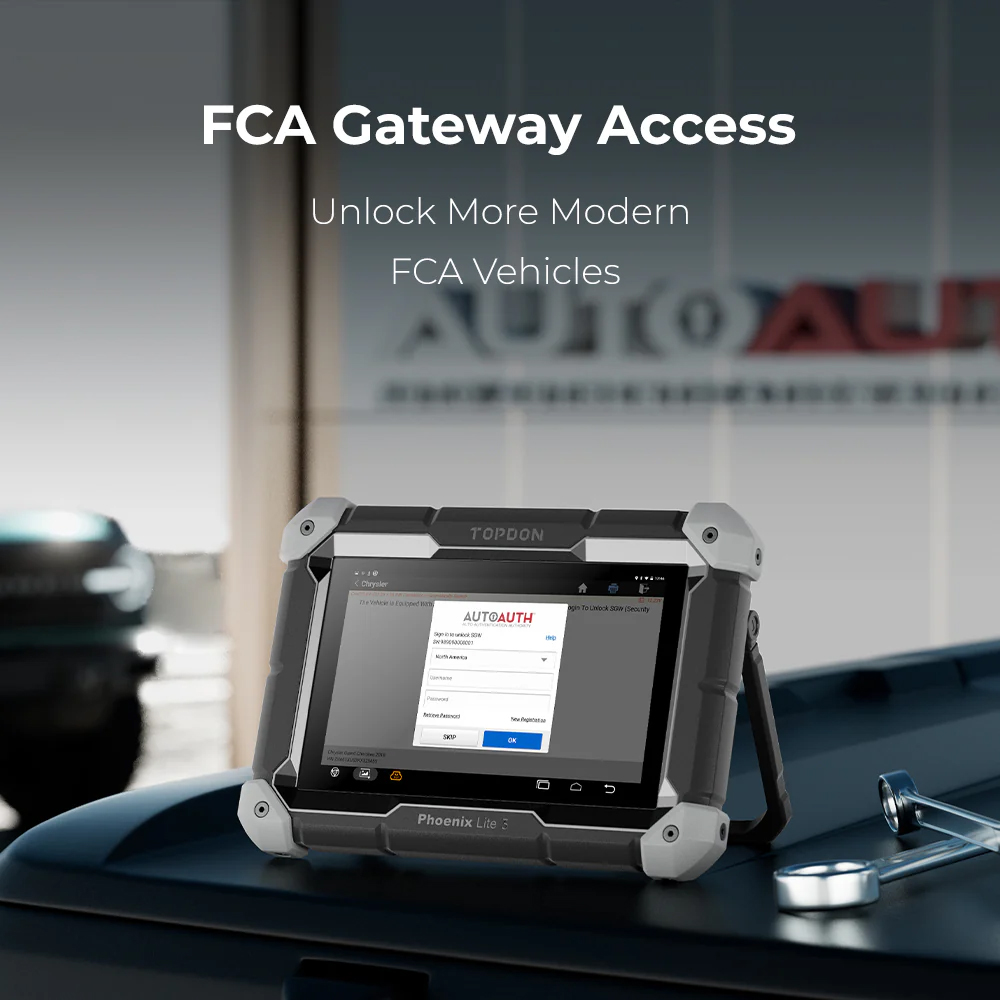

7. FCA AutoAuth:

Allows you access to FCA cars in/ after 2018 like Chrysler, JEEP, Dodge, Fiat, etc.



8. Battery Test:

Works with TOPDON BTmobile Pros, you can perform complete battery test like in-vehicle and out-of-vehicle testing, battery reset, start and charging test, check BMS health.



9. Data Reporting and Sharing:

Display and compare 4 data streams, generate and share detailed diagnostic reports.



10. Expanded Add-on Tools:

Integrates with TOPDON professional products for extended functionality.



Wide Vehicle Coverage:



Full-System Diagnostics for 200+ makes and 10000+ models, including ABS, SRS, Engine, Transmission Systems.



Specifications:

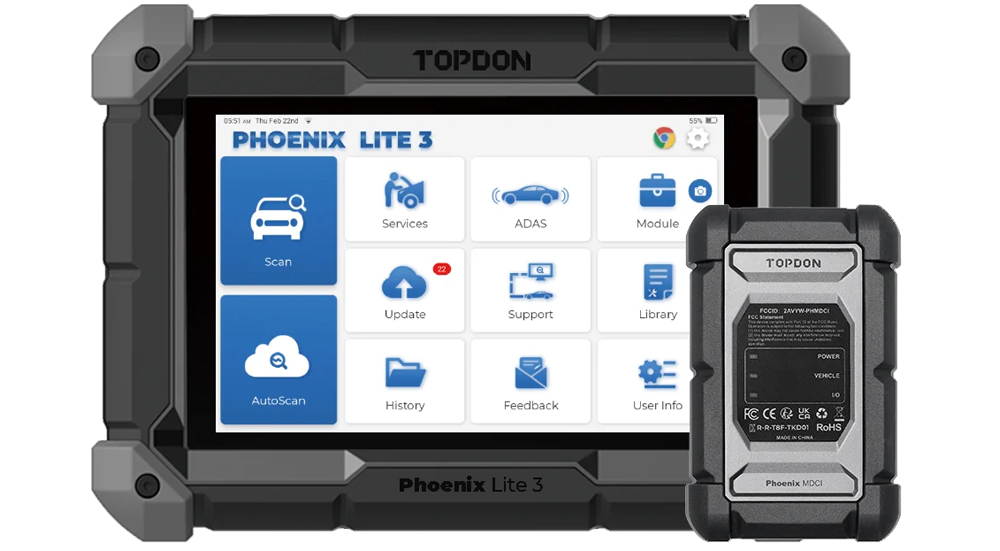

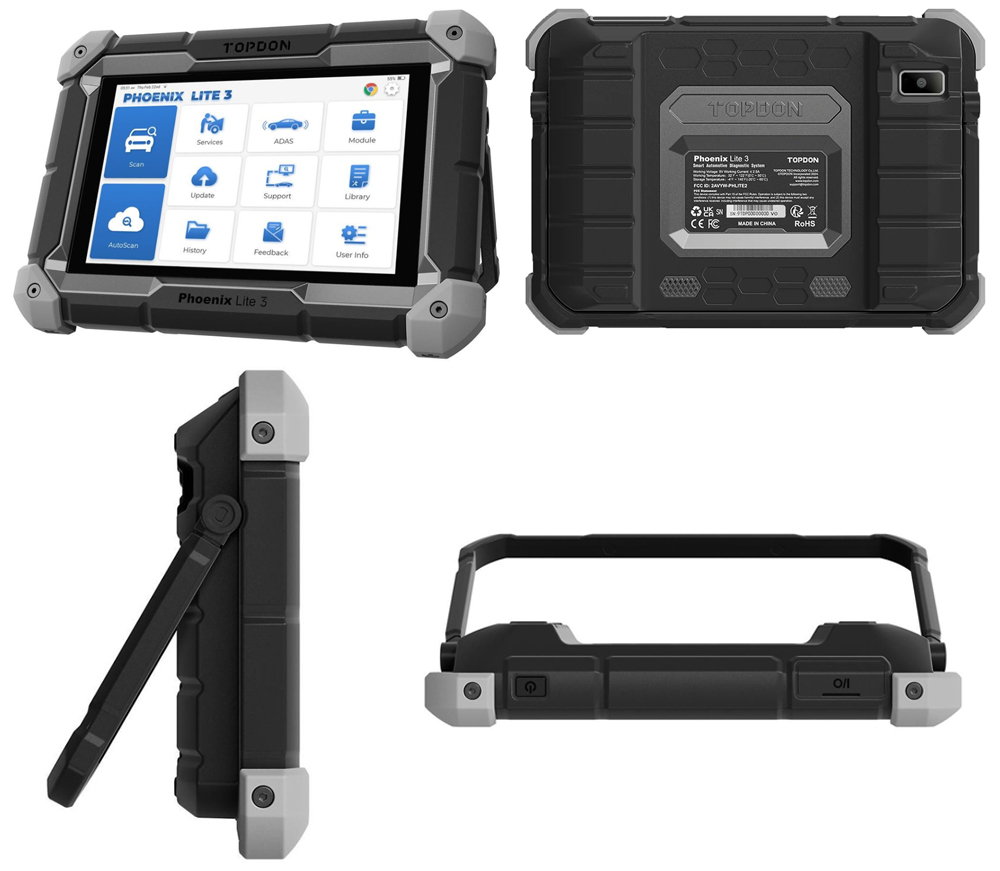

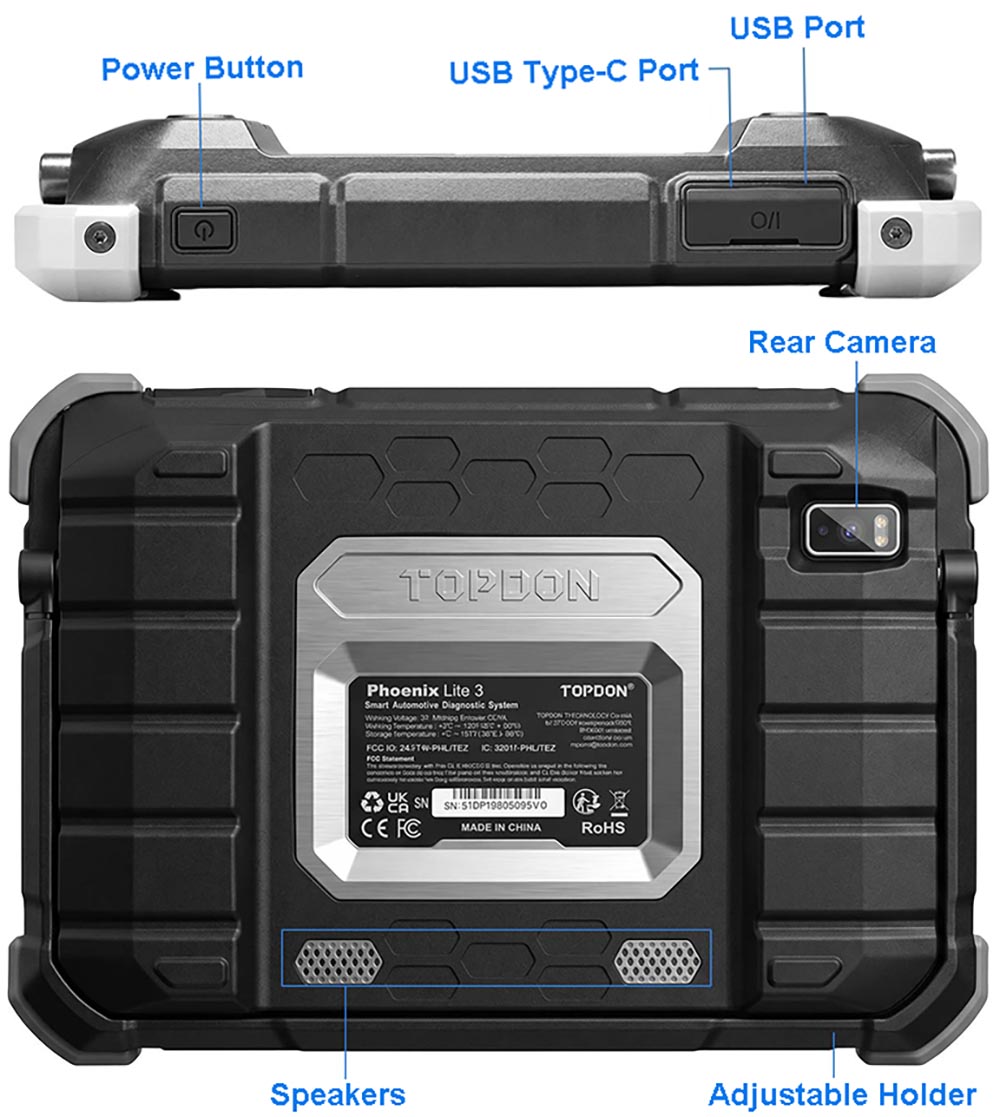

Tablet Scanner:


Display: 8-inch LCD with 1280*800 resolution

CPU: 4-Core Processor, 2.0GHz

Operating System: Android 10.0

RAM: 2GB

ROM: 64GB

Battery: 12600mAh / 3.8V

Operating Voltage: 9V ~18V

Storage Temperature: -20℃ to 60℃

Working Temperature:0℃ to 50℃

Size(L*W*H): 258*183*50.5mm

Net Weight: 1184.5g

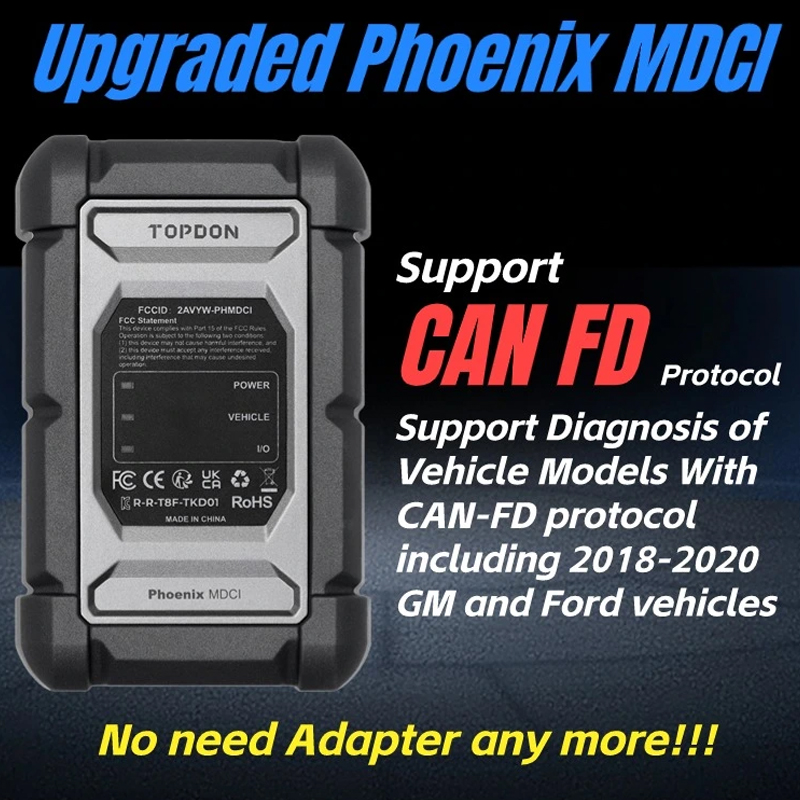

MDCI:



Working Temperature:-10℃to 50℃

Operating Voltage: 9V to18V

Working Current: ≦150mAh

Dimension: 127*82*36mm

Protocol Supported: CAN-FD

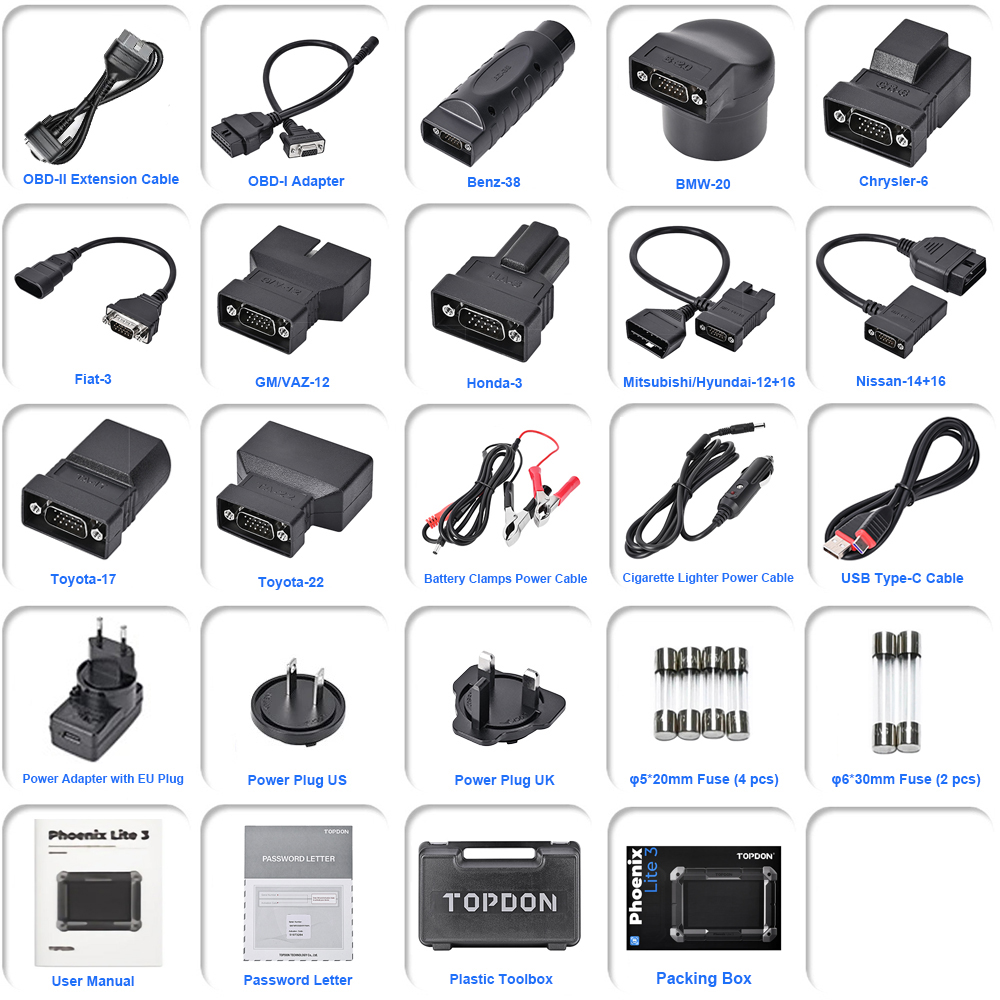

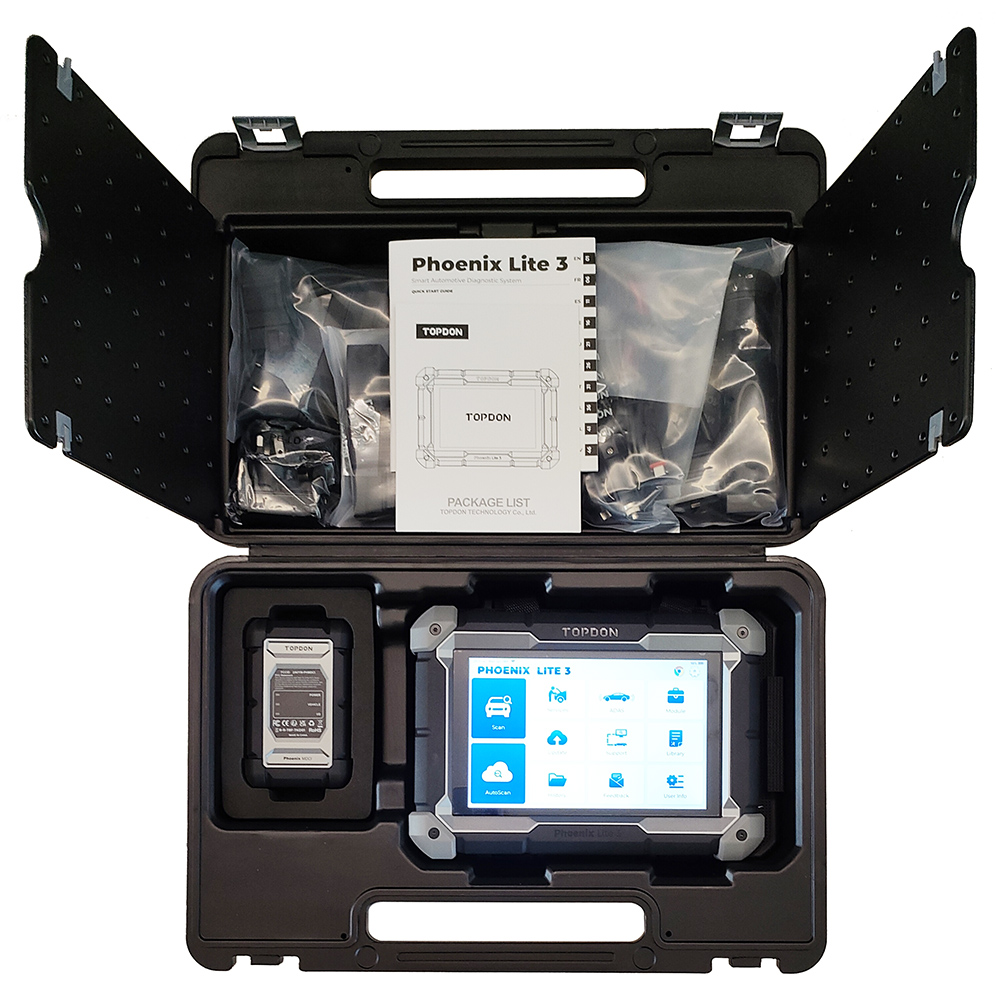

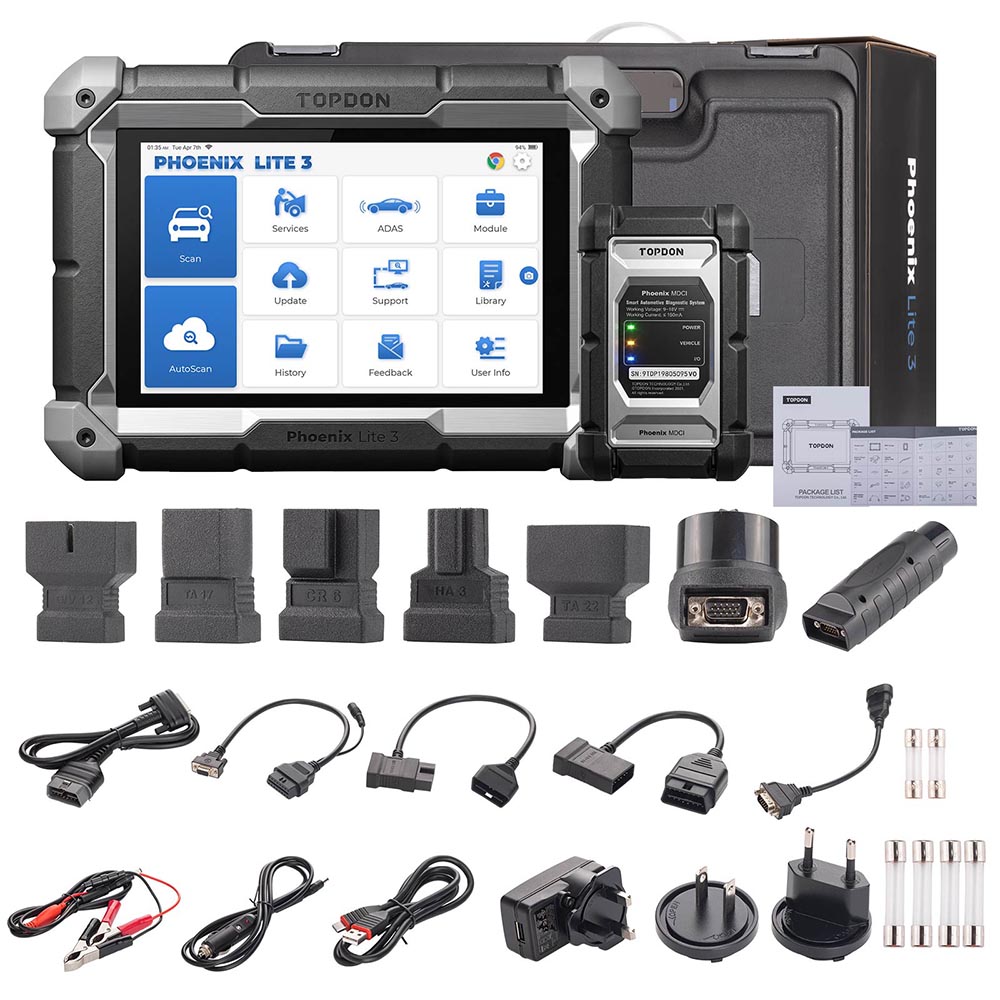

Packing List:



TOPDON Phoenix Lite 3

MDCI Dongle

OBD-II Main Cable
OBD-I Adapter

Battery Power Clamps

Cigarette Lighter Power Cable

USB Type-C to USB Cable

Benz-38 Adapter

BMW-20 Adapter

Chrysler-6 Adapter

Fiat-3 Adapter

GM/VAZ-12 Adapter

Honda-3 Adapter

Mitsubishi/Hyundai-12+16 Adapter

Nissan-14+16 Adapter

Toyota-17 Adapter

Toyota-22 Adapter

Power Adapter

EU Plug

US Plug

UK Plug

Fuse (φ5*20mm) (4 pcs)

Fuse (φ6*30mm) (2 pcs)

User Manual

Packing List

Plastic Toolbox

Packing Box
