Description:



CK-PROG Automotive Programmer Supports Reading and Writing of Chip Data, Programming, Flashing...



CK-PROG is a professional-level, versatile automotive programming and electronics repair device. Designed for high efficiency and precision, it supports comprehensive reading, writing, and decryption capabilities across an extensive range of microcontrollers (MCUs) and EEPROM chips. With integrated cloud-based data processing, a robust immobilizer suite, and vehicle-specific wiring guides, CK-PROG is an all-in-one solution for modern automotive locksmiths, diagnostic technicians, and repair shops.



CK PROG Programmer supports reading and writing data for a wide range of chips, including SPC56xx/SPC564xx/MAC7 series, MC68HC(9)12 series, TC2xx series, FS32K1xx series, 9s12/9s08/M68Hxx series, H8SR5F61725 series, ATMEGA series, PIC16/PIC18 series, S6J series, RH850 (R7F7) series, RL78 (R7F1/R5F5) series, STM8 series, V850 (D70F) 2-wire series, V850 (D70F) 1-wire series, MB91 series, and EEPROM chips, among others. CK-PROG Prog includes decryption functionality and currently supports chips from Freescale, Renesas, NXP, etc., with more models under continuous development.



Features:



1. Extensive Chip & Manufacturer Support:

Decrypts, reads, and writes data for leading semiconductor brands including Freescale, Renesas, NXP, and more (with continuous development for new models).



2. Cloud-Based Processing:

Upload corrupted or locked vehicle data to the cloud for automated processing, repair, and recovery.



3. User-Centric Diagnostics:

Includes automated program log recording (updates, diagnostics, and process histories) alongside guided help documentation.



4. Guided Hardware Setup:

Provides model-specific vehicle wiring diagrams directly within the software to ensure safe and accurate physical connections



5. Programming module:

Supports general-purpose memory and MCU options.



Functions:



1. Programming Function:

Programming Function Programming Module:

Supports general-purpose memory and MCU options.



2. Key-Related Function:

1). Key Unlocking: Unlocks standard OEM keys available on the market.

2). Key Detection: Detects key chips and frequencies.

3). Supports copying both encrypted and unencrypted keys-including for BMW BDC2, BDC3, U-chassis, and LCD keys-onto new or used key shells.



3. Immobilizer Programming Function:

Immobilizer Data Processing: Load immobilizer data into vehicle's immobilizer control unit and write/start the system.



4. Automotive Electronics Repair Functions

1). Airbag Repair:

Reset the "crash lockout status" and clears fault codes stored in the airbag control module after airbag deployment, thereby unlocking and restoring the module to normal operational condition.



Applicable Scenarios:

Covers 80%-90% of common vehicle models on market(e,g., for Volkswagen, for Toyota, for Honda, allowing repair of the airbag control unit without hardware replacement).



2). Odometer / Dashboard Calibration:

Calibrates displayed data on the vehicle's dashboard-including odometer reading, fuel gauge accuracy, and tachometer/speedometer display errors- to correct abnormal or inaccurate readings.



Applicable Scenarios:

Suitable for 75%-85% of vehicles with mechanical or digital instrument clusters(e.g., Cases involving erratic mileage jumps or inaccurate fuel level indications.).



3). Repair of Commonly Damaged Modules

Resets and repairs fault data in commonly damaged modules such as the Steering Column Lock module(direction lock) and Body Control Modules(BCM).



Applicable Scenarios:

Steering lock jamming or failure. Intermittent malfunctions in body control modules(e.g., Erratic window operation, door lock failures.)



5. Auxiliary Functions:

User-defined programming menu and one-click flashing. Program log recording(including logs of updates, diagnostics, and other processes.). Wiring diagrams and help guidance.



Accessories:

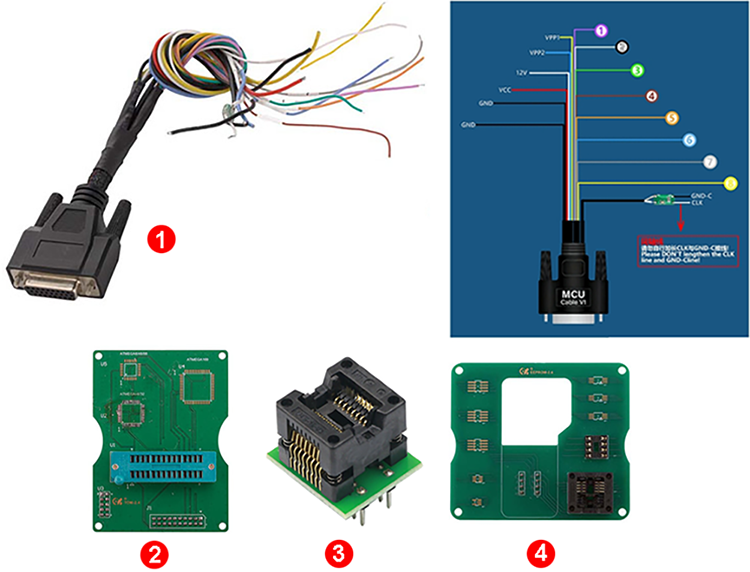

① MCU Cable V1 Programming Cable:

Widely compatible, supports programming of various chips, clearly labeled wire numbers, ensuring stable and safe soldering.



Precautions:



1). After soldering, please inspect all connections to ensure they are correct.

2). Do not extend the CLK line or the GND-C line yourself, as this may cause data reading failures.



②ATMEGA Adapter:

Compatible with various chip specifications including 8/16/32-pin packages. Comes standard with a plug-in, solder-free socket and three soldering positions. Supports odometer correction and chip erasure.



③Octagonal Chip Socket:

Designed for use with a programmer to program 8-pin chips. Features solder-free contact pins and compatible solder pads for both 6-pin and 8-pin chips.



④Octagonal Adapter Board:

Used together with an adapter socket to program 8-pin chips. Features a solder-free spring-contact socket for reliable pin contact, and solder pads compatible with both 6-pin and 8-pin chips.



To facilitate user programming and operation, we will continuously release various adapters in the future, such as adapter boards for Porsche, BMW, Land Rover, RH850 decryption, and more.



Specifications:



USB Interface: USB 2.0

Power: 1W

External Power Supply: 12V/2A

Dimensions: 176*101.5*31mm

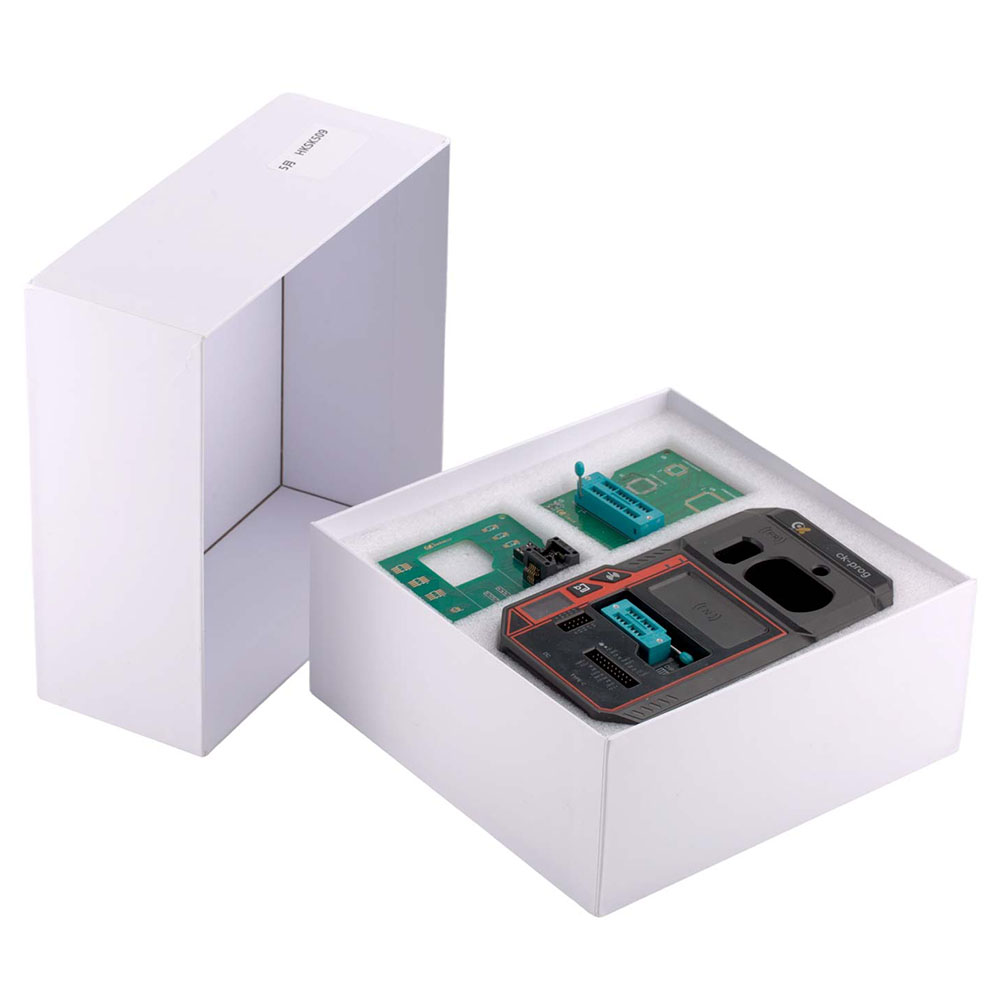

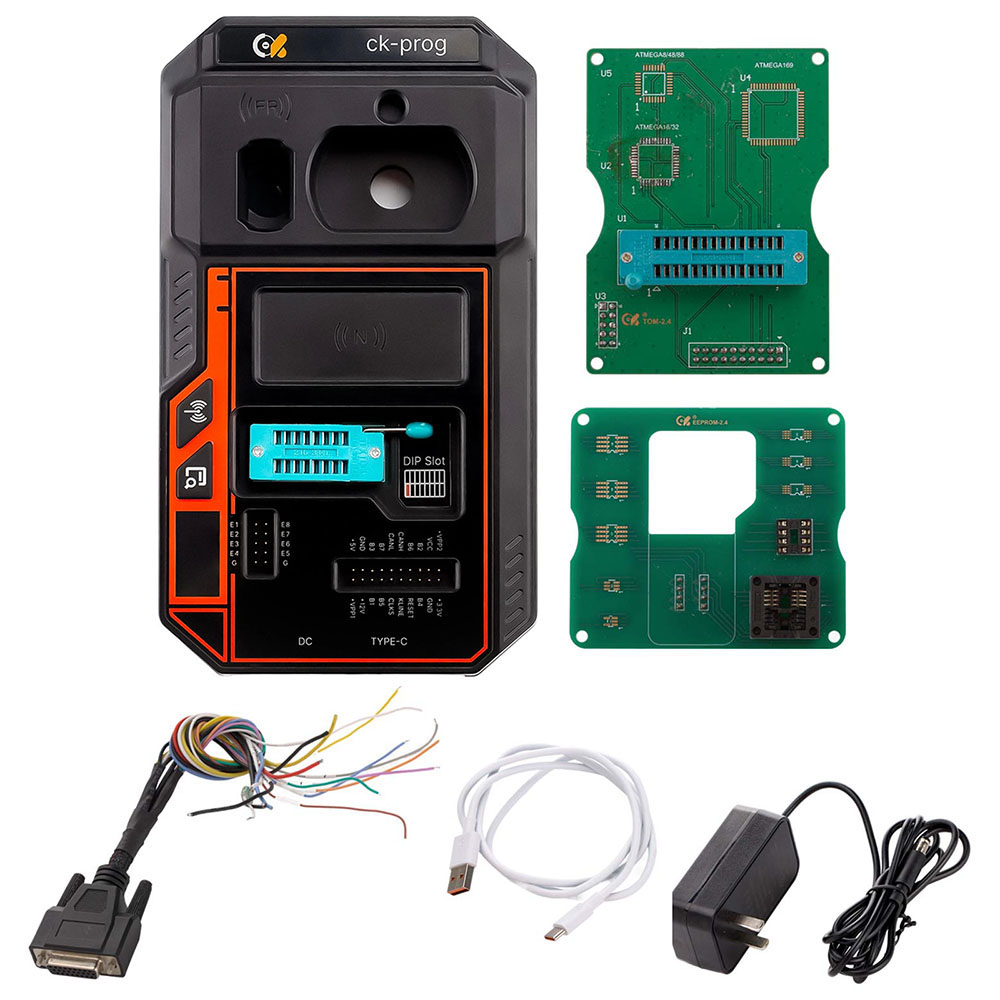

Packing List:



CK-PROG Car Programmer

ATMEGA Adapter

Octagonal Chip Socket

Octagonal Adapter Board

MCU Cable V1 Programming Cable

USB Type-C Cable

Packing Box
