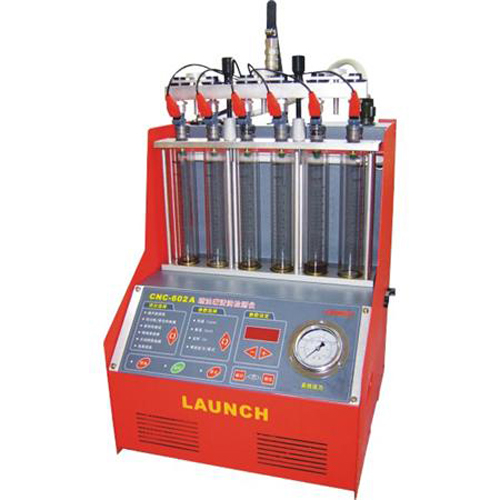

Name: Launch CNC602A Fuel Injector Cleaner & Tester

Description:

Launch CNC 602A is an advanced electromechanical product which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

Feature:

Ultrasonic Cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
Uniformity/Spray Ability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
Leakage Test: To test the sealing and dribbling conditions of injectors under system pressure.
Injecting Flow Test: To check the injecting amount of the injector in 15 seconds of constant injection.
Auto Test: To test injectors by simulating different working conditions.
On-Vehicle Cleaning: The unit is equipped with various adapters and couples that facilitate cleaning on the injectors on vehicle.

Specification:

Power Supply: AC220V10%, 50/60Hz; AC110V10%, 50/60Hz
Input Power: 250W
Ultrasonic Cleaner Power: 100W
Simulated RPM range: 10 - 9990rpm; step: 10rpm
Time Range: 1 - 9999s
Pulse Width: 0.5 - 25ms; step 0.1 ms
Fuel Tank Capacity: 4700ml
Dimensions: 385*410*500mm
Weight: 45Kg
