  OBDSOS PRODUCTS Car Key Programmer

Product ID SK305-EU
Product Name XHorse VVDI Key Tool Plus Pad Full Configuration
Product Price USD2100
Actual Weight (Kg) 8
Volumetric Weight (Kg) 7
Package Size (cm) 56*43*14
Related Download
  XHorse VVDI Key Tool Plus Pad Manual.pdf
Version
Order Quantity:
In Stock



Frequently Buy Together +   Related Products
Description
Name: XHorse VVDI Key Tool Plus Pad All-In-One Automotive Solution for Locksmith

Description:

XHorse VVDI Key Tool Plus Pad is an XHorse new released, first tablet key tool. It is much easier to complete various automotive programming anywhere with no need to take your laptop, mobile phone.

It supports IMMO programming for luxury cars like BMW, Benz, Audi, and VW.

Besides, it is available to control the key cutting machines developed by XHorse. Greatly saving cost and facilitating the work process. Furthermore, more advanced functions will be supported for the convenience of locksmiths in the future.

XHorse VVDI Key Tool Plus supports DoIP / CAN-FD / CAN and K Protocol Switch Pin / Chip Pin Detection / Toyota Smart Key Programming without Simulator / Long Distance IMMO Collection.

XHorse VVDI Key Tool Plus covers all functions of VAG OBD Helper.

Key Tool Plus Pad is equipped with advanced application processor, integrated Bluetooth, FM, WLAN, and GPS modules. It is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.

Features:

1. All-in-one automotive solution for locksmith
2. Powerful hardware with super advanced pocessor
3. IMMO Programming for luxury cars
4. Prog Function / IMMO Data Tool
5. Available to control key cutting machines

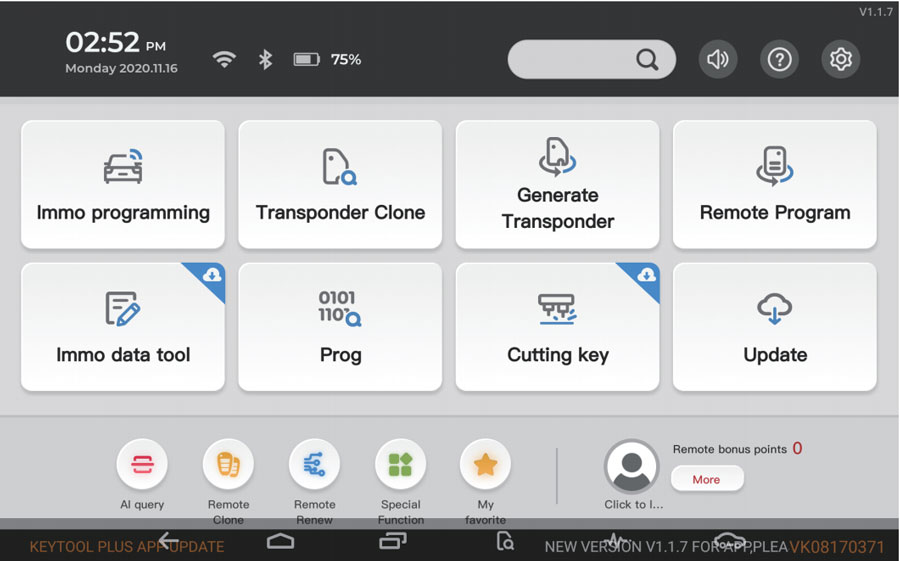

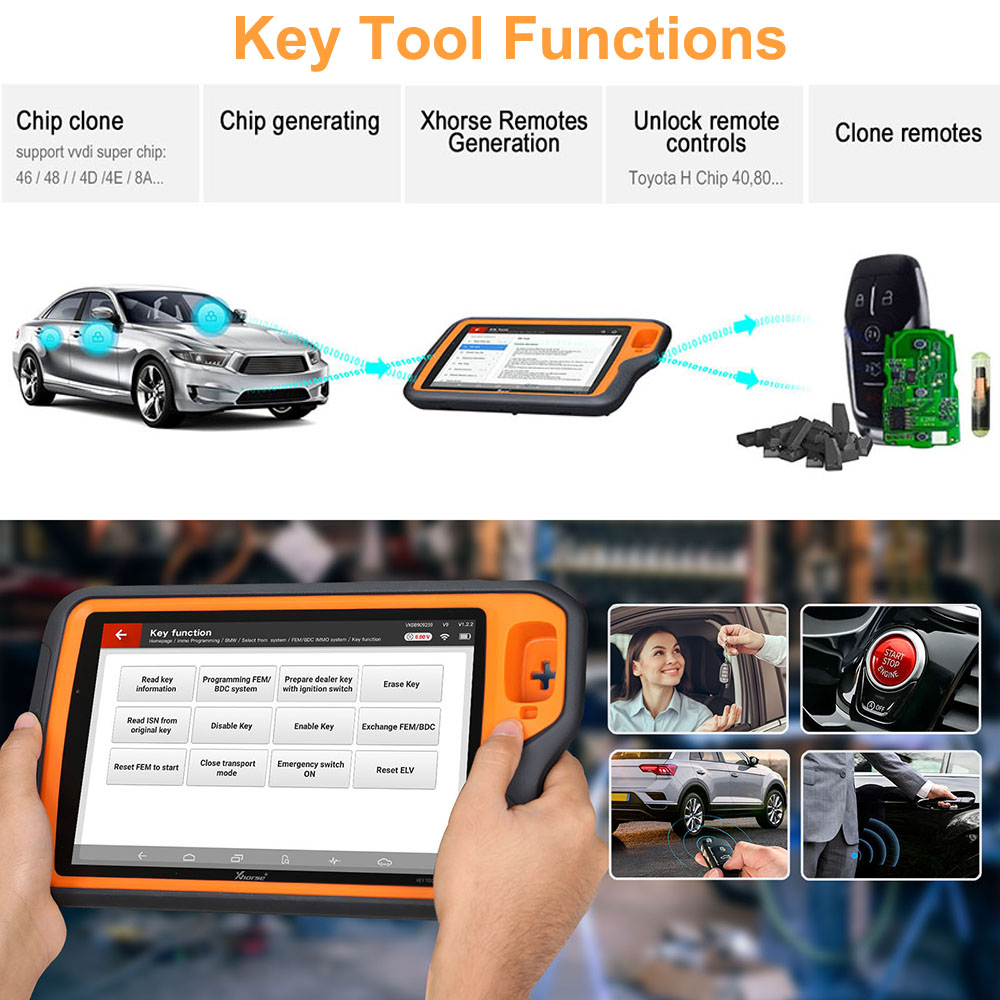

Basic Functions:

Generate Remotes and Smart Keys
Renew (Unlock) Remotes
Remotes Clone
Program and IMMO Transponder
IC / ID Clone
Frequency Detection
Transponder Detection, Clone, and Generating
Supports Jaguar, Land Rover, Porsche, Volvo, Mitsubishi…
Service Light Reset
Key Cutting Machine Control
Common Vehicle IMMO Programming

Other Functions:

DOIP
CAN-FD
CAN and K Protocol Switch Pin
Chip Pin Detection
Toyota Smart Key Programming without Simulator
Long Distance IMMO Collection
Built-in OBD Matrix Switch
Radiofrequency Simulator
Smart Key Simulator
Integrated Key Identification Coil
Benz Infrared Reading Head

Built-In Components:


OBD Matrix Switch
Radiofrequency Simulator
Smart Key Simulator
Integrated Key Identification Coil
Benz Infrared Reading Head

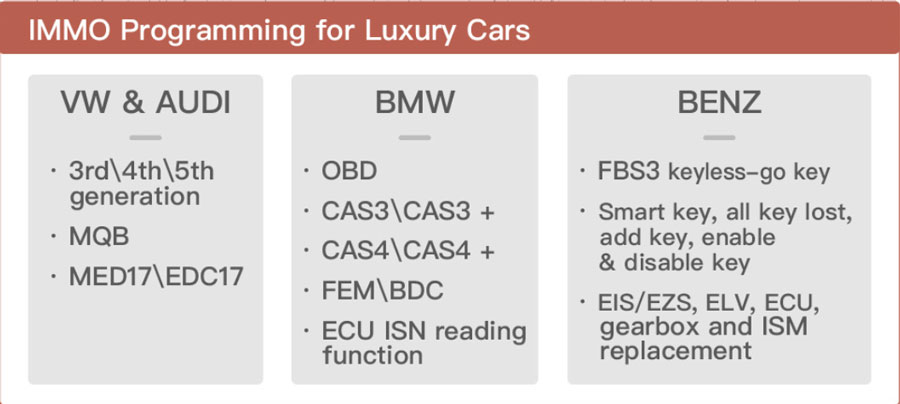

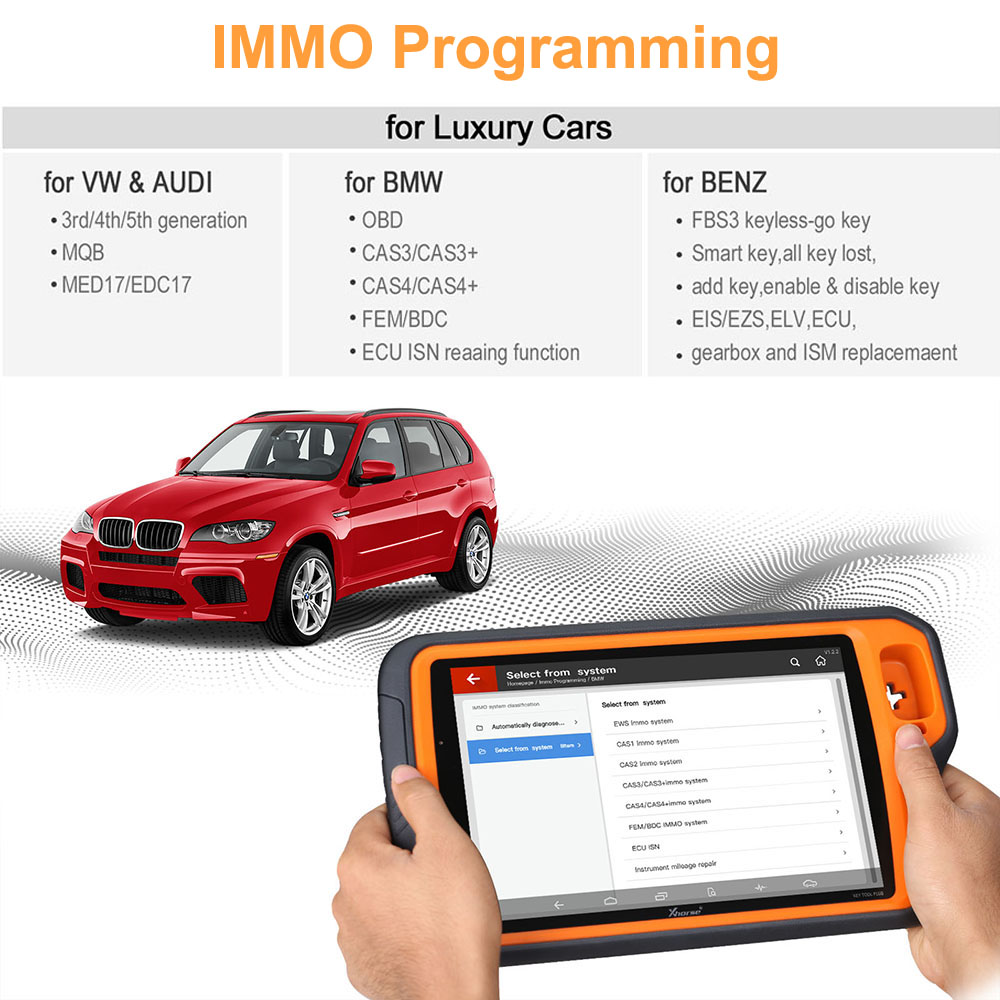

IMMO Programming for Luxury Cars:

VW & Audi: 3rd 4th 5th generation / MQB / MED17 / EDC17
BMW: OBD / CAS3 / CAS3+ / CAS4 / CAS4+ / FEM / BDC / ECU ISN Reading Function

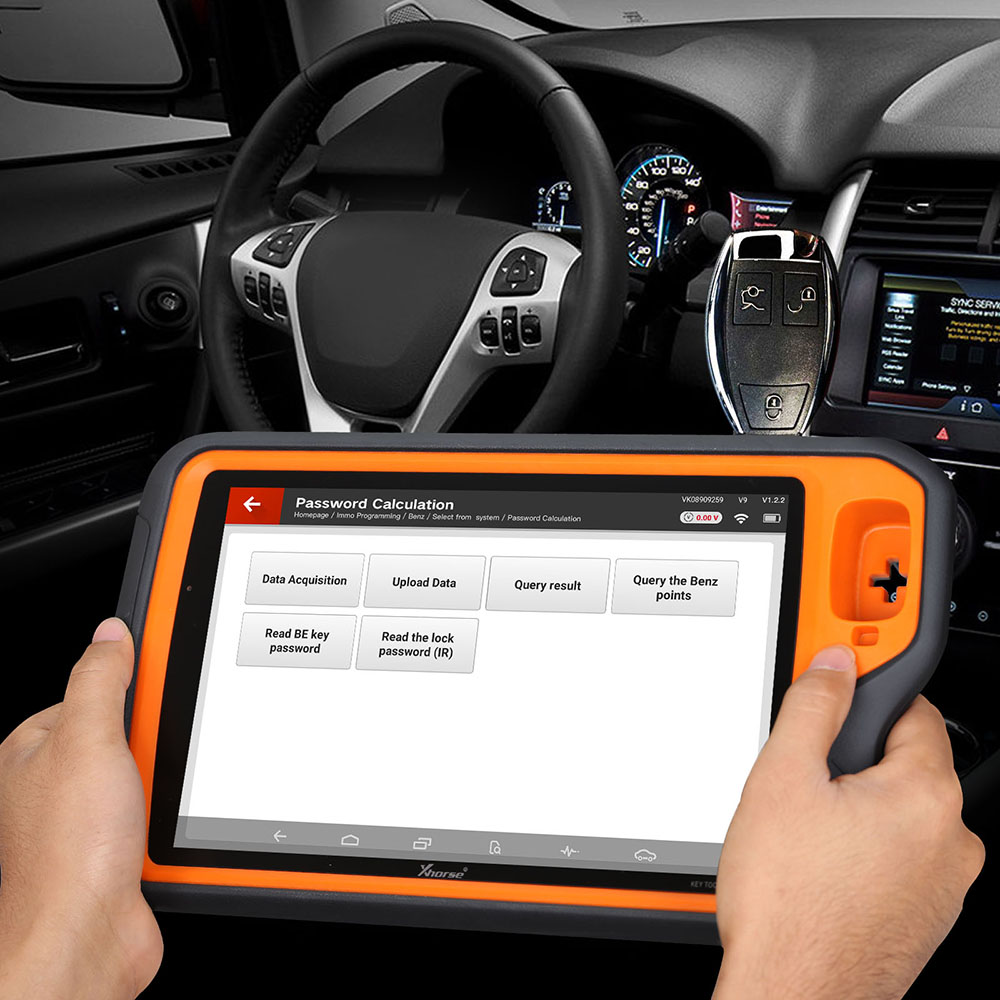

Benz: FBS3 Keyless-go Key, Smart Key, All Key Lost, Add Key, Enable & Disable Key, EIS/EZS, ELV, ECU, Gearbox and ISM Replacement
Common Car Brands: Toyota, Honda, Mazda, Ford, etc.

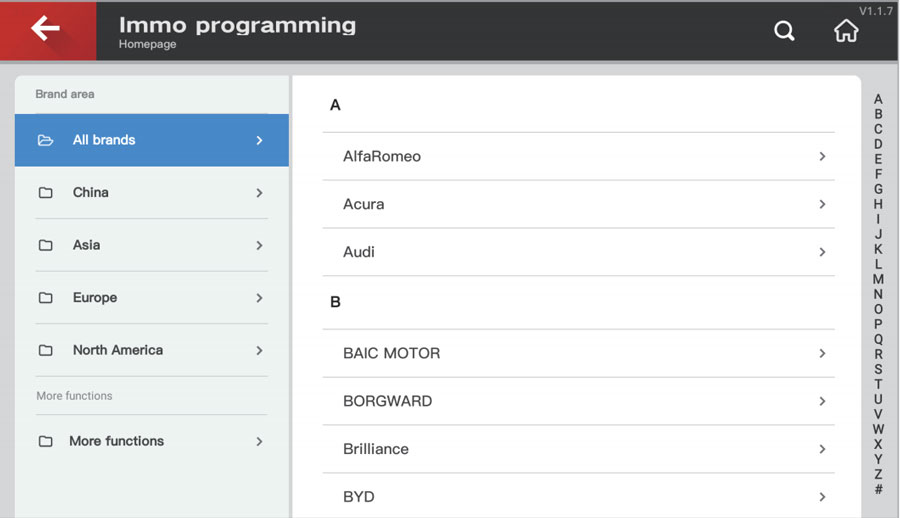

Supported Cars:

XHorse VVDI Key Tool Plus supports over 20,000 car models worldwide. We can select the car brands and car models on the IMMO programming interface.

On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.

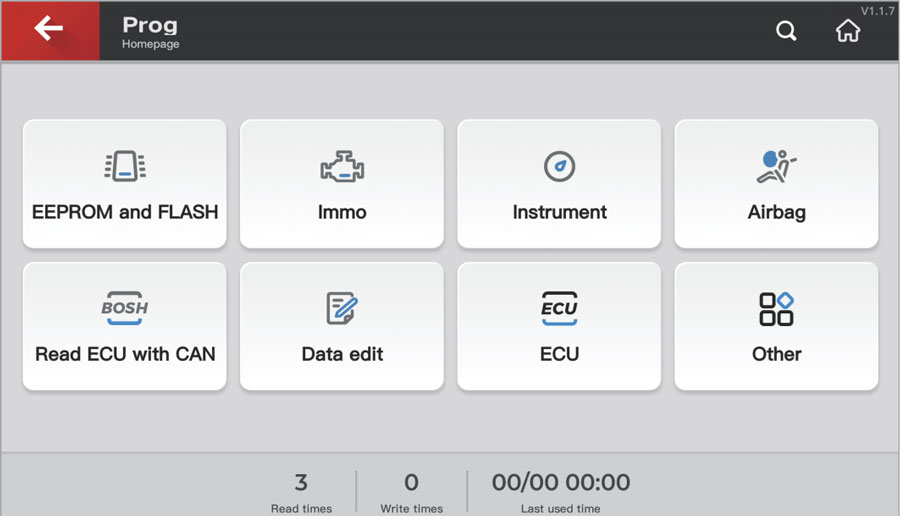

Prog Function:

1. VVDI Key Tool Plus supports reading and writing common modules and chips. It covers "EEPROM and FLASH", “IMMO”, "Instrument", "Airbag", "Read ECU with CAN" and "ECU", etc.

2. Support EEPROM reading and writing: support reading & writing most types of transponders in the market.

3. Support BMW IMMO module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.

4. Support Land Rover RFA module reading and IMMO programming.

5. Support Porsche BCM programming.

6. Support read ECU with CAN on Audi, BMW, and Volkswagen.

7. Support instrument programming on Honda, Kia and Hyundai.

Note:

1. The function is only effective on the advanced edition.
2. To complete certain functions, users need to connect Key Tool Plus to the specific adapters and get the required model prompt on the interface.

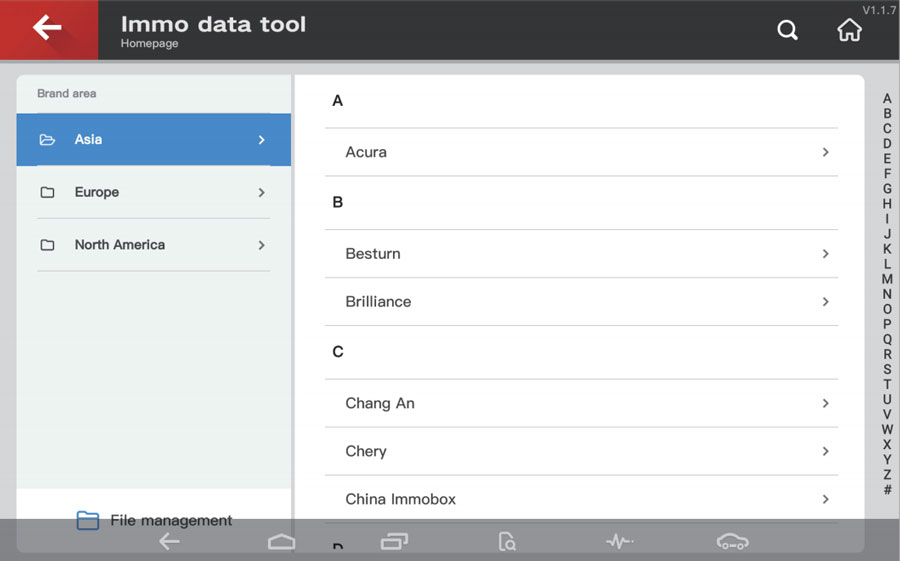

IMMO Data Tool (File Make Key):

Key programming and certain settings can not be finished via OBD port on some car models due to their immobilizer protection system. Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.

[ File Make Key - to generate a car key via a data file. Users need to use the specific device to read theIMMO data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the IMMO box when doing the programming process on some car models.) ]

XHorse Key Tool Plus supports File Make Key function for common car models and motorcycles. We can easily find the car models we need by brand area, brand name, and A-Z word search.

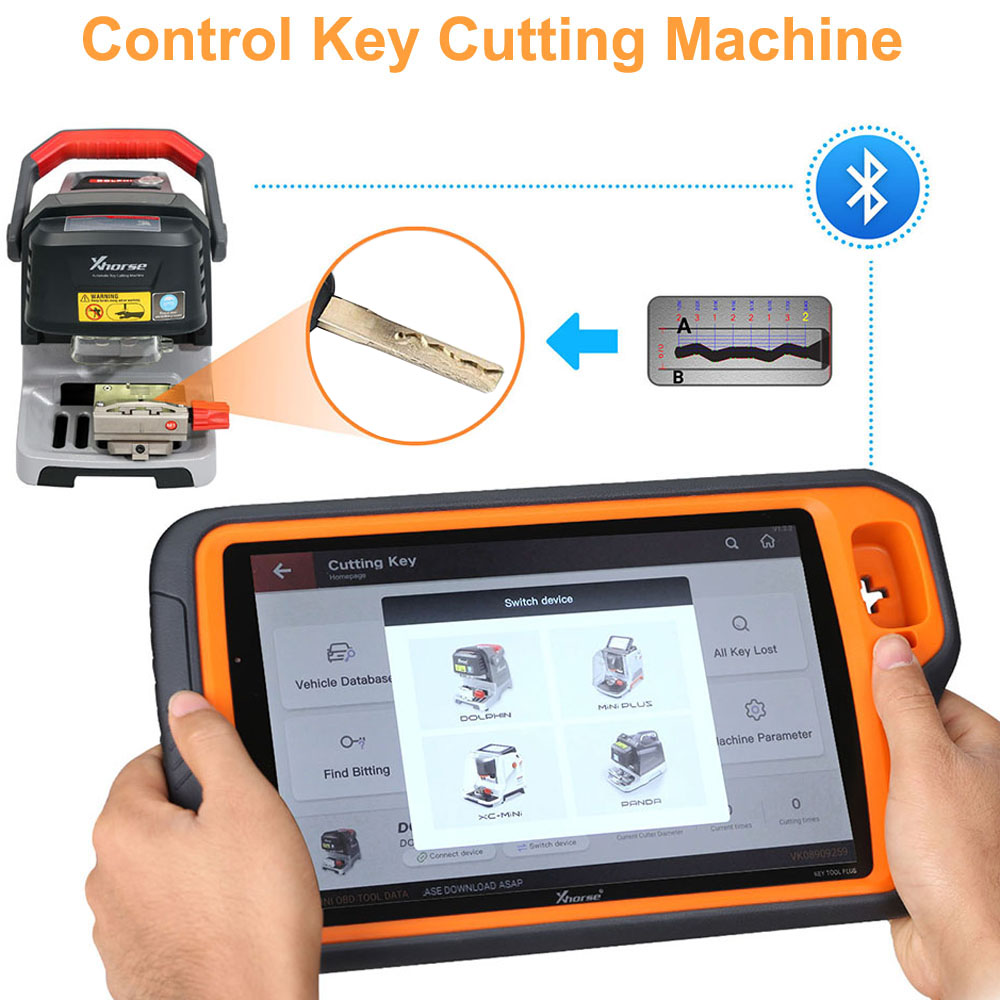

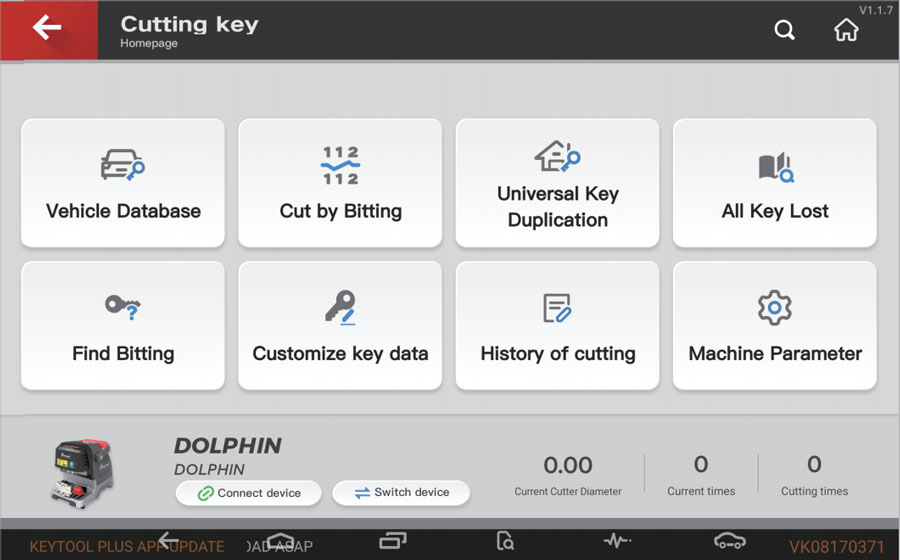

Control XHorse Key Cutting Machines:

Key Tool Plus is available to control the XHorse key cutting machines (Condor, Dolphin, and Panda), to perfectly work as an operation screen. By using VVDI key Tool Plus, completely free your mobile phones.

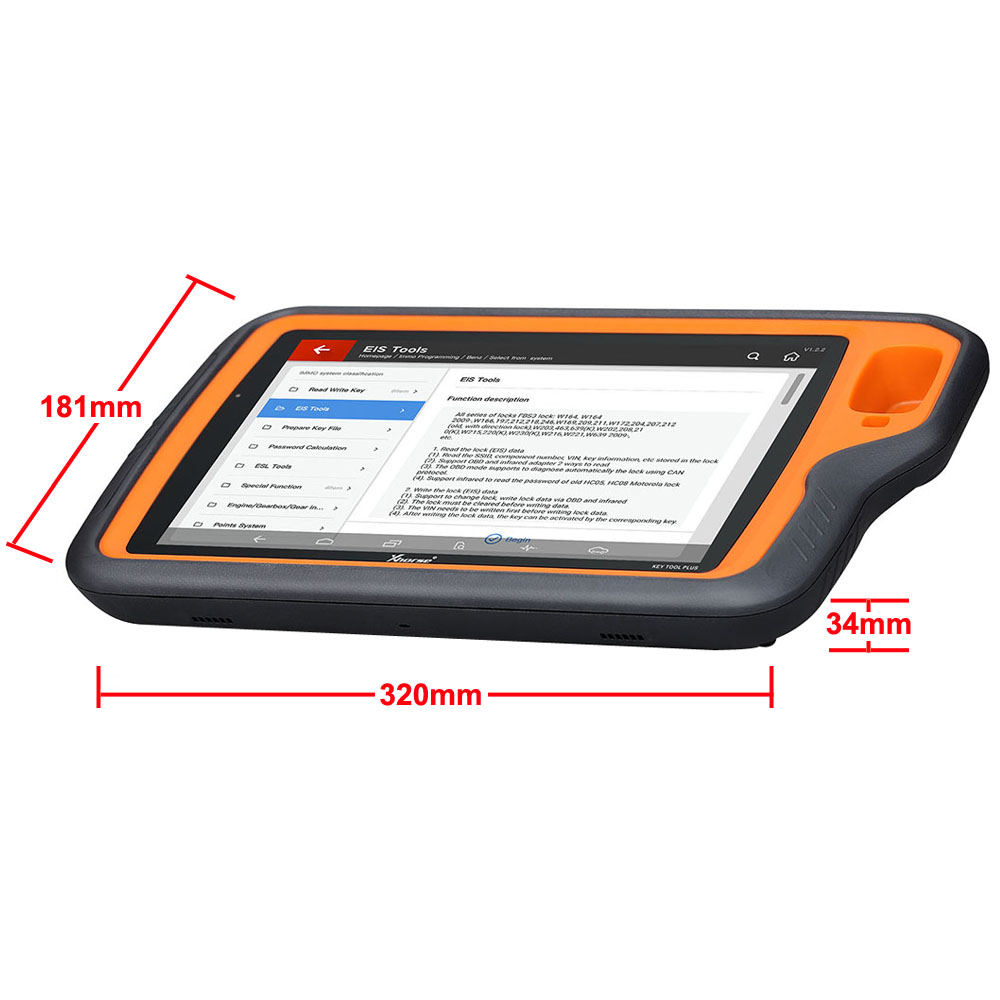

Parameters:

CPU: 8-core 2GHz (4*Cortex-A53 up to 2.3GHz; 4*Cortex-A53 up to 1.8GHz)
RAM+ROM: 4G+128G
Operation System: Android 9.0
Screen Size: 10.1 inch HD anti-glare; anti-fingerprint, resolution up to FHD+ (2400*1080)

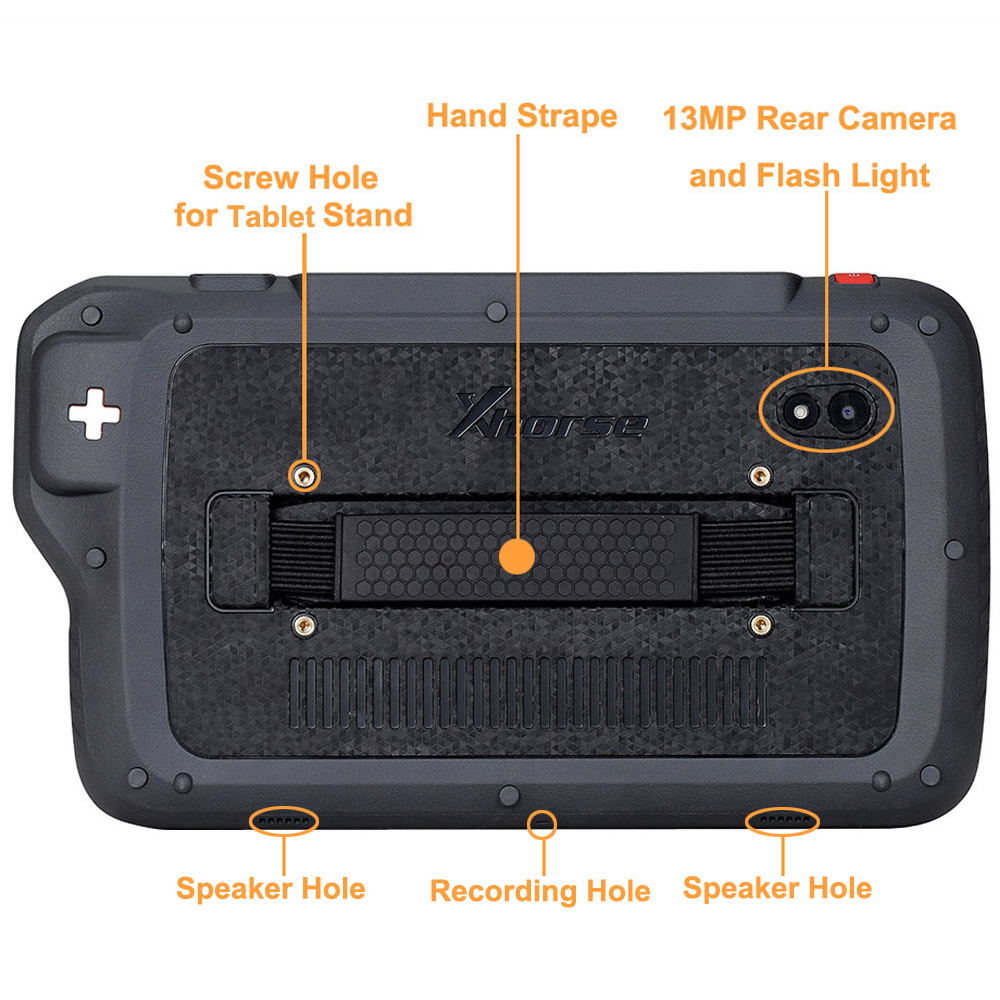

Rear HD Camera: 13.0MP
Battery Capacity: 10000mAh
Charging: 30W super fast charging
Bluetooth: 5.0 Bluetooth
WiFi: 2.4G / 5G

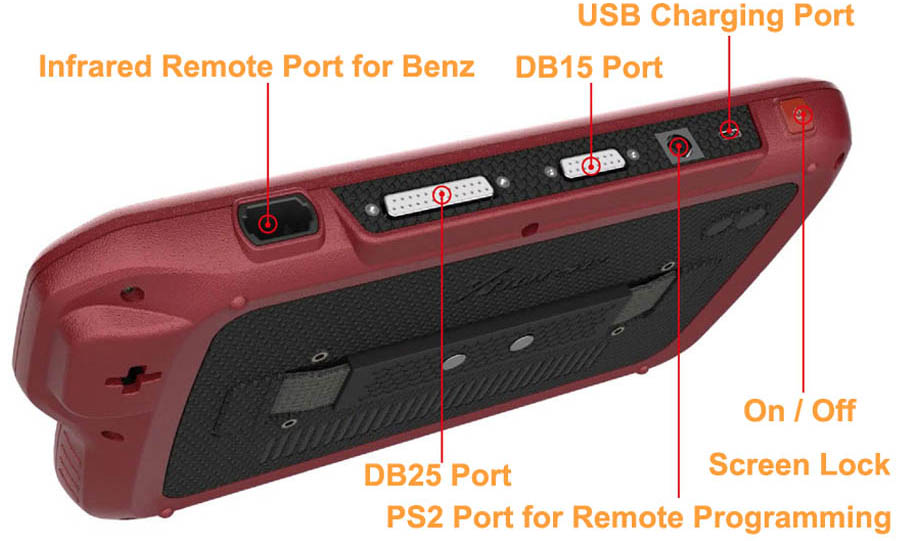

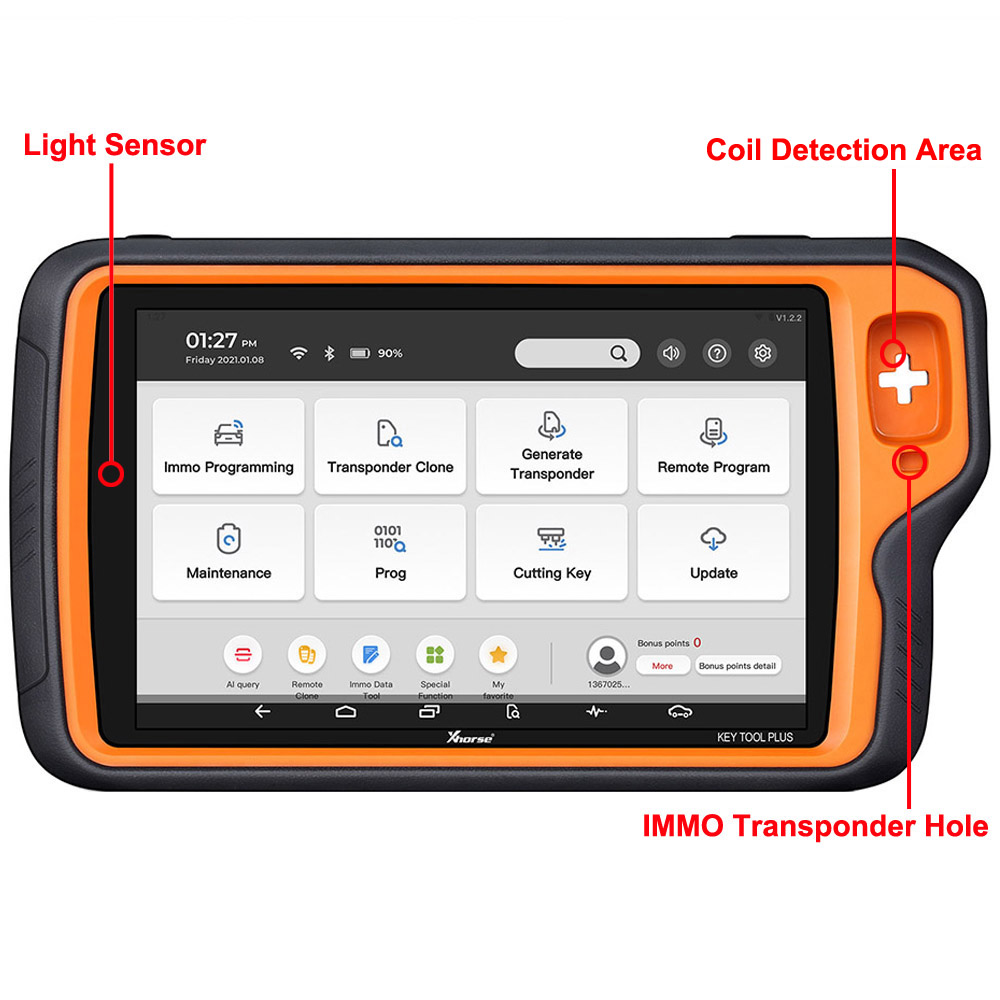

Ports Definitions:

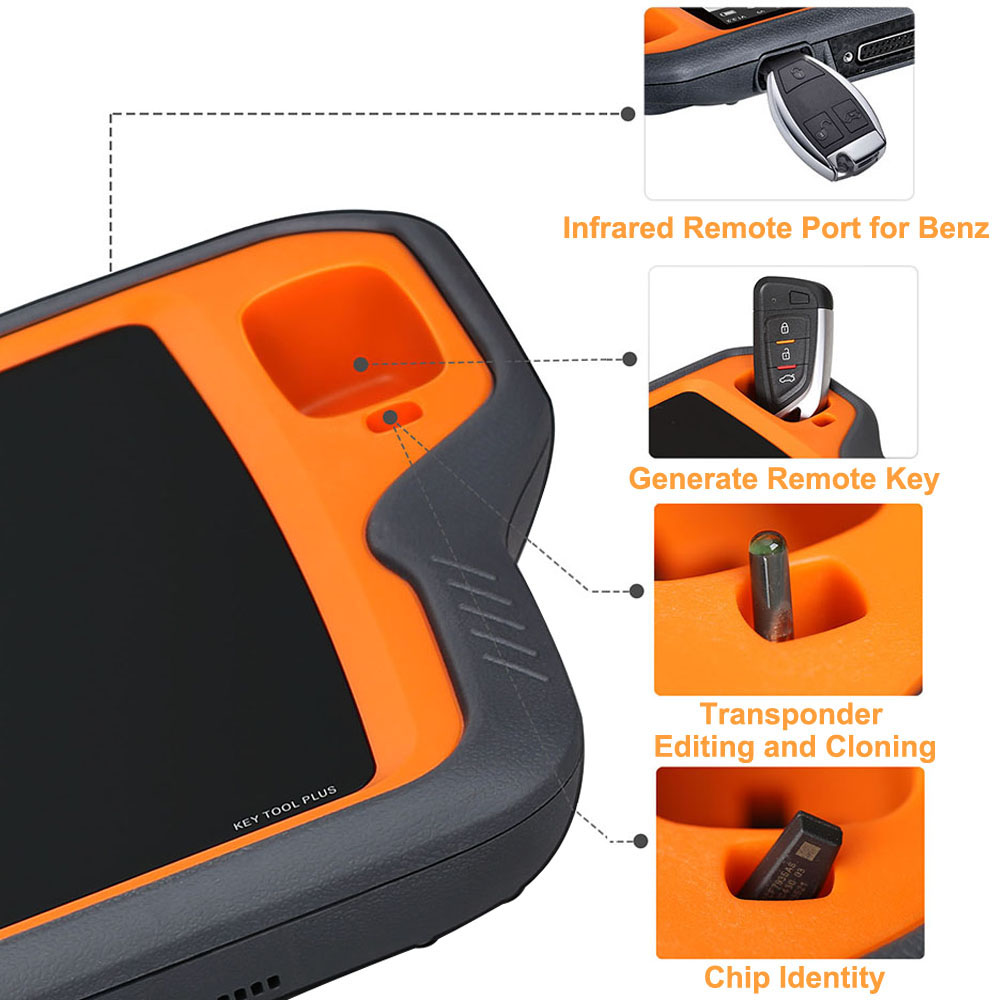

Light Sensor: detect the brightness in the surrounding environment
Detection Coil (including 125K low, 13.56M medium, 300-900M high frequency):
1. Support reading, writing, and cloning common IMMO transponders
2. Support reading common ID transponders
3. Support reading common IC transponders
4. Support frequency detection of common vehicle remotes

IMMO Transponder Hole: for holding car IMMO transponders
USB Charging Port:  supports standard fast charging adapter and standard type-C port DC-5V input.
PS2 Port: for remote programming
DB15 Port: support standard & optional programming adapters with DB15 port
DB25 port for OBD matching
Benz Infrared (IR) Port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader

FAQs:

Q1: What are the features of VVDI Key Tool Plus Pad?
A1: VVDI Key Tool Plus Tablet is a professional locksmith tool that integrates the main functions of remote control and chip, anti-theft matching, programming, accessory replacement, maintenance reset, etc., and also reserves future expansion capabilities. One device can solve all the needs of daily work.

Q2: How about the original XHorse VVDI series device after the Key Tool Plus Pad comes out?
A2: VVDI Key Tool Plus Pad is used to fill the gaps in the KEY TOOL series of product lines, and provides a more convenient tool for the daily work of locksmiths. We will not stop the production and sales of VVDI2, VVDI MB, VVDI PROG and other products, old customers can continue to use, we will continue to provide development and upgrade, will not stop service. Please do not worry.

Q3: I heard that old customers can migrate functions?
A3: Yes, because the VVDI Key Tool Plus Pad is divided into the basic version and the advanced version, the basic version does not include the anti-theft matching and programming functions of Volkswagen, BMW, Mercedes-Benz. After the migration, the original device function authorization is cancelled, and the relevant authorization is opened on the Key Tool Plus Tablet. In order to reduce the impact on the use of old customers, we decided to continue to provide half-year free licenses for the relocated old equipment.

Q4: VVDI Key Tool Plus Pad is an update version of VVDI Key Tool Max, right?
A4: No, not just update version of VVDI Key Tool Max. VVDI Key Tool Plus Pad uses higher configuration hardware and supports more protocols and interfaces. Of course, VVDI Key Tool Plus Pad also covers all the functions of Key Tool Max.

Q5: What is the plan for VVDI2, VVDI MB, and VVDI BMW tools in the future?
A5: In the future, VVDI series products will continue to be upgraded, and will develop more towards specialized functions such as programming, coding codes, parameter refreshing, etc., and they are professional equipment for locksmiths. VVDI Key Tool Plus Pad focuses on solving daily work needs, so each of them has its own advantages.

Q6: How about the VVDI Key Tool Plus Tablet PC configuration?
A6: We have fully listened to the suggestions of the locksmith masters. Considering the sustainability of the product, we have adopted high-performance hardware configuration on the VVDI Key Tool Tablet, such as 8-core CPU, 4G memory, 128G storage, 10.4 inch HD The screen and other configurations higher than the industry level, while integrating support for new technologies such as DoIP and CAN-FD, reserve sufficient space for future function expansion.

Q7: Will VVDI Key Tool Plus Pad cost money in the future?
A7: We have always insisted on free upgrades, and the upgrade of the main functions of the tablet will also be free. However, for functions with greater breakthroughs, such as the support of Mercedes-Benz FBS4, we will charge a certain upgrade fee because of the large investment in research and development.

Q8: What is VVDI Key Tool Plus Pad supported IMMO list?
A9: VVDI MINI Key Tool Plus Tablet supports more than 90% of the common models on the market. At the same time, we will continue to improve and add new models, and these are free upgrades.

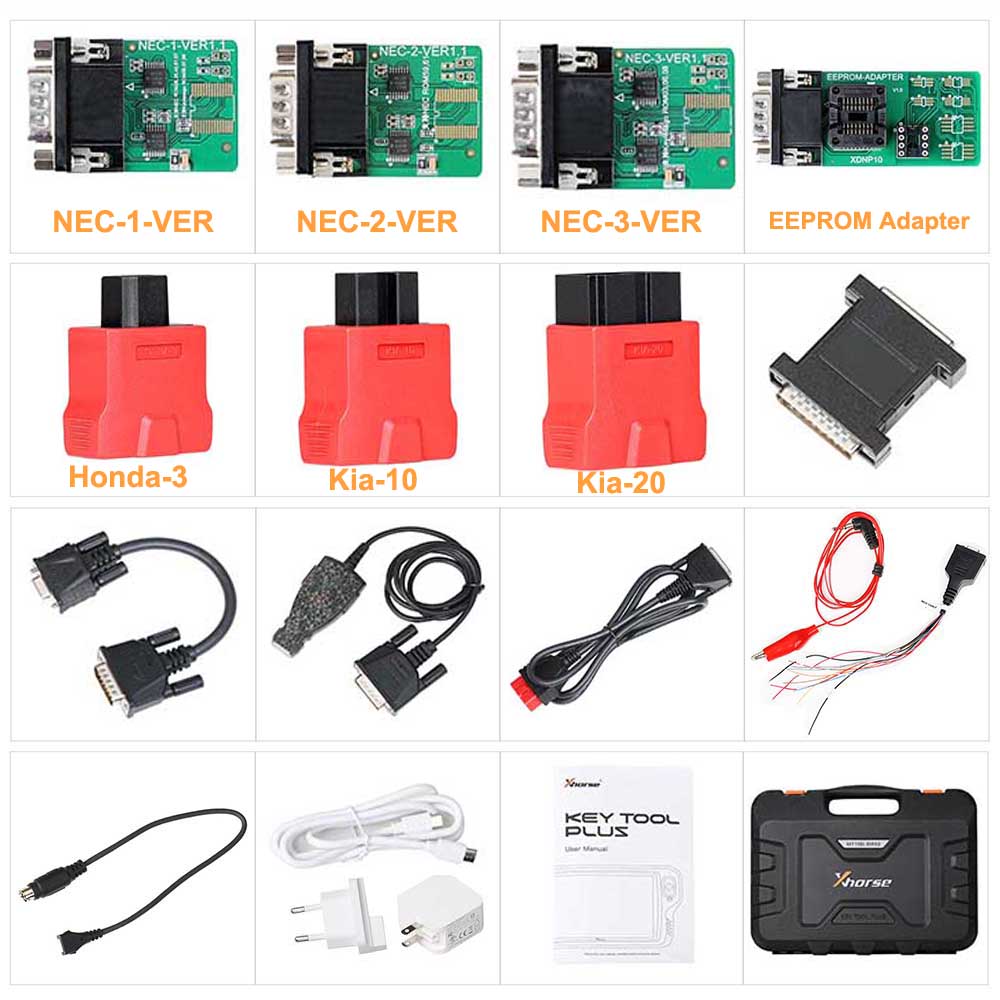

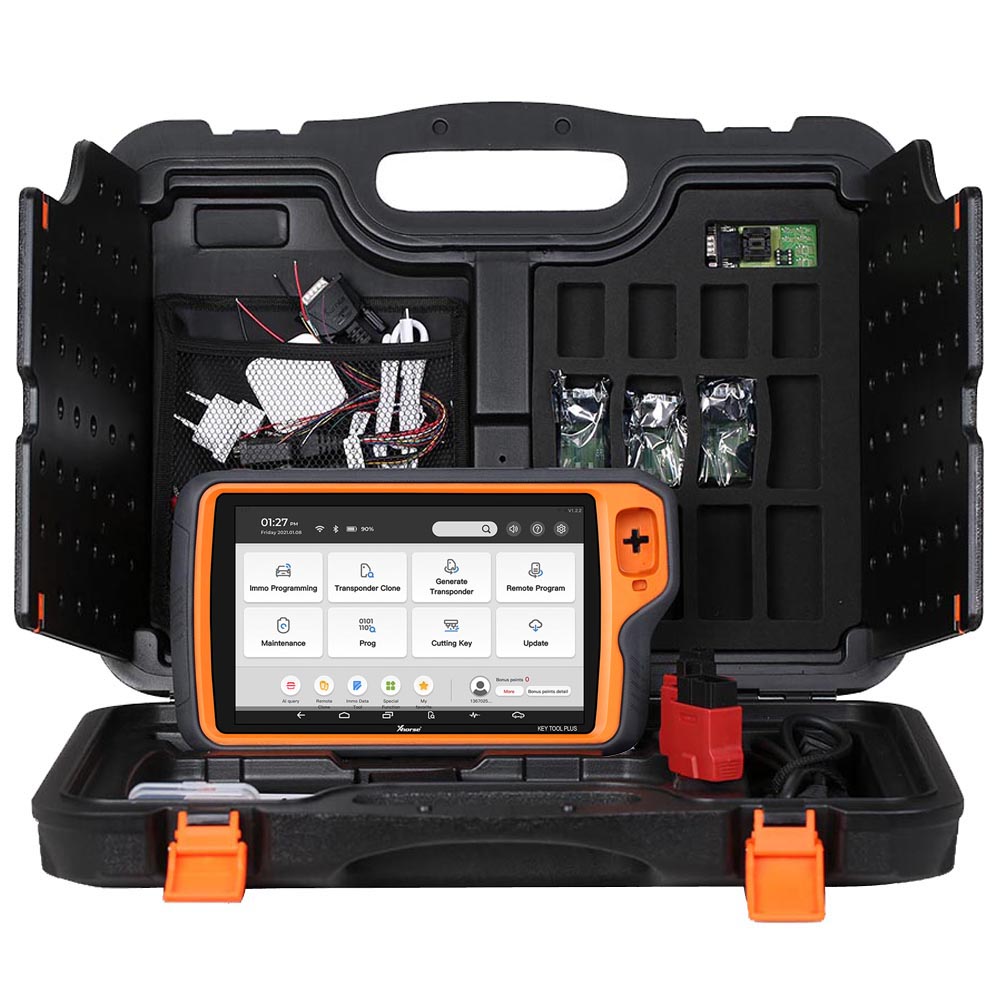

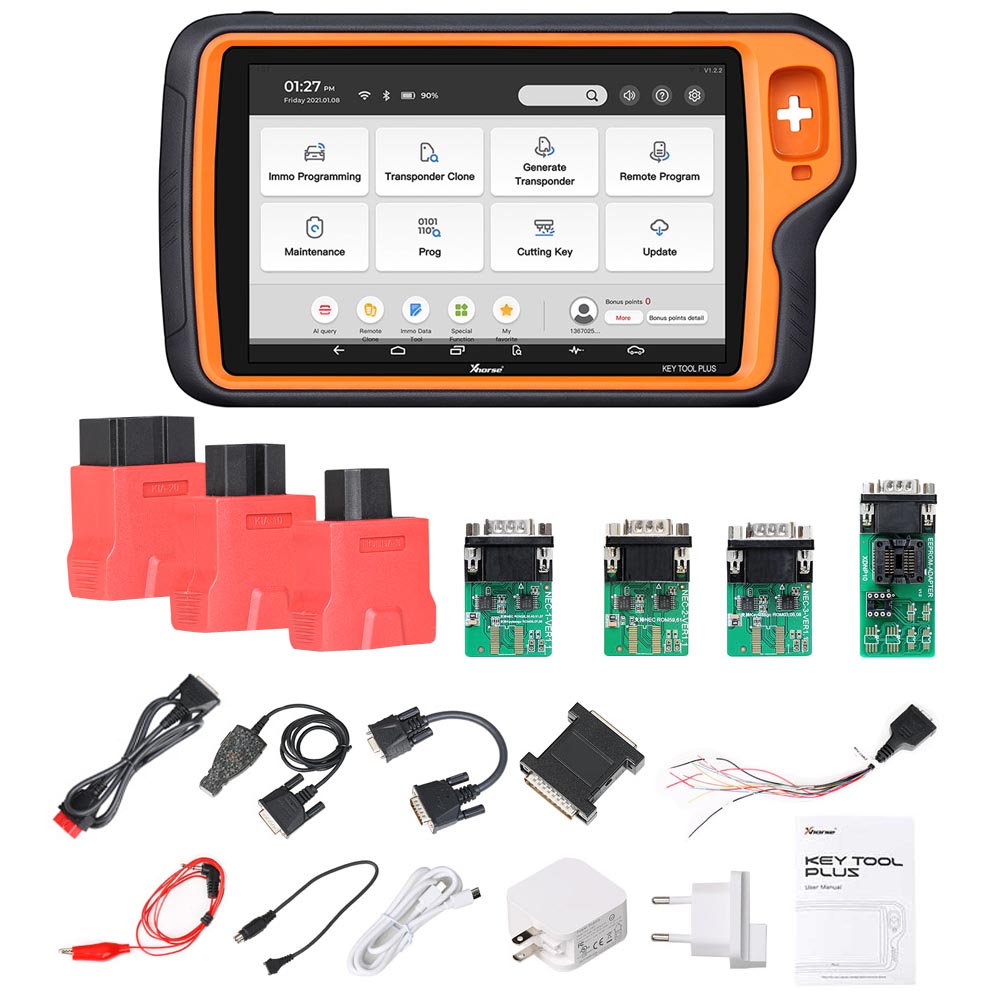

Packing List:

XHorse Key Tool Plus Pad
EEPROM Adapter
Benz IR Adapter
Benz Power Adapter
Benz NEC1 Adapter
Benz NEC2 Adapter
Benz NEC3 Adapter
OBD2_Honda 3 Connector
OBD2_KlA_10 Connector
OBD_KIA_20 Connector
OBD2_DB25 Cable
Remote_PS2 Programming Cable
9S12xE Cable
MCU Cable
DB15 Cable
USB3.0 TYPE-C Cable
Power Charger
Transponder Box
User Manual
Certification
Warranty Card
Plastic Toolbox
Packing Box
