Description:

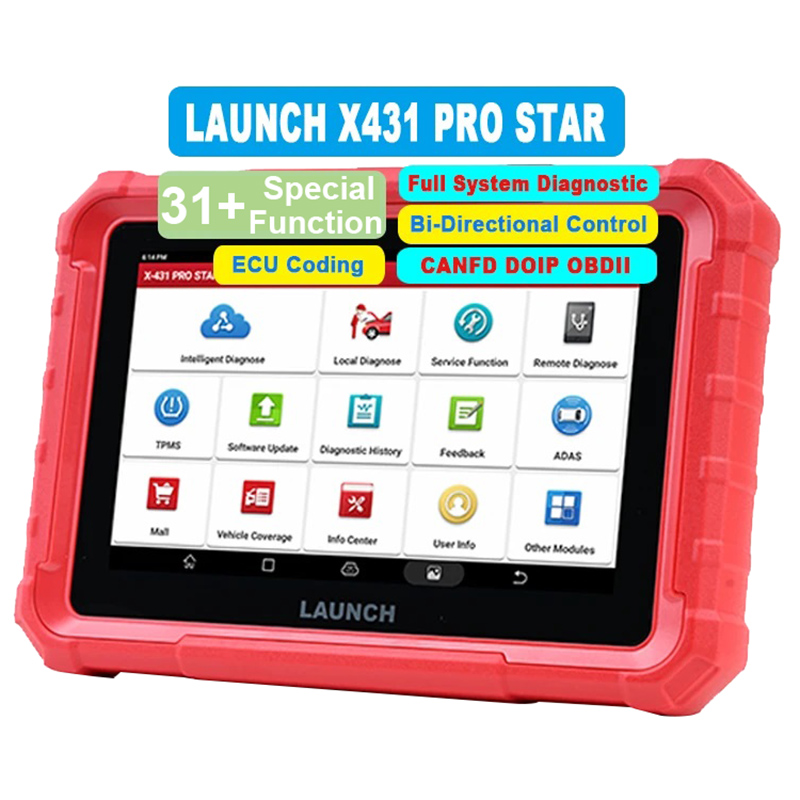

Launch X-431 PRO STAR is an 8-inch smart car diagnostic device with diagnostic cable inherits the functions and advantages of the Launch X-431 V / X-431 PRO Elite / X-431 PROS Elite... which can cover more than 99% of the cars on the market. Based on Android 10.0 system, it adopts 2.0GHz 4-core high-efficiency processor, 4GB RAM+64GB ROM large storage, and is equipped with a high-endurance battery 6000mAh which runs faster, more stably and lasts longer.



Supported Languages:



English, French, German, Spanish, Portuguese, Italian, Russian, Arabic, Turkish, Dutch, Greek, Polish, Danish, Persian, Romanian, Czech, Finnish, Swedish, Serbian, Japanese, Korean, Chinese Simplified, Chinese Traditional



Software Update: 2 years free update online

Version: global version without IP limit



Highlights:



1. Competitive Price:

Launch X431 PRO STAR is an upgrade version of X-431 V / X-431 PRO Elite / X-431 PROS Elite, it has same functions but price is much cheaper!



2. Advanced ECU Coding:

Top-level coding functions provide Online Coding, Online Calibration, Online Parameterization, Component Matching, Personalization, Modification & Retrofit, PMI Functions, etc.



3. 31 Reset Functions:

One LAUNCH scan tool is enough for common repairs. 32 services combine hot reset with full car supports and most needed special functions for specific cars.



4. Top-Level Configuration with Faster Speed:

Android 10.0, 2.0 GHz 4-Core CPU, 4GB RAM, 64GB ROM, 8-Inch Touchscreen, 2.4GHz & 5GHz WiFi, 6000mAh Battery, 8MP Rear Camera



5. Bi-Directional Control:

Operate various active tests to locate module trouble in minutes.



6. VAG Guided Functions:

Professional step-by-step instructions do not need your repair skill, which guide you to solve problems perfectly.



7. Support CANFD & DoIP Protocols:

Communicate more car models and run faster diagnostics.



8. Key Programming:

Work with Launch X-PROG3 Programmer.



9. Supports Expanded Modules:

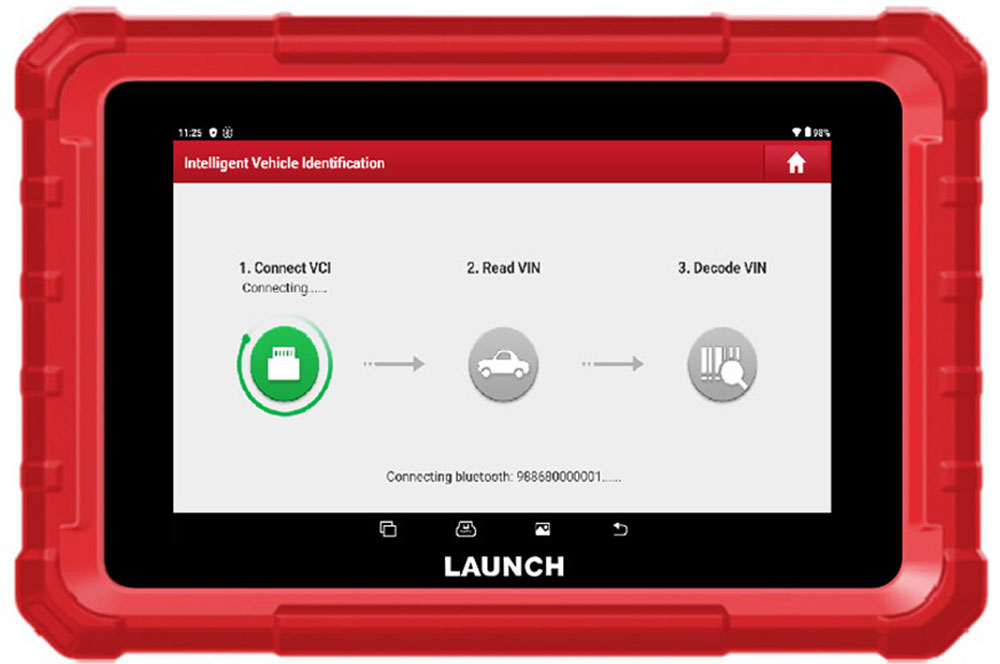

10. Quick Vehicle Identification:

Auto VIN Technology.



11. FCA SGW Car Access:

Compatible with Fiat, Chrysler, Alfa Romeo, etc.



12. Remote Diagnostics & Diagnostic Feedback.



13.10000 Wide Car Coverage, Serve Global 98% Cars.



Why Choose Launch X431 PRO STAR?



1. Versatile Functionality:

Similar to other high-end LAUNCH X431 OE-level scan tools, the LAUNCH X431 PRO STAR offers several advanced functions:



1). Recode Changed Modules: Update and synchronize new modules with the vehicle.

2). Re-Flash Hidden Functions: Unlock and activate hidden vehicle features.

3). Renew ECU Coordination: Reprogram ECU for optimal performance.

4). Optimize Adaptive Data: Improve adaptive data settings for better vehicle performance.

5). Enhance Fuel Efficiency: Adjust settings to improve fuel consumption.

6). Reduce Power Loss: Fine-tune the vehicle to reduce mechanical wear and power loss.



2. ECU Coding Options:

1). Online ECU Coding: Access online repair data for advanced repairs.

2). Offline ECU Coding: Transfer codes from the original module to the new one.



3. Unlock Hidden Features:

Activate functions not typically available to standard users, such as:



1). Changing interior light colors

2). Adjusting fuel consumption calculations

3). Enabling/disabling safety features

4). Customizing driving and comfort settings



4. Component Matching:

Match, learn, and initialize adaptive data after module repairs or replacements.



5. Customization Options:

Add or modify features to personalize your vehicle, including:



1). Interior Light Color Changes

2). Auto Hold and Auto Start-Stop Settings

3). Dash Kit Customization

4) Auto Side Mirror Folding

5). Speed Limit Adjustments



6. Fuel Efficiency Improvements:

Solutions for drivability issues, power loss, and fuel efficiency enhancements, including adding features like satellite navigation, courtesy lights, car phones, reversing radar, and atmosphere lights.



7. Adaptive Data Reprogramming:

Adjust adaptive data for components after repairs or replacements. Note that some functions may not be applicable to all vehicle models.



8. Powerful Bi-Directional Control and ECU Coding:

Launch X431 PRO STAR Bi-Directional Scan Tool has been enhanced with new features while retaining its powerful functions,enabling mechanics and repair shops to solve 99% of vehicle issues quickly and accurately.

Main Functions:

2. Bi-Directional Control (Adds 4000+ Active Tests)

This commonly used function allows mechanics to save significant time and handle more jobs daily. The intelligent diagnostic scanner can send commands to ECUs, read data, and monitor actuator operations. By performing bi-directional operations, it quickly verifies whether specific systems, components, or subsystems are functioning properly. The tool can activate various vehicle-specific systems and components like relays, injectors, coils, solenoid valves, and actuators.This feature significantly reduces diagnostic time, enabling issues to be identified within 10 minutes, whether they are in the controls or the vehicle system itself. Examples include turning lights on/off, sounding the horn, controlling oil pressure, adjusting vehicle level position, operating inlet and outlet valves, and testing wheel speed sensors.



Examples of Active Tests:



* Turning Lights On/Off

* Sounding The Horn

* Controlling Oil Pressure

* Adjusting Vehicle Level Position

* Operating Inlet And Outlet Valves

* Testing Wheel Speed Sensors

* Activating The Fuel Pump

* Cycling The A/C Clutch

* Calibrating Dynamic Camera Aiming

* Performing Brake Vacuum Pump Tests



(Note: The availability of these functions varies by car model, with numerous actuation test functions provided.)



3. Advanced ECU Coding & Offline/Online Coding

Launch X-431 PRO STAR supports advanced ECU coding for a wider range of car models, including both old and new models without additional cost. This function allows the tool to match, learn, or code newly replaced ECUs, update vehicle ECU software,and enable or disable hidden features (e.g., seat belt beep, daylight running lights). It also matches certain components after repairs or replacements and reprograms adaptive data for enhanced efficiency and customization, meeting diverse customer needs and improving work efficiency for professional mechanics.



Benefits:



1). Time Efficiency: By providing bi-directional control and advanced coding capabilities, the X431 PRO STAR allows mechanics to diagnose and fix issues more quickly.



2). Comprehensive Functionality: Supports a wide range of tests and coding functions, covering a vast array of vehicle models.



3). Customization: Enables mechanics to tailor vehicle settings and functionalities to customer preferences.

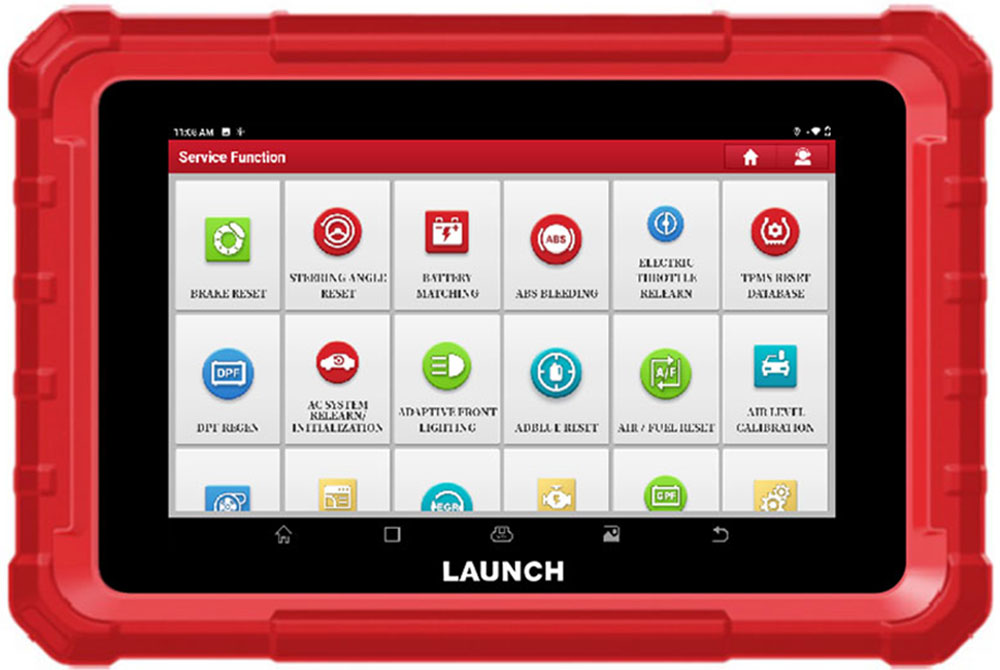

4. Special Functions:

You can easily get the VIN information of the car, and do a full scan for your car & get a diagnostic health report.It provides full system diagnostics for a wide range of vehicle systems, including ECM, TCM, ABS, SRS, BCM, and more. This capability allows it to perform tasks such as reading and erasing codes, viewing live data, and retrieving ECU information across multiple systems. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.



These special functions include but are not limited to following:



1). ABS Bleeding

This function must be executed to remove air from the ABS system, restoring brake sensitivity.



2). TPMS Reset

Essential for resetting the tire pressure monitoring system after changes such as tire replacement, sensor damage, or low tire pressure.



3). Oil Lamp Reset

Resets the engine oil life system after an oil change, ensuring accurate tracking of oil lifespan.



4). Electronic Throttle Sensor Reset

Initializes the throttle actuator to reset the ECU learning value back to its default state.



5). Injector Coding

Ensures that each cylinder can correctly identify its injector, necessary after replacing the ECU or injectors.



6). SAS Reset

Clears faulty steering angle sensor memories and recalibrates the steering angle sensor.



7). Brake-Pad Reset

Activates and deactivates brake control systems, assists with brake fluid control, and sets brakes post replacement of discs or pads.



8). Gear Learning

Required after replacing the engine ECU, crankshaft position sensor, or crankshaft flywheel to ensure proper functioning.



9). IMMO Service

Matches keys to the car's immobilizer system to prevent unauthorized vehicle use, crucial after replacing or reprogramming keys.



10). Battery Matching

Resets the battery monitoring unit to clear fault information after replacing or charging the battery.



11). DPF Regeneration

Clears particulate matter from the diesel particulate filter, maintaining its efficiency.



12). EGR Adaption

Relearns the EGR valve settings after cleaning or replacement.



13). Suspension Matching

Adjusts and calibrates the body height sensor in the air suspension system following sensor or control module replacements.



14). NOx Sensor Reset

Resets the learned values of the NOx catalytic converter stored in the engine ECU after replacing the converter.



15). Tire Reset

Configures the vehicle for new or modified tires by setting the size parameters.



16). Windows Calibration

Matches door windows to restore initial ECU memory settings.



17). Stop-Start Reset

Adjusts the automatic Start/Stop feature settings via the ECU, provided the vehicle supports this function.



18). AC Initialization

Reinitializes the AC system following ECU or actuator replacements or memory loss.



19). AdBlue Reset

Necessary after refilling or replacing diesel exhaust fluid (urea).



20). AFS Headlamp Reset

Initializes adaptive front lighting systems to ensure proper operation.



21). A/F Reset

Sets or relearns air/fuel ratio parameters for optimized engine performance.



22). Gearbox Reset

Completes gearbox self-learning to improve gear-shifting quality and performance.



23). Coolant Bleeding

Activates the electronic water pump for efficient bleeding of the cooling system.



24). Transport Reset

Deactivates transport mode to restore normal vehicle operations, reducing power consumption during transit.



25). Seat Calibration

Matches replaced or repaired seats with memory functions for optimal positioning.



26). High Voltage Battery Detection

Diagnoses and detects the status of high-voltage batteries.



27). Sunroof Initialization

Adjusts sunroof settings for proper operation, including locking, closing during rain, and memory functions.



28). Engine Power Balance Monitoring

Monitors crankshaft acceleration in each cylinder's power stroke to evaluate relative power contributions.



29). Language Change

Alters the system language of the vehicle’s center console, requiring a specific language pack.



30). Gas Particulate Filter (GPF) Regeneration

Regenerates or replaces the GPF to maintain engine performance and reduce fuel consumption.



31). Intelligent Cruise Control System Reset

Matches the intelligent cruise control module following replacement or repair.



Other Functions:



1. Intelligent Diagnosis

Launch has accumulated more than 20 years of automotive diagnostic technology and pioneered the technology of intelligent diagnosis. Through "Intelligent Diagnosis", it can quickly read the vehicle VIN code, quickly enter the diagnosis, and check the historical diagnosis record.



2. Local Diagnosis

Supports full system diagnosis of 90+ brands of vehicles worldwide. It supports basic function diagnosis, version information reading, code reading, code clearing, data stream reading, action testing, coding, matching, etc. It can read and record data streams, etc., to help quickly locate faults.



3. Remote Diagnosis

Remote Diagnosis can realize real-time communication between devices or between devices and computers, complete vehicle remote diagnosis, and make it possible for repair technicians to diagnose vehicles thousands of miles away.



4. TPMS

Supports tire pressure activation, programming, learning, detection and other functions with a tire pressure gun (optional).



5. Diagnostic History

Each time a diagnosis is performed, a vehicle diagnostic record is automatically generated for easy viewing and comparison at any time to help locate the fault.



6. Feedback

When users encounter special vehicle model or functional abnormalities during use, they can provide their opinions to Launch Company through "feedback", and dedicated technical personnel will track and handle the problems in a timely manner.

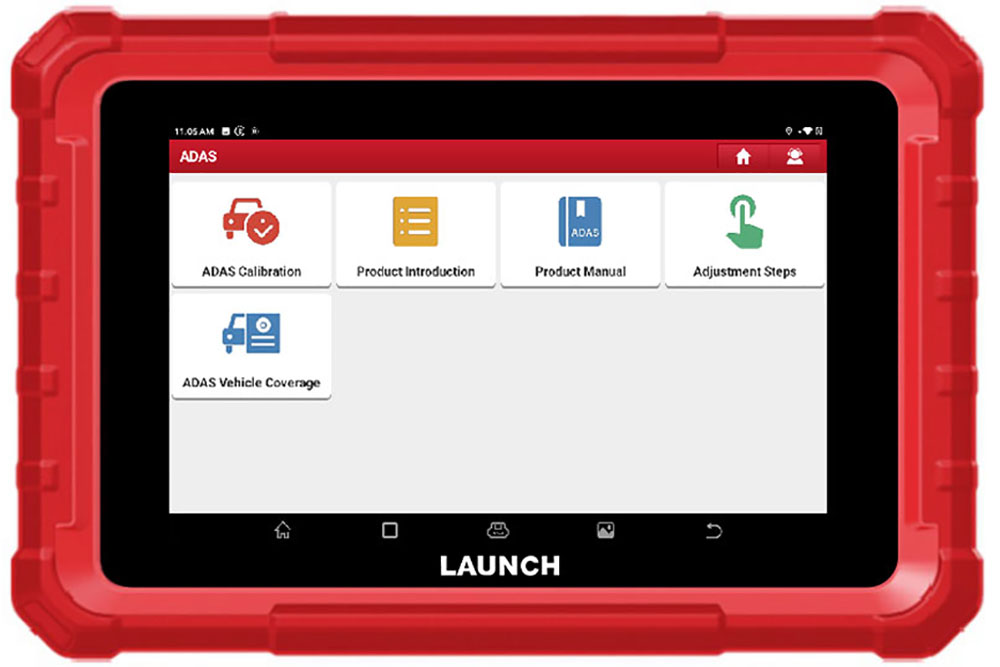

7. ADAS

It supports ADAS calibration function with ADAS PRO or ADAS MOBILE (both are optional), which can realize the calibration of ADAS systems such as LDW, ACC, RCW, AVM, BSD, and NVS.

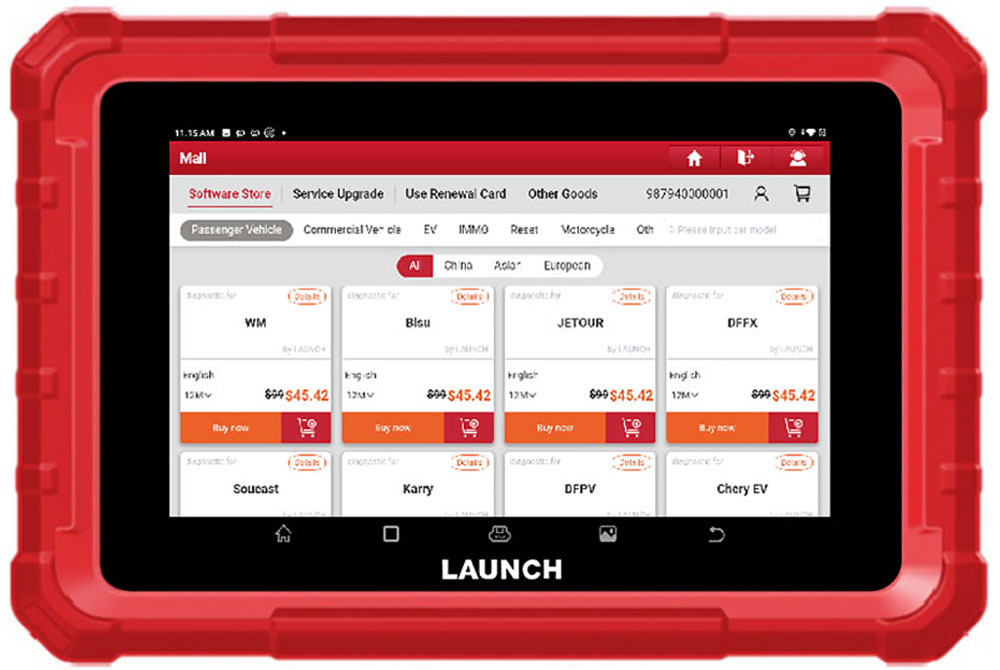

8. Mall

Supports online purchase of software, functions and some hardware outside the configuration, software renewal, etc. More functions are coming online.

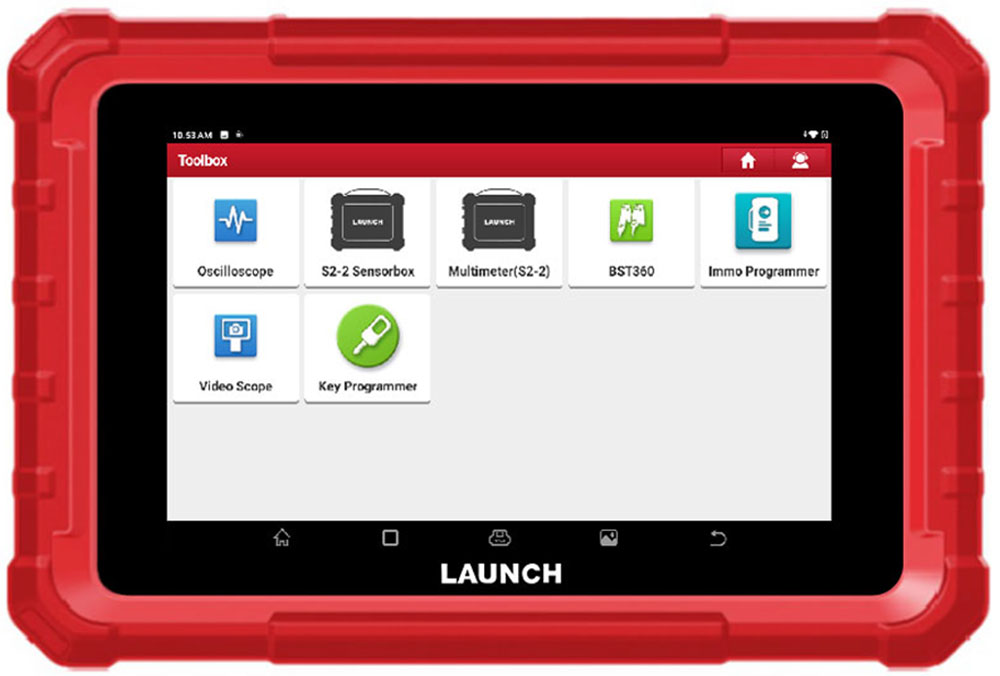

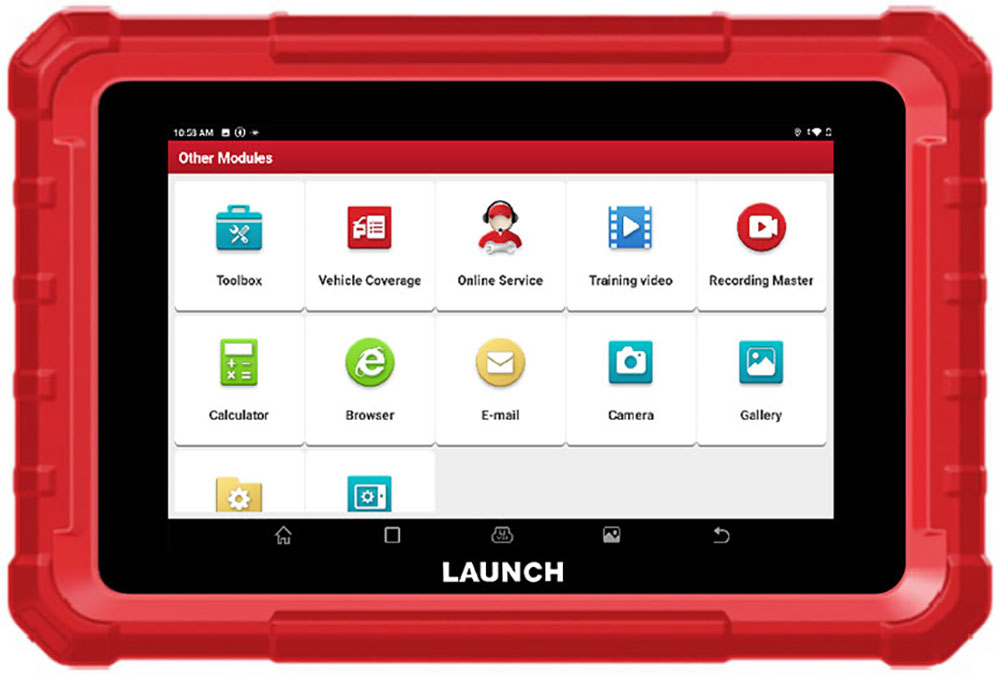

9. Toolbox

It supports the use with expansion modules such as Endoscope, Battery Test, Oscilloscope, Sensorbox, IMMO Programmer, etc., to make the diagnostic function more powerful.

Supported Extended Modules:



Supported Cars:



America:

BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FIAT(BRAZIL), FORD, FORD(AUSTRALIA), GM, JEEP, LINCOLN, GM(BRAZIL)



Europe:

ABARTH, ALFA ROMEO, AUDI,  BENTLEY, BMW, BUGATTI, CITROEN, DACIA, EURO FORD, FERRARI, FIAT, GAZ, OPEL(SOUTH AFRICA), IVECO, JAGUAR, LAMBORGHINI, LANCIA, LAND ROVER, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLSROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAUXHALL, VAZ, VOLVO, VW , ASTON MARTIN, UAZ



Asia:

ACURA, DAEWOO, DAIHATSU, HOLDEN(AUSTRALIA), HONDA, HYUNDAI, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MAHINDRA(INDIAN), MARUTI, MARUTI(INDIAN), MAZDA, MITSUBISHI, NISSAN, GTR(NISSAN), PERODUA, PERODUA(MALAYSIA, PROTON, PROTON(MALAYSIA, SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TATA, TATA(INDIAN),  TOYOTA , UNITED PAKISTAN

China：

BRILLIANCE, BYD, CHANGAN, CHANGHE, CHBUICK, CHERY, CHANGHE, SUZUKI, DFCIROEN, ECUAID, FAW(TIANJIN FOTON, GONOW, GWM, HAFEI, HAIMA, JAC, JAC, REFINE, JMC, JOYLONG, LIFAN, MG(SAIC, QOROS, MAXUS, SGM, SGMW, XINKAI, POLARSUN, ZX, AUTO, ZOTYE, SENOUA(BAIC)



Notice:



Due to regional and system updates, car models may differ.



Specifications:



Operating System: Android 10.0

Processor: 2.0GHz, quad-core

Memory: 4GB

Storage: 64GB

Display: 8-inch touch screen with 1280*800 resolution

Camera: 8 megapixels rear camera

Wi-Fi: 5GHz/2.4GHz

Battery: 6000mAh

Operating Temperature: 0°C to 50°C

Storage temperature: -20°C to 70°C

Dimensions: 256*171*40.5mm

Net Weight: 1Kg

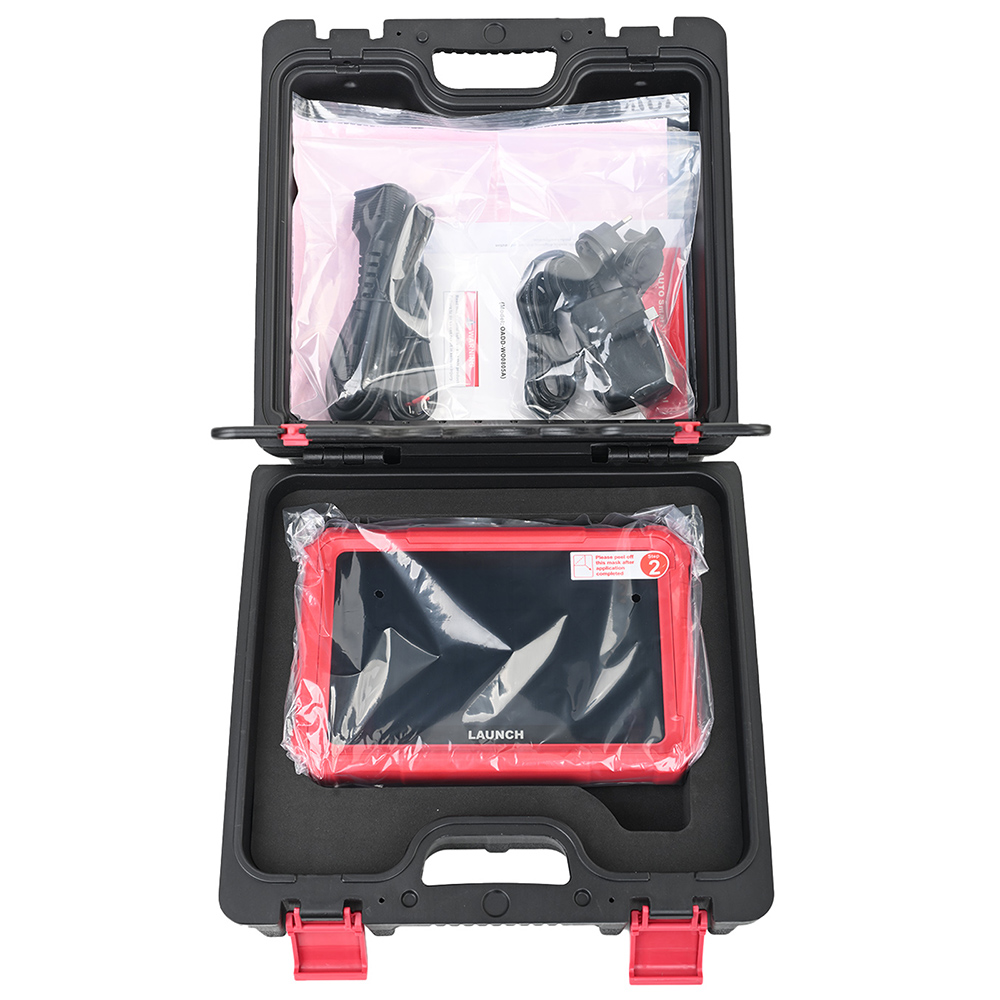

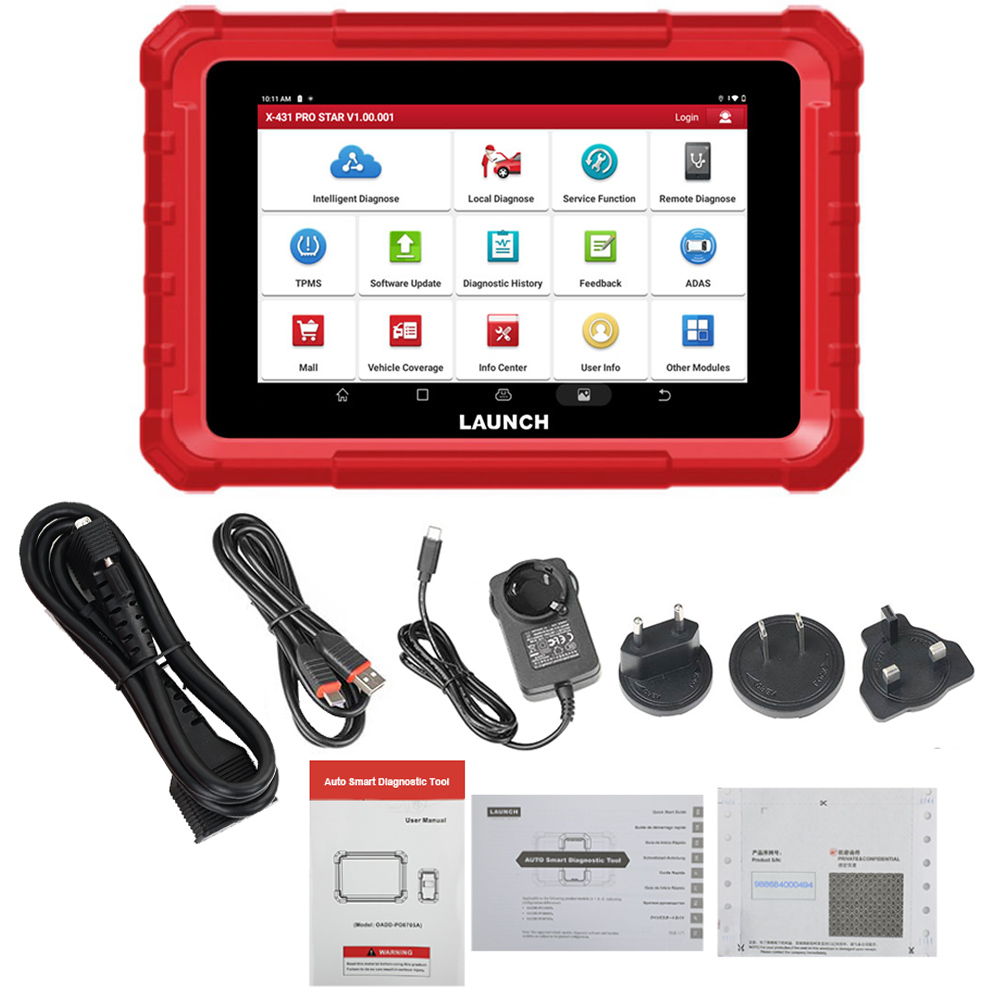

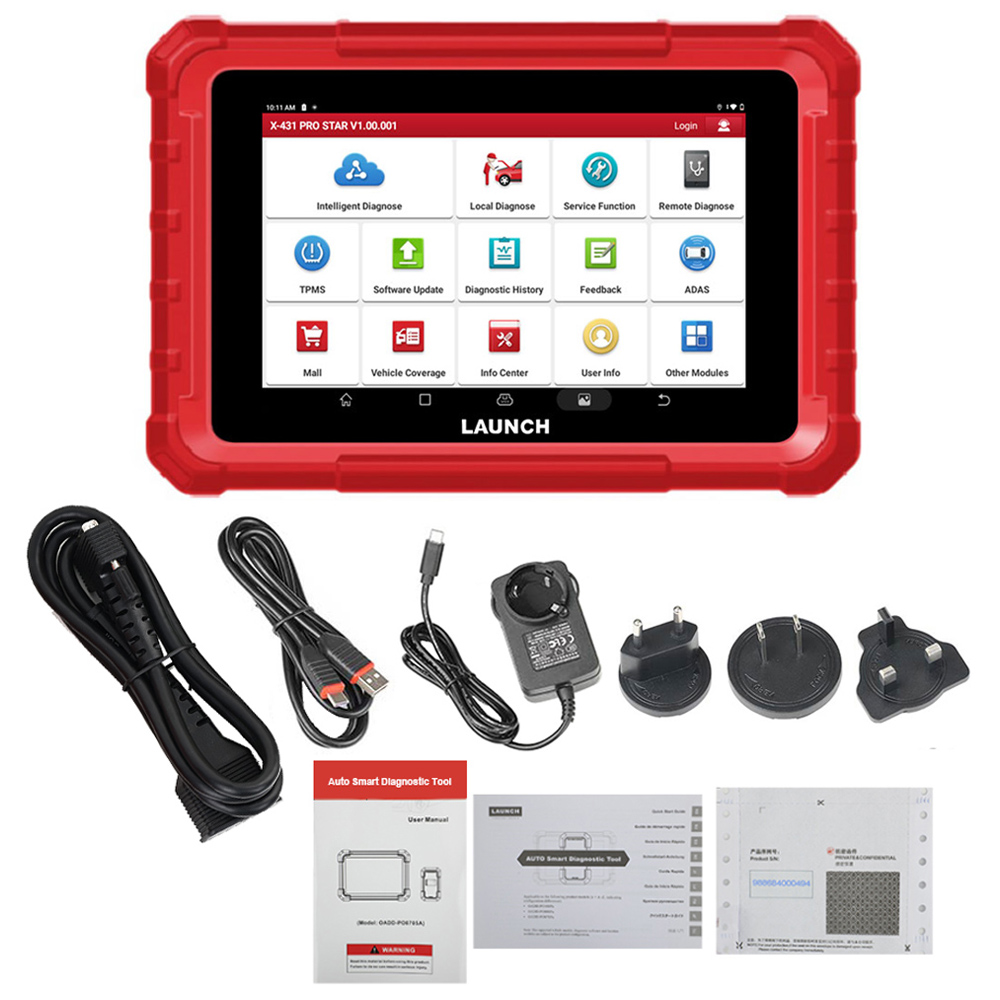

Packing List:



Launch X431 Pro Star

Main Cable

USB Cable

Power Adapter

Power Plug EU

Power Plug US

Power Plug UK

User Manual

Quick Start Guide

Password Envelope

Packing List

Plastic Toolbox

Packing Box
