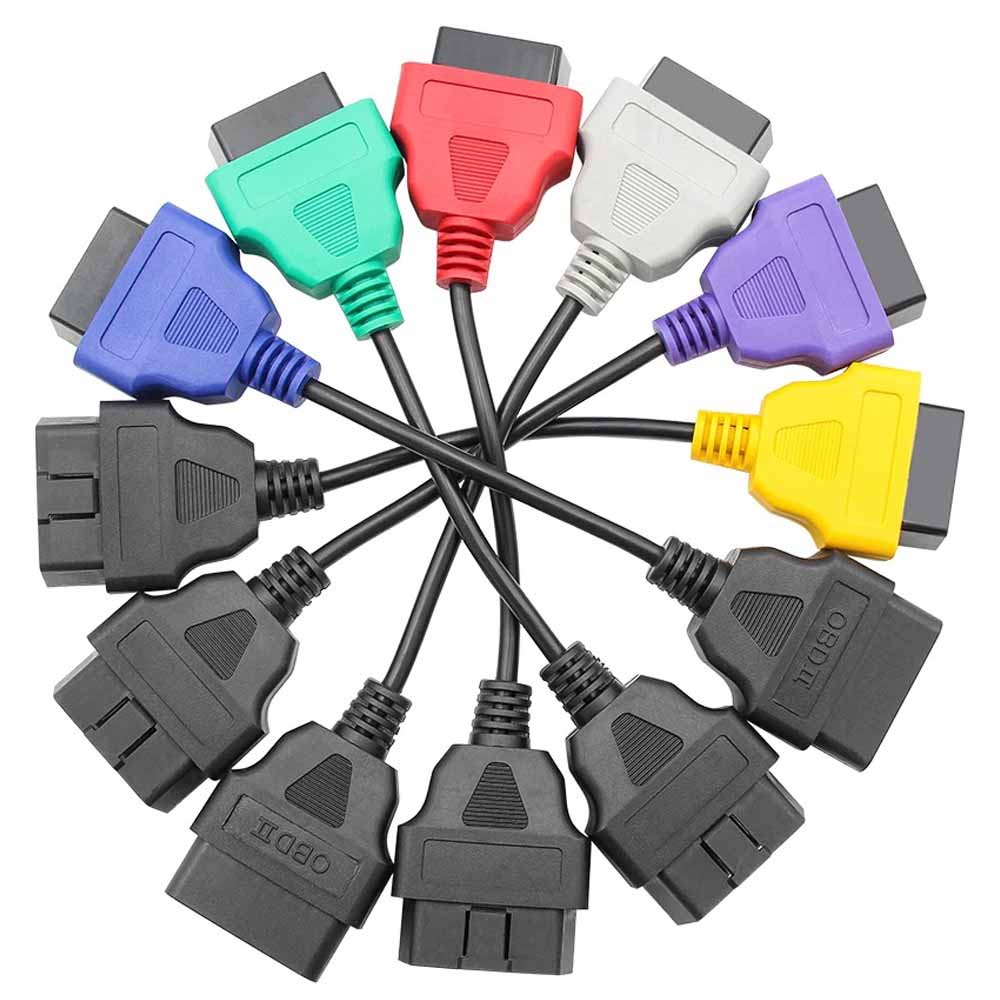

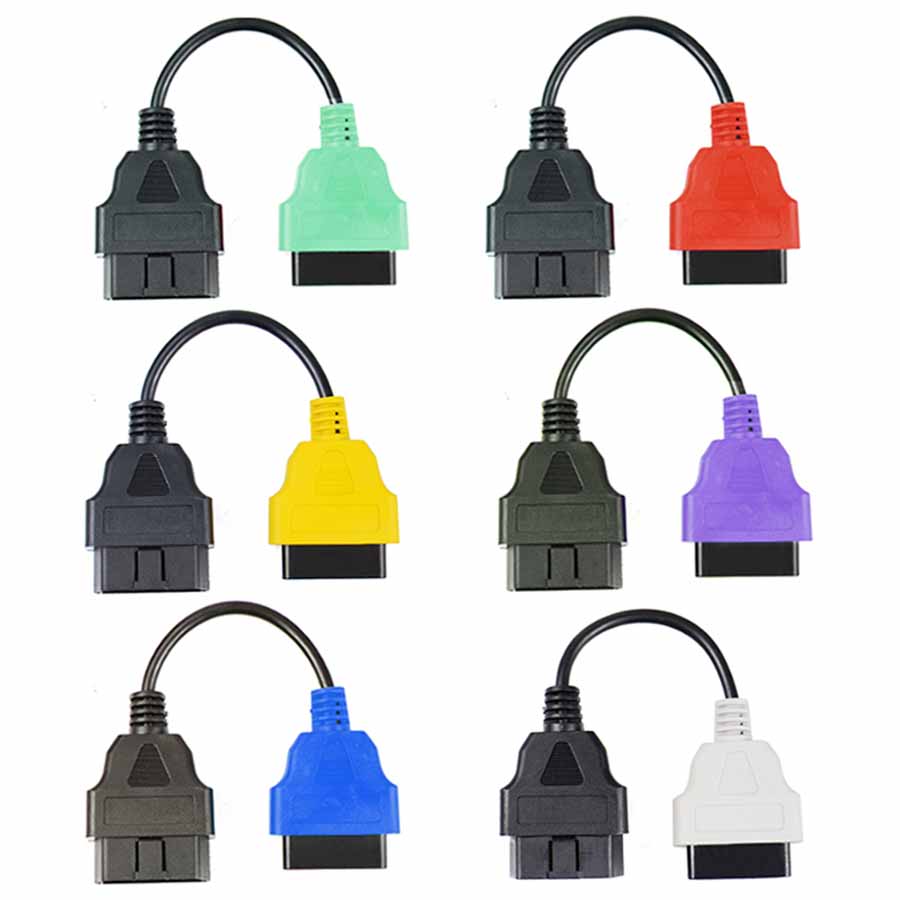

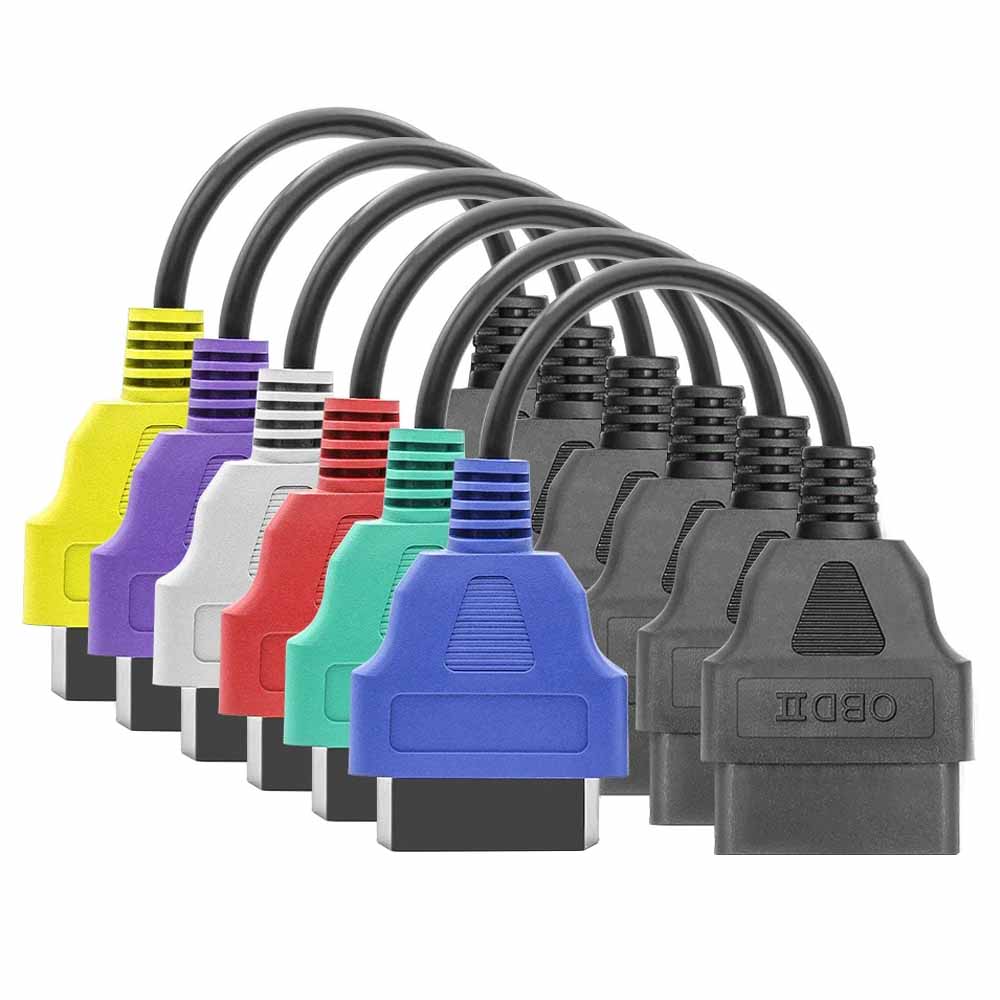

Name: 6 Color Adapter Kit for Fiat ECU Scan
Description:
6 Color Adapter Kit for Fiat ECU Scan MultiECUScan.

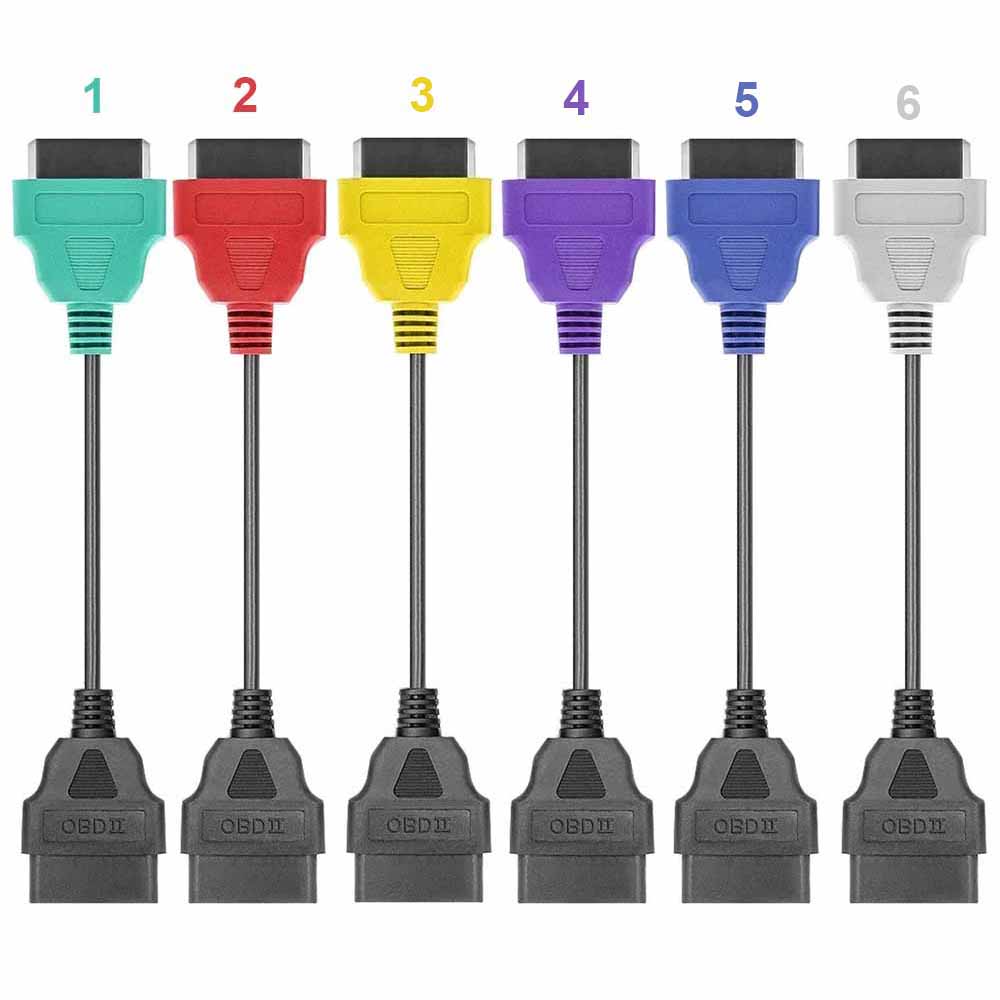

Functions:

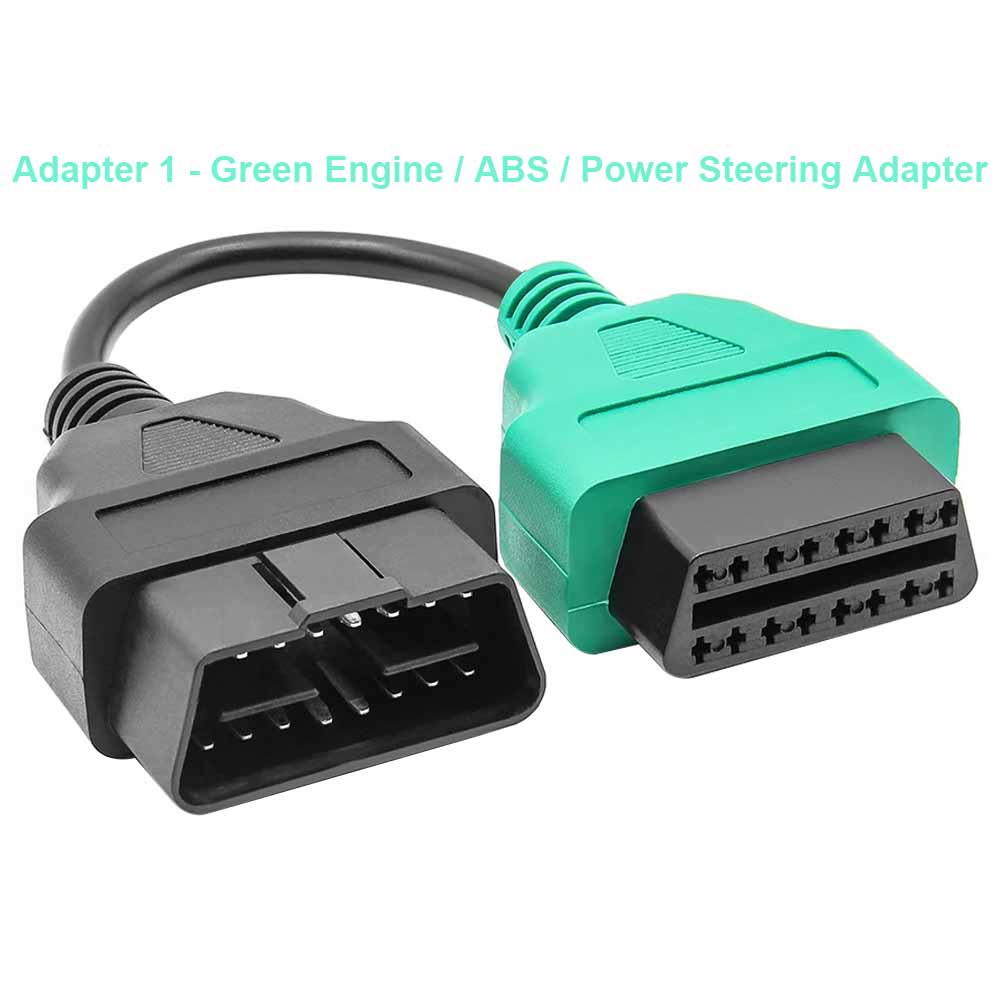

1. Green Engine / ABS / Power Steering Adapter (MultiECUScan Adapter 1)
Designed to allow access to the ABS and Power Steering systems on supported vehicles. Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1, 7, 9, 12 on the car.

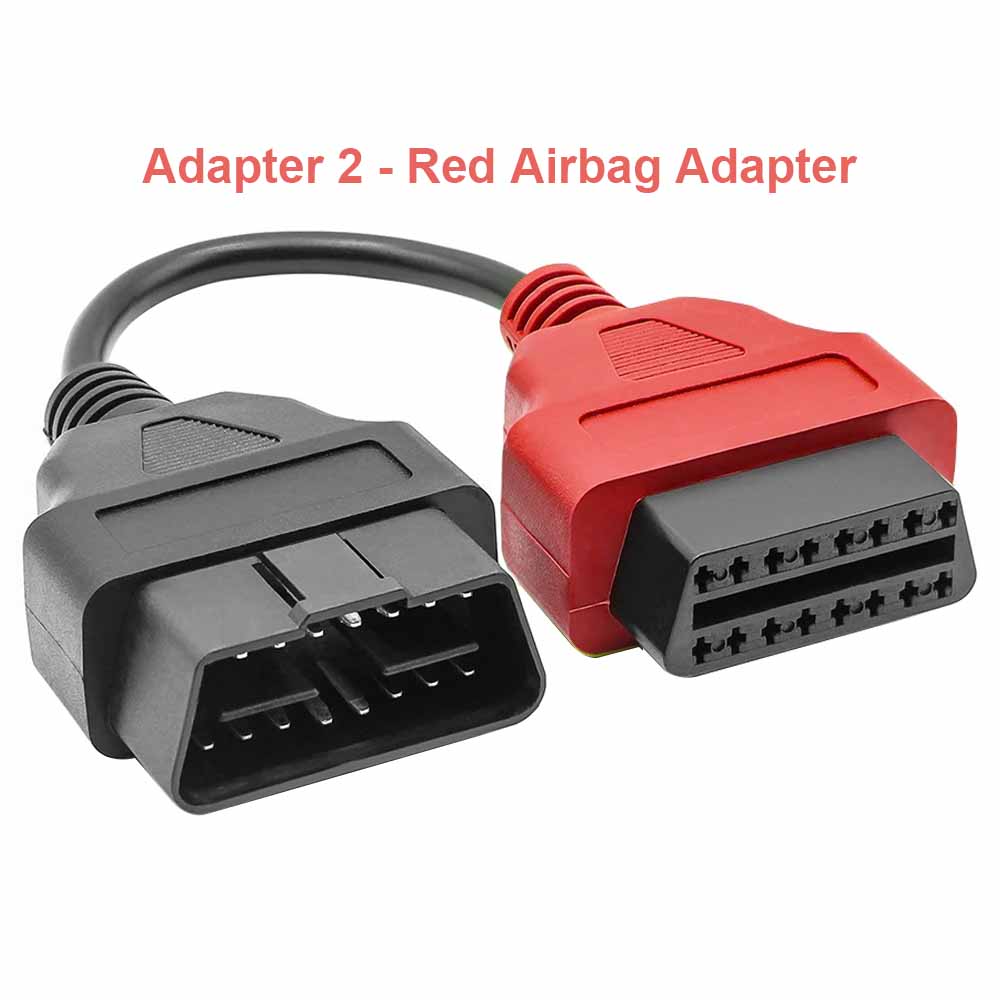

2. Red Airbag Adapter (MultiECUScan Adapter 2)
Designed to allow access to the Airbag system on supported vehicles.
Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only on the car.

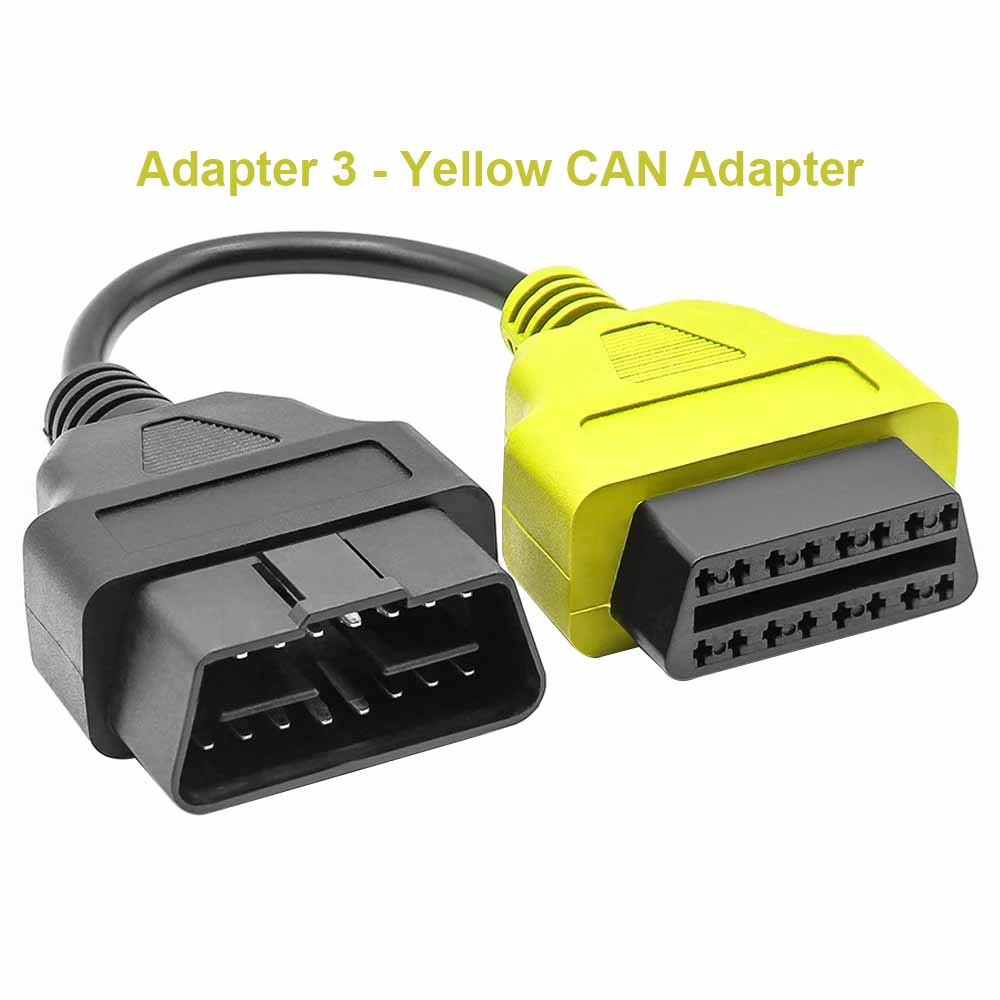

3. Yellow CAN Adapter (MultiECUScan Adapter 3)
Designed to allow access to the low-speed CAN system on supported vehicles.
Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9.
Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.
4. Purple Electric Hood Adapter (MultiECUScan Adapter 4)
Designed to allow access to the electric hood system on supported vehicles.
Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7, 8, 11, 13 one the car.

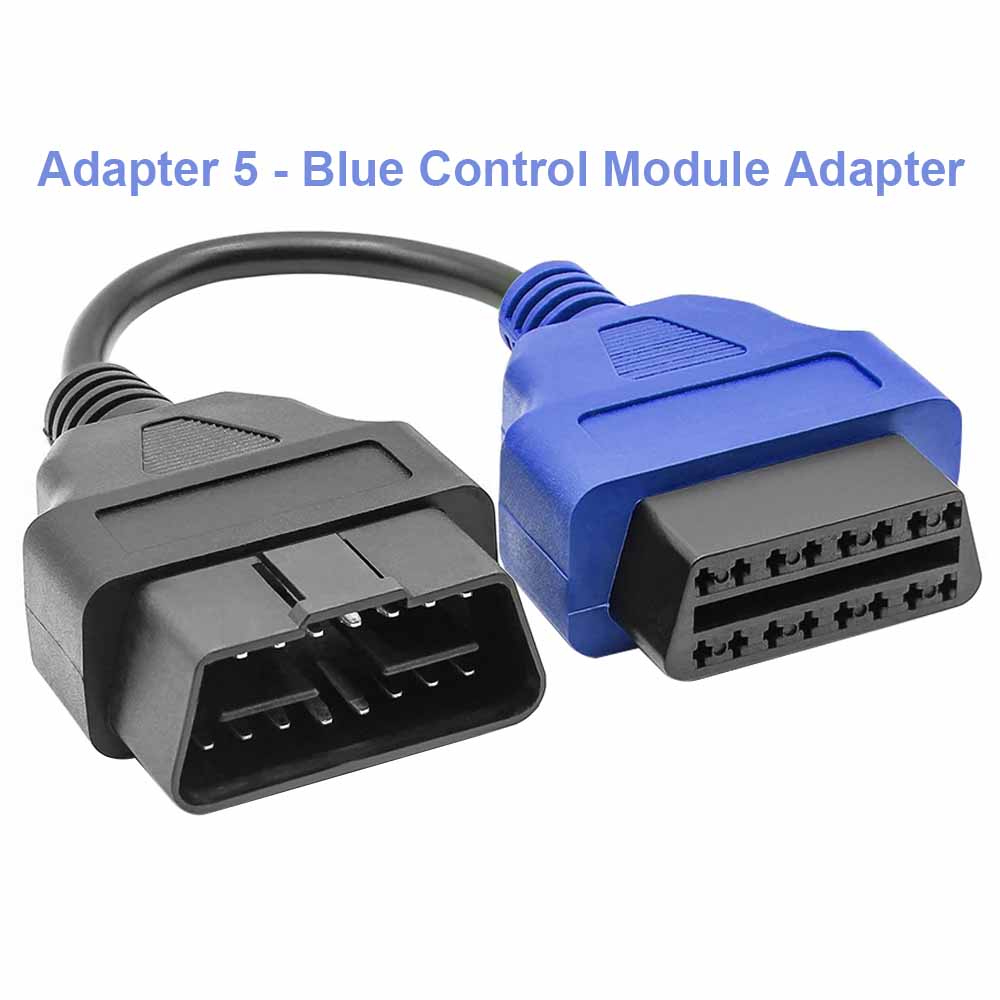

5. Blue Control Module Adapter (MultiECUScan Adapter 5)
Design allows access to enhanced features on the vehicle (e.g. Multimedia, Blind Spot Sensors, etc.)
6. Gray Base Control Module Adapter (MultiECUScan Adapter 6)
Designed to allow access to basic functions on the vehicle (e.g. Headlights, Parking Controller, ABS, Electric Steering, etc.)
Supported Cars:
Chrysler
Jeep
Dodge
Fiat
Lancia
Notice:
Please refer to 'Multiecuscan' official website for more information.
|
