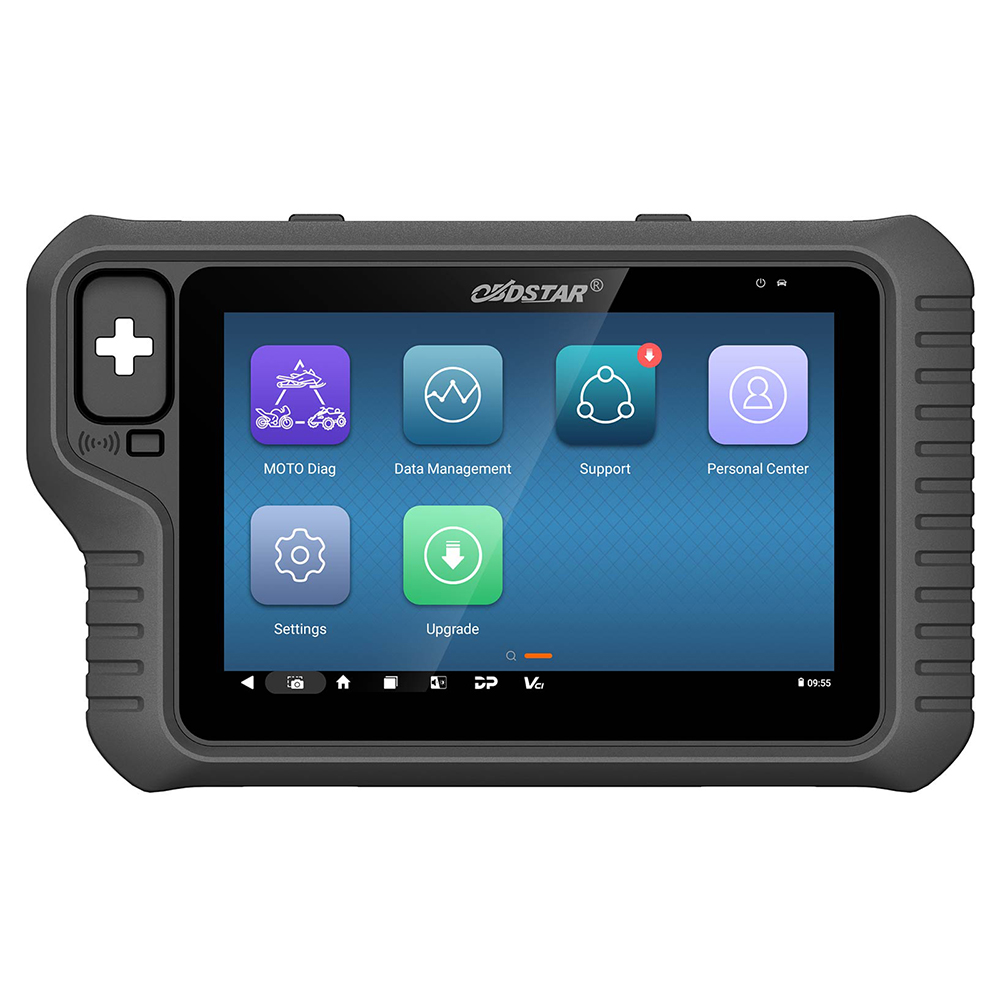

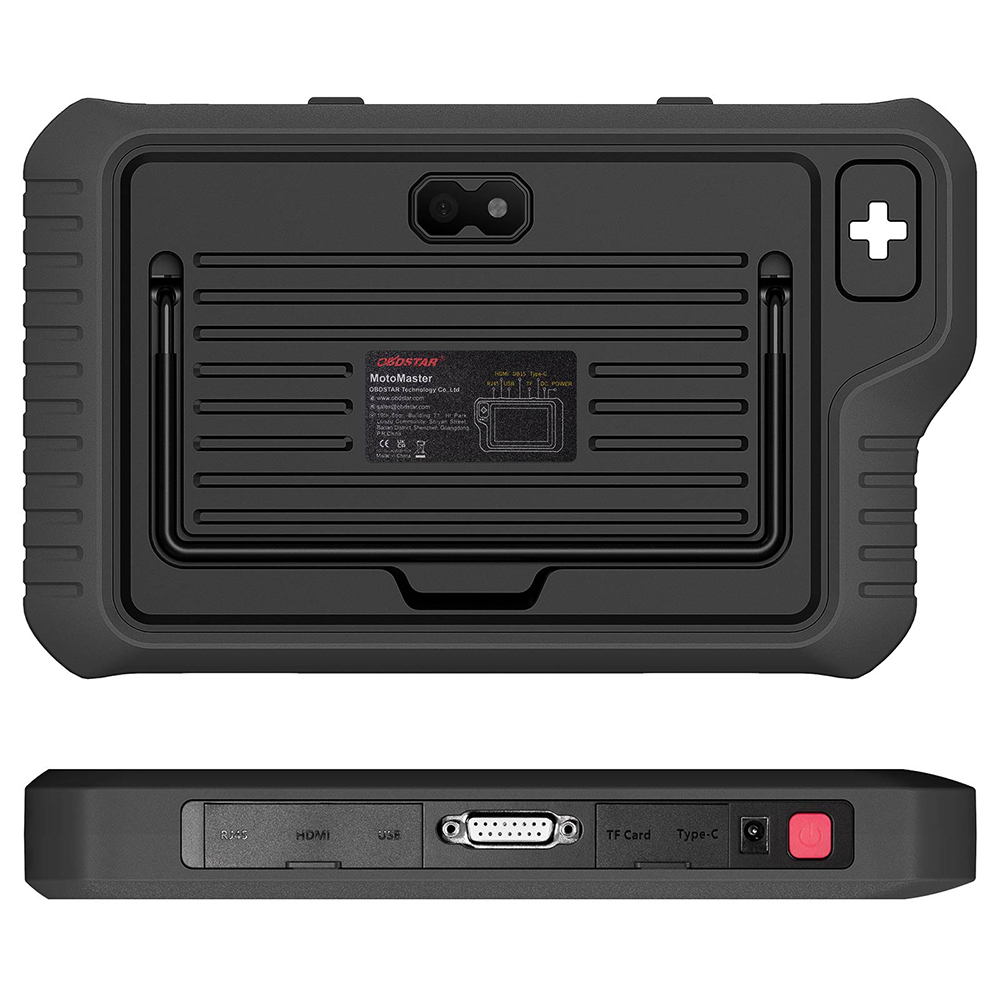

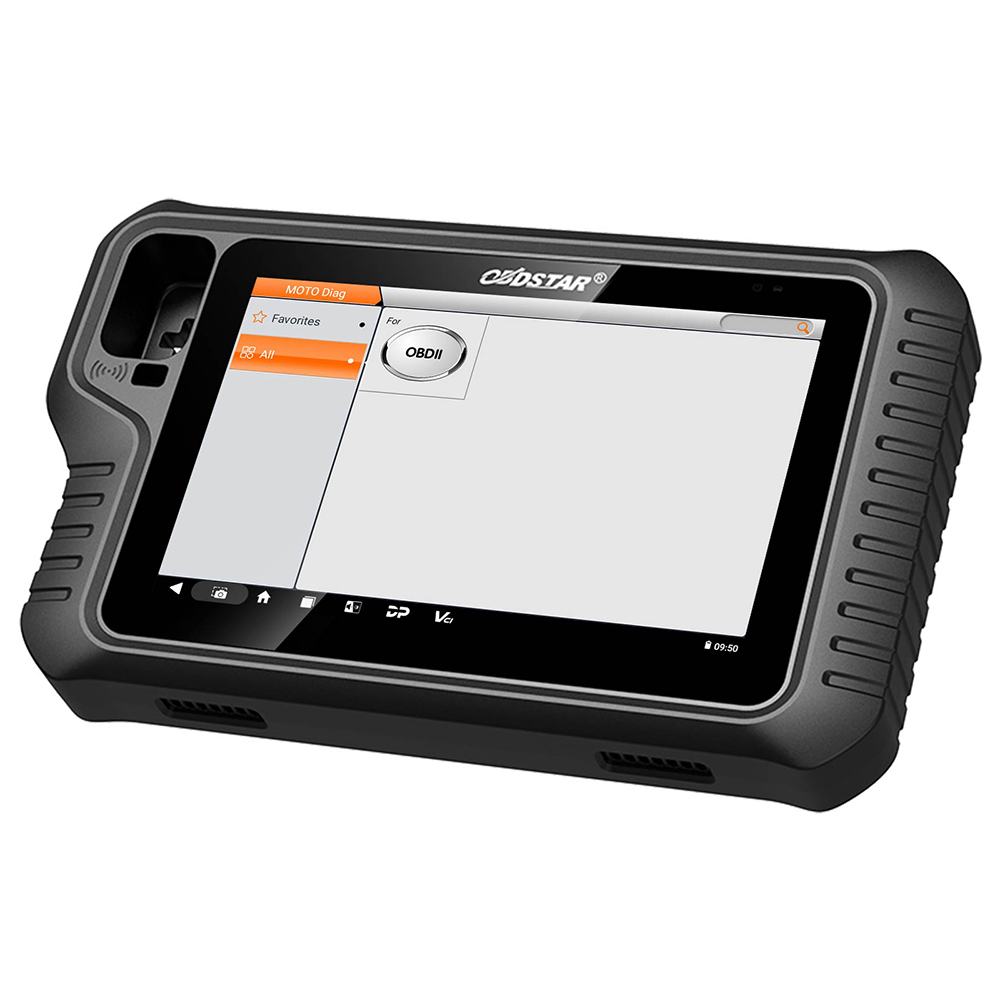

Name: OBDSTAR MOTOMASTER Full Version
Description:
OBDSTAR MOTOMASTER Full with Built-in CAN FD / DoIP supports Marine Diag, MOTO Diag IMΜΟ, ECU Flasher, Odometer, RFID, Remote Test.
OBDSTAR MOTOMASTER Full is a new generation of intelligent marine / motorcycle (Motorcycle/Snow mobile/ATV/UTV, etc.) scanner which can read all systems fault code. OBDSTAR Motor Master Full is a powerful diagnostic scan tool for APRILIA, BENELLI, BMW, BRP, DUCATI, HARLEY DAVIDSON, HONDA, INDIAN, KAWASAKI, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, POLARIS, SUZUKI, TRIUMPH, VESPA, YAMAHA...
OBDSTAR MOTOMASTER Full Version has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting failure, so you have no worries about the motorcycle diagnosis.
2 Versions:
MOTOMASTER Standard(SP591) = MOTO Diag + E-MOTO Diag + IMMO + Cluster Recalibration + ECU Flasher + Make Key
MOTOMASTER Full(SP591-FULL) = MOTO Diag + E-MOTO Diag + IMMO + Cluster Recalibration + ECU Flasher + Make Key + Marine Diag
Features:
1. Android 11 operation system, one-click OTA upgrade;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance;
8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models;
9. Support screen recording and wireless screen casting function.
Highlights:
1. The OBDSTAR mobile APP integrates functions such as diagnostic socket location(DLC), flash code query, technical bulletin, manual service lamp reset, parameters, etc., working with MOTOMASTER to make motorcycle diagnosis more accurately and efficiently;
2. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
3. Exclusive interactive wiring diagram and electrical description query function, so that you can have a worry-free diagnosis;
4. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
5. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory, etc.
Advanced Functions:
A/F Value Reset
Electrical Description Query
ABS Control Unit Setting
EOL Mode
Action Test
First Fault Guidance
Automatic Scanning
Help Data
Automatic VIN Recognition
Idle Speed Adjustment
Clear Computer Memory
Instrument Coding
CO Adjustment
Interactive Wiring Diagram
Code Reading/Clearing
Maintenance Light Reset
Control Module Programming and Coding
Technical Bulletin
Data Flow
Tire Pressure Monitoring System
Diag Socket
Transmission Memory Reset
ECU Setting
Supported Functions and Brands:
Motorcycle / Snowmobile / ATV / UTV Diagnostic Function Support Series:
ASIA:
AEON, BAJAJ, BENELLI(DSK), DAELIMMOTOR, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TGB, TVS, YAMAHA
EUROPE:
ADIVA, AJP, APRILIA, BENELLI, BETAMOTOR, BMW, BRIXTON MOTORCYCLES, BROUGH SUPERIOR, DERBI, DUCATI, FANTIC MOTOR, FBMONDIAL, GASGAS, GG TECHNIK, GILERA, GOES, HM, HUSABERG, HUSQVARNA, ITALJET, KEEWAY, KRAMER MOTORCYCLES, KREIDLER, KSR MOTO, KTM, KVN MOTORS, LAMBRETTA, LEXMOTO, MACBOR, MALAGUTI, MALCOR, MASH, MBK, MBP, MGK HM, MH, MINSK, MITT, MOTO GUZZI, MOTO MORINI, MOTRON. MUTT MOTORCYCLES, MV AGUSTA, NOX, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO, QOODER, QUADIX, QUADRO, RBS, RIEJU, ROYAL ALLOY, SCORPA, SHERCO, STELS, SUMCO, SWM, TRIUMPH, URAL, VENT, VERVE MOTO, VESPA, WOTTAN
AMERICAS:
ACELLERA, AKT, ARCTICCAT, BRP, BUELL, COLEMAN, CSC MOTORCYCLES, DAFRA, HARLEY DAVIDSON, INDIAN, KELLER, POLARIS, RVM, UM, VICTORY, VICTORY_colombia
CHINA:
ARIIC, BAODIAO, BENDA, CFMOTO, CHINA ABS, CHINA ENGINE, CQZONGSHEN, CYCLONE, DAYANG, DAYUN, DONGFANG, FYM, GAOKIN, GEELY MOTOR, GENERIC, GEON, GUOWEI, HAOJIANG, HAOJUE, HISUN, JINCHENG, JNQQSUZUKI, KEEWAY, KL, KOVE, LIFAN, LINHAI, LONGJIA, LONXIN, QJBENELLI, QJMOTOR, REGAL RAPTOR, RIYA, SENKE, SHINERAY, SINNIS, TARO, TIANMA, TRMOTOR, VOGE, WYHONDA, XDZHONDA, ZONTES
E-MOTO Diagnostic Function Support Series:
BROSE, NIU, YADEA, ZEEHO
Marine(Jet-Ski) Diagnostic Function Support Series:
BRP(SEA-DOO), HONDA, KAWASAKI, YAMAHA
Motorcycle Key Programming (IMMO) Support Series:
EUROPE:
BMW, DUCATI, ITALJET, PEUGEOT, PIAGGIO, TRIUMPH
AMERICAS:
BRP, HARLEY DAVIDSON, INDIAN, POLARIS
ASIA:
HONDA, KAWASAKI, SUZUKI, YAMAHA
CHINA:
DAYANG, HAOJUE
APRILIA, BMW, DUCATI, HONDA, KAWSAKI, PIAGGIO, SUZUKI, YAMAHA
HONDA, SUZUKI, YAMAHA
Programmer (Cluster Recalibration by Dump) Support Series:
EUROPE:
APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH
AMERICAS:
BUELL, HARLEY-DAVIDSON
ASIA:
HONDA, KAWASAKI, SUZUKI, YAMAHA
CHINA:
HAOJUE, KYMCO
Odometer (Cluster Recalibration by OBD/Bench) Support Series:
APRILIA, BRP, DUCATI，KTM
ECU Flasher Support Series:
APRILIA, BRP, CFMOTO, DERBI, GILERA, ITALJET, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, QJBENELLI, ROYAL ENFIELD, VESPA
Make Key Support Series:
APRILIA, BMW, DUCATI, HONDA, KAWASAKI, PIAGGIO, SUZUKI, YAMAHA

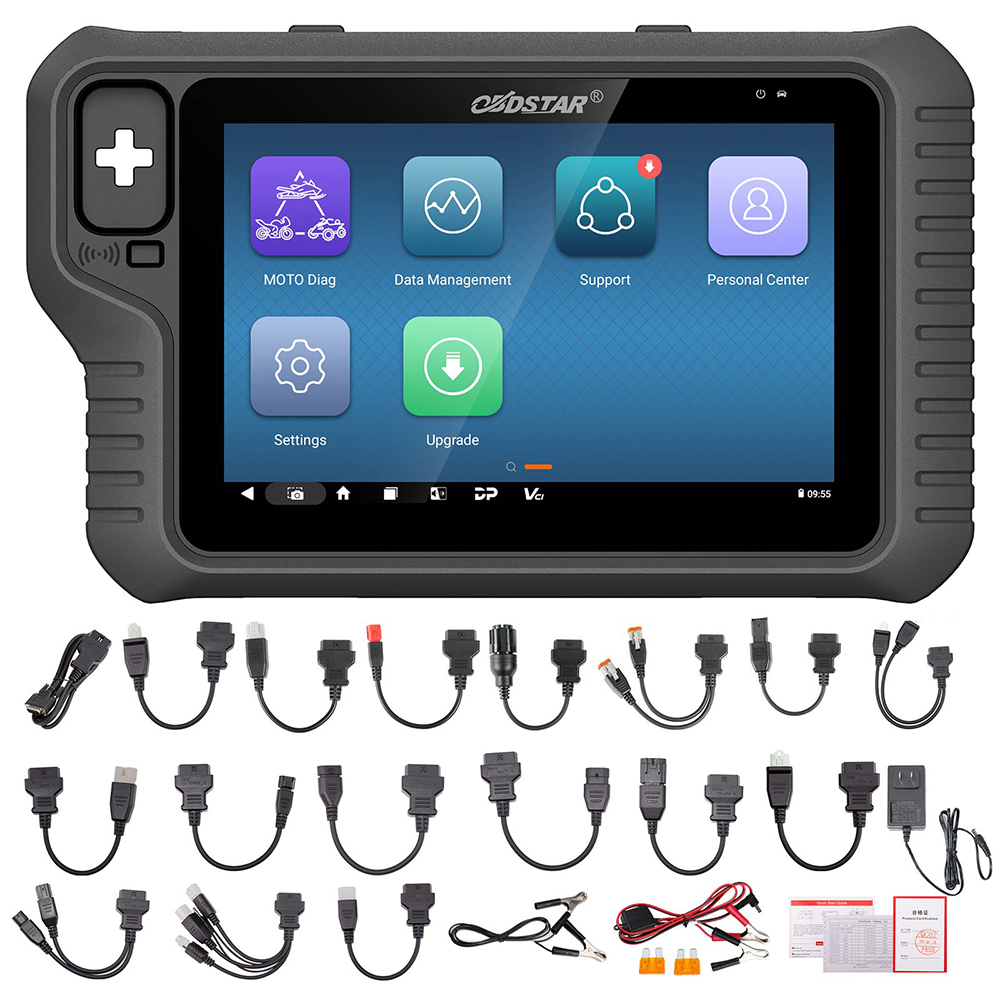

Packing List:

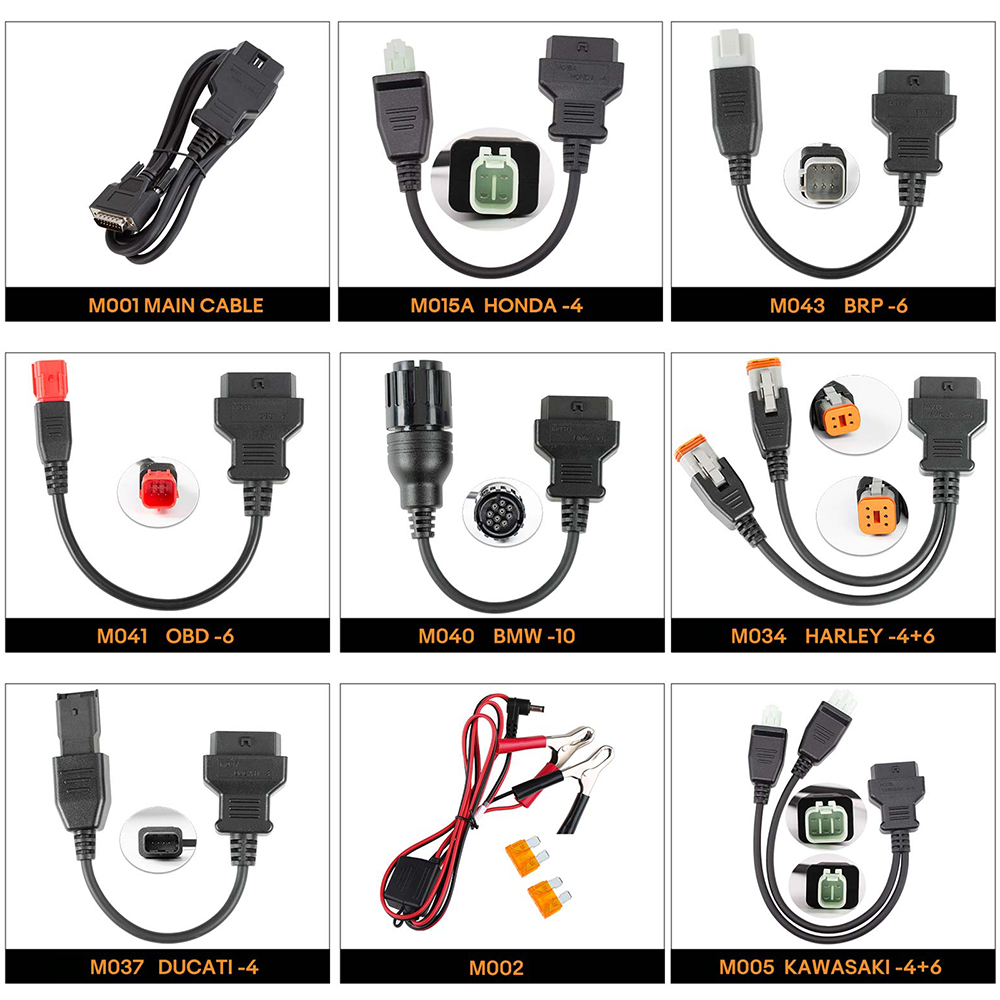

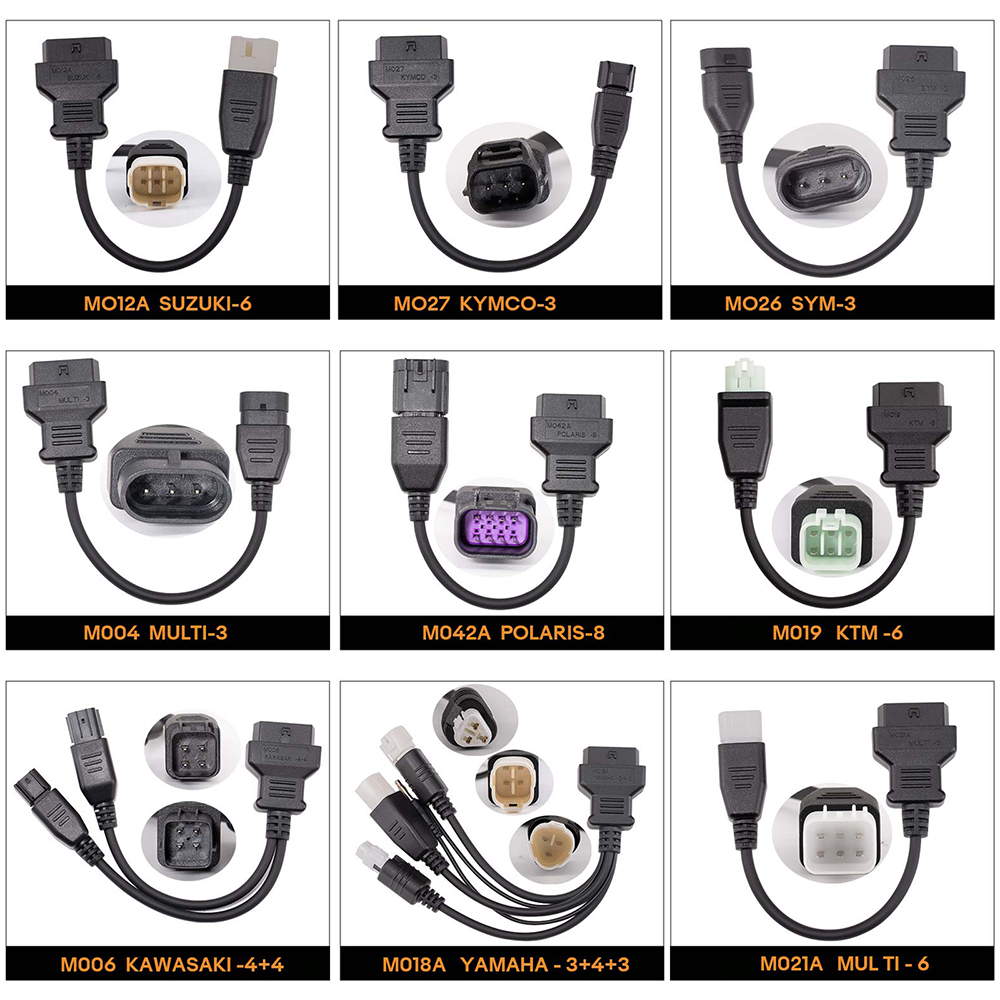

OBDSTAR MOTOMASTER Full Version
M001A Main Cable
M002 Clipper Cable
M002A GND Cable
M003A Multi-Functional Jumper
M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA-3 Cable
M005 KAWASAKI-4+6 Cable
M006 KAWASAKI-4+4 Cable
M012A SUZUKI-6 Cable
M015A HONDA-4 Cable
M018A YAMAHA-3+4+3 Cable
M019 KTM-6 Cable
M021A AEON/BENELLI/BENELLI DSK/QJ BENELLI-6 Cable
M026 SYM-3 Cable
M027 KYMCO/KAWASAKI-3 Cable
M034 HARLEY-DAVIDSON-4+6 Cable
M037 DUCATI-4 Cable
M040 BMW-10 Cable
M041 OBD-6 Cable
M042A INDIAN/VICTORY-8 Cable
M043 BRP-6 Cable
M061 YAMAHA-3 Cable
12V2A Power Charger
Quick Start Guide
Packing List
Plastic Toolbox
Packing Box
Function Display-DP:
1. Main Page / Brand Supported
2. Help Materials
4. Auto Scan / Manual selection / Common Special Functions
5. Data Flow Text / Waveform Diagram / Instrument Diagram
Function Display-APP:
1. Tech Bulletin
2. Manual Service Lamp Reset
Manual Service Lamp Reset is used to manually reset the maintenance reminder light or maintenance reminder message after completing maintenance in some models.
3. Interactive Wiring Diagram
Interactive Wiring Diagram compared with the traditional static circuit diagram using dynamic interactive circuit diagram, visual more intuitive, line flow is more clear, according to the needs of irrelevant lines to hide, display the required lines, click on the components to display the corresponding component description.
4. Components Inspection
5. Diag Socket Location / Diag Connector Instructions
Provides the corresponding diagnostic socket location of different models and the description of the diagnostic harness to be used.
6. Manual Remote
For some models, when adding a new key or disable the old key, it needs to be done manually, manual remote control matching information provides a detailed operating procedures.
Update Log:
Update 2025-02
Add DUCATI SIEMENS/CONTINENTAL M4D SPC564A70 Read/Write INT flash(Support CS), Write VIN functions(OBD/BENCH);
Add POLARIS BOSCH M17.8.7 TC1766 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add BMW BOSCH ME17.2.42 TC1793 Read/Write INT flash, Read/Write INT eeprom, Read/Write ISN Code functions(BENCH);
Add ARCTIC CAT SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add BRP SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add CAN-AM SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add HUSQVARNA SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add KTM SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add KAWASAKI SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add KYMCO SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add TGB SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add SHERCO SIEMENS/CONTINENTAL M3C MC9S12X256 Read/Write INT flash, Read/Write INT eeprom functions(BENCH);
Add HARLEY DELPHI CAN_3C MC9S12X768 Read/Write MAPS, Write VIN functions(OBD/BENCH)
Add HARLEY DELPHI HD J1850 MC9S12DJ128 Read/Write MAPS, Write VIN functions(OBD);
Add HARLEY DELPHI CAN(DOUBLE PLUG) MC9S12X768 Read/Write MAPS, Write VIN functions(OBD/BENCH).
Update 2025-01
Add read/write INT flash, Read/Write INT eeprom and Read/Write ISN code for below models (BENCH)
BMW Bosch ME17.2 TC1797
BMW Bosch ME17.2.4 TC1793
Add read/write INT flash, Read/Write INT eeprom function for below models (Bench)
BMW Bosch M17.8.7 TC1788
Ducati Siemens/Continental M3C MC9S12X256
Add read/write INT flash, Read/Write INT eeprom function (BOOT) for PGO Bosch MSE3.0 ST10F275+ ST95080
|
