Description:



TOPDON ArtiDiag 900 BT is a Bi-Directional Diagnostic Tool supports ECU Coding and 28+ Service Functions.



TOPDON ArtiDiag900 BT empowers technicians to break free from the limits of wires, providing unparalleled flexibility and convenience. Supporting 28 Maintenance Services and Full System Diagnostics for 130+ brands, TOPDON ArtiDiag 900BT unlocks maximum productivity and efficiency in your vehicle repairs. ECU Coding helps to optimize your car's performance and customize its features; Bi-Directional Control allows technicians to communicate with vehicle systems and components to locate the vehicle's issue with efficiency and accuracy. All of these functions are performed without one cable, instead using the wireless Bluetooth VCI to bring more flexibility for wireless diagnosis. Designed with comprehensive functionalities including AutoVIN, FCA Gateway Access, and Graphical Data Displays, TOPDON ArtiDiag900 BT is a reliable and convenient solution for DIYers, professional mechanics, and auto shops.



Software Update: 2 years free update



Supported Languages:

English, French , German, Spanish, Portuguese, Russian, Italian, Arabic, Greek, Hungarian, Dutch, Polish, Slovak, Swedish, Danish, Japanese, Korean, Chinese(traditional)



Notice:



Do not sell to Mexico, Turkey, Norway, Malaysia markets.

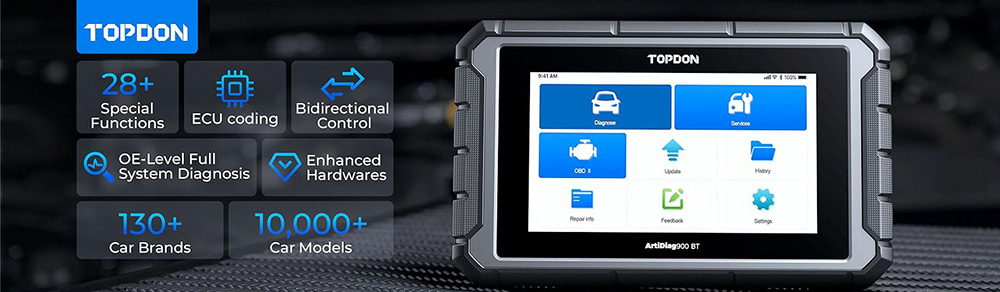

Highlights:



1. Supports 28 commonly used Service Functions for mainstream vehicle models. More Special Functions, excluding online programming, could be found in the specific system's special function menu.



2. Supports ECU coding, including Online Coding.



3. Supports Bi-Directional Control, allowing users to accurately analyze and determine faults in the circuit, control unit, or actuator.



4. Uses Bluetooth wireless diagnosis to eliminate constraints and limitations of the diagnostic cable, making maintenance operations more convenient.



5. Covers over 130 vehicle brands and supports all-system diagnostics for Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning and other systems.



6. Supports basic diagnostic functions of all-system diagnostics, including Reading E/CU Version Information, Reading Fault Codes, Clearing Fault Codes, Reading Data Streams.



7. AutoVIN automatically identifies vehicles for quick diagnosis.



8. Automatically generates Diagnostic Reports that can be sent to a computer via Email for printing.



9. Quickly scans entire vehicle system for fault codes (Health Report) and clears all fault codes with one tap (Clear Code).



10. Data Stream Recording function (Record) allows users to view historical data streams at any time.



11. Feedback function enables users to send their feedback for analysis and helps solve problems.



12. Offers multiple data stream display methods, including numeric, graphical, and combined displays, which can support up to four data streams simultaneously shown in a single graph. Users can easily compare data stream waveforms and analyze fault causes.



Functions:



1. Full System Diagnostics for 100+ Brands

TOPDON ArtiDiag 900 BT scanner allows the user to perform a comprehensive scan of all systems including Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning for more than 100 brands.



Compatible with BMW, BENZ, JAGUAR, CHRYSLER, FIAT, GM, FORD, HONDA and more.



TOPDON ArtiDiag 900BT also supports Full OBD2 Functions and performs all modes of OBD-II testing on most car makes: Reads Codes, Clears Codes, Reads Live Data, Reads Freeze Frame Data, Reads I/M Readiness, Onboard Monitor Testing, Read Vehicle Information, Control Operation of On-Board Components/Systems.



2. 28+ Maintenance Service Functions

With 28+ advanced Service Functions at your disposal, rest assured that you are equipped to make a car roadworthy. Use functions like Oil Resets, SAS Resets, Brake Resets, ABS Bleeding, and DPF. The ArtiDiag900 BT scanner also supports more Special Functions for various car brands. For more Special Functions, refer to the Special Function Menu in a specific system.



1). Oil Light Reset (for 53 brands).



2). Steering Angle Reset (for 44 brands):

Reset the steering angle to zero to keep the car running straight.



3). Injector Coding:

Write the new injector code into the car system for correct cylinder injection quantity.



4). IMMO Service:

Disable any lost keys and add new keys. **ONLY for cars with easy IMMO system. If you need key programming, check TOPDON T-Ninja 1000.



5). DPF Regeneration (for 39 brands).



6). EGR Adaption:

Learn the Exhaust Gas Recirculation valve after being cleaned.



7). ABS Bleeding (for 34 brands):

Help exhaust the air.



8). AdBlue Reset:

Reset urea after the diesel exhaust treatment fluid is replaced or filled up.



9). Throttle Matching (for 37 brands):

Initialize the throttle actuators to the default state.



10). TPMS Reset:

Reset the tire pressure.



11). EPB Reset (for 41 brands):

Help replace and reset the brake pad.



12). Tire Reset:

Set the size parameters of the modified or replaced tire.



13). AFS Headlamp Reset:

Initialize the adaptive headlamp system.



14). Sunroof Initialization:

Initialize the sunroof when locked off or closed.



15). Battery Reset (for 33 brands):

Register the battery after replacement.



16). Seat Calibration:

Calibrate the memory in replaced or repaired seats.



17). Airbag Reset:

Resets the airbag data to clear the airbag collision fault indicator.



18). A/F Reset:

Set or learn Air/Fuel ratio parameters.



19). Gearbox Reset:

Help complete the gearbox self-learning to improve gear shifting quality.



20). Transport Mode:

Deactivate the transport mode.



21). Windows Calibration:

Perform door window matching to recover ECU initial memory.



22). Language Change:

Change vehicle system language.



23). Suspension Reset:

Adjust the vehicle body height sensor for level calibration.



24). ODO Reset:

Copy, write or rewrite the kilometer value.



25). NOx Sensor Reset:

Reset catalytic converter learned value stored in ECU.



26). Stop/Start Reset:

Set up the automatic start-stop function in ECU.



27). Coolant Bleeding:

Activate the electronic water pump.



28).Suspension Reset:

Adjust the vehicle body height sensor for level calibration.



3. Bi-directional Control

TOPDON ArdiDiag 900 BT Wireless Bi-Directional Tool can send commands and receive information to perform specific tests and functions such as window / mirror / door lock tests and throttle adjustments to help you locate problems quickly. And our personalized concealed VIC interface storage design allows for easier storage, 3 LED indicators to quickly show you the status of your connection.



4. Covers Most Advanced Coding Jobs

TOPDON ArtiDiag900 BT is equipped with advanced ECU Coding capabilities that allows you to Unlock Hidden Functions and Disable Unnecessary Features with ease. From enabling single door unlocking, to fuel amount displays, and auto engine start-stops, this tool provides endless possibilities for customizing your driving experience. It's also a great choice for coding a new ECU after replacing an old one, such as a light module or ABS module.

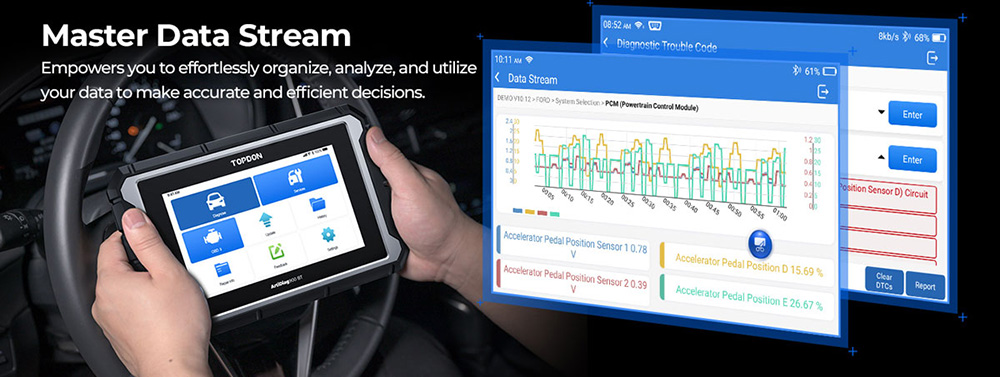

5. Master Data Streams

TOPDON ArtiDiag900BT is capable of processing and analyzing data streams with a high level of expertise, enabling technicians to quickly and accurately identify the root cause of vehicle issues. With the ability to display up to 4 data streams in a single graphical interface, users can evaluate vehicle performance and make precise and efficient decisions based on comparative data.



6. Seamless Access To FCA Gateway

With the ArtiDiag900 BT’s FCA Gateway Access, you can effortlessly work on modern makes and adjust protected functions such as clearing DTCs, bidirectional tests, and calibrations. The ArtiDiag900 BT supports Chrysler, Dodge, Jeep, and other major brands.



7. AutoVIN Gets You Started Instantly

Experience professional diagnostics at your fingertips with TOPDON ArtiDiag 900BT. Its AutoVIN function automatically identifies vehicle information, such as make, model, and year of manufacture, so you can get started with your diagnostics right away. Don’t waste time inputting vehicle information manually. Compatible with vehicles made after 2004.



8. Efficiently Troubleshoot Vehicle Issues

Say goodbye to the frustration of vehicle issues with Bi-Directional Control. The ArtiDiag 900 BT’s bidirectional capabilities allows for individual tests to be performed on single actuators, helping to identify and resolve issues quickly and efficiently. ArtiDiag900 BT covers a wide range of vehicle components, including lights, door locks, fuel injectors, fuel pumps, coolant pumps, windows, windshield wipers, EVAPs, and more.

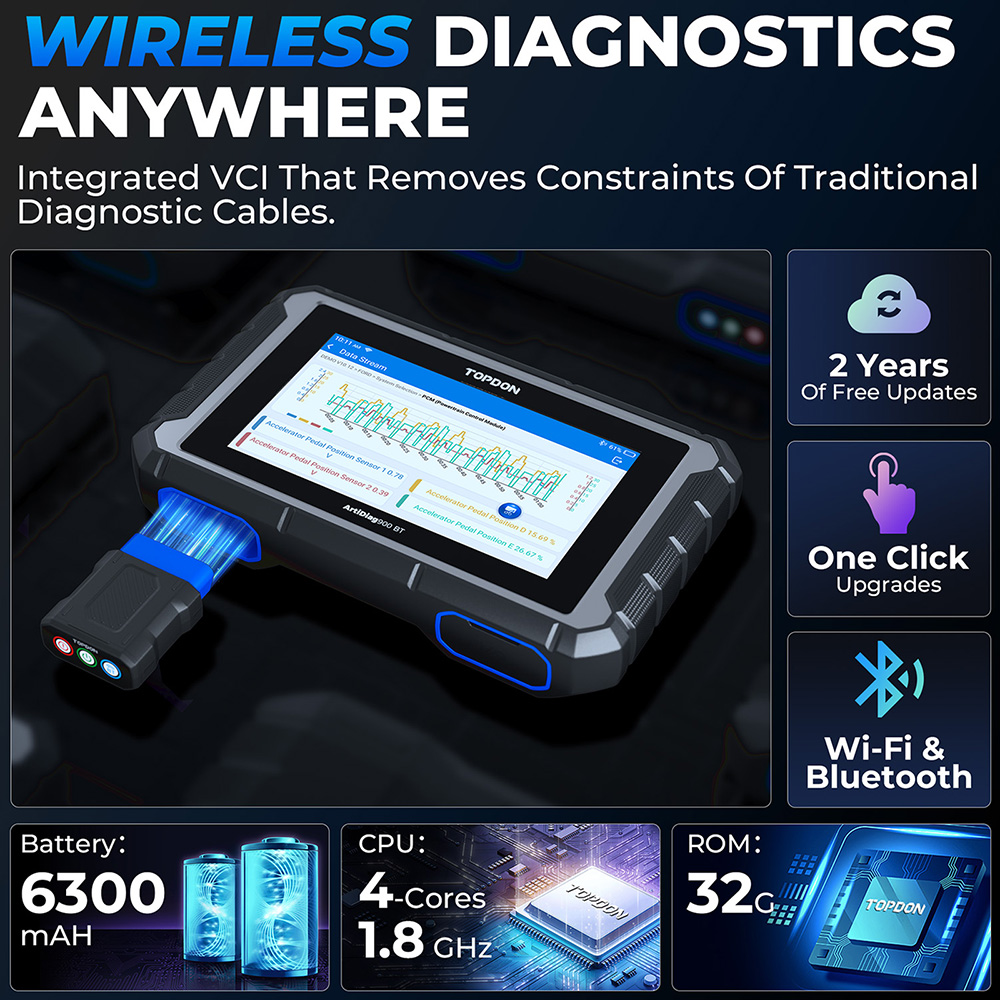

9. Wireless Diagnostics Anywhere

TOPDON ArtiDiag900BT features Bluetooth connectivity with a range of up to 10 meters (32.8 feet), allowing for diagnostic capabilities without the constraints of traditional diagnostic cables. With the VCI integrated into the tablet, this diagnostic tool is portable and easy to store, making it a convenient solution for diagnosing vehicle issues anytime and anywhere.



10. Unleash Optimal Performance In A Vehicle

With advanced scanning capabilities, it can perform comprehensive scans on over 130 popular brands such as BMW, BENZ, JAGUAR, CHRYSLER, FIAT, GM, FORD, HONDA, and more. You can read module information, clear fault codes, and read data streams for all systems, including Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning. Get your hands on TOPDON ArtiDiag 900BT scanner now and get vehicles running at their best.

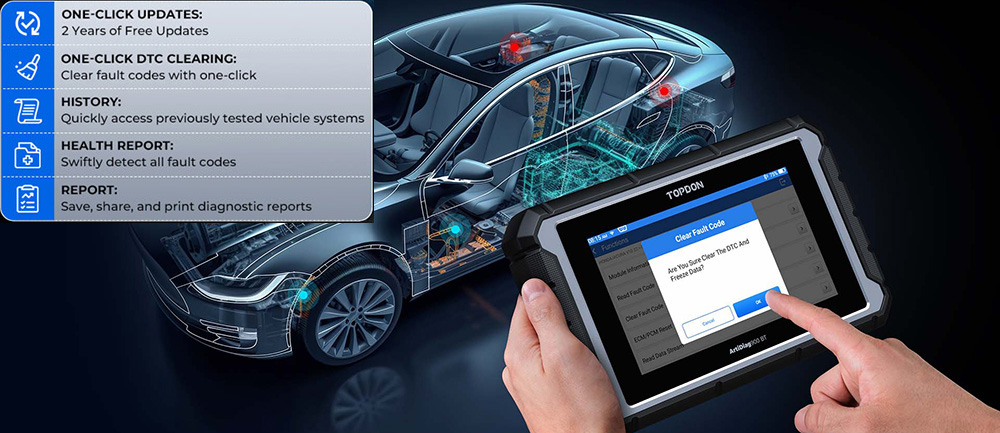

11. Clear Fault Codes With One-Click

With the “Health Report” function of ArtiDiag 900 BT, you can quickly detect and clear fault codes from all vehicle systems with just one click. Additionally, the “Report” function allows you to save and share fault code reports effortlessly.

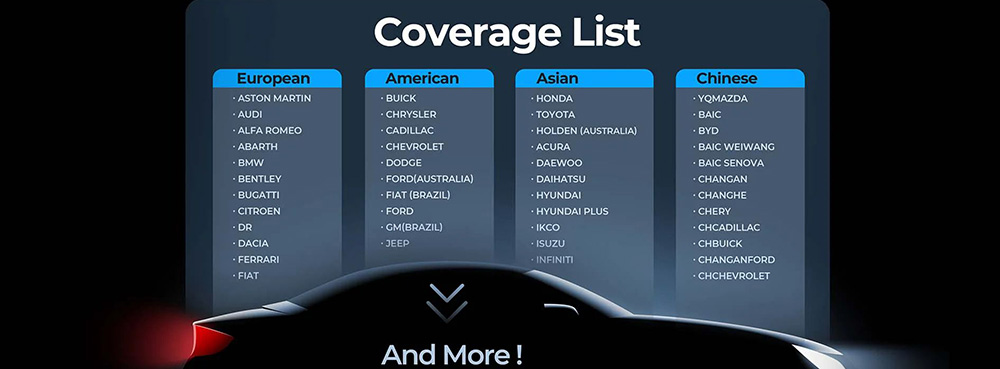

12. Check Vehicle Compatibility In Seconds

Easily determine if your device is compatible with your vehicle using the Vehicle Coverage list feature. Enter the Device Model, Vehicle Make, Vehicle Model, Year, and Function you would like to perform on your car, the Vehicle Coverage Lookup function can help you check whether the device is applicable to your vehicle, supporting several brands.

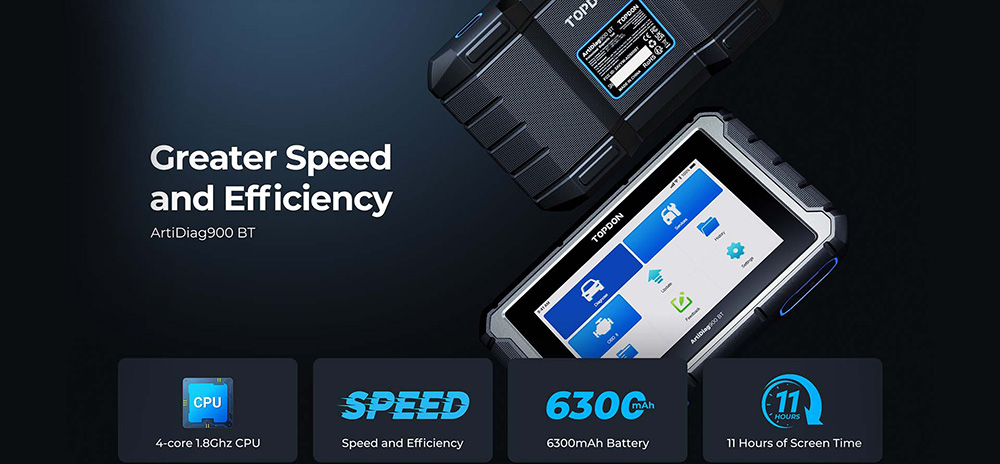

13. Keep Your Diagnostic Process Running Smoothly

Equipped with an upgraded 4-core 1.8GHz CPU, TOPDON ArtiDiag 900BT operates with greater speed and efficiency, providing a smoother user experience. With a 6300mAh battery that provides up to 11 hours of battery life with the screen on, ArtiDiag900 BT is the perfect tool for automotive diagnostics on the go.

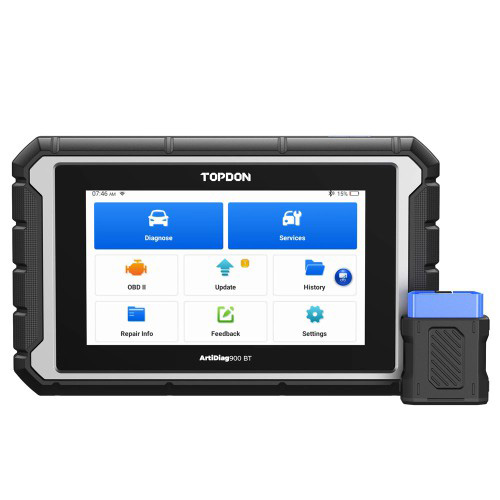

Specifications:



Tablet Scanner

OS: Android 8.1

Display: 7-inch LCD with 1024*600 resolution

CPU: quad-core Cortex-A53 MT6761, 1.8GHz

RAM: 2GB

Storage: 32GB

Battery: 6300mAh / 3.8V

Storage Temperature: -20°C to 60°C

Working Temperature: 0°C to 50°C

Dimension: 238*145*43 mm

Net Weight: 885g

Gross Weight: 1677g



VCI

Green Indicator: power on

Blue Indicator: Bluetooth connection;

Red Indicator: VCI error

Operating Voltage: 9V to 1 V

Working Current: <60mA

Working Temperature: -10°C to +50°C

Dimensions: 61*49*23mm



FAQs:



Q1: Why does the ArtiDiag900 BT have no responses when it is connected to a car?

A1: Check if the connection with the vehicle diagnostic socket is solid, or check if the ignition switch is on, or if the tool supports the car. Check whether the version of the scanner and VCl is the latest (If not, please update and try again after updating.), and check what indicator is on the VCl (Refer to the indicator description in the user manual.).



Q2: Why does the system stop when reading the data stream?

A2: This may be caused by a loose diagnostic VCl Dongle. Please unplug the VCl Dongle. Please make sure the connection is stable and solid.



Q3: What to do if there is an issue with the vehicle ECU?

A3: Please confirm the following cases:

1. Whether diagnostic VCl Dongle is correctly connected.

2. Whether the ignition switch is ON.

3. Check whether the version of the scanner and VCl is the latest (If not, please update try again after updating), and check what indicator is on the VCl (Refer to the indicator description in the user manual.). Or, send your vehicle's year, make, model, VIN number, and device serial number to us using the Feedback feature for timely technical assistance.



Q4: Why does the screen flash when the engine ignition starts?

A4: This is normal. It is commonly caused by electromagnetic interference.



Q5: How to upgrade the system software?

A5:

1. Power on the tool and ensure a stable Internet connection.

2. Go to "Settings"->"App Update",tap "OTA" and then tap "Check Version" to enter the system upgrade interface.

3. Complete the process by following the instructions on the screen step by step. It may take a few minutes depending on the status of your network. After the upgrade is finished, the tool will automatically restart and display the main interface.



Q6: How to capture the screenshot?

A6:

1. Go to [Settings] and find [Screen Shots], Set it to ON.

2. Tap the "Screen Shots" icon on the screen to capture the current screen, which will be saved in the "Photo Album" module.



Q7: Does the VCl Dongle need to be updated?

A7: Yes. To update, please go to [Settings] on the home screen and find [Firmware fix] to update. You can only update the firmware when the scanner is connected to the Internet, and the VCl is connected to a vehicle. After the firmware update is complete, remove and re-plug the VCl on the firmware update completion page.

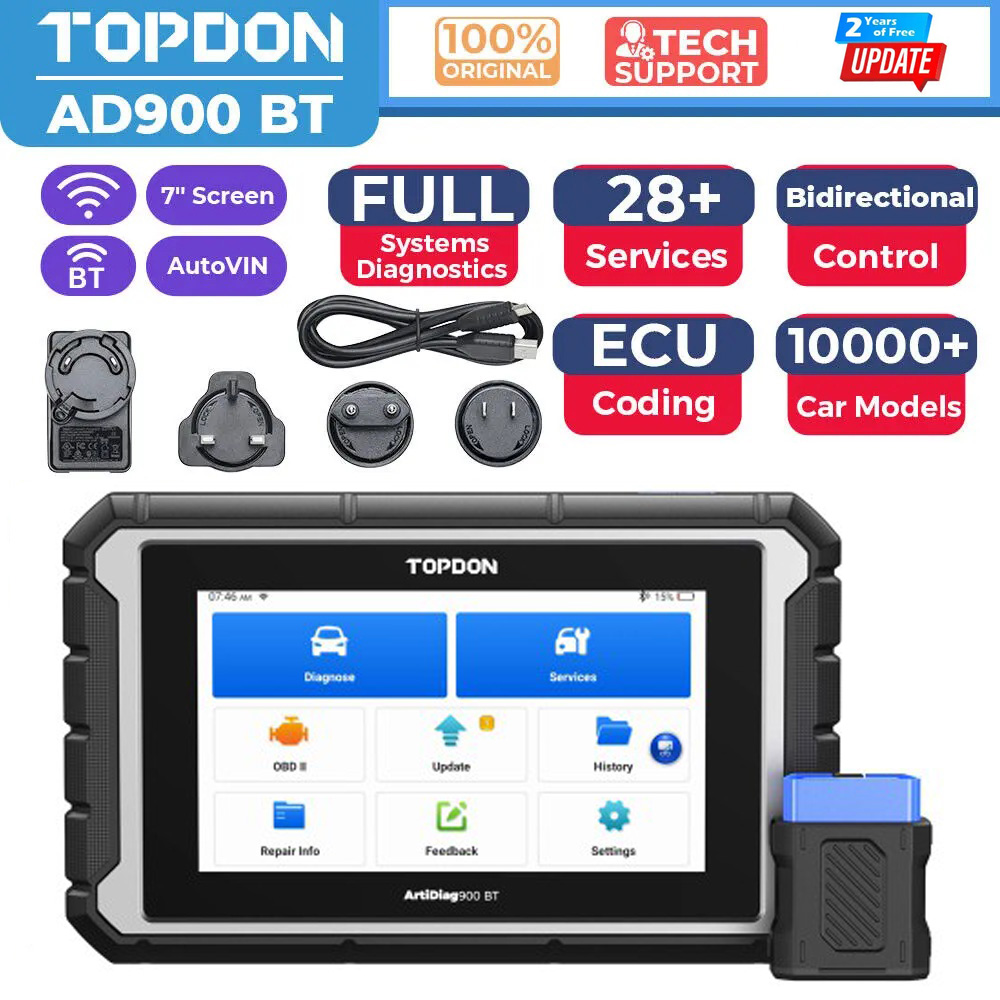

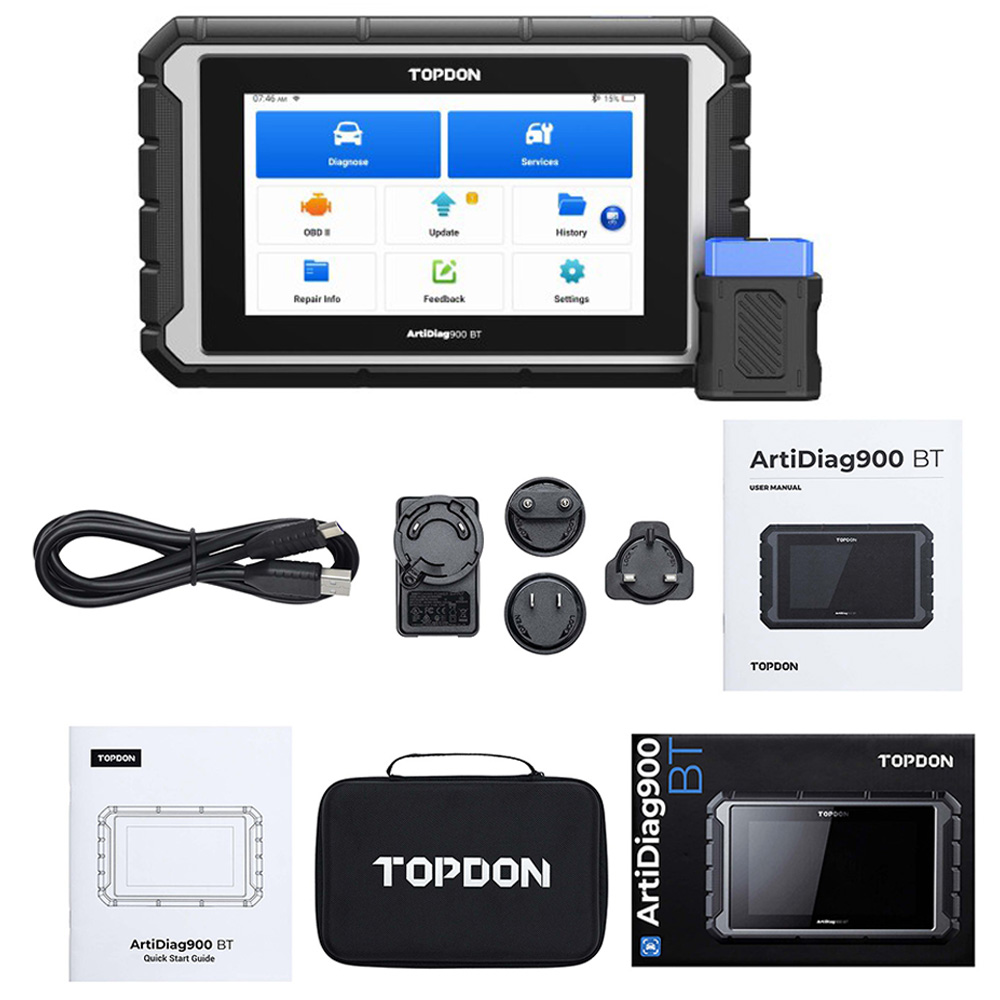

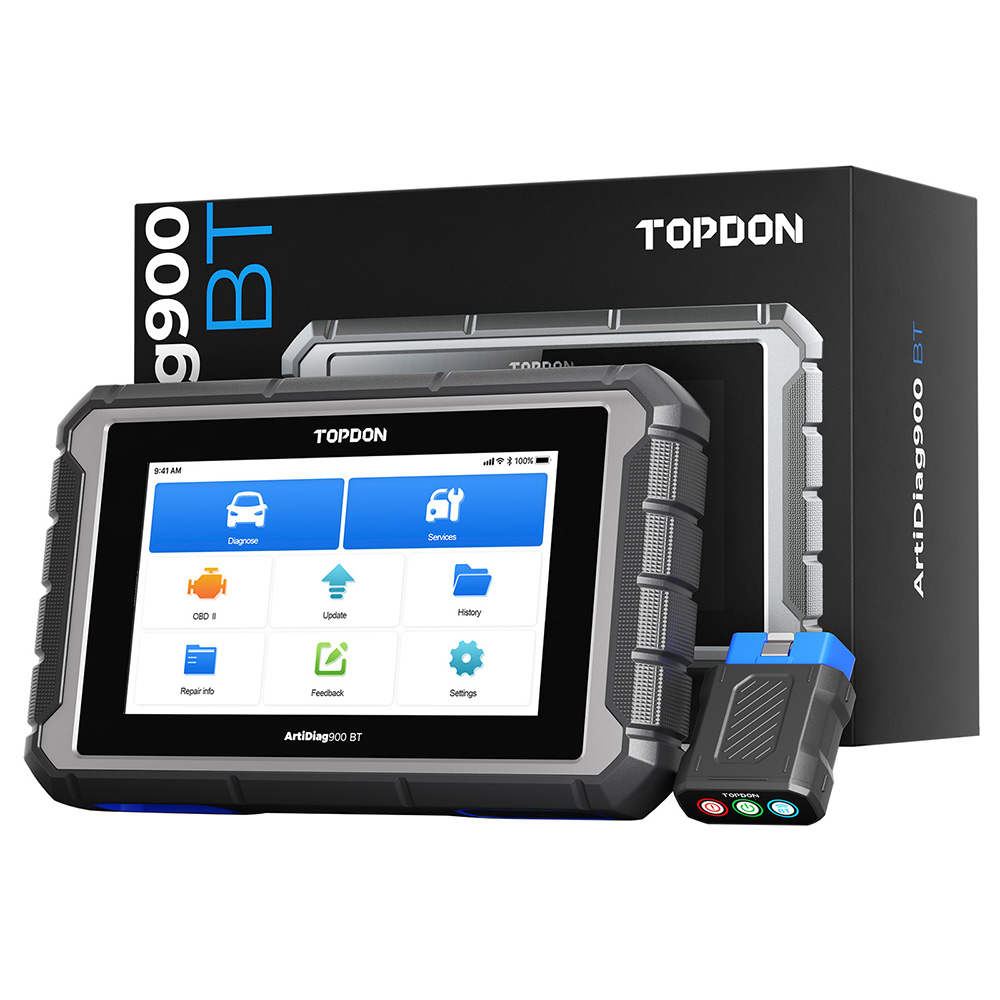

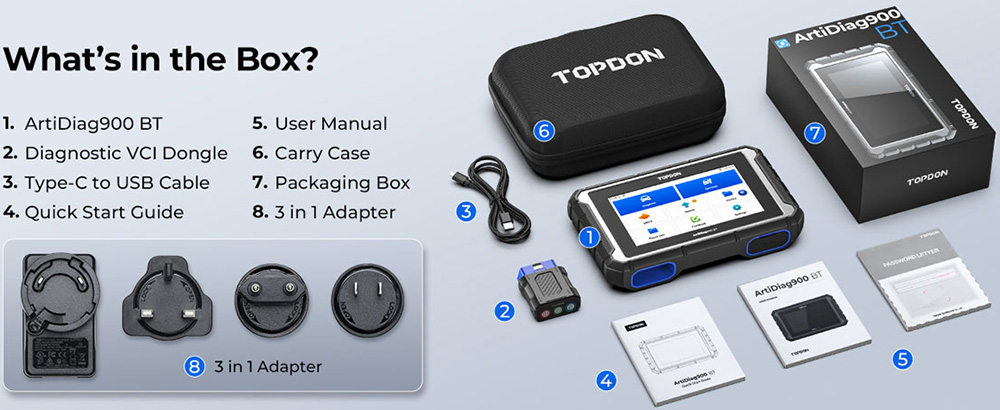

Packing List:



TOPDON ArtiDiag900 BT

Diagnostic VCI Bluetooth Dongle

USB to Type-C Cable

Power Adapter

EU Plug

US Plug

UK Plug

User Manual

Quick Start Guide

Carrying Pouch

Packing Box
