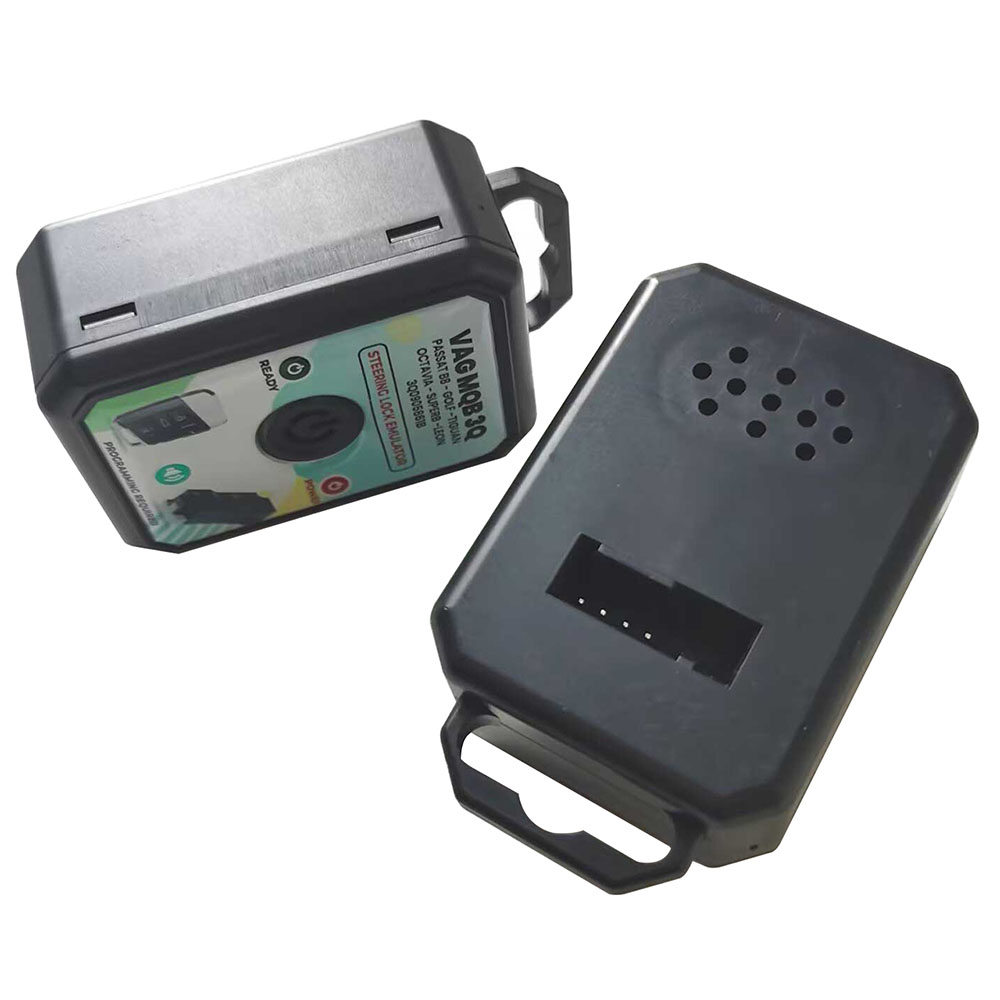

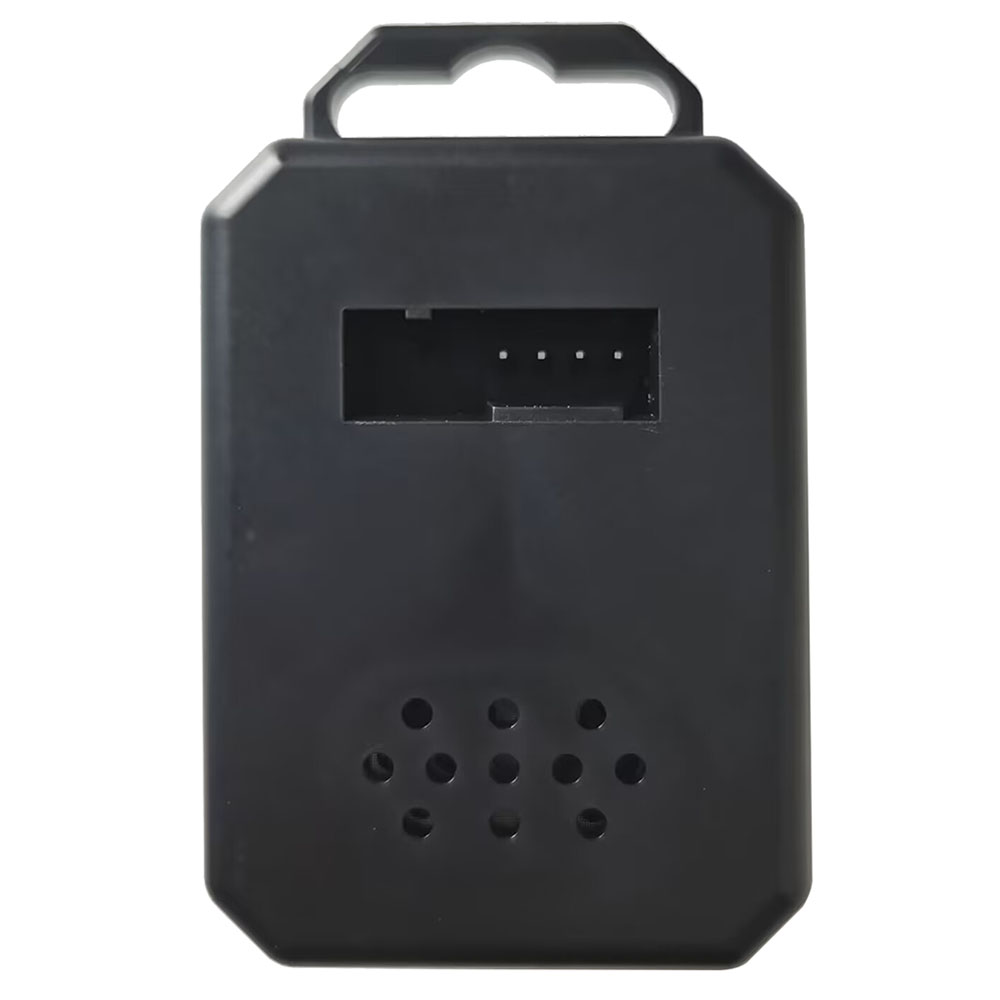

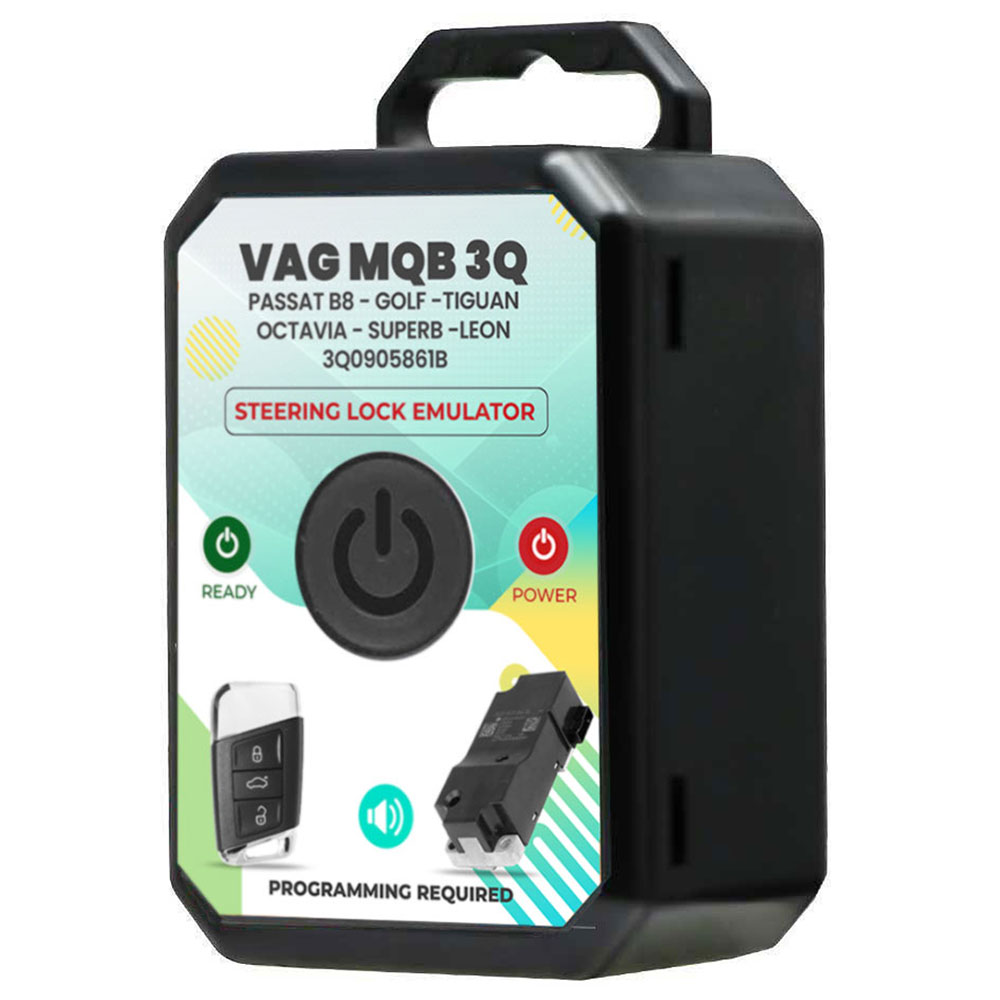

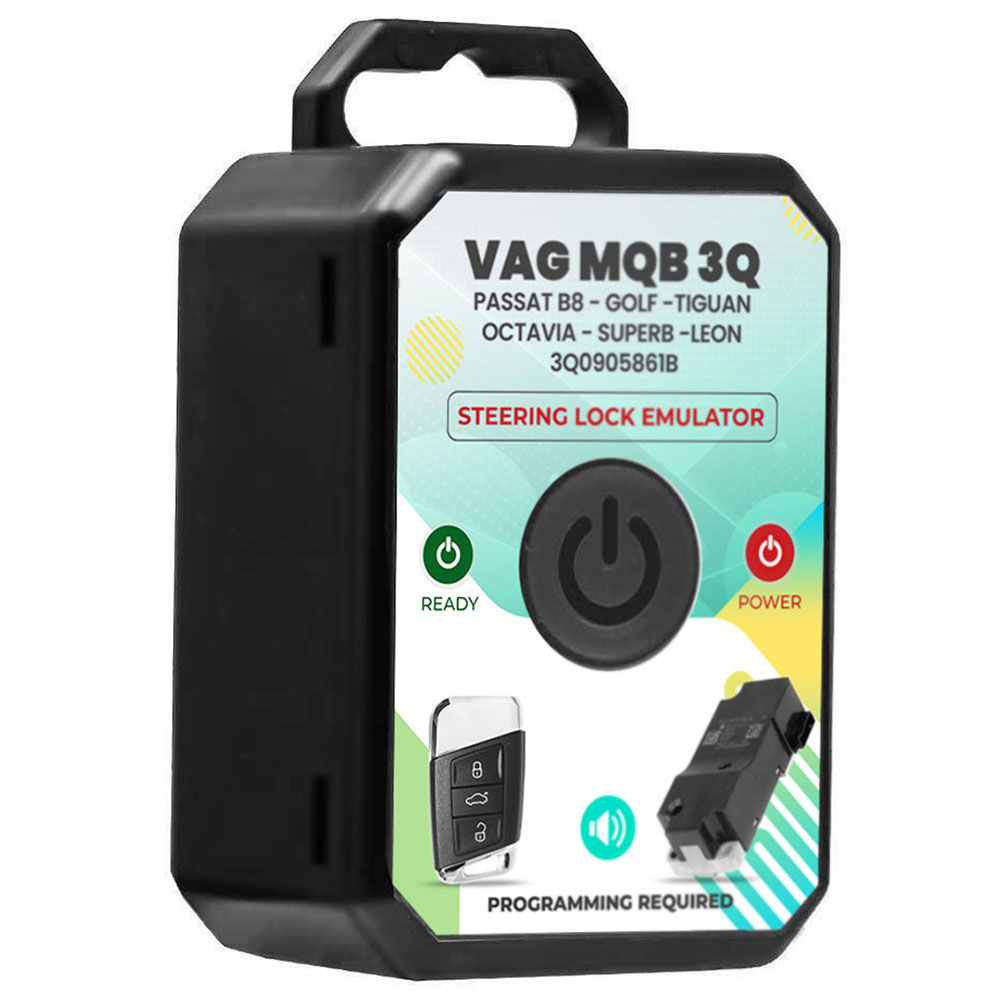

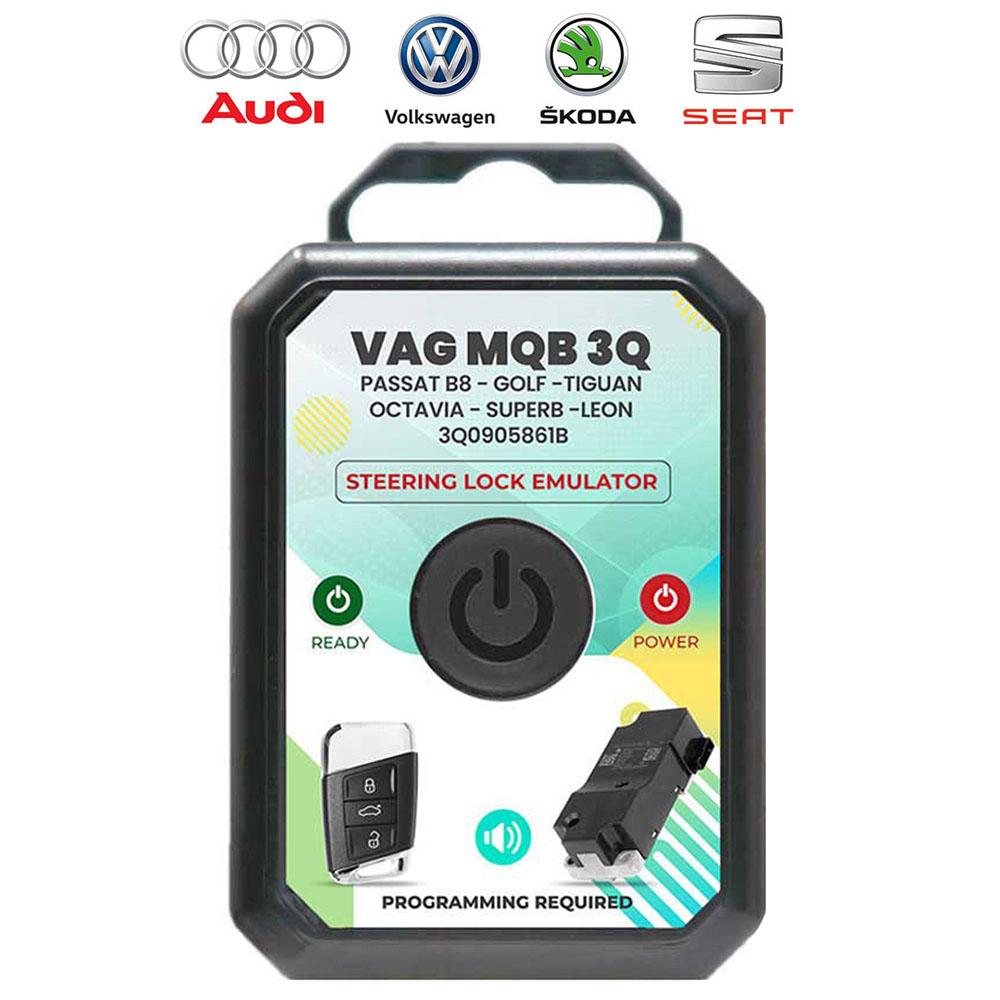

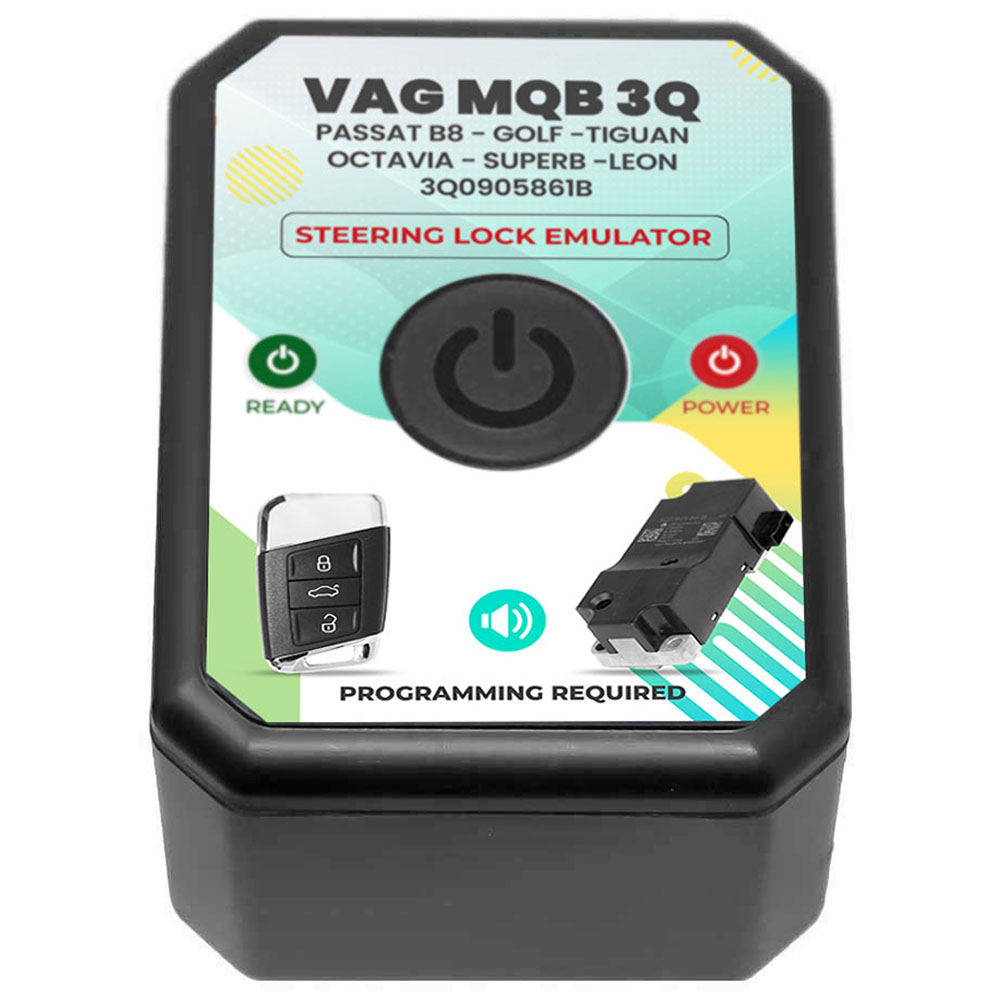

Name: ESL Emulator for New VAG MQB 3Q
Description:
ELV Emulator for New VAG MQB 3Q VW Audi Skoda Seat.
VAG MQB 3Q VW Passat B8 / Golf / Tiguan, Skoda Octavia / Superb, Seat Leon Steering Lock Emulator.
VAG MQB 3Q Steering Lock Emulator requires programming.
Important Note:

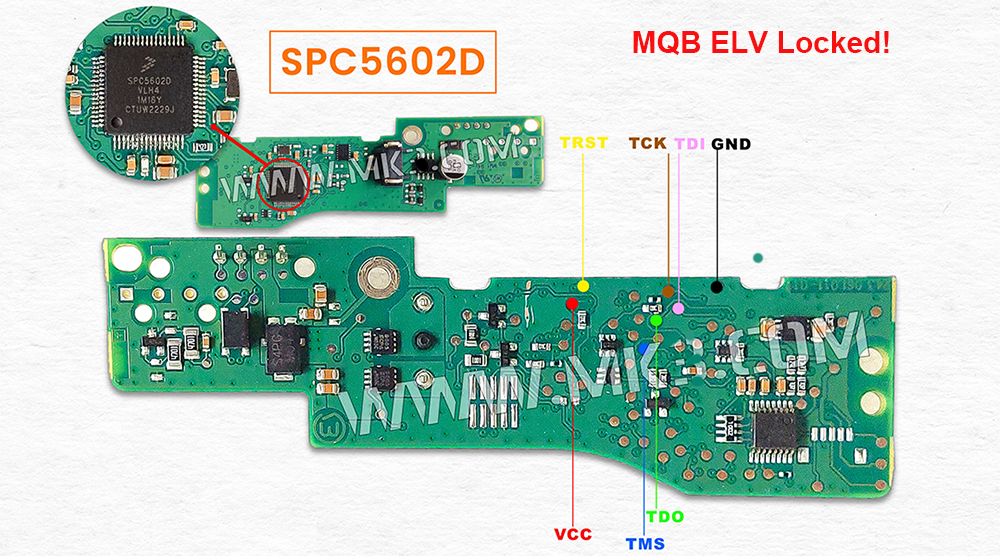

For certain steering locks, data cannot be read using VVDI Prog or similar devices. In such cases, we require IMMO data and syncro files (the same needed for key programming). Once provided, we will write these files to the emulator to proceed with the service.
Supported Models:
Audi A3
Audi Q2
Volkswagen Passat 2015-2020
Volkswagen Golf
Volkswagen Tiguan
Volkswagen Arteon
Volkswagen Tiguan Allspace
Skoda Octavia
Skoda Superb
Skoda Karoq
Seat Leon
Seat Ateca
Seat Tarraco

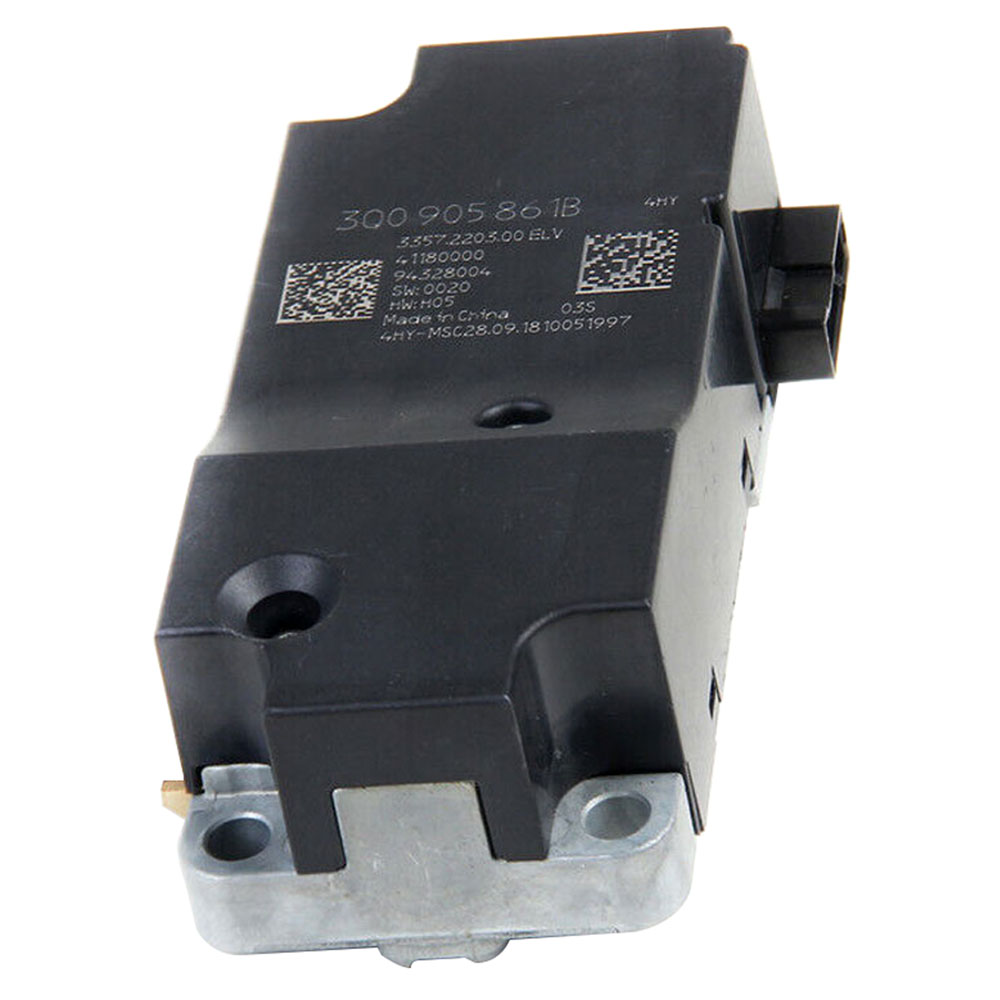

Compatible Part Number: 3Q0905861B
Installation Steps:
1. Remove the Steering Lock:
Remove the steering lock from the vehicle carefully.
2. Read Steering Lock Data:

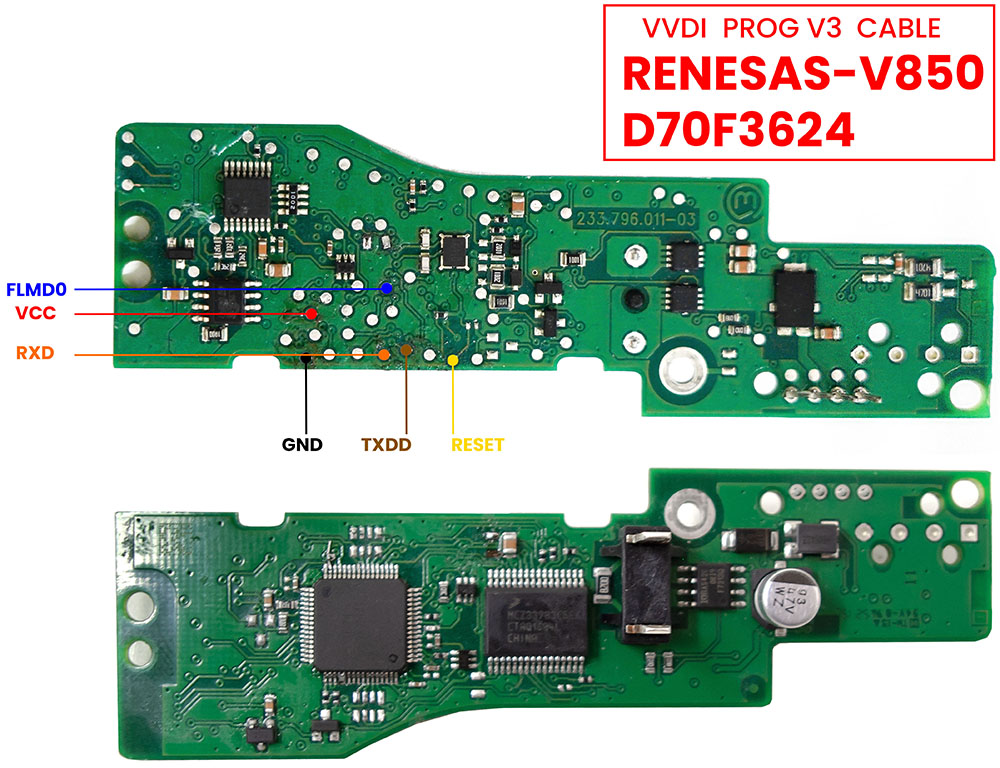

Use a XHorse VVDI PROG or any compatible device that supports reading the ELV(Electronic Steering Lock) to extract the steering lock data.
3. Process the Data: Open the extracted file using the programmer application(Software only, no physical device required). Save the file, then write the new file to the emulator (EEPROM 24LC256).
4. Install the Emulator:
Plug In Emulator. The green and red lights will blink together for approximately 15 seconds until only the red light remains. Once the red light is steady, the system is ready, and you can start the car.
 |
