GODIAG GT100 Plus GPT ENET DoIP 24V-12V Auto Tools OBD II Break Out Box ECU Connector.

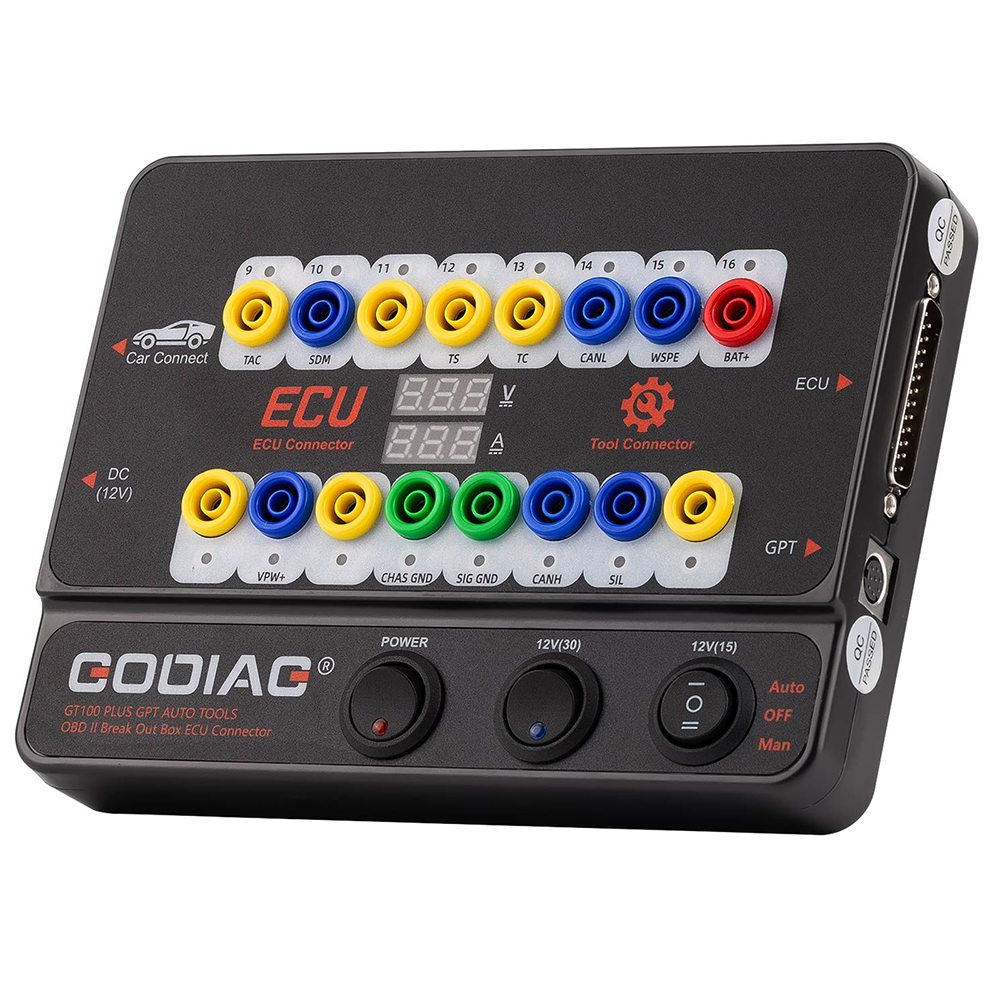

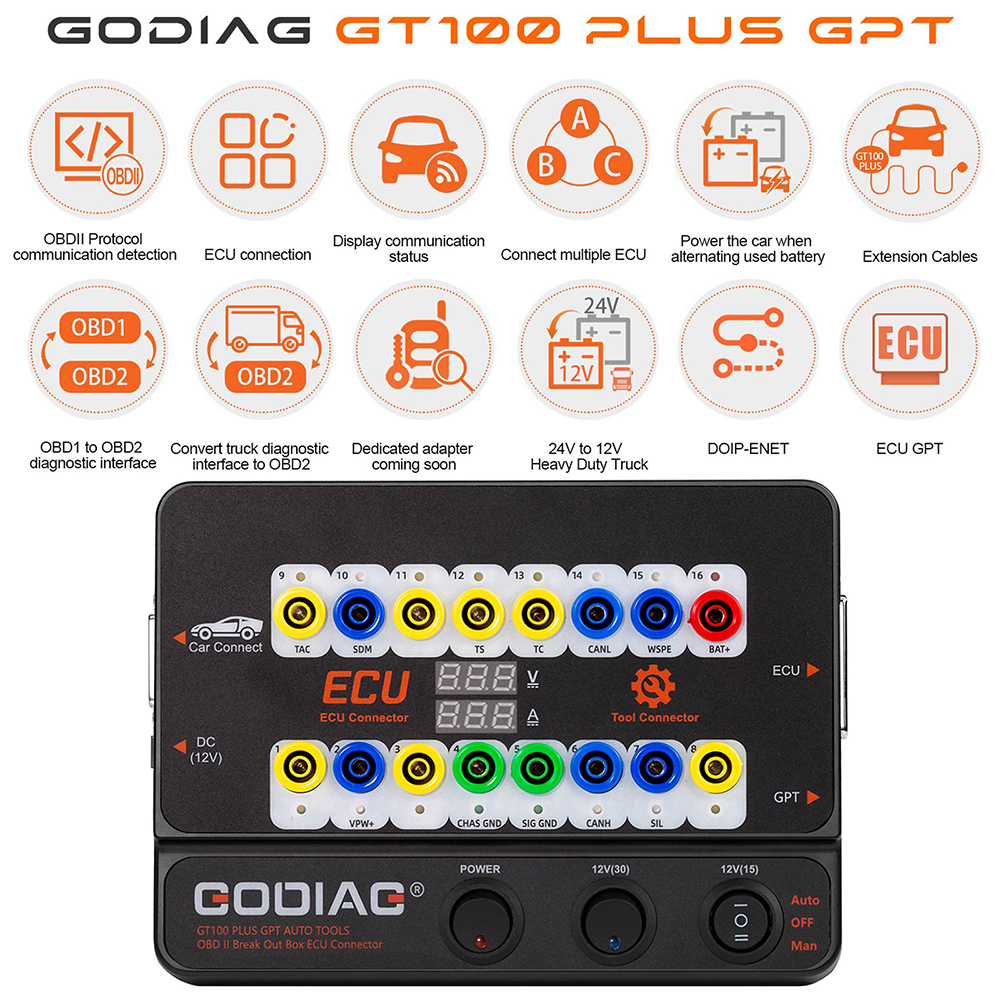

GODIAG GT100 PLUS GPT is a testing platform for OBD-II protocol communication detection and ECU maintenance / diagnosis / programming / coding. GT100 PLUS has a voltage and current display which is convenient for maintenance engineers to judge the current working status of ECU.

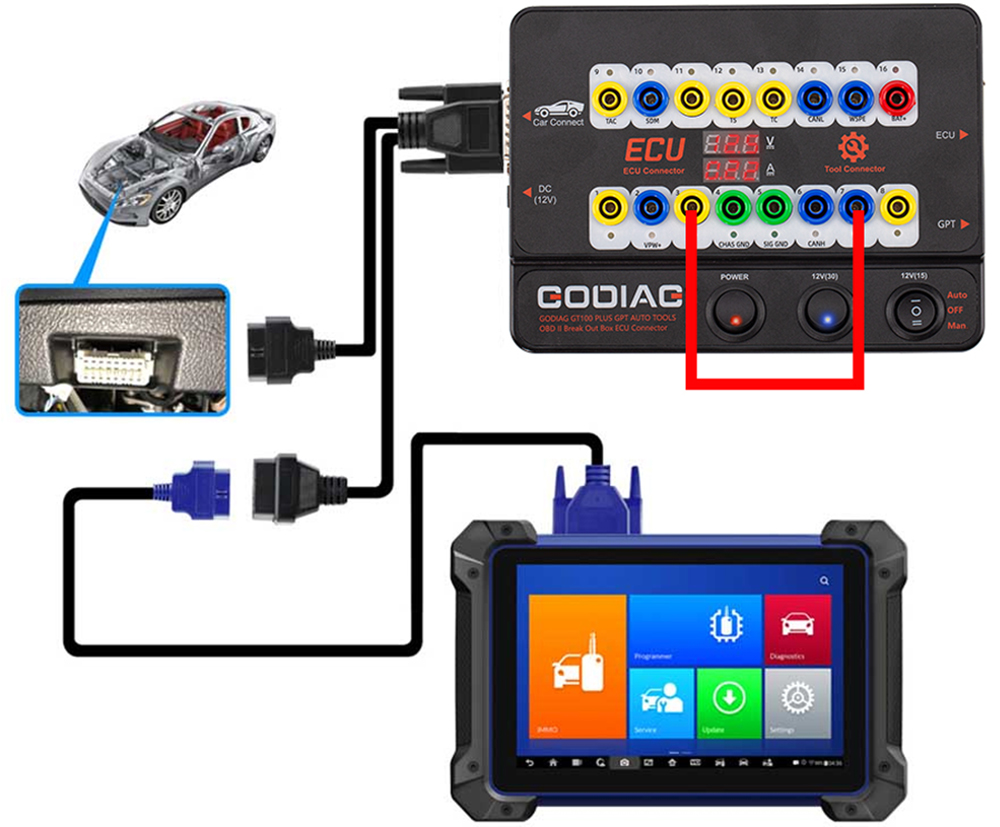

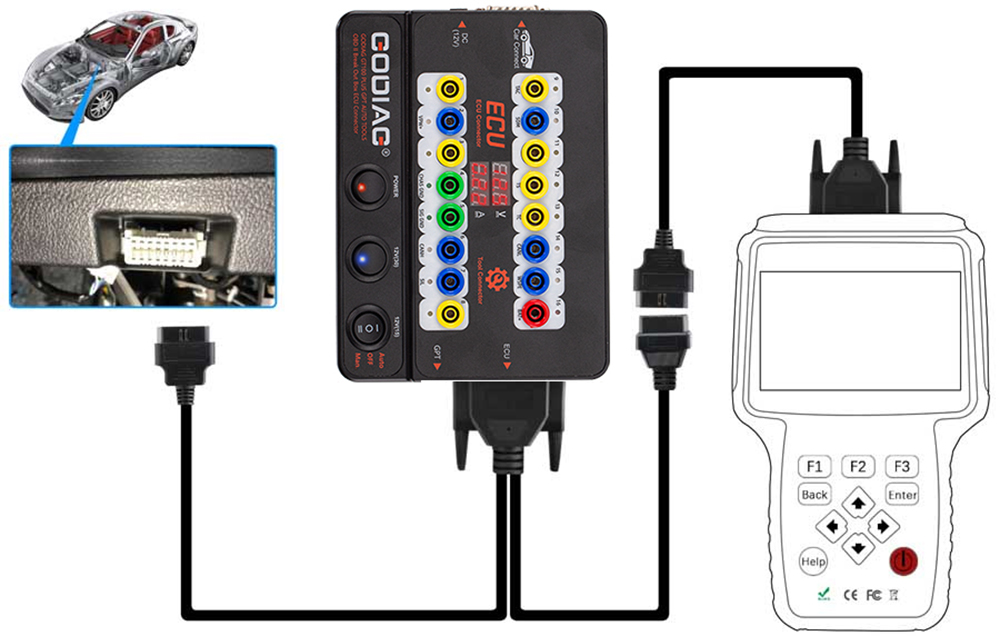

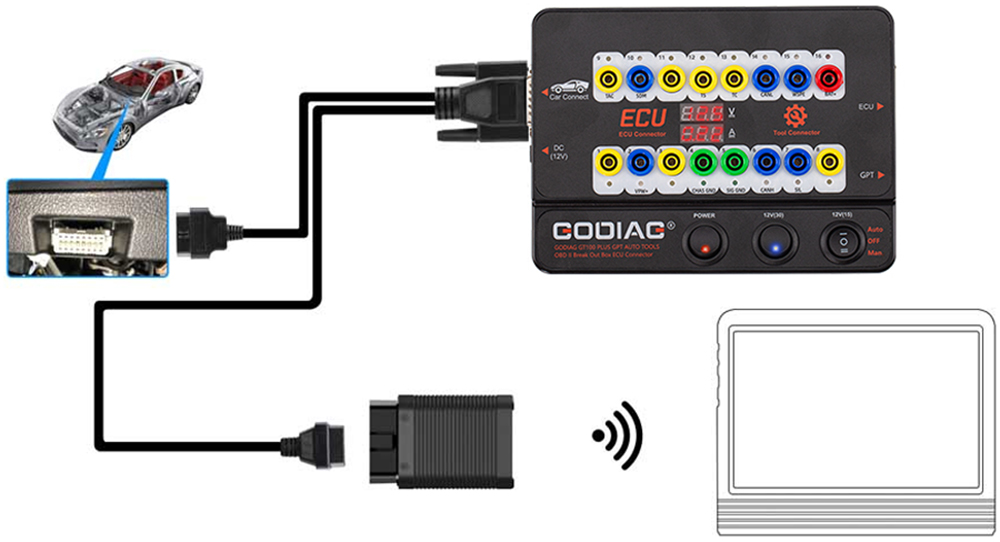

GODIAG GT100 Plus GPT can convert the car OBD2 interface into 16-pin for signal detection. It can be connected to the single modules or multiple modules of the vehicle. It can also be connected with any diagnostic tool to tell whether the car communication is good or not.

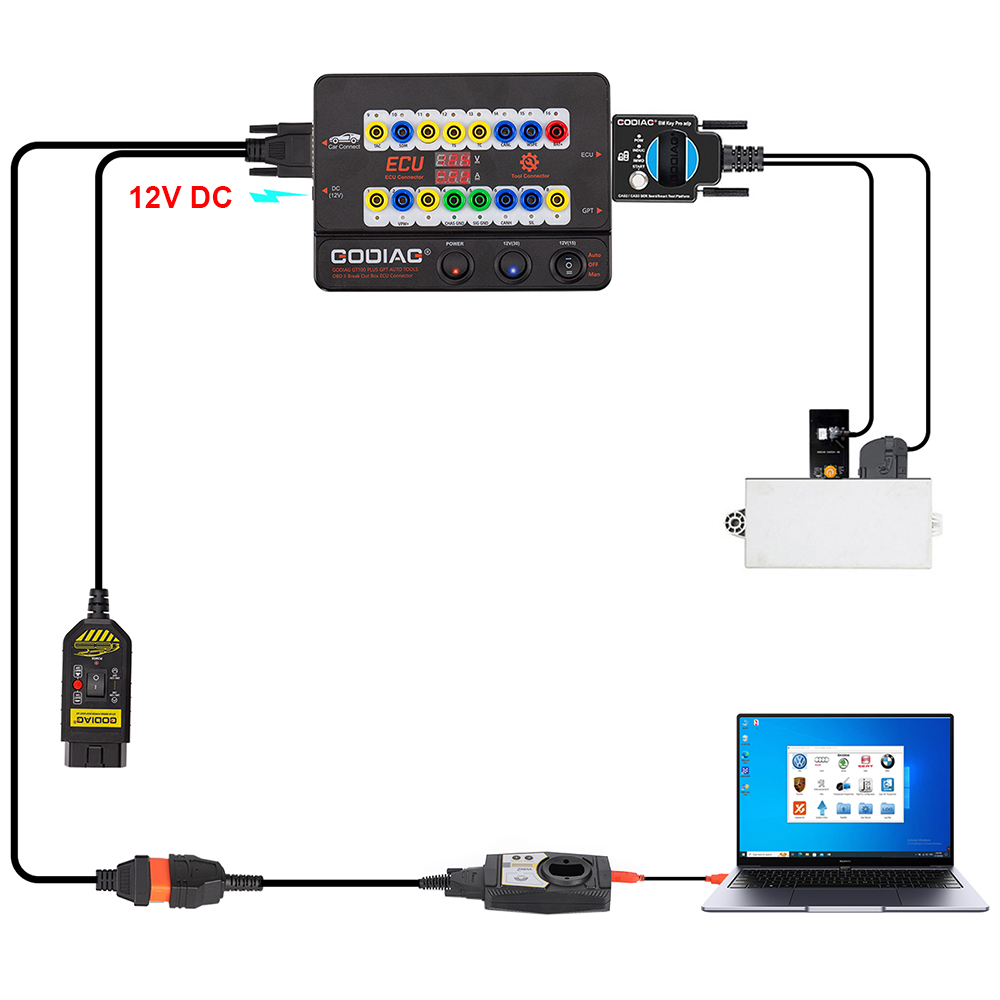

GODIAG GT100 Plus GPT supports the 24V to 12V voltage conversion, DoIP-ENET communication and GPT to read and write ECU data.



It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.



GODIAG GT100 Plus GPT uses CAN H and CAN L shielded twisted cables, which can resist electromagnetic interference and make communication more stable.



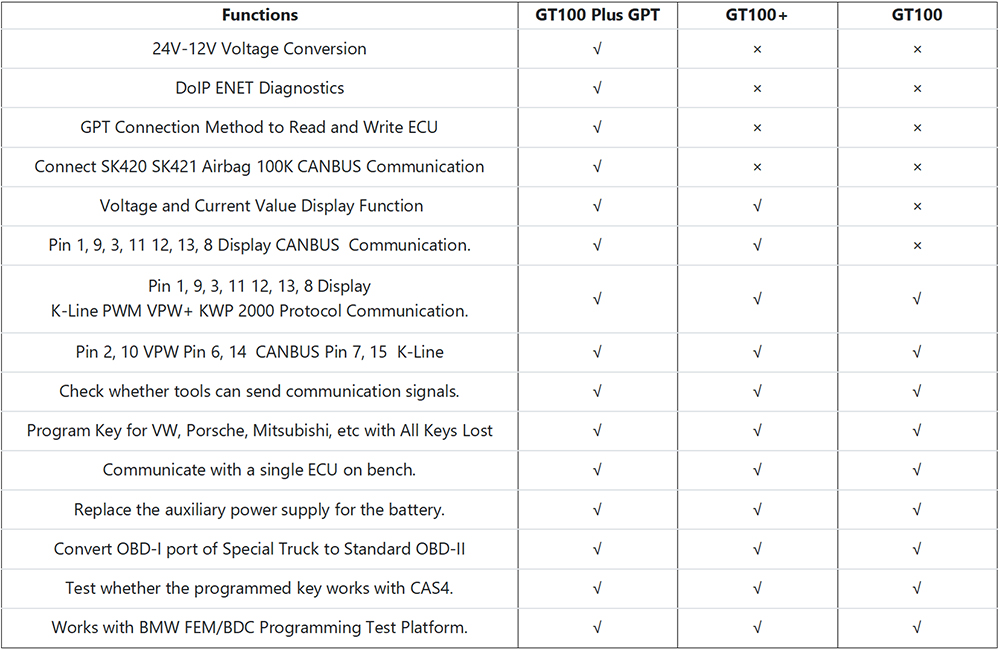

Functions:

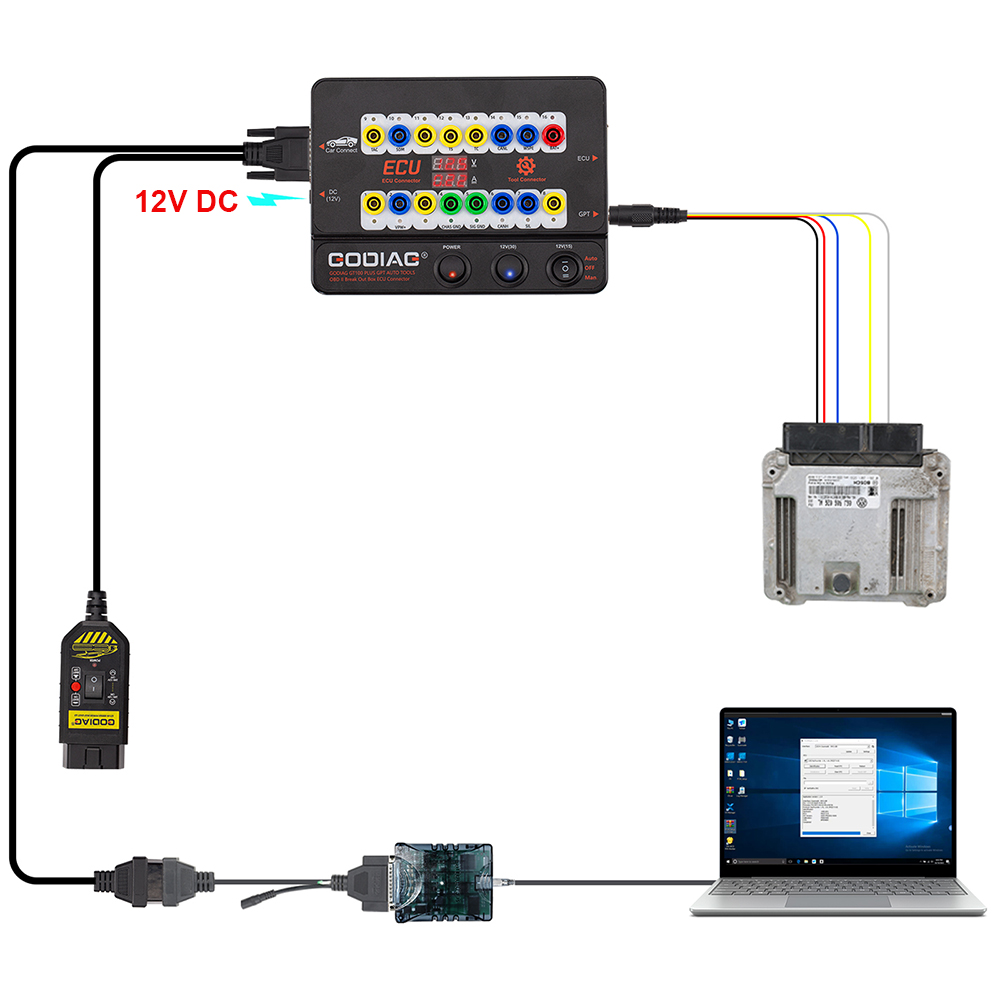

1. Use GPT to read and write ECU with devices (such as PCMFLASH, KESS V2)

Support GPT to read and write data without disassembling the ECU.

Supports OBD2 BENCH [CAN BUS & K-Line]

Supports GPT BOOT CNF1



2. Check OBD-II diagnostic interface Communication Status and Display Voltage

By connecting the vehicle and diagnostic tool via OBD-II, GODIAG GT100 Plus GPT's LED will indicate whether the OBD-II diagnostic interface has a good communication with the car. It monitors the voltage of vehicle's OBD-II interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid data loss / module locked / the vehicle being unable to start. It supports OBD2 BENCH full protocols.

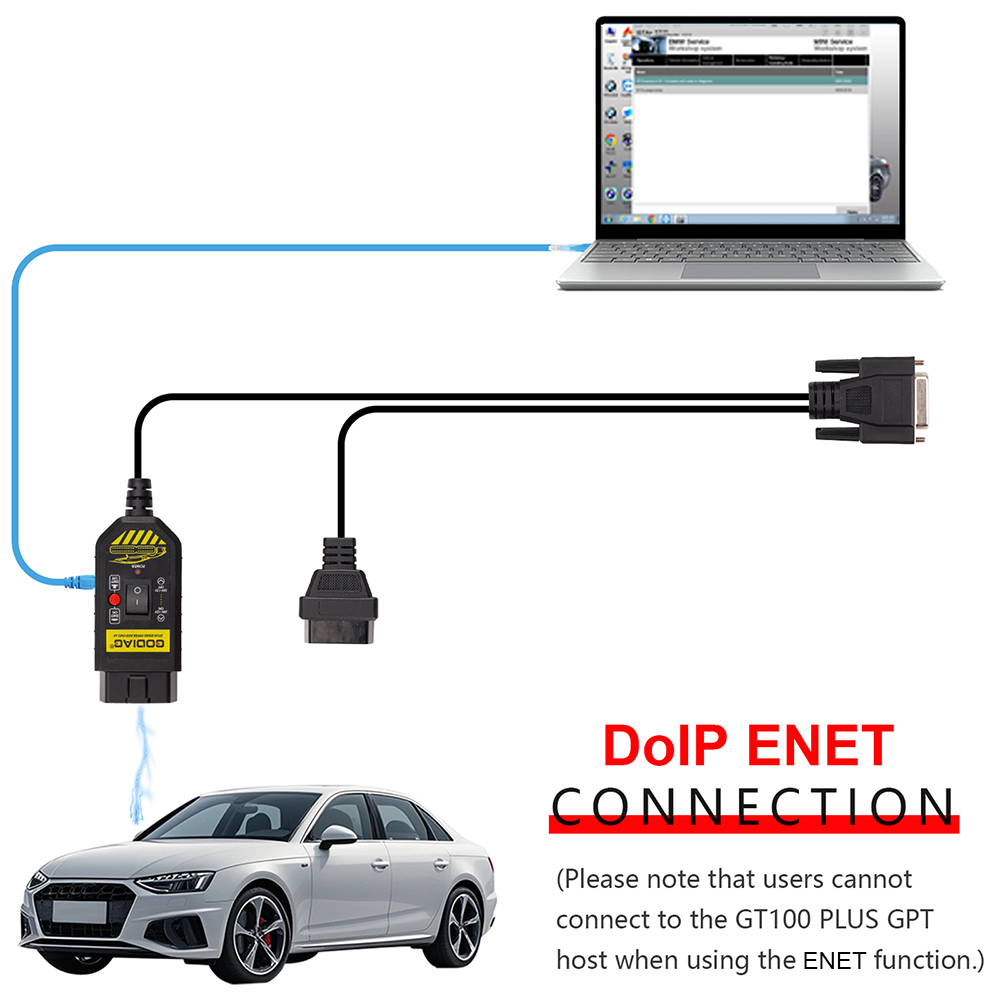

3. Support DoIP-ENET Diagnostics

Support DoIP-ENET communication.

Support diagnostic programming and coding for BMW Benz, Volkswagen, Audi and other vehicles that support DoIP protocol. (No software is provided.)

Can be used for diagnostic programming and coding of Land Rover, Volvo, and Geely vehicles that support DoIP communication. (no software is provided.)

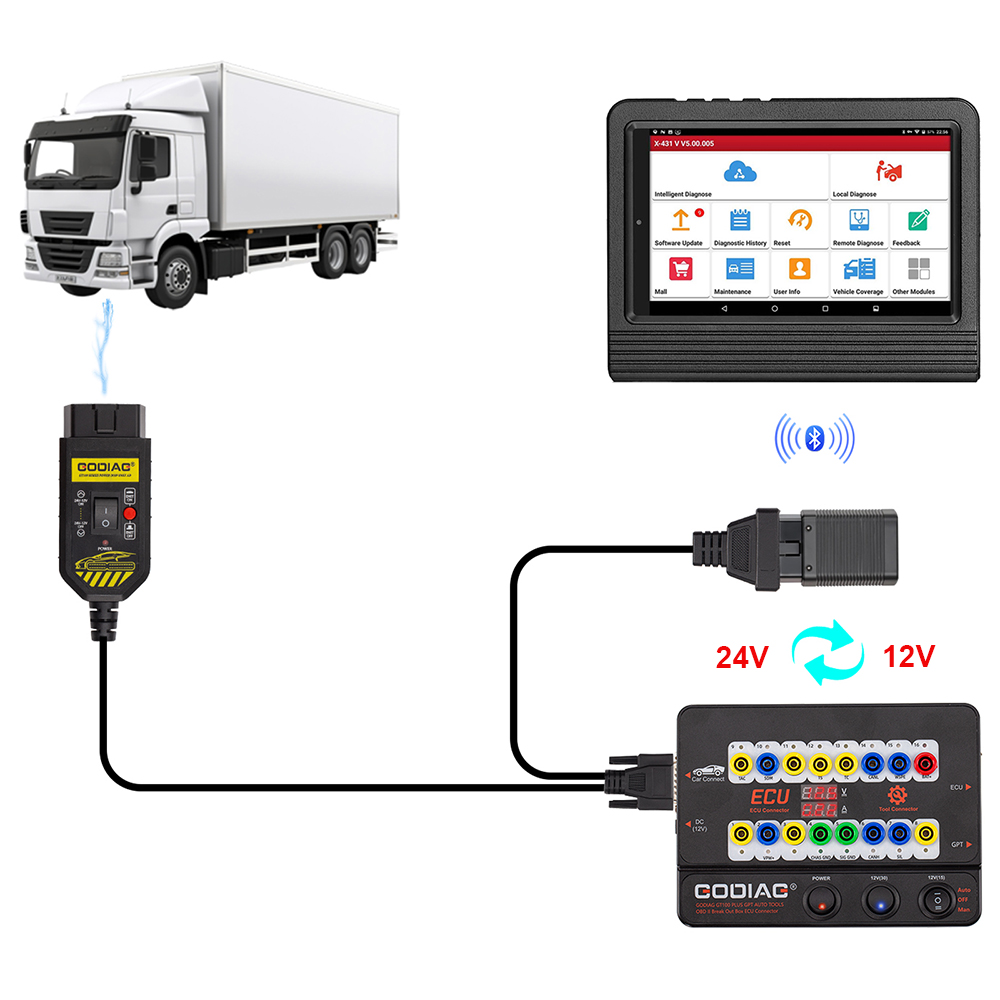

4. 24V to 12V Voltage Conversion

Convert the 24V voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc. into 12V voltage that can be used by diagnostic equipment.



5. Used to check whether the diagnostic / programming / coding tool can send communication signals.



6. ECU Connection: Single Module Connection

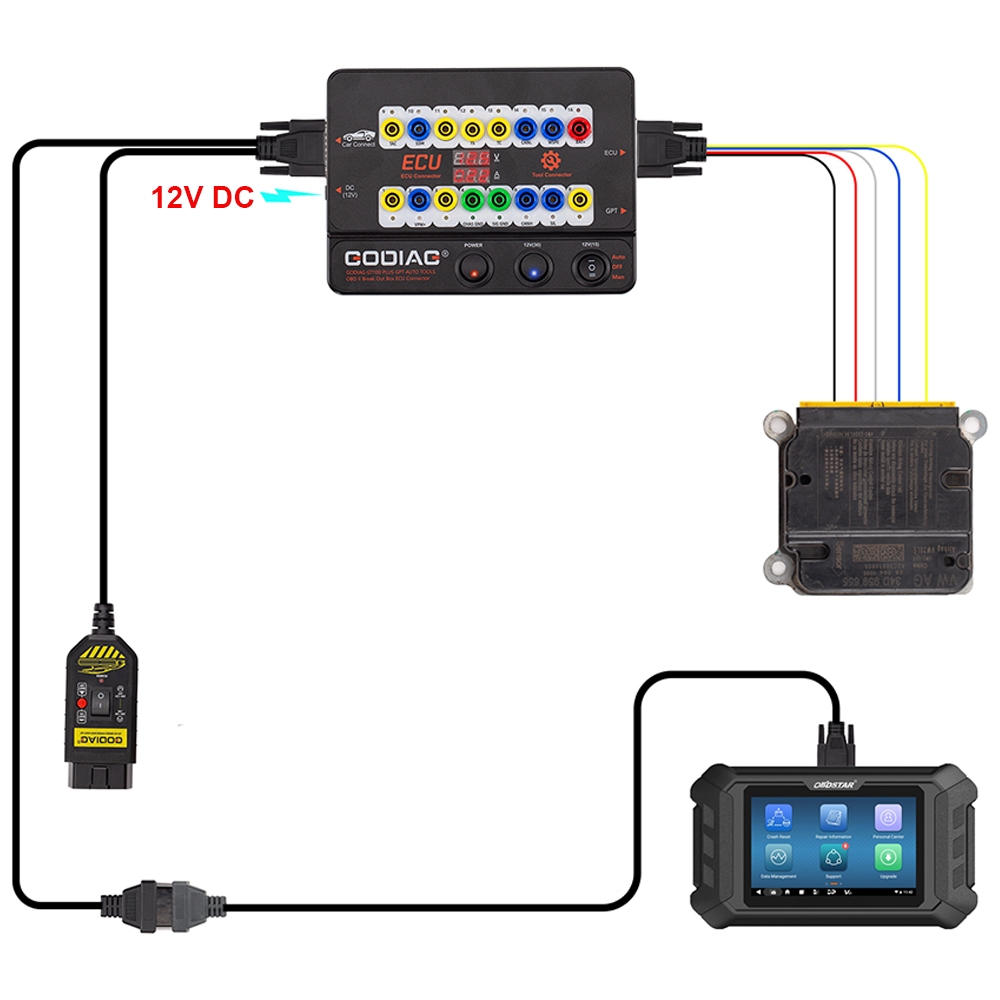

GODIAG GT100 Plus GPT connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.



7. GT100 Plus GPT program key for VW, Porsche, Mitsubishi, etc. with All Keys Lost - activate the instrument or immobilizer module.

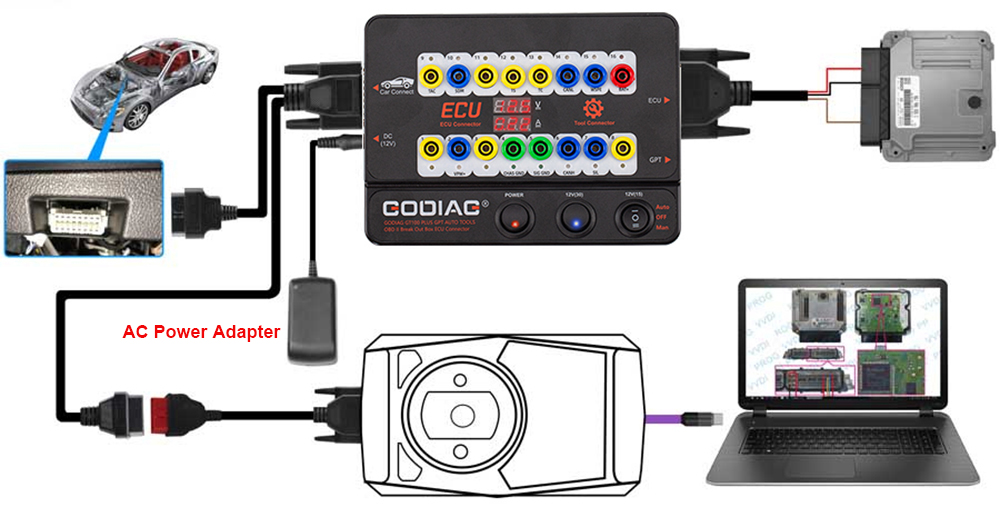

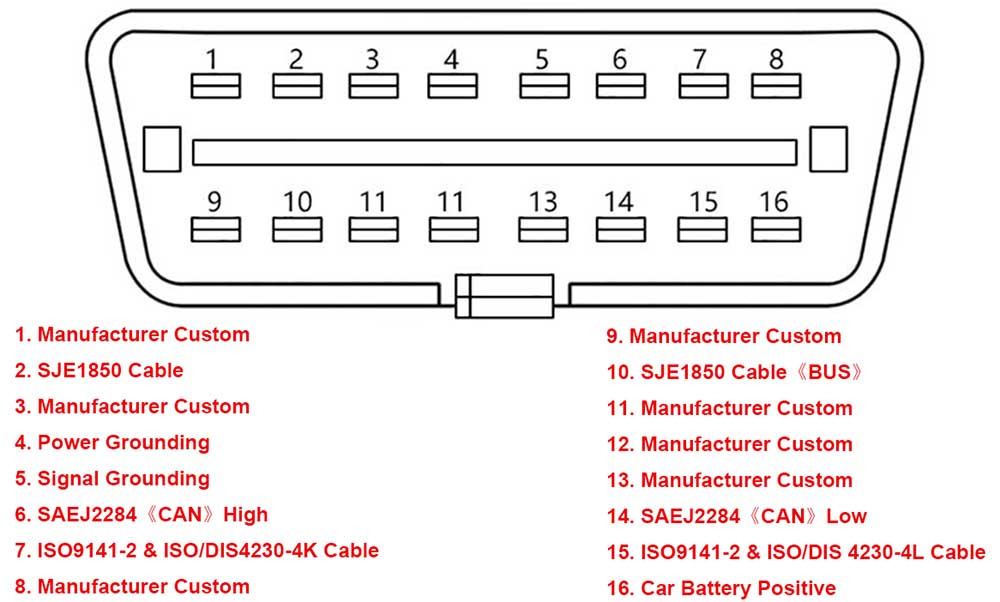

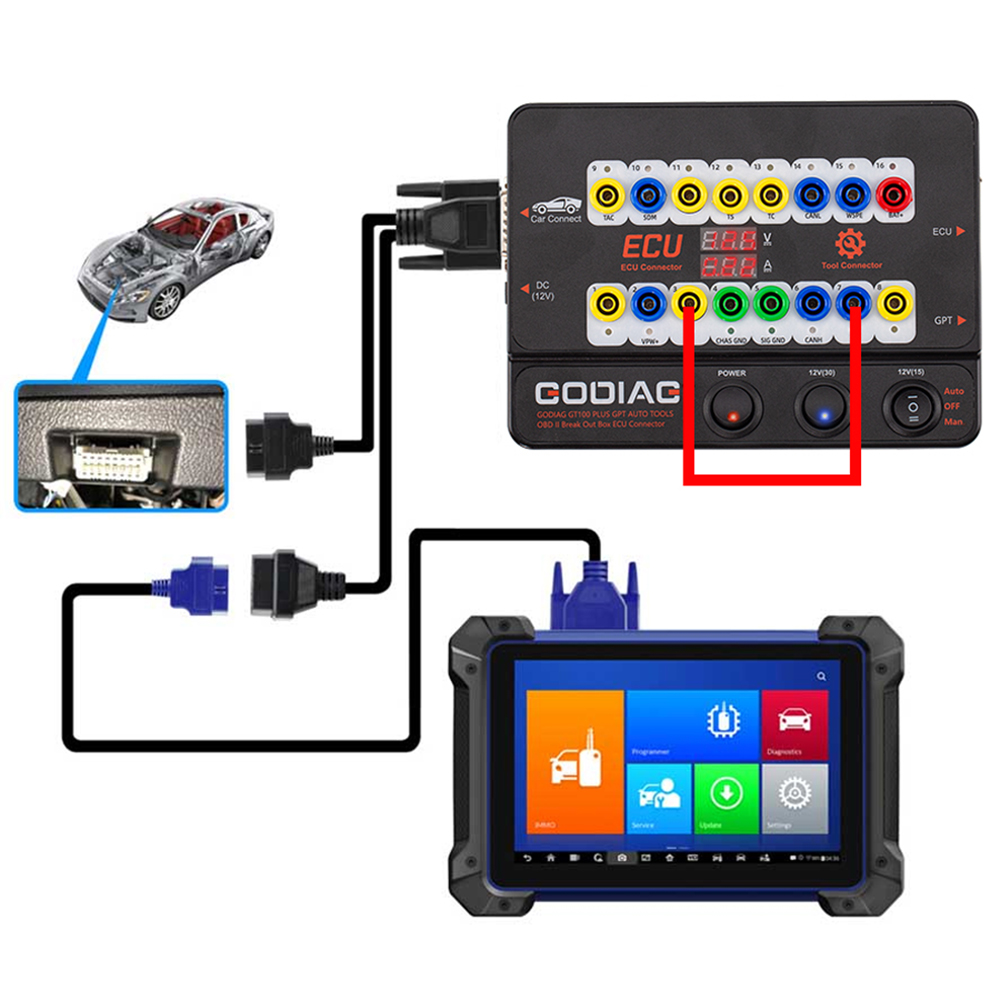

A. To program VW 4th generation / 5th generation All Keys Lost(for example: New A6L / Touareg / A4 / Q5 / A7). Please use GT100 Plus GPT to short-circuit banana connector Pin 16 - Pin 1 to lit up the dashboard, after that use the key programmer tool to connect with the female adapter of GT100 Plus GPT+ for data collection. Some vehicle dashboards won't be lit up, but data can also be collected, for example: A6L / Q7.



B. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when All Keys Lost, it needs to short-circuit Pin 13 - Pin 4.



C. To program Mitsubishi key with All Keys Lost or to set OBD-II when All Remote Key Lost, please short-circuit Pin 1 - Pin 4.



D. To program Porsche Cayenne key with All Keys Lost or with All Remote Key Lost, please short circuit Pin 3 - Pin 7.



8. GT100 Plus GPT Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard OBD2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 Plus GPT can only display K-Line PWM VPW+KWP 2000 protocol. GT100 Plus GPT will display CANBUS K-Line PWM VPM+KWP 2000 protocol communication.

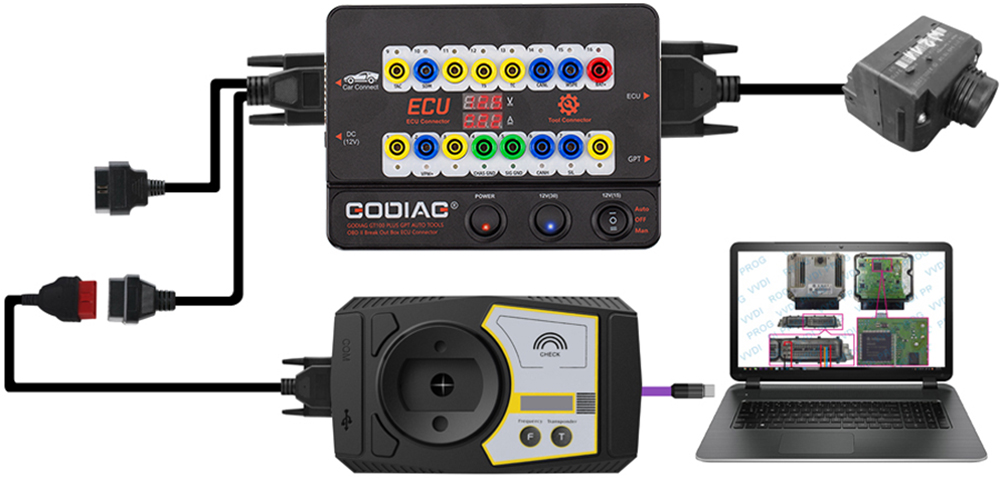

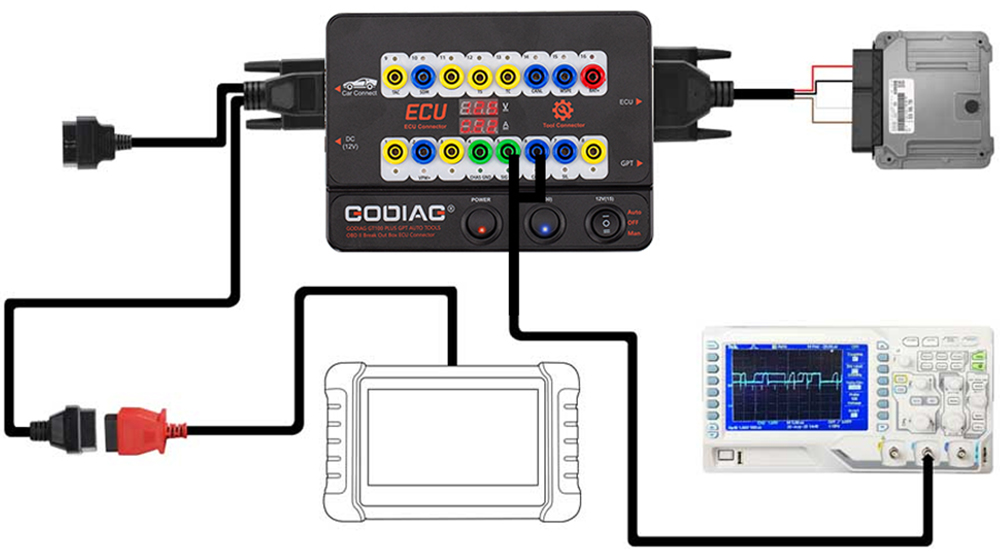

9. Quickly communicate with a single ECU on bench by connecting with the ECU diagnostic / programming tool. (Which allow the engineers or technicians to complete the job on bench, also keep away the risk of data loss in other modules when directly testing on the vehicle.)

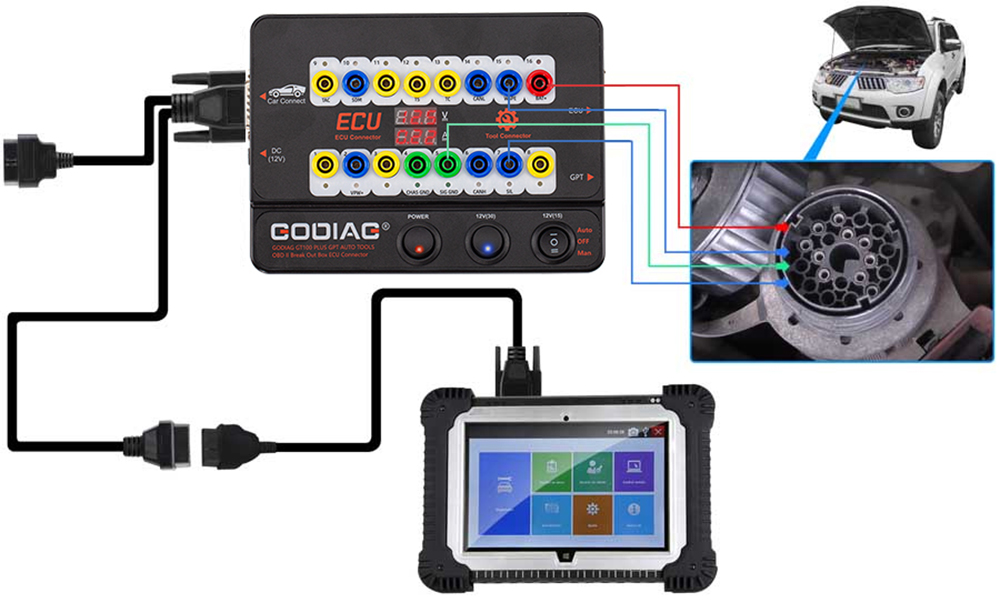

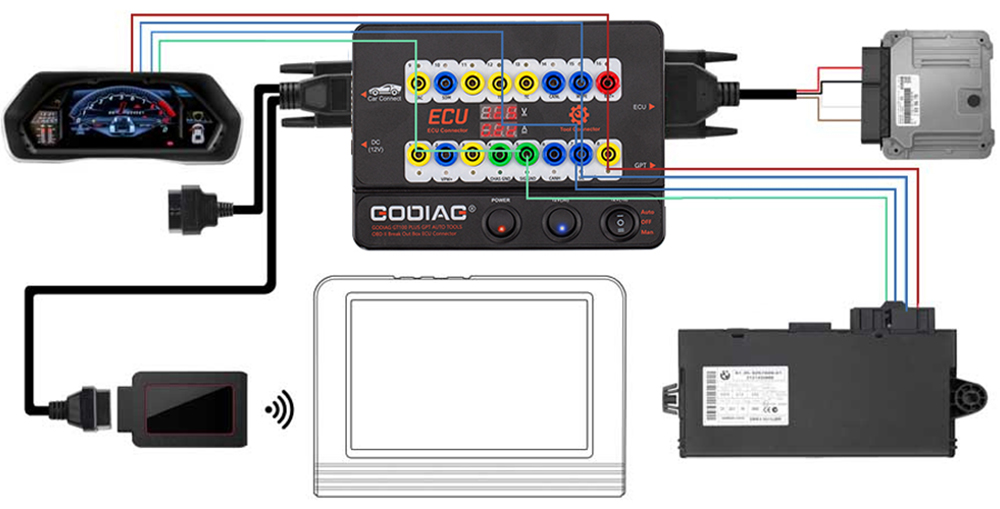

10. Multiple vehicle ECU module connecting. (It’s aimed at solving the problem of engineers and technicians who need to connect multiple ECU during programming a module, such as connecting to multiple ECU modules for key programming.)

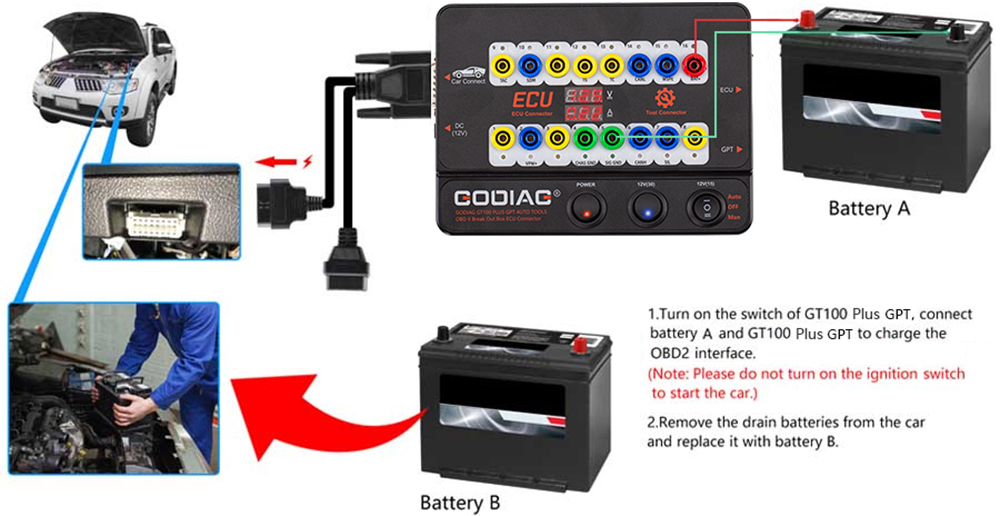

11. Replace the auxiliary power supply for the battery - Uninterruptible power supply connecting mode. [Since there’s failure or missing anti-theft remote control data of some vehicles when the battery is dismantled, the auxiliary power supply aims at supplying power to the vehicle through GT100 Plus GPT before replacing the battery to sustain the power supply to the vehicle. It guarantees the vehicle ECU is power connected during replacement of the battery.)



12. The OBD2 cable of GT100 Plus GPT is 1.4 meters, which will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too narrow to connect. Please connect GT100 Plus GPT first, turn on the power switch and you will see the voltage on the screen which can tell whether the power supply of the vehicle is normal. (Which keep away the risk of burning out the diagnostic & programming tool due to the modified vehicle OBD2 port.)



13. For old OBD-I vehicles or special diagnostic port, please connect GT100 Plus GPT through the banana plug and DB25 jumper. The OBD-I diagnostic port or special diagnostic port can be transferred to the standard OBD-II diagnostic port.



14. GT100 Plus GPT will convert the OBD-I port of special truck to the standard OBD-II diagnostic port according to the protocol.

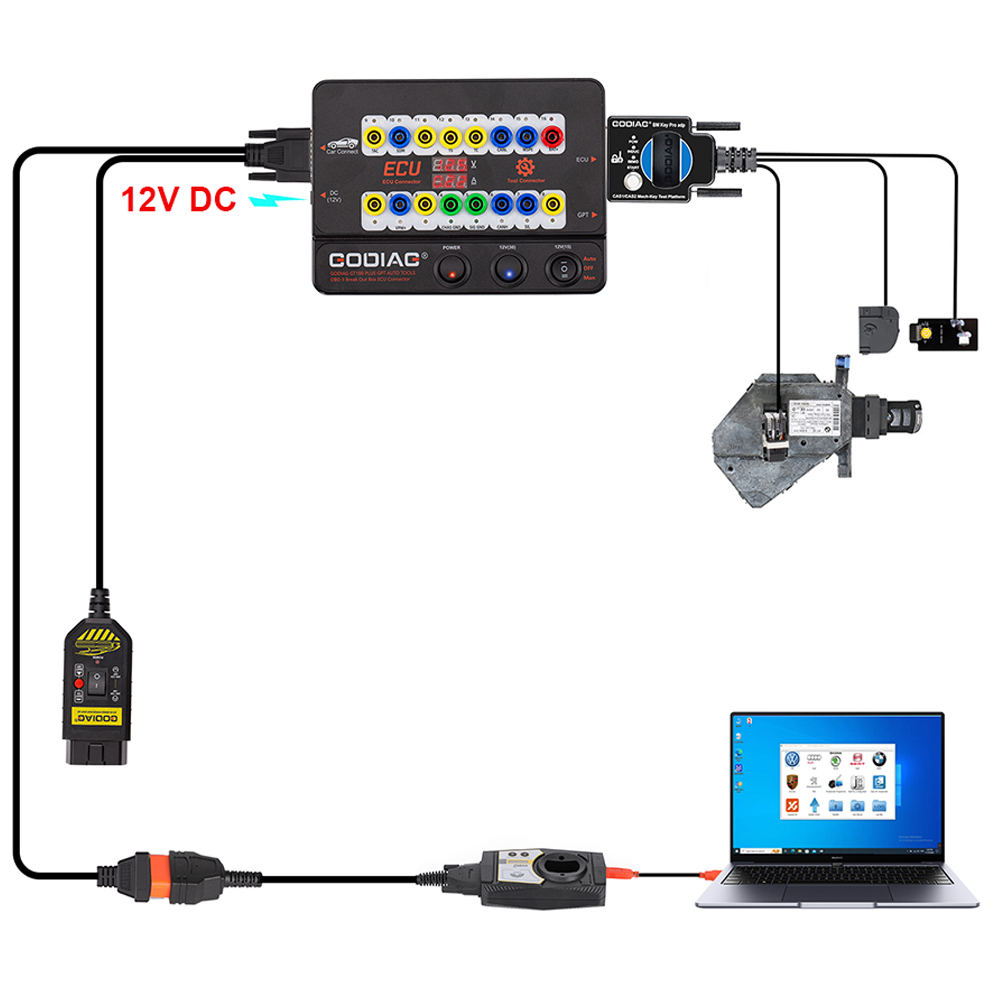

15. Works with CAS1/CAS2 Mech-Key Test Platform



16. Works with CAS2 CAS3 SER Semi Smart Test Platform

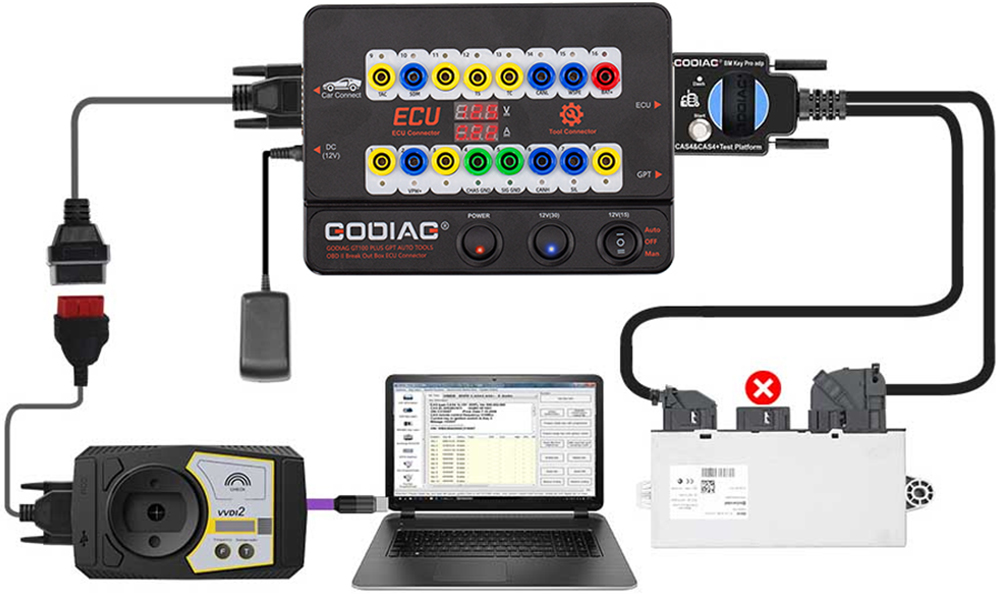

17. Works with BMW-CAS4/CAS4+Programming Test Platform, it’s used to test whether the programmed key works with CAS4 normally.



18. Works with BMW FEM/BDC Programming Test Platform.



19. More connectors and dedicated modules are under development, please wait...



Specifications:



Diagnostic Port: OBD-II

Working Voltage: DC 9V to 24V

Working Power: 0.5W to 0.6W

Adapter Power Input: AC100V to 240V, Output: DC12.5V / 2.5A

Operating Temperature: -20 to 70°C

Storage Temperature: -40 to 85°C

Dimension: 23*18*7cm



Packing List:

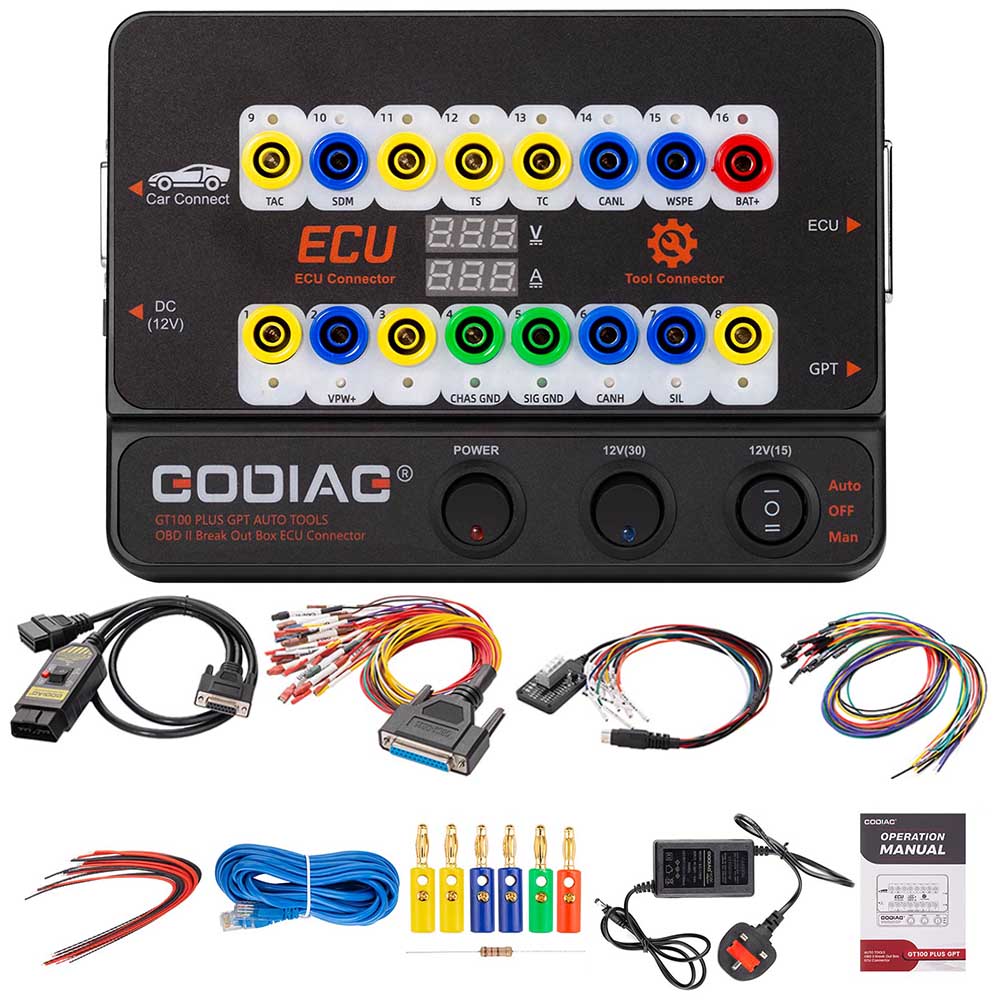

GODIAG GT100 Plus GPT

OBD2 2-in-1 Extension Cable

GPT Connecting Cable

Colored Jumper Cable

Ethernet Cable

Banana Plug (6 pcs)

Resistance 120Ohm

Wire Accessories (24 pcs)

Dupont 2.54mm Connector Female Pins

12V Power Supply Adapter

User Manual
