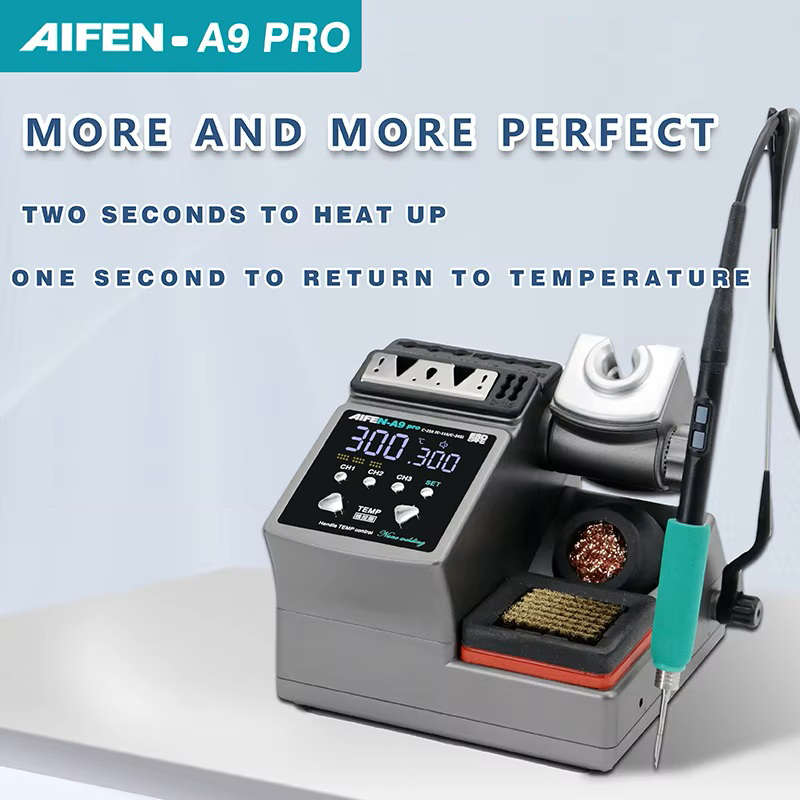

Name: AIFEN A9 Pro Soldering Station



Description:



AIFEN-A9 Pro Soldering Station is developed based on precise temperature control technology and is the latest generation of soldering stations. The development focuses on: small temperature error (very small error can be achieved through calibration) fast heating, fast temperature recovery, do not compared with 936 series or DIY products, there is no comparability. Because the 936 series products are only temperature-adjusting soldering stations, the temperature difference is very large. If you choose 350 degrees, the actual temperature may be as high as 450 degrees. The DIY series is responsible for meeting some people who like high temperature requirements. Beginners, deliberately turn up the temperature. Maintenance work is not a child's play and cannot be done by feel. Temperature judgment and calibration should be based on a temperature tester.



Advantages:

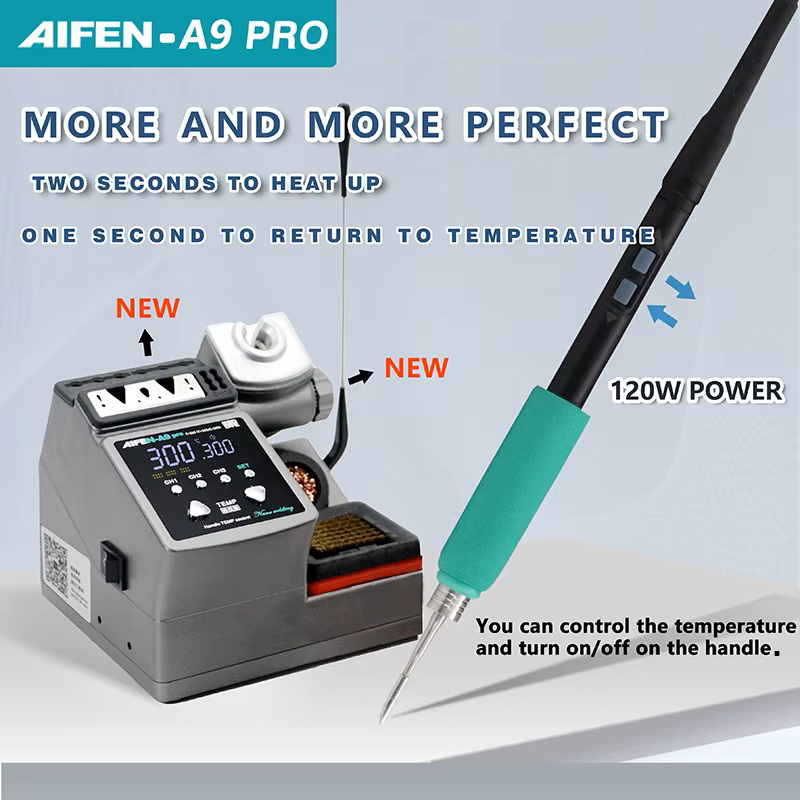

1. Standard with handle button control function.

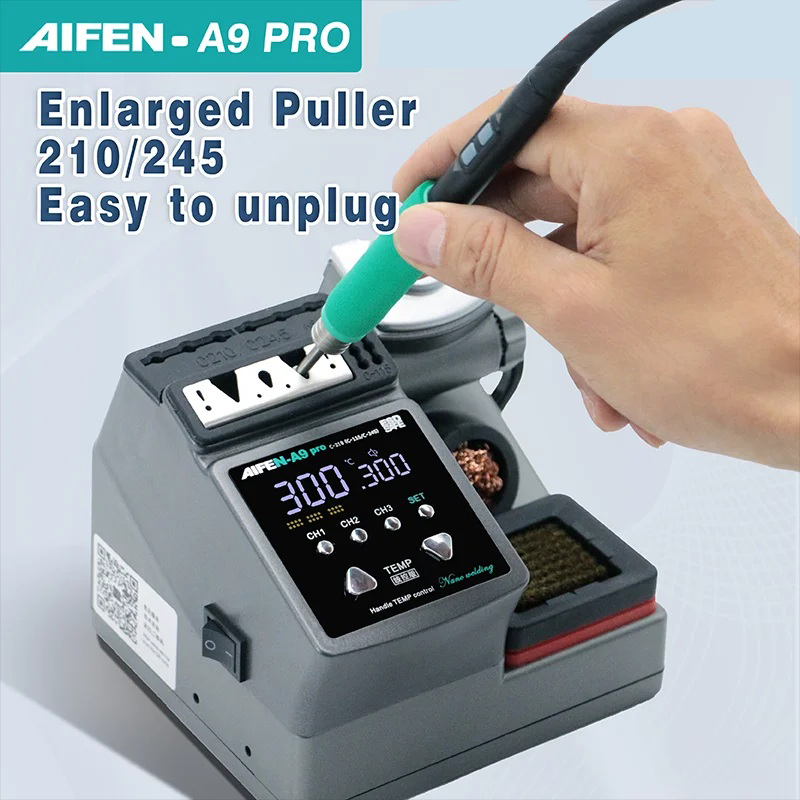

2. Larger plug-in box design adapts to 115/210/245 tips.

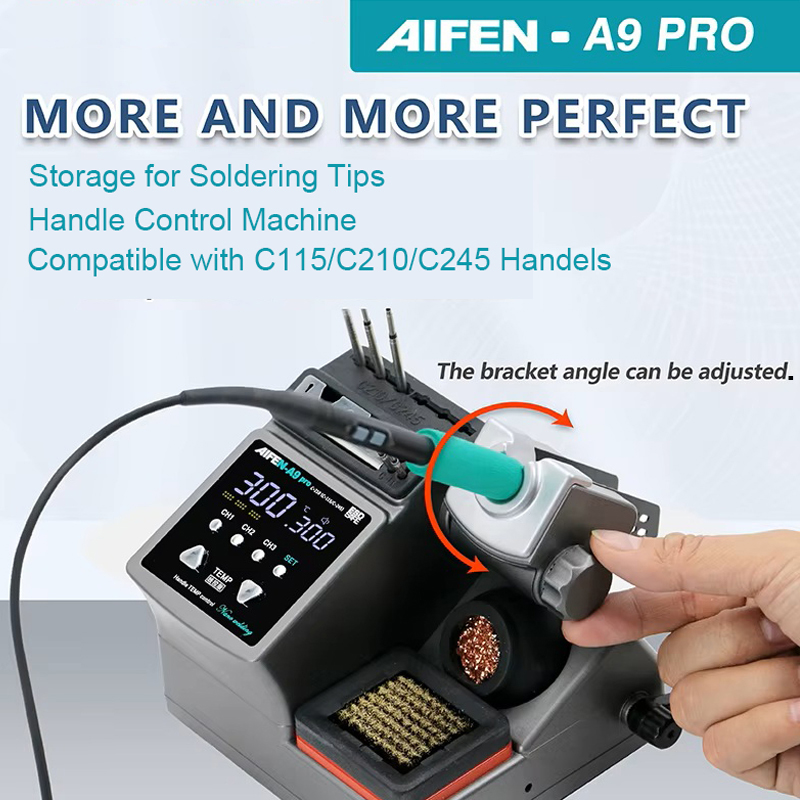

3. Angle adjustable hibernation bracket.

4. New solder head silicone organizer.

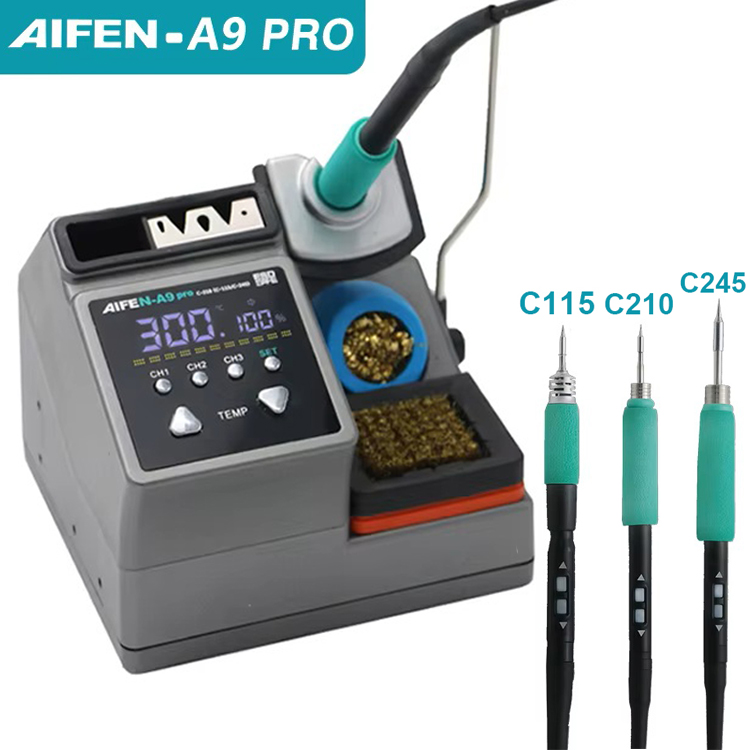

Note: AIFEN A9PRO Soldering Station supports C115 / C210 / C245 Tips.



Features:



1. The temperature control of program chips is different from traditional AC voltage temperature control, where the temperature rises quickly and accurately;



2. Automatic sleep function, when the handle is placed on the bracket, it will immediately enter a sleep state and be heated immediately after lifting;



3. The temperature compensation function automatically compensates for the temperature of the soldering iron tip during the welding process, ensuring that the soldering iron tip remains at the set temperature at all times;



4. Mechanical short circuit protection function, which automatically stops running to protect the machine when there is a short circuit;



5. There are 4 sets of backup temperatures (0, 150, 180, 200℃), and the backup temperature can be adjusted as needed;



6. Key Lock, Celsius and Fahrenheit Conversion, Buzzer and other functions.



How to choose a correct soldering handle tip according to your actual work range?

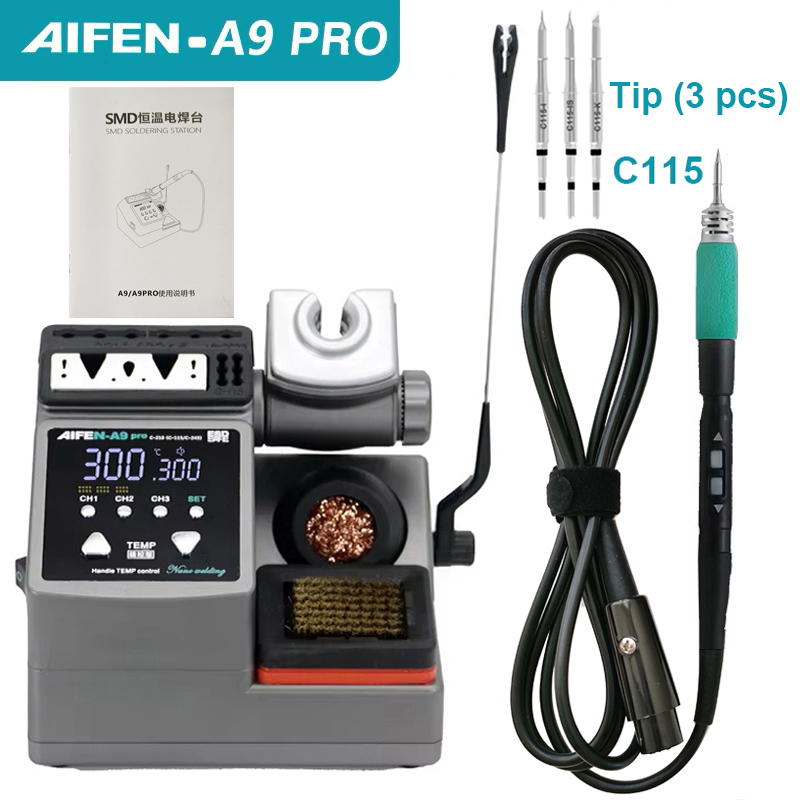

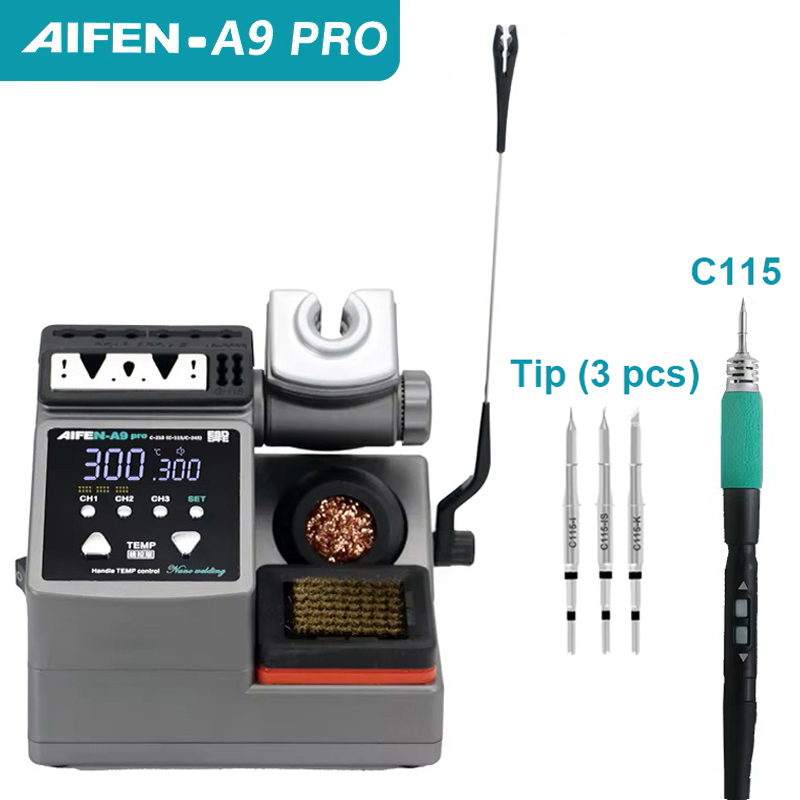

1. For processing ultra-fine circuits under the microscope, such as repairing multi-layer circuit boards, complex flying leads, etc., C115 heating core and handle can be selected, the cutter head handles small solder joints, and the pointed tip handles tiny solder joints.

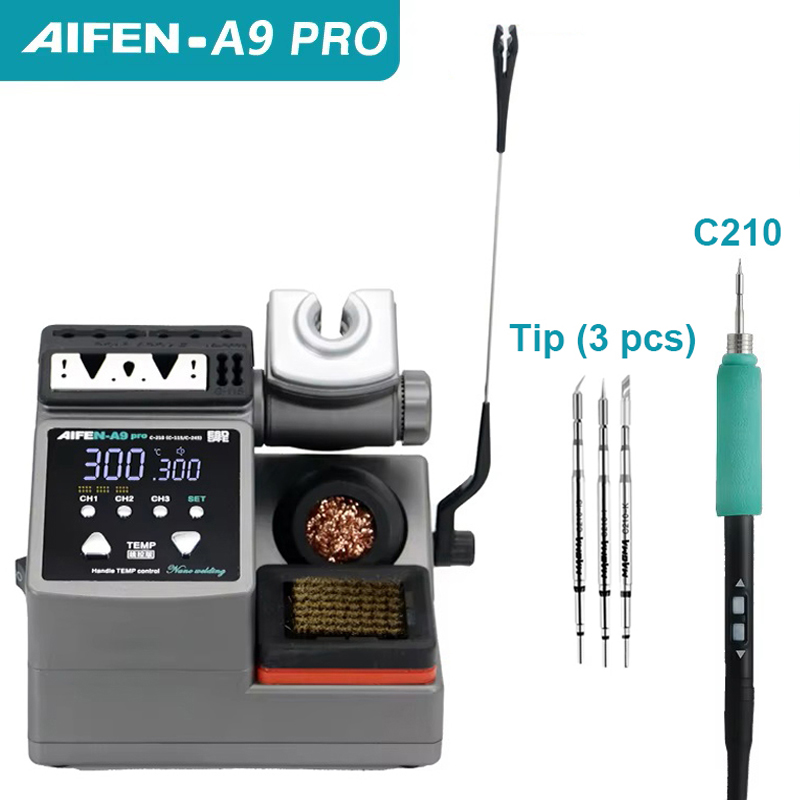

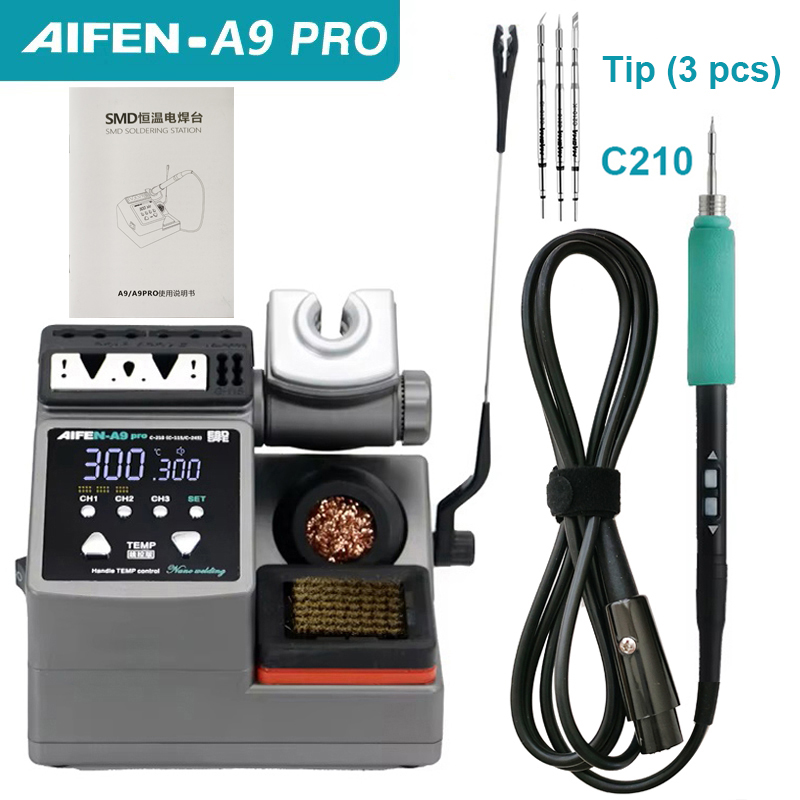

2. Repair mobile phones, car remote controls, precision small electrical appliances, cables, etc., choose C210 heating core and handle, use cutter heads for small and medium solder joints such as IC bases, and sharp tips for small flying wires and small solder joints.

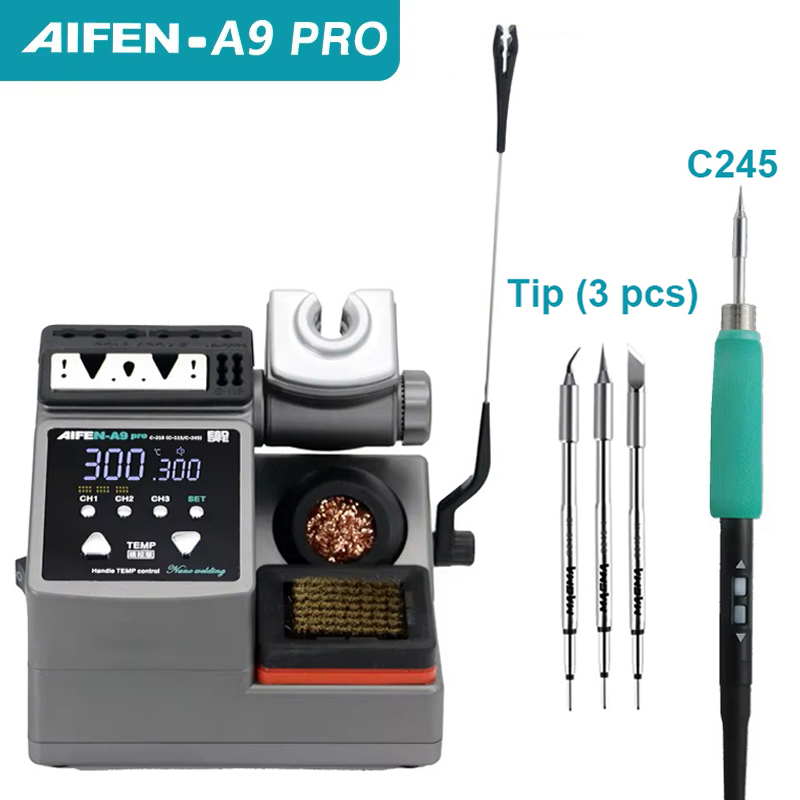

3. For home appliance maintenance, mobile phone maintenance, computer motherboards, choose high-power C245 heating cores and handles, large solder joints with a knife head, small solder joints with a pointed tip, the advantage of C245 is to take into account the size of the solder joints, high power (120W), but due to the relatively large size of the soldering iron tip, it is not easy to handle tiny solder joints.



In one word: Choose C115 for professional use in tiny solder joints, C210 for professional use in tiny and small solder joints, and C245 for both large and small solder joints.



Specifications:



Power: max. 120W

Input Voltage: universal AC 220V / AC 110V

Frequency: 50-60Hz

Temperature range: 100°C-450°C

Dimension: 24*21*17.7cm
