Name: PSA IMMO Tool for Peugeot Citroen
Description:
PSA IMMO Tool Mark Key Simulator for Peugeot Citroen from 2001 to 2018 newest PIN Code Calculator and IMMO Emulator.
With PSA IMMO Tool, you will be able to extract the pin code from PSA engines in Peugeot and Citroen cars from 2001 to today!
2 Main Functions:
1. Pin code calculation via OBD- It intercepts the signal from BSI to ECU, pin code from OBD needs working key.
2. Emulator Programming - It allows you to enter the pincode into the EMU to run the car without key
2 Modes:
Mode-1 Calculator: Connect the supplied OBD lead to car and select "Calculator", then cycle the ignition 8 times. Each time to cycle the ignition the counter will increase. On the 8th. turn the calculator will start working. Wait about 5 minutes and the security pin will be displayed on the screen.
Mode-2 Emulator: The Emulator function will just emulate a working key once the pin has been calculated. This can be useful for diagnosing problems with the security system.
Not all cars can be done via the diagnostic port, some cars require the calculator to be connected to the CAN H and L cables under the bonnet.
Basically if a CAN H and L connection is available in the diagnostic port then you will be able to use the calculator through the OBD-II port, if not then it requires a direct connection.
The calculator will work on cars from 2001 to the present days as long as its the ORIGINAL PSA engine type found in Peugeot and Citroen

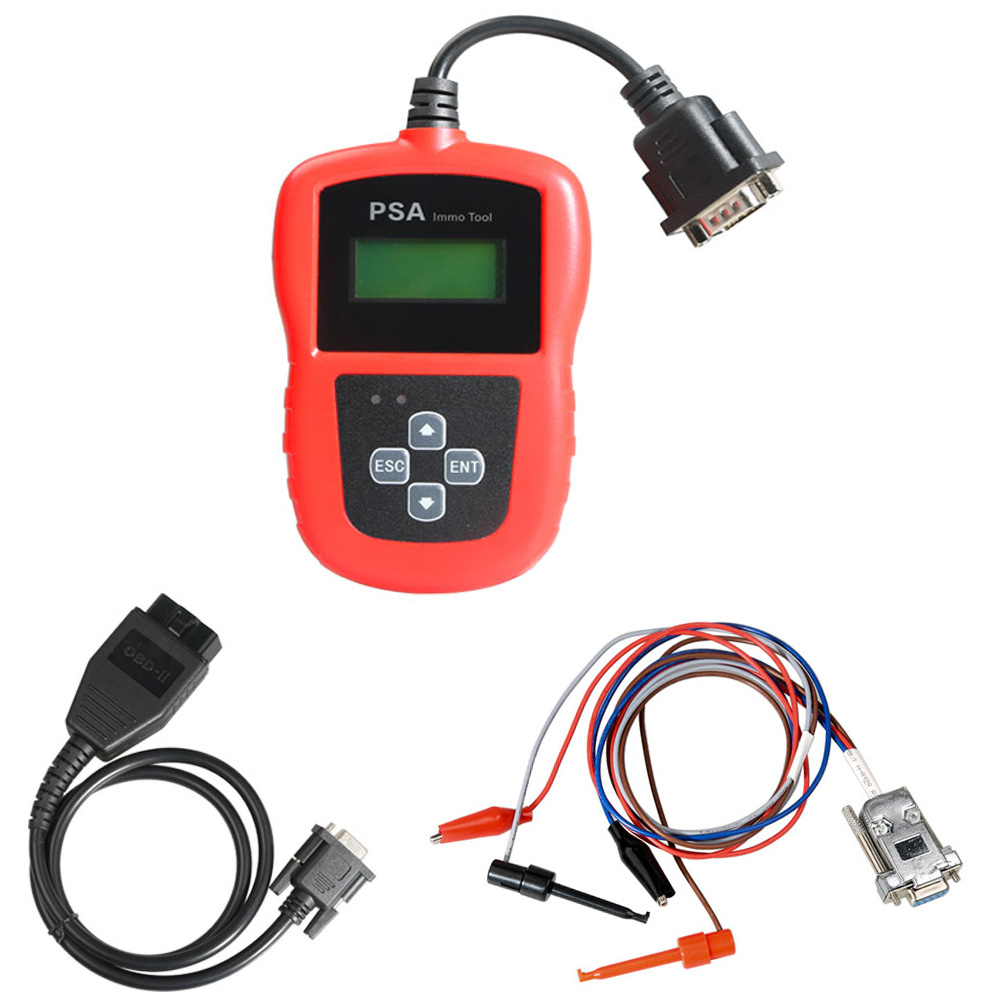

Packing List:
PSA IMMO Tool for Peugeot Citroen
OBD2 cable
CAN connection cable
Packing Box
|
