Name: BMW AT200 FC200 New Adapters Set
Description:
Each adapter of BMW AT-200 is written with the model of the corresponding ECU. You only need to insert the interface board into the corresponding interface of the ECU. If you feel that it cannot be pressed down, do not force it, or it will damage the ECU pins. See the picture below for the specific insertion position and direction.
Functions:

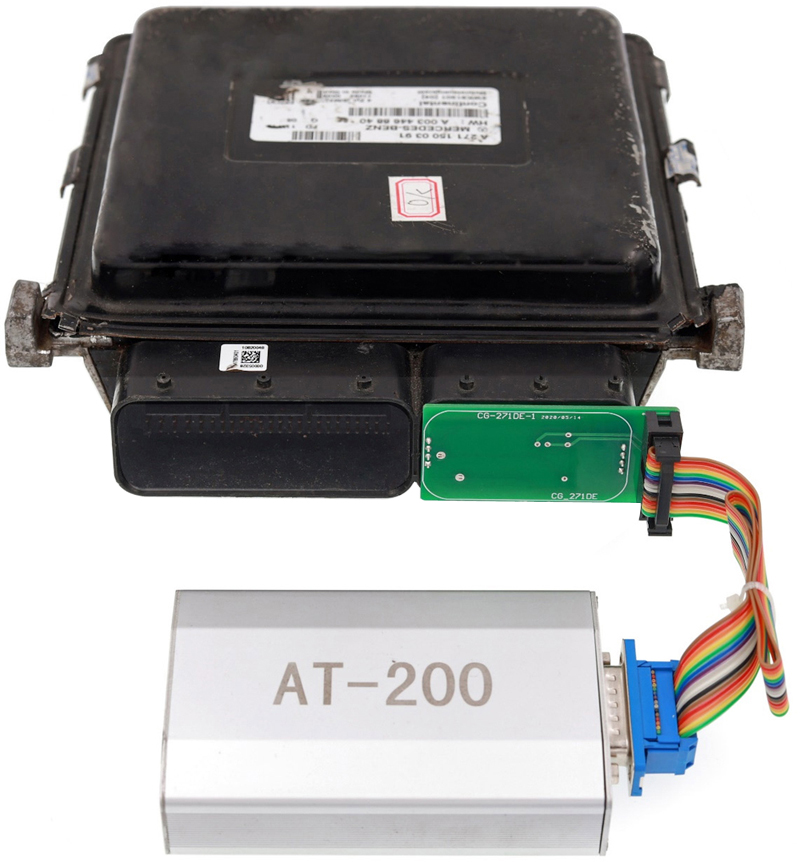

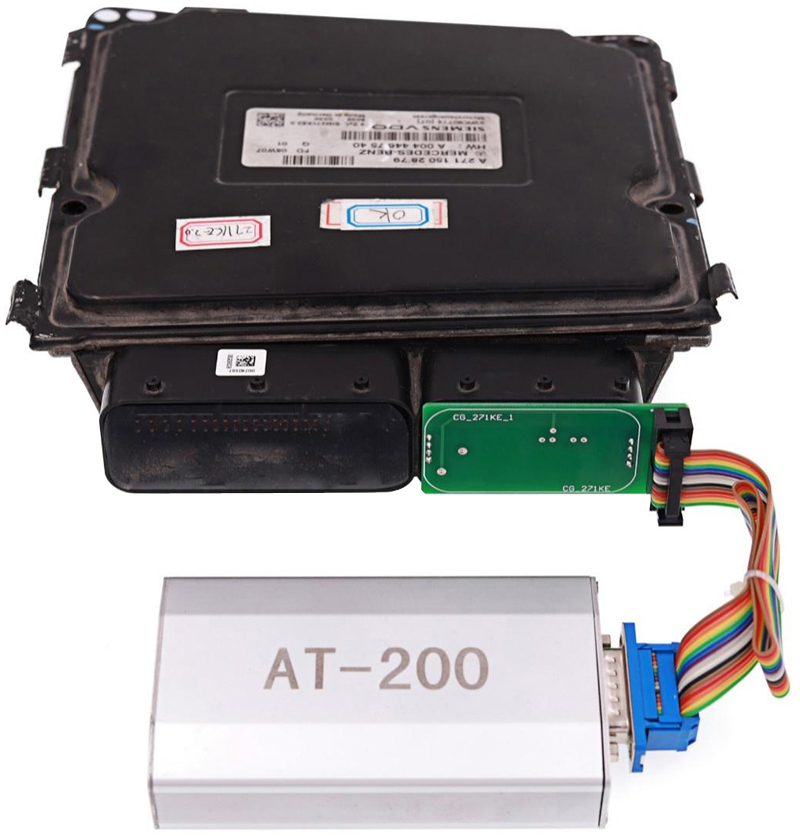

1. 271DE Adapter & 271KE Adapter:
These two adapters support the data backup and recovery functions of Mercedes-Benz SIM 271KE and SIM 271DE.

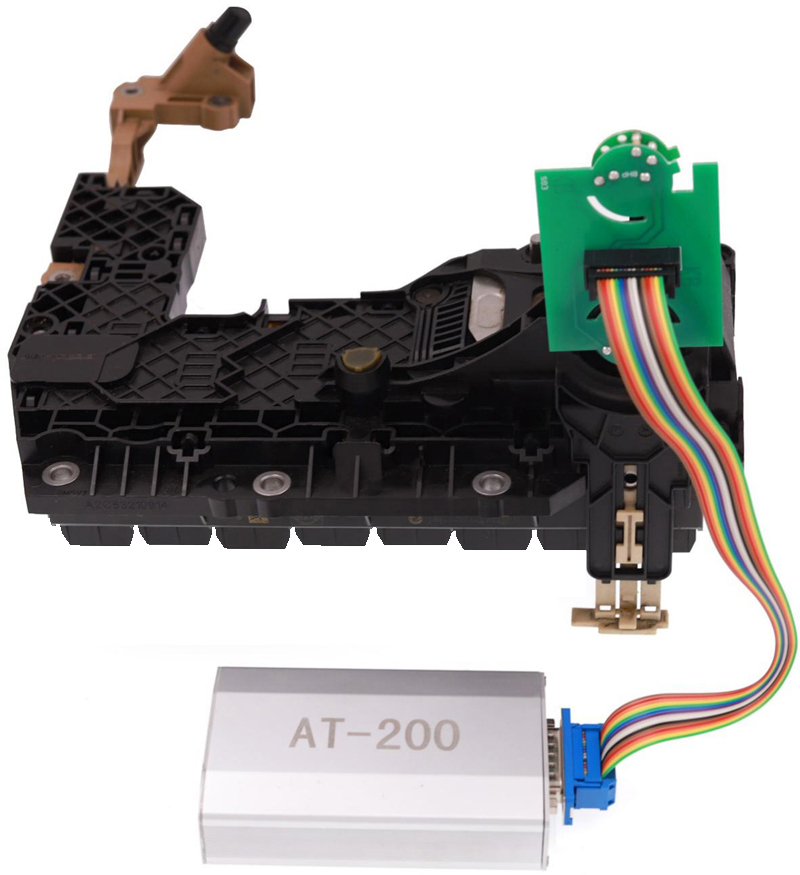

2. 6HP & 8HP Adapter:
The adapter is used for the data backup and recovery function of the 6HP and 8HP EGS of BMW models.

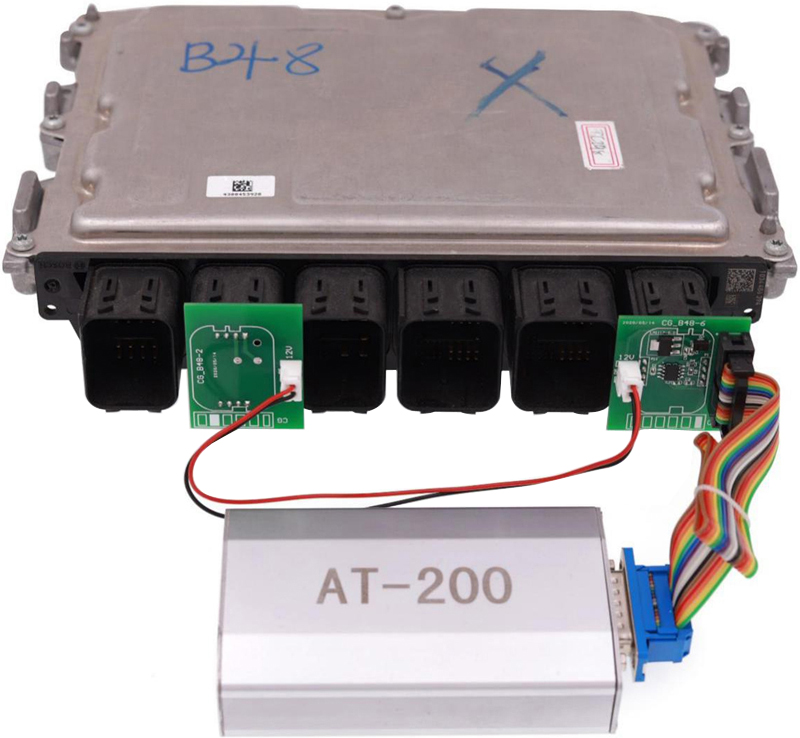

3. B48/B58 Adapter:
This adapter supports ISN reading and data reading and writing functions of BMW models: MG1CS003, MG1CS024 and MG1CS201.

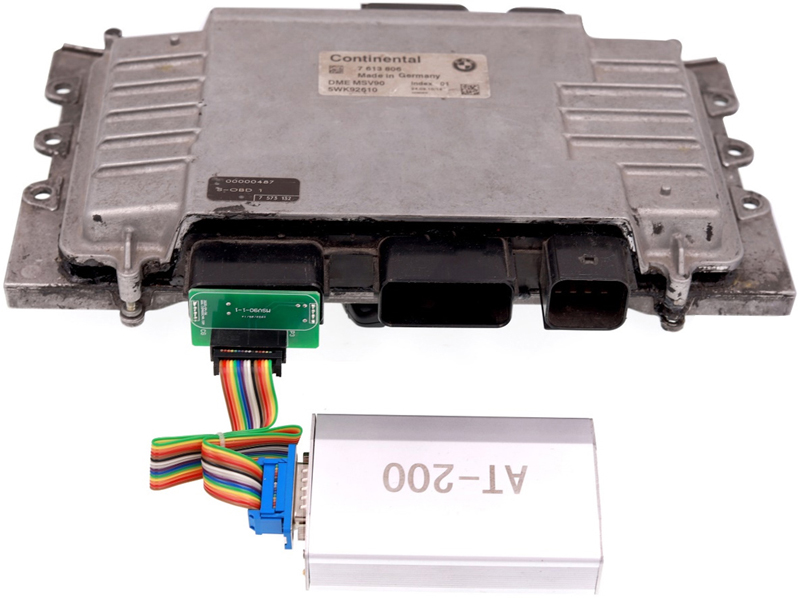

4. MSV90 Adapter:
This adapter supports ISN reading and writing and data backup and recovery of BMW MSV90.

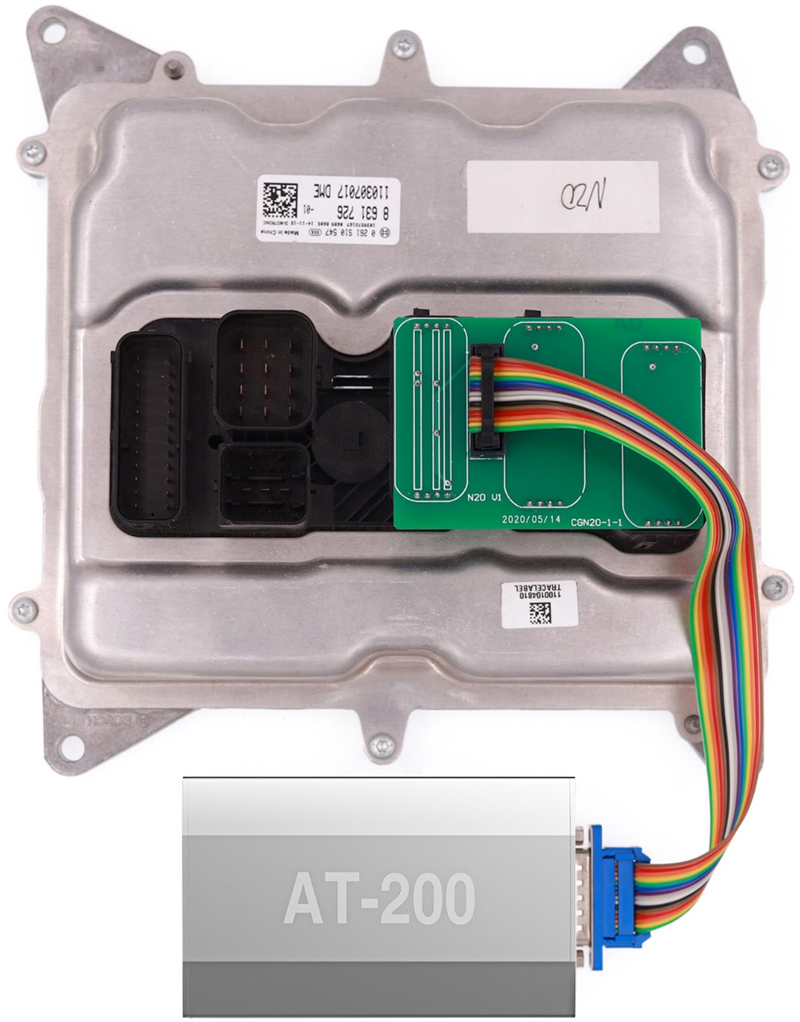

5. N20 Adapter:
This adapter supports ISN reading and writing, VIN modification and data reading and writing functions of the N20 and N13 of the F series chassis of BMW.

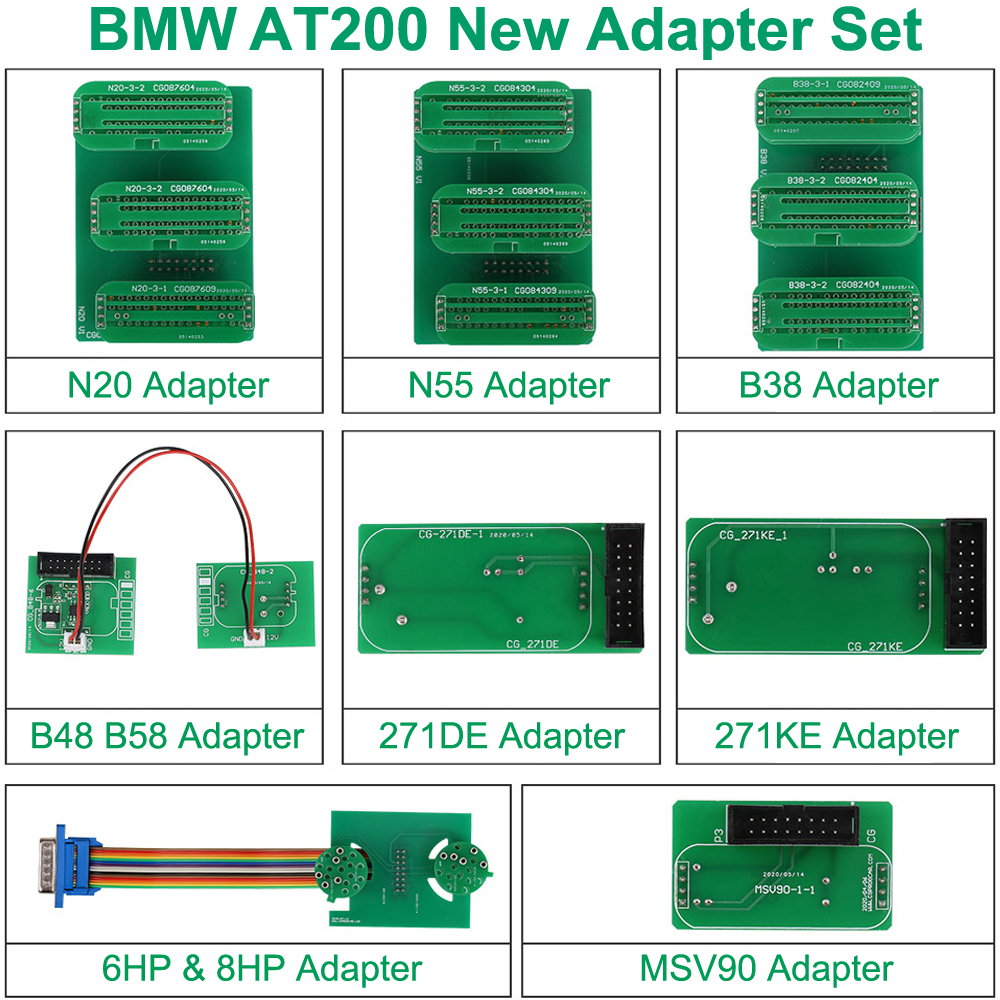

Packing List:
271DE Adapter
271KE Adapter
6HP & 8HP Adapter
B38 Adapter
B48 B58 Adapter
MSV90 Adapter
N20 Adapter
N55 Adapter
|
