Description:

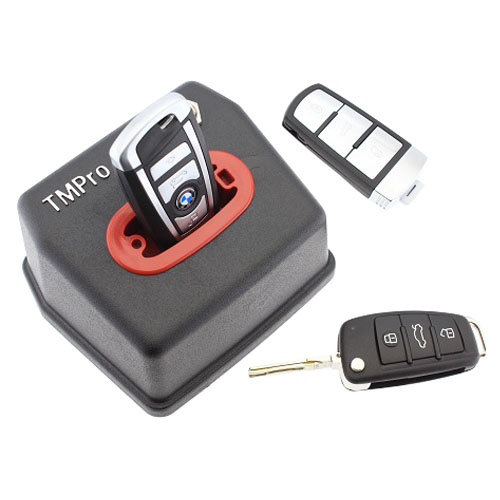

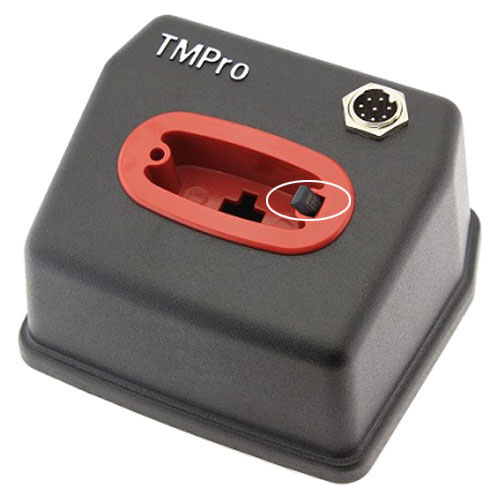

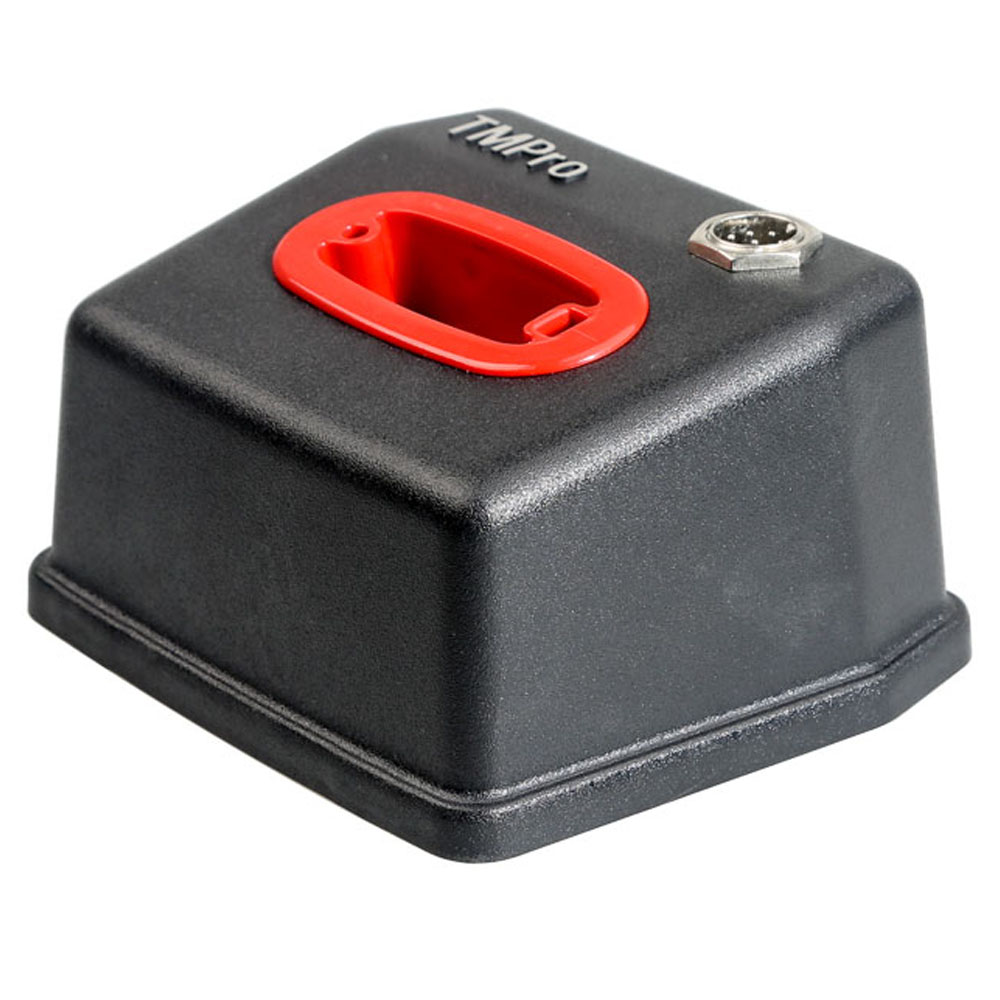

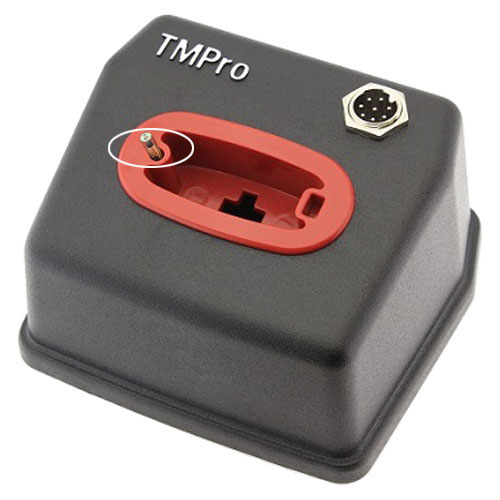

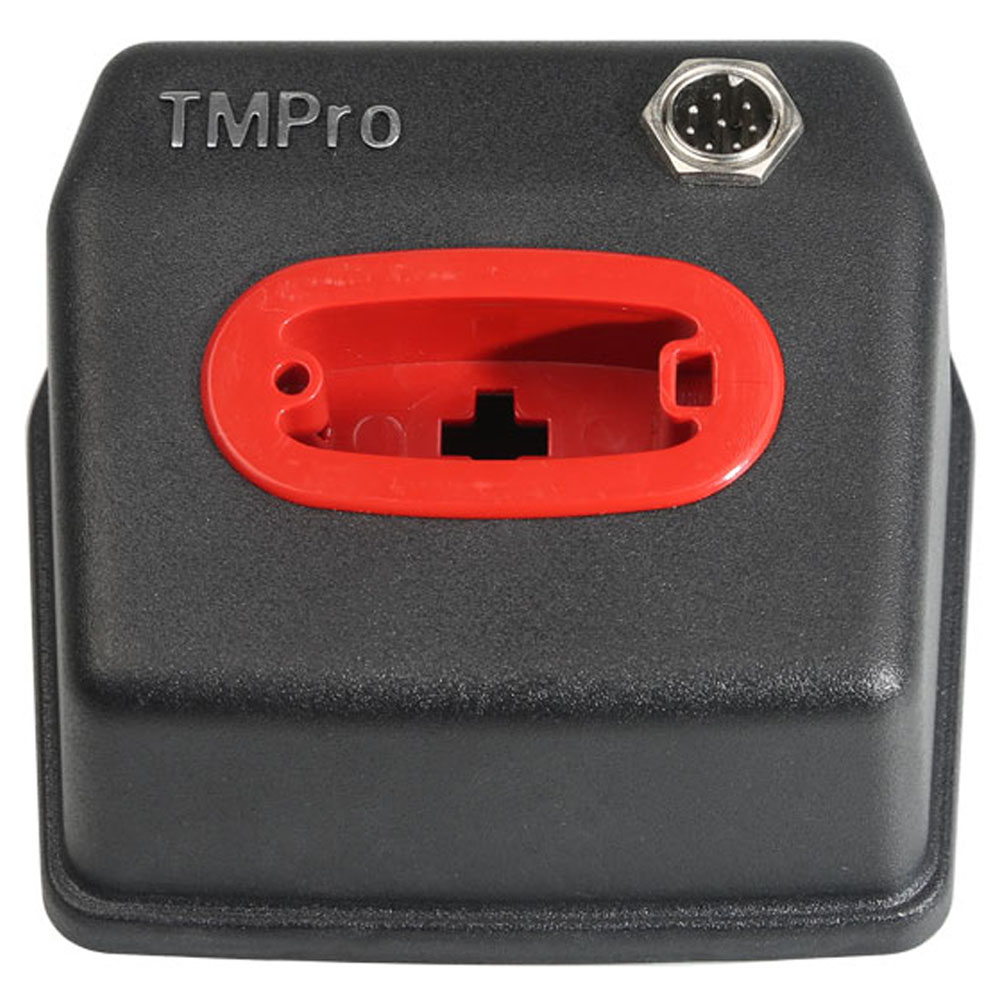

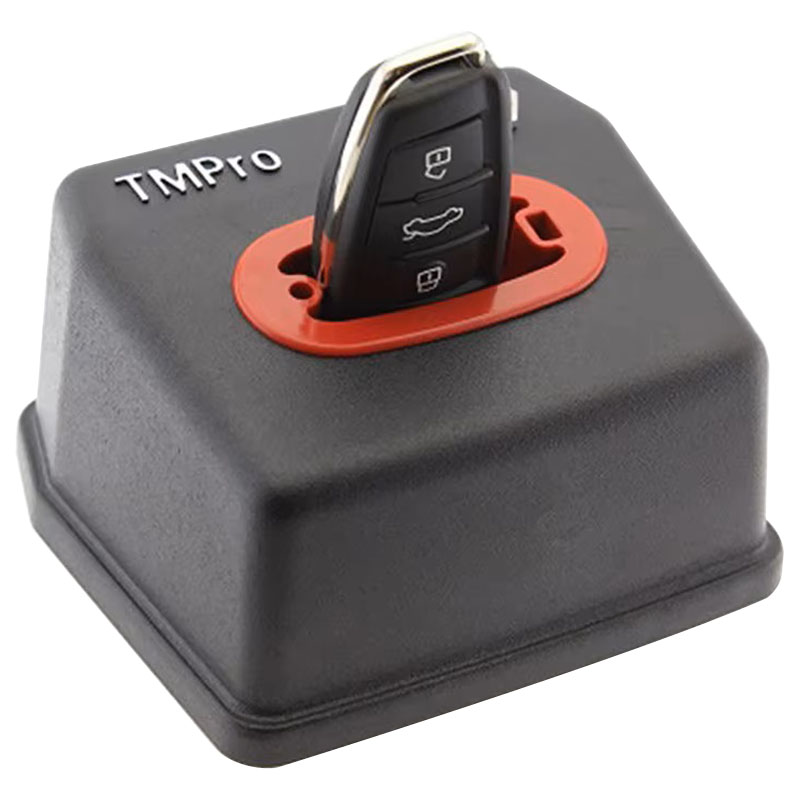

Original TMPro 2 Transponder Key Programmer Transponder Key Copier and PIN Code Calculator Basic.



Transponder Maker Pro (also known as TMPro Key Maker or TMPro2 Keymaker) is a programmer and software for transponder key making, transponder key programming, transponder key copying and PIN code / security code calculating.

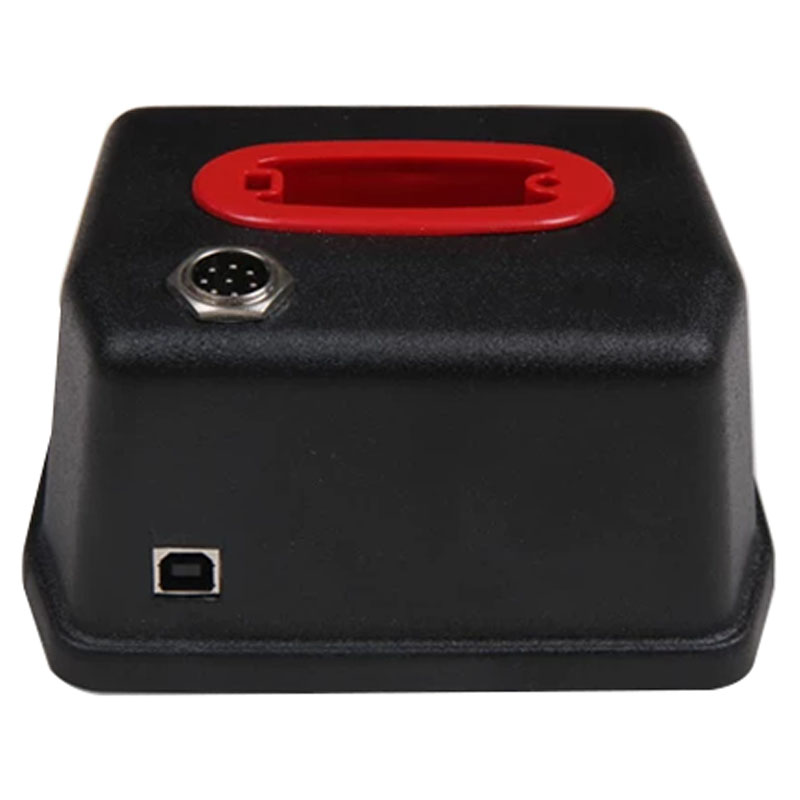

TMPro Programmer has to be connected to computer USB port, it does not require external power supply. Programmer and all software are auto-updateable to latest version available on server.



TMPro Key Maker are organized as modular software. At begining you can purchase TMPros Programmer without any additional software and use it only with main software. In the future when job comes to your workshop you can buy and add new software easily by simple software purchasing system.



TMPro2 Key Programmer works with immobilizers EEPROM dumps. You must have electronic knowledge and to know how to use soldering-desoldering tools and memory devices programmers. It is your choice what programmer you will use for reading memory devices – TMPro2 memory device programmer or other programmer. In order to program transponder you have to remove IMMO box / BSI /UCH unit from car, open it, desolder memory device or solder wires on test points, and read it. Depending of vehicle memory device can be serial EEPROM, Motorola MCU, Microchip PIC MCU, ST10F269 MCU, Texas Instruments MCU, etc. Next step is to program transponder. Last step is to solder back memory device, reassemble IMMO box / BSI / UCH and fit back to car.



Working with TMPro2 Key Programmer is easy. You must have some electronic knowledge and equipment, like soldering iron, hot air gun, multimeter, etc. Also you need to know which unit contains key data, and its location in vehicle. Remove unit from vehicle, open it and locate memory device. For some of units memory device is easy to be accessed, but for other it is not easy – you must cut a hole, dig a silicone, etc.



When type of memory device is clear, you have to see how you can read/write it.

70% of software reading and writing of memory devices can be done either by TMPro 2 Key Programmer or by other programmer.

5% of software reading and writing is mandatory to be made with TMPro2 Transponder Programmer.

25% of software for reading and writing of memory devices you must use other programmer.



Memory device depends on unit, that contains key data. Memory device can be:



* Serial EEPROM. Supported are all 93cXX, 24cXX, 25/95cXXX, X5328, S29190, X24c01, 95p08.To read or write serial eeproms, you must desolder it from board and solder on TMPro2 EEPROM Adapter. On adapter there are sockets for 3 different types – DIL, SMD and SSOP.



* Motorola 912/9S12 not locked, ST10F269 or Moric. To read or write these MCU you have to use cable with 8 stripped wires. Solder wires according to connection diagram for particular software.



* Motorola HC805P18. To read or write this Motorola you must use TMPro2 Motorola HC805P18 adapter. Desolder MCU from IMMO Box and solder it on adapter.



* Microchip PIC. To read or write Microchip PIC you must use TMPro2 PIC adapter. Solder wires according to connection diagram for particular software.

To connect adapters to TMPro2 box you must use cable for adapters.



* Motorola HC05/HC908/HC11, Motorola 9S12 locked, flash chip, TMS370C702. To read or write these memory devices you have to use other programmer.



Note:



1. Microchip PIC Adapter, EEPROM Adapter, Cable with 8 Stripped Wires and Cable for Adapters are included in basic set of TMPro2.



2. Motorola HC805P18 Adapter is not included in basic set of TMPro2. You can buy it along with basic set or at later time.



3. After all connections are done, you have to press on Select and read memory device button, select correct memory device and press OK to process with reading. After reading is done if you wish you can save file read for your archive.



In case for to read and write memory devices you use other programmer, then after memory device is read and file is saved by your programmer you have to load this file in TMPro2 by clicking on Open file button.



Supported Languages:



Bulgarian, English, French, Spanish, Portuguese, Italian, Greek, Turkish, Polish, Hungarian, Serbian, Czech, Romanian,  Chinese

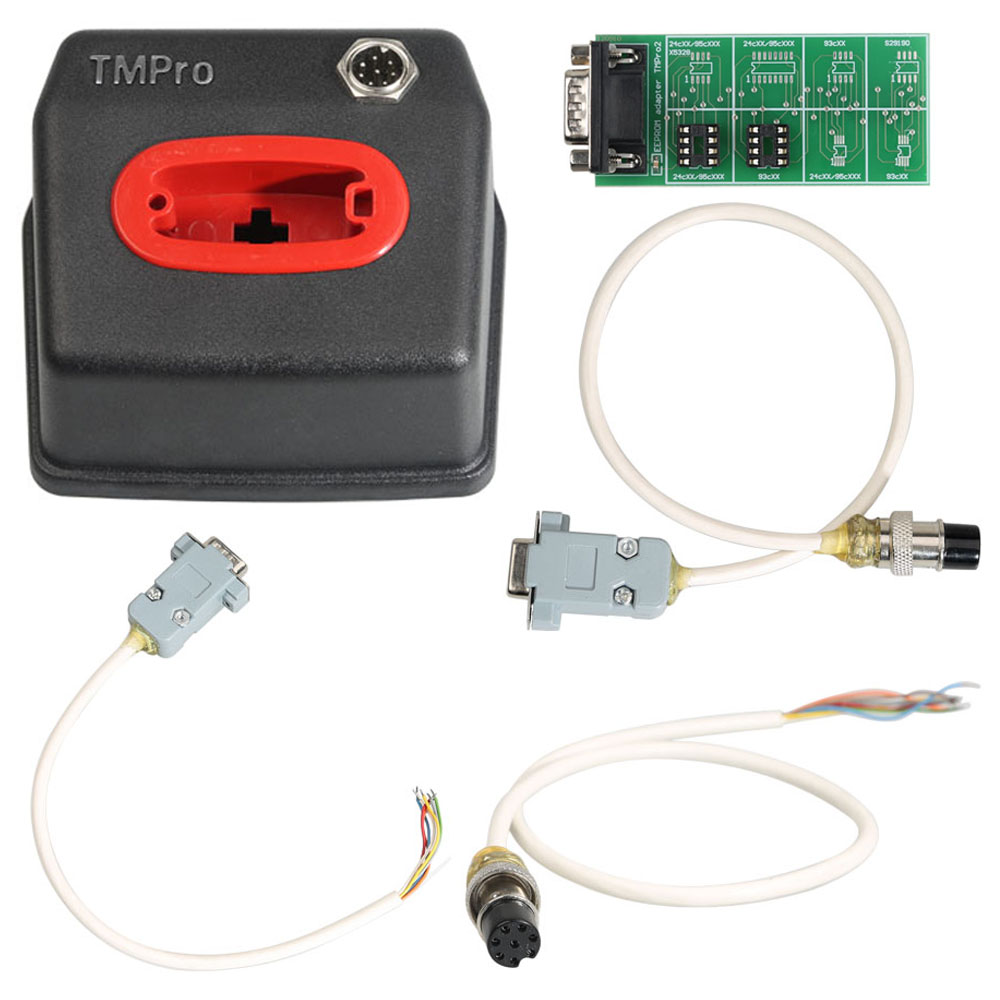

Packing List:



TMPro 2 Programmer

PIC Adapter

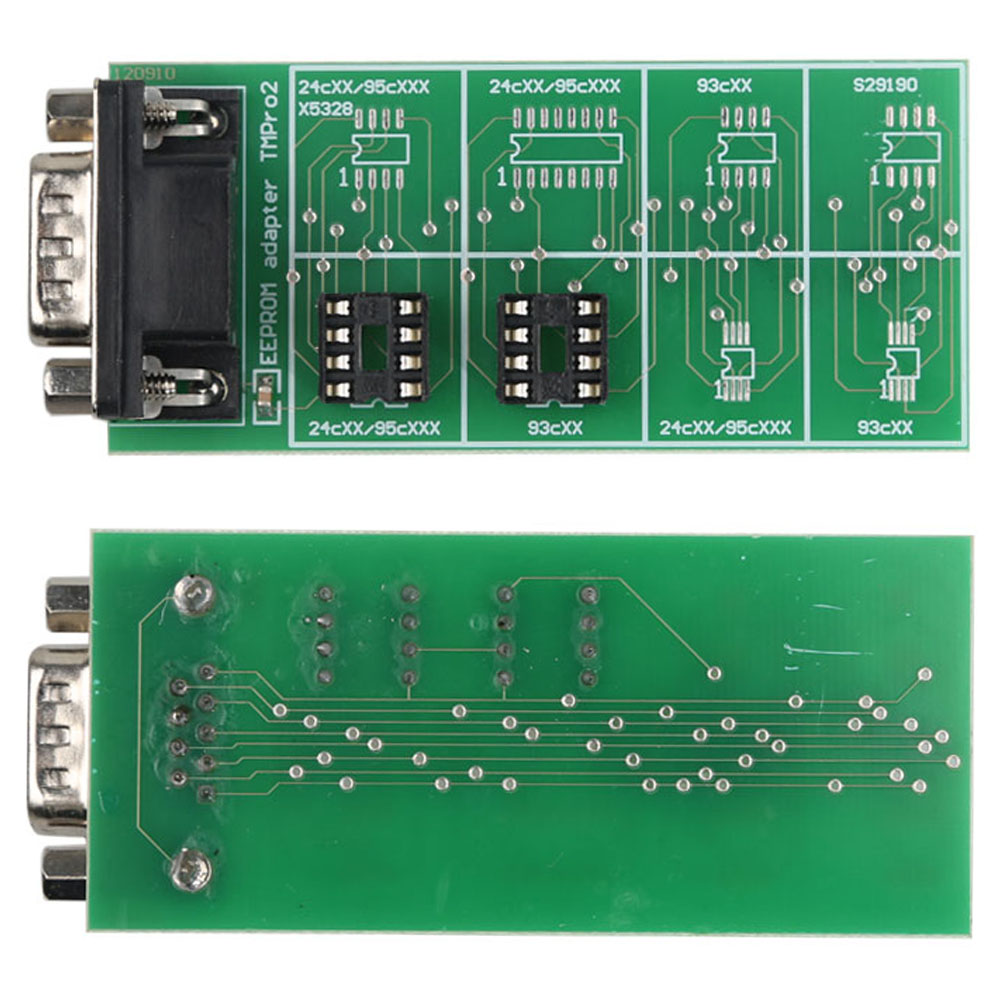

EEPROM Adapter

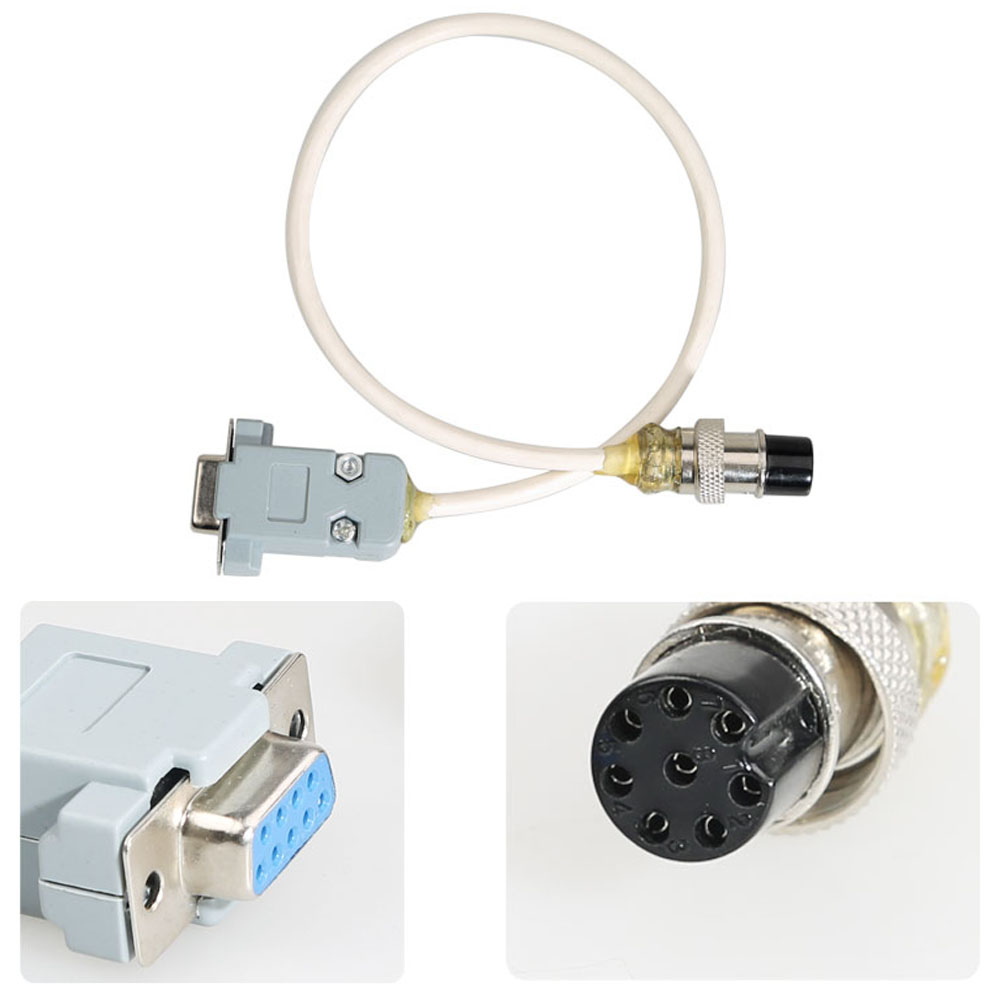

Cables (2 pcs)

Main Software

Motorola HC805P18 Adapter (used with SW 140,143,159,173,184) (optional)



TMPro 2 Spare Parts:



Motorola HC805P18 Adapter: 100 Euro

PIC Adapter: 15 Euro

EEPROM Adapter: 5 Euro

2 Cables: 8 Euro

Round 8-Pin Connector: 2 Euro



Supported Vehicle List:



Range Rover and Land Rover 2001-2010 Cars:

TMPro is FIRST tool in the world that can make key for Range Rover Sport and Land Rover LR3 with PIC18F6620 in BCM. TMPro is FIRST tool in the world that can make key for Land Rover with SAWDOC immobilizer with PIC18F252.



Using specific software 40, 174, 180, 181, 199 you can program transponder ready to start car. For Range Rover Sport or Land Rover LR3 remote part of key will be programmed and will work.



Fiat / Lancia / Peugeot / Alfa Romeo / Citroen CODE2 Cars:

Software cover all vehicles from 1999 till present, which use precoded by chassis number keys with ID44(PCF7935), ID48(Megamos Crypto) and ID46(PCF7936/PCF7946). NO MORE need to order keys from dealer and to wait for them. Using software modules 6, 7, 8, 9, 45, 48, 59, 100, 112, 118, 175, 194 software prepares chip ready programmed to start car. Software also show PIN code if you need to program keys by OBD2.



NOTE: REMOTE part for keys that use PCF7946 will be programmed and will work.



Porsche 1997-2005 Cars with PAS ALARM unit that uses ID13 or ID48 in key:

Using specific software 54 or 165 you can solve LOST KEY or make SPARE KEY very fast, no need car in your workshop, only PAS ALARM unit.



Toyota, Lexus, Subaru, Peugeot and Citroen Cars:

Use 4C, 4D-60, 4D-67, 4D-68, 4D-70, 6D-72 and 128-bit AES chips. NO MORE need to wait for resetting of IMMO Box and ECU and to use expensive dealer keys. Using specific software 52, 83, 87, 92, 153, 188 you can program transponder ready to start car.



Volvo, Mercedes, MAN, Renault, DAF, Scania, Mitsubishi Canter Fuso Trucks:

Using specific software 34, 37, 51, 53, 88, 93, 151, 170 you can solve LOST KEY problem or make SPARE KEY.



Motorbikes and Scooters:

BMW, Ducati, Yamaha, Suzuki, Kawasaki, Honda, Aprilia, Moto Guzzi, Gilera, KTM, MV Agusta, Peugeot, Piaggio There is NO tool in the world that supports more motorbikes for key making! Using specific software 25, 33, 58, 66, 67, 68, 90, 96, 97, 98, 101, 108, 109, 128, 129, 131, 168, 171, 177, 178, 182, 183, 186, 189, 191, 193, 196, 197, 198, 203, 204, 205, 206, 207, 208 (35 software total) you can solve LOST KEY problem or make SPARE KEY. For BMW, Ducati, Kawasaki and KTM there are software for keyless models. TMPro Programmer is the ONLY tool in the world that can make key for keyless BMW motorbikes.



Key Copying Software:

Allows you to copy many different key types - fixed ID11, ID12, ID13, ID33, ID4C and crypto ID41, ID42, ID44 VAG, ID45, ID46, ID4D, ID8C and ID48 for Kia and Daewoo.



Software Price List:



 SW 1 - Fiat, Lancia,Citroen, Peugeot IMMO Box Delphi - 100 Euro

 SW 2 - Fiat, Lancia IMM001-01 IMMO Box Marelli - 100 Euro

 SW 3 - Fiat, Lancia IMM110-01 IMMO Box Marelli - 100 Euro

 SW 4 - Alfa Romeo, Iveco CODE1 IMMO Box Bosch - 100 Euro

 SW 5 - Alfa Romeo CODE2 IMMO Box Bosch - 100 Euro

 SW 6 - Fiat, Lancia, Alfa Romeo BSI Marelli - 100 Euro

 SW 7 - Fiat, Lancia, Alfa Romeo BSI Delphi - 100 Euro

 SW 8 - Fiat, Citroen, Peugeot CODE2 Delphi - 100 Euro

 SW 9 - Fiat, Lancia IMM100-01 IMMO Box Marelli - 100 Euro

 SW 10 - Audi IMMO Box Delphi - 100 Euro

 SW 11 - Peugeot ,Fiat, Citroen IMMO Box Siemens - 100 Euro

 SW 12 - Peugeot, Citroen IMMO Box Valeo - 100 Euro

 SW 13 - Peugeot, Fiat, Lancia, Citroen CPH Texton - 100 Euro

 SW 14 - Peugeot 206 BSI Siemens - 100 Euro

 SW 15 - Peugeot 406 BSI Siemens - 100 Euro

 SW 16 - Daewoo IMMO Box - 100 Euro

 SW 17 - Honda, Rover IMMO Box Valeo - 100 Euro

 SW 18 - Honda, Acura IMMO Box Megamos - 100 Euro

 SW 19 - Opel IMMO1 IMMO Box Siemens - 100 Euro

 SW 20 - Opel IMMO2 IMMO Box Siemens - 100 Euro

 SW 21 - Mitsubishi IMMO Box Bosch - 100 Euro

 SW 22 - VW, Skoda, Seat IMMO1 IMMO Box Siemens - 100 Euro

 SW 23 - VW, Seat IMMO2 IMMO Box Siemens - 100 Euro

 SW 24 - VW, Seat, Ford IMMO3 IMMO Box Valeo - 100 Euro

 SW 25 - Seat, Peugeot, Piaggio bikes IMMO Box Marelli - 100 Euro

 SW 26 - Renault IMMO Box Siemens - 100 Euro

 SW 27 - Renault IMMO Box Valeo - 100 Euro

 SW 28 - Renault, Dacia IMMO Box Sagem - 100 Euro

 SW 29 - Renault BSI Valeo - 100 Euro

 SW 30 - Renault UCH Sagem - 250 Euro

 SW 31 - Renault UCH Siemens - 250 Euro

 SW 32 - Mercedes Sprinter,Vito IMMO Box Temic - 100 Euro

 SW 33 - Peugeot bike engine ECU Marelli - 100 Euro

 SW 34 - Volvo IMMO3 IMMO Box Bosch - 100 Euro

 SW 35 - Volvo CARTRONIC IMMO Box Bosch - 100 Euro

 SW 36 - Iveco Daily/Truck IMMO Box Bosch - 100 Euro

 SW 37 - Mercedes Actros, Atego engine ECU Temic - 100 Euro

 SW 38 - Opel, Isuzu IMMO Box Megamos - 100 Euro

 SW 39 - PSA VAG Opel Nissan Ford Mitsubishi new chip - 100 Euro

 SW 40 - BMW, Rover, Mini IMMO Box EWS - 100 Euro

 SW 41 - Mazda IMMO Box Temic - 100 Euro

 SW 42 - Mazda IMMO Box Lucas 19AS - 100 Euro

 SW 43 - Nissan, Subaru IMMO Box Siemens - 100 Euro

 SW 44 - Renault UCH Sagem type 2 - 100 Euro

 SW 45 - Fiat, Citroen,Peugeot, Iveco BSI Marelli type 2 - 250 Euro

 SW 46 - Volvo IMMO1 IMMO Box Bosch - 100 Euro

 SW 47 - Saab body TWICE - 200 Euro

 SW 48 - Fiat New Panda BSI Siemens VDO - 250 Euro

 SW 49 - Opel, Isuzu IMMO Box Megamos type 2 - 100 Euro

 SW 50 - Jaguar IMMO Box - 100 Euro

 SW 51 - Renault IMMO Box Texton - 200 Euro

 SW 52 - Toyota IMMO Box ID33 - 100 Euro

 SW 53 - MAN TGA FFR - 200 Euro

 SW 54 - Porsche body ID13 - 150 Euro

 SW 55 - GM Passkey3 IMMO Box Delphi - 100 Euro

 SW 56 - Acura IMMO Box - - 100 Euro

 SW 57 - Renault UCH Johnson Controls type 1 - 100 Euro

 SW 58 - Ducati bikes dashboard Marelli - 200 Euro

 SW 59 - Fiat Grande Punto BSI Delphi - 250 Euro

 SW 60 - Polonez IMMO Box Megamos - 100 Euro

 SW 61 - Tata Safari IMMO Box Alltech - 150 Euro

 SW 62 - Key copier for ID11,ID12,ID13 and ID33 fixed keys - 100 Euro

 SW 63 - Key copier for ID33,ID41,ID42,ID44 VAG and ID45 keys - 100 Euro

 SW 64 - Key copier for 4C Texas fixed keys - 100 Euro

 SW 65 - Key copier for 4D Texas crypto keys - 150 Euro

 SW 66 - Yamaha bikes IMMO Box Moric - 250 Euro

 SW 67 - Suzuki bikes engine ECU Denso - 250 Euro

 SW 68 - Kawasaki bikes engine ECU Denso - 250 Euro

 SW 69 - Mazda 3 dashboard YNS - 100 Euro

 SW 70 - Ford Focus dashboard Visteon - 100 Euro

 SW 71 - Jaguar dashboard - 100 Euro

 SW 72 - Ford engine ECU Delphi - 100 Euro

 SW 73 - Ford engine ECU EEC5 - 100 Euro

 SW 74 - Ford,Mazda engine ECU Siemens - 100 Euro

 SW 75 - Ford Galaxy IMMO Box - 100 Euro

 SW 76 - Chrysler IMMO Box SKIM - 100 Euro

 SW 77 - KIA IMMO Box Shinchang - 100 Euro

 SW 78 - Suzuki IMMO Box Mitsubishi - 100 Euro

 SW 79 - Renault Megane IMMO Box Siemens - 100 Euro

 SW 80 - Renault Megane UCH Siemens - 100 Euro

 SW 81 - Mazda 6 engine ECU Denso - 100 Euro

 SW 82 - Mazda 6 engine ECU Mitsubishi - 100 Euro

 SW 83 - Toyota Avensis IMMO Box Valeo with ID4D - 100 Euro

 SW 84 - Ford Transit 2008 BCM Siemens VDO - 100 Euro

 SW 85 - SsangYong IMMO Box VDO - 200 Euro

 SW 86 - Chery, Samand IMMO Box Siemens VDO - 200 Euro

 SW 87 - Toyota, Lexus ECU Bosch,Fujitsu,Denso - 200 Euro

 SW 88 - Scania truck Coordinator - 250 Euro

 SW 89 - Mazda RX8 IMMO Box Visteon - 100 Euro

 SW 90 - Yamaha scooter ECU Mitsuba - 100 Euro

 SW 91 - Opel, Isuzu IMMO Box Tokai Rika - 100 Euro

 SW 92 - Toyota, Suzuki, Daihatsu IMMO Box ID4C - 100 Euro

 SW 93 - DAF truck IMMO Box VDO - 200 Euro

 SW 94 - Renault UCH Johnson Controls type 2 - 200 Euro

 SW 95 - Jeep IMMO Box Daimler-Chrysler - 200 Euro

 SW 96 - Honda bikes ECU Keihin,OKI - 250 Euro

 SW 97 - Suzuki scooter ECU Keihin - 100 Euro

 SW 98 - Aprilia scooter dashboard Digitek - 100 Euro

 SW 99 - Mitsubishi,Suzuki IMMO Box ID4C type 2 - 100 Euro

 SW 100 - Fiat dashboard Marelli,VDO - 250 Euro

 SW 101 - Ducati bikes dashboard Digitek - 150 Euro

 SW 102 - Samand, Saipa, Chery, Mazda new chip - 200 Euro

 SW 103 - Texas Crypto new chip - 200 Euro

 SW 104 - Honda, Acura IMMO Box Valeo ID46 - 200 Euro

 SW 105 - Honda IMMO Box HIS-5 ID48 - 200 Euro

 SW 106 - Mazda 6 diesel ECU Denso - 100 Euro

 SW 107 - Hyundai, Kia engine ECU Kefico, Bosch - 200 Euro

 SW 108 - Yamaha bikes IMMO Box Moric type 2 - 500 Euro

 SW 109 - BMW bikes engine ECU Bosch - 250 Euro

 SW 110 - Smart, Mitsubishi ETACS Siemens VDO - 250 Euro

 SW 111 - Saab column CIM - 250 Euro

 SW 112 - Fiat, Lancia, PSA BSI Marelli type 3 - 250 Euro

 SW 113 - Daewoo, Chevrolet IMMO Box ID48 - 100 Euro

 SW 114 - Mitsubishi IMMO Box ID46 - 200 Euro

 SW 115 - Chevrolet BSI Siemens - 200 Euro

 SW 116 - Isuzu IMMO Box Siemens VDO - 200 Euro

 SW 117 - Chevrolet, Opel IMMO Box ID46 - 200 Euro

 SW 118 - Alfa Romeo,Fiat key reader - 250 Euro

 SW 128 - Gilera, Piaggio bikes engine ECU EFI - 200 Euro

 SW 129 - KTM bikes IMMO Box ZADI - 250 Euro

 SW 130 - BMW, MINI CAS Siemens VDO - 400 Euro

 SW 131 - Gilera, Piaggio bikes engine ECU Marelli - 200 Euro

 SW 132 - Nissan Sunny dashboard - 200 Euro

 SW 133 - Citroen Xantia CPH Texton ID48 - 200 Euro

 SW 134 - Renault Twingo 2 UCH Temic - 200 Euro

 SW 135 - Subaru IMMO Box Mitsubishi - 100 Euro

 SW 136 - Ford BSI Delphi - 100 Euro

 SW 137 - GM Passkey3+ IMMO Box Delphi ID48 - 200 Euro

 SW 138 - GM Passkey IMMO Box ID46 - 200 Euro

 SW 139 - SsangYong, Proton engine ECU VDO - 200 Euro

 SW 140 - KIA IMMO Box Texton ID13 - 100 Euro

 SW 141 - Suzuki Liana IMMO Box - 200 Euro

 SW 142 - Ford engine ECU Siemens,EEC5 - 100 Euro

 SW 143 - Mitsubishi, Subaru IMMO Box Mitsubishi ID4D - 250 Euro

 SW 144 - Renault UCH Johnson Controls type 3 - 200 Euro

 SW 145 - Key copier onto JMA TPX3/4 transponder - 200 Euro

 SW 146 - VW Audi Seat Skoda dealer key - 200 Euro

 SW 147 - Kia IMMO Box Texton ID48 - 100 Euro

 SW 148 - Mercedes C,E,G masterchip ID44 - 200 Euro

 SW 149 - VW Passat 3C (B6/CC) - 400 Euro

 SW 150 - VW Audi Seat Skoda CAN dashboard VDO - 250 Euro

 SW 151 - Renault truck IMMO Box Delphi ID46 - 200 Euro

 SW 152 - VW Audi Seat Skoda new key CAN - 200 Euro

 SW 153 - Toyota,Lexus IMMO Box ID4D-67,68,70 - 250 Euro

 SW 154 - Hana Benni IMMO Box and ECU ID4D - 100 Euro

 SW 155 - VAG, Porsche KESSY Siemens-VDO - 250 Euro

 SW 156 - Volvo CEM ID48 with flash chip - 250 Euro

 SW 157 - Texas Crypto 4D-63,4D-64,6D-72 new chip - 100 Euro

 SW 158 - Mitsubishi Grandis IMMO Box - 200 Euro

 SW 159 - Honda engine ECU ID48 - 250 Euro

 SW 160 - Mitsubishi Outlander IMMO Box - 200 Euro

 SW 161 - Proton Savvy IMMO Box - 100 Euro

 SW 162 - Kawasaki JetSki Ultra engine ECU ID4D - 250 Euro

 SW 163 - Suzuki engine ECU ID46 - 200 Euro

 SW 164 - Jaguar S-type dashboard ID4D - 100 Euro

 SW 165 - Porsche body PAS with ID48 - 700 Euro

 SW 166 - Huyndai, Kia IMMO Box Shin Chang ID4D - 100 Euro

 SW 167 - Opel Astra J, Chevrolet Cruze BCM ID46 - 400 Euro

 SW 168 - Peugeot JetForce dashboard - 100 Euro

 SW 169 - Daihatsu, Perodua IMMO Box Tokai-Rika ID4D-67 - 250 Euro

 SW 170 - Mitsubishi Canter Fuso IMMO Box Tokai-Rika - 400 Euro

 SW 171 - MV Agusta bikes dashboard - 250 Euro

 SW 172 - Chevrolet IMMO Box Shin Chang ID4D - 200 Euro

 SW 173 - Honda engine ECU ID13 - 100 Euro

 SW 174 - Land Rover IMMO Box SAWDOC - 400 Euro

 SW 175 - Fiat BSI Marelli type 5 - 250 Euro

 SW 176 - Volvo CEM Delphi with ID46 - 400 Euro

 SW 177 - Ducati bikes dashboard MAE electronics - 800 Euro

 SW 178 - Ducati bikes handsfree ZADI - 800 Euro

 SW 179 - Jaguar IMMO Box ID48 - 250 Euro

 SW 180 - Unlocking PIC18F252 used in Land Rover IMMO Box SAWDOC - 500 Euro

 SW 181 - Land Rover Discovery 3 (LR3),Range Rover Sport CEM - 900 Euro

 SW 182 - Ducati Panigale IMMO Box ZADI - 500 Euro

 SW 183 - KTM bikes IMMO Box ZADI type 2 - 500 Euro

 SW 184 - Mazda, Ford, Proton IMMO Box Lucas,Mitsubishi - 300 Euro

 SW 185 - Key copier onto Temic Crypto TK5561 transponder - 100 Euro

 SW 186 - BMW C600 C650, Husqvarna Nuda dashboard - 1200 Euro

 SW 187 - Daewoo, Kia key copier onto TS48 transponder -  100 Euro

 SW 188 - Toyota, Lexus SMART key unit Denso - 900 Euro

 SW 189 - Ducati Hypermotard 2013 dashboard MAE - 700 Euro

 SW 190 - Subaru BCM Mitsubishi - 1000 Euro

 SW 191 - BMW bike 2012 IMMO Box EWS - 1200  Euro

 SW 192 - Ducati 821 dashboard MTA - 700 Euro

 SW 193 - Ducati 1200 dashboard COBO - 700 Euro

 SW 194 - Fiat IMM009.10 IMMO Box Marelli - 250 Euro

 SW 195 - Great Wall IMMO Box Delphi - 250 Euro

 SW 196 - Kawasaki GTR1400 switch Asahi-Denso - 500 Euro

 SW 197 - Ducati Scrambler dashboard - 700 Euro

 SW 198 - BMW bikes handsfree unit HUF - 1200 Euro

 SW 199 - Range Rover Vogue IMMO Box - 100 Euro

 SW 200 - VAG, Porsche KESSY Continental - 1000 Euro

 SW 201 - Fiat BSI Continental type 1 - 600 Euro

 SW 202 - Fiat BSI Continental type 2 - 600 Euro

 SW 203 - Aprilia Caponord dashboard - 150 Euro

 SW 204 - KTM bikes handsfree ZADI - 800 Euro

 SW 205 - Ducati Multistrada dashboard MAE - 700 Euro

 SW 206 - MV Agusta Veloce dashboard COBO - 700 Euro

 SW 207 - Aprilia Dashboard COBO - 200 Euro

 SW 208 - Moto Guzzi dashboard - 200 Euro
